Diaphragm valve
Diaphragm valves are mainly block valves that use elastic diaphragm rubber or PTFE as opening and closing components and sealing components. The valve body is ridge type (weir type), and the ridge and diaphragm form the valve seal. The diaphragm is fixed around the periphery and divides the valve chamber into two parts that are not connected to each other. Below the diaphragm is a fluid channel. The valve disc, valve stem, valve cover and other parts are located on the upper part of the diaphragm, isolated from the fluid and not corroded by the fluid, while also preventing impurities such as rust from contaminating the fluid. Diaphragm valves do not require packing boxes and can achieve zero leakage of the medium. The diaphragm material is mainly made of rubber and fluoroplastic. The diaphragm valves produced by Shanghai Meiyanyi Pump Valve are particularly suitable for corrosive fluids and fluids that require cleanliness, such as acetic acid, synthetic fiber raw materials, and boiler softened water. There are mainly various models and specifications of manual diaphragm valves, pneumatic diaphragm valves, electric diaphragm valves, Y-shaped straight through (DC) diaphragm valves, sanitary grade special diaphragm valves, vacuum diaphragm valves, etc. The following product pictures are for selection reference only.
-

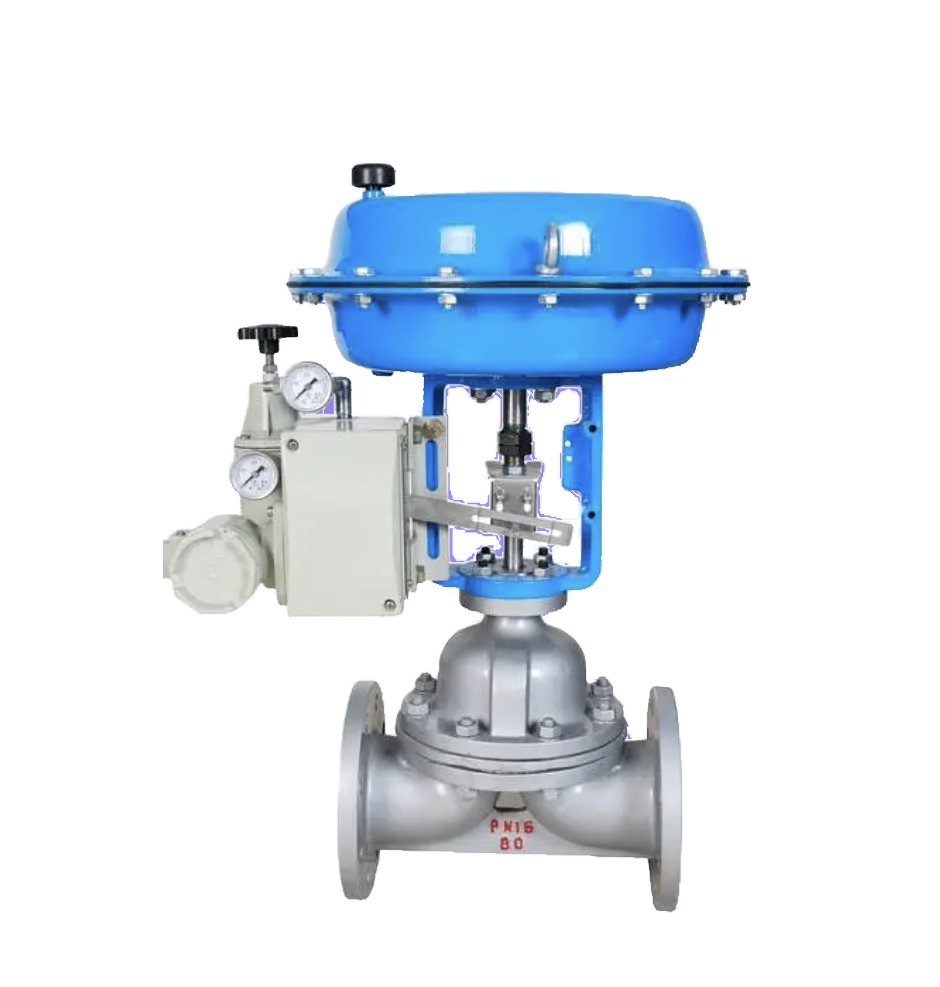

Pneumatic Diaphragm Valve
Pneumatic diaphragm valves mainly consist of angular stroke pneumatic valve actuators, pneumatic triplets, solenoid valves, and diaphragm valves. Pneumatic actuators are generally divided into diaphragm and piston types. The control system controls the air source pressure in the upper and lower chambers of the cylinder through solenoid valves to push the valve stem up and down and control the gap between the diaphragm valve diaphragm and the middle passage, achieving valve opening and closing. The pneumatic diaphragm valve produced by Shanghai Meiyanyi Pump Valve is a special form of shut-off valve, whose opening and closing parts are diaphragms made of soft materials, used to close the flow channel, cut off the fluid, and separate the inner cavity of the valve body and the inner cavity of the valve cover. The advantages of pneumatic diaphragm valves include simple structure, good sealing and anti-corrosion performance, suitable for low pressure, low temperature, highly corrosive and suspended substance containing media.View details>>
-

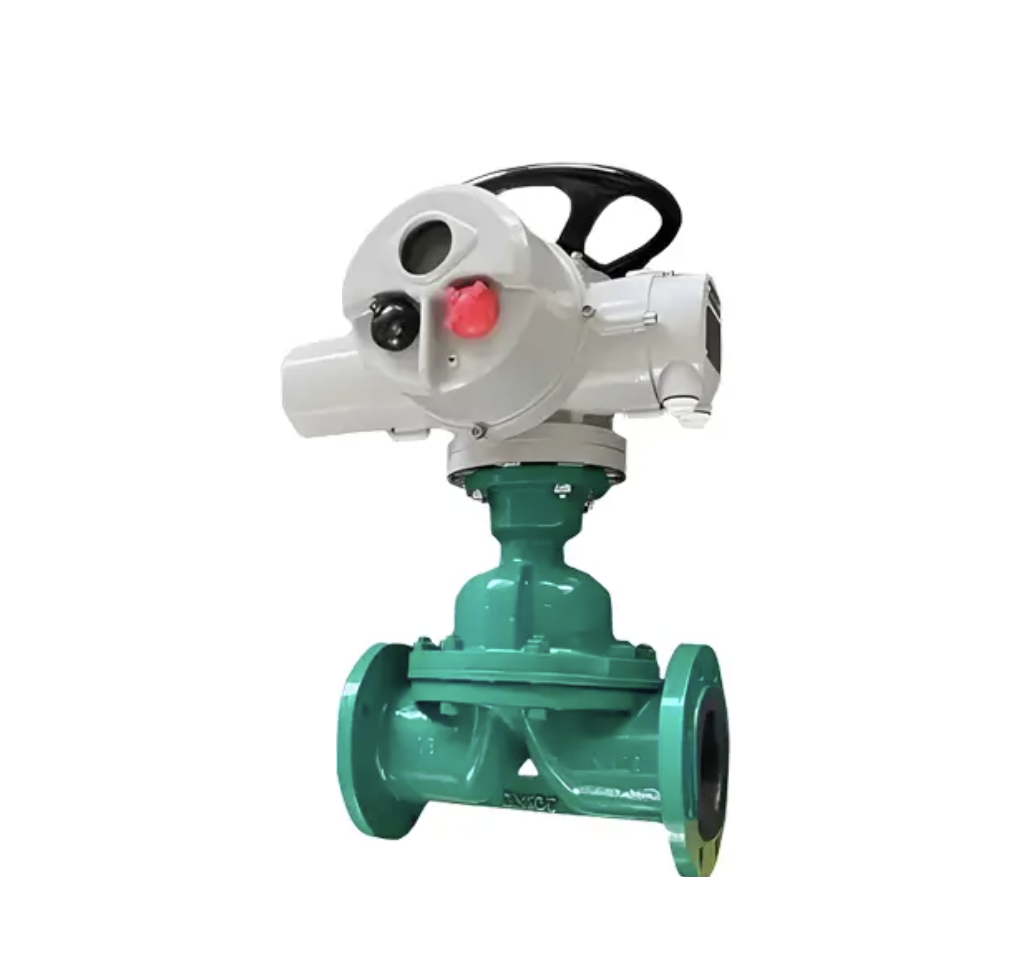

Electric Diaphragm Valve
Electric diaphragm valve refers to an electric control valve composed of an electric valve actuator and a diaphragm valve. The electric valve actuator can be selected from multi turn and intelligent types. The main components of the diaphragm valve include the valve body, diaphragm, and valve cover. The valve body material is usually made of plastic, fiberglass, ceramic or metal lined rubber materials, while the diaphragm is commonly made of elastic, corrosion-resistant, non permeable materials such as rubber and PTFE. The structural feature of the electric diaphragm valve produced by Shanghai Meiyanyi Pump Valve is that its operating actuator is separated from the medium passage, which not only ensures the purity of the working medium, but also prevents the possibility of the medium in the pipeline impacting the working parts of the operating mechanism. In addition, the diaphragm and valve body of the diaphragm valve can be made of various materials, allowing it to control multiple working media, especially suitable for media with chemical corrosiveness or suspended particles.View details>>
-

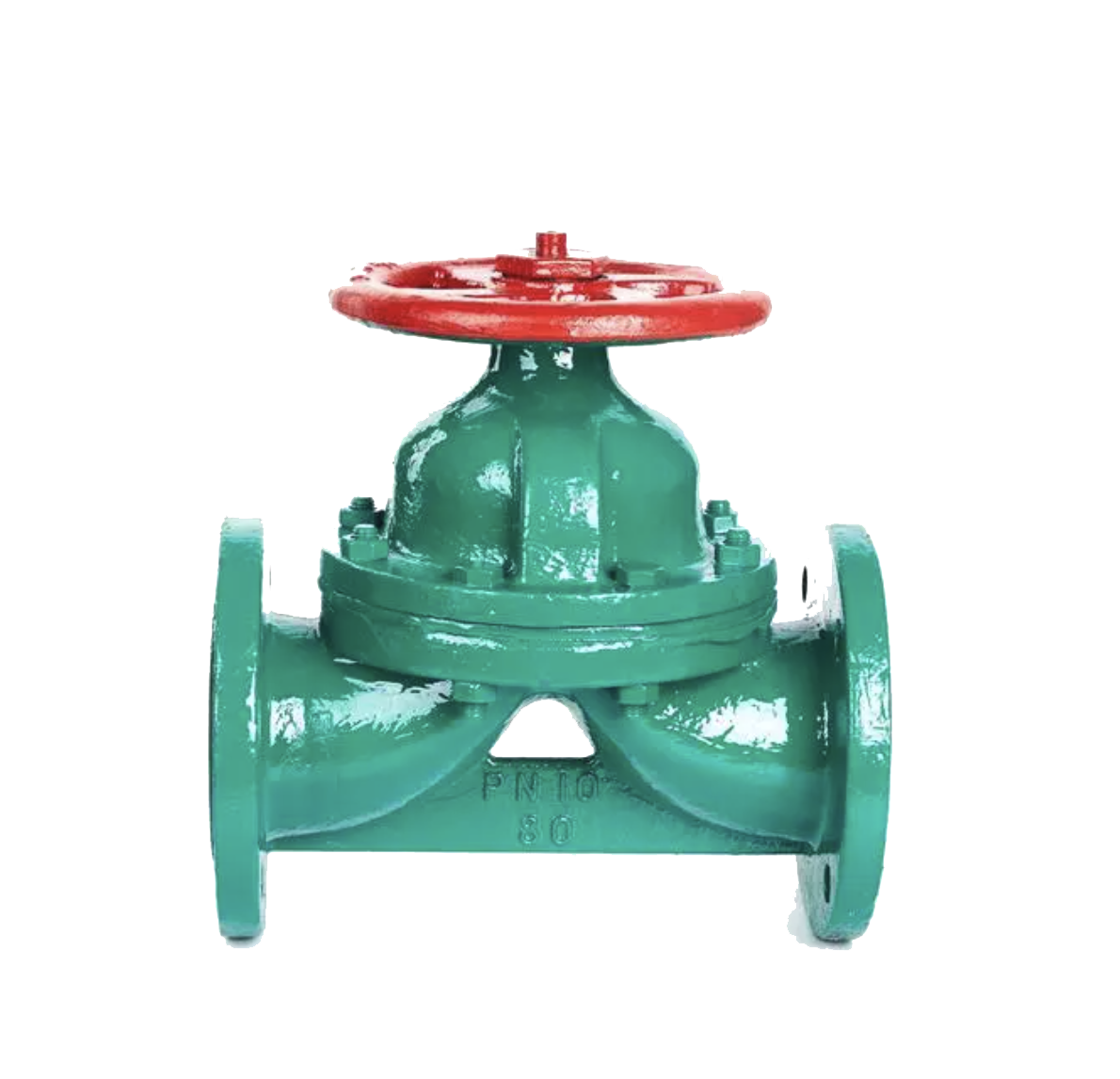

Weir type diaphragm valve
Weir type diaphragm valve refers to a valve body structure with a weir structure, which is a specially designed block valve. Its core feature is a valve seat with a ridge shaped raised structure inside the valve body. This design allows the valve to use an elastic film (diaphragm) to separate the valve body into two working chambers, and to move the diaphragm up and down by compressing the pressure in the upper working chamber, achieving valve switch control. The center of the valve body is a piece of elastic film (diaphragm), with the lower half of the diaphragm placed inside the valve body and the upper half sealed together with the valve stem and valve cover. The up and down movement of the valve stem drives the diaphragm to come into contact with the ridge to achieve the purpose of separating the passage. The weir type diaphragm valves produced by Shanghai Meiyan Yi Pump Valve are widely used in various industrial fields, including food and pharmaceutical industry production, wastewater treatment, pulp and paper, chemical industry, etc.View details>>
-
Direct (Flow) Diaphragm Valve
Straight through (flow) diaphragm valve is a Y-shaped structure valve, mainly referring to the channel structure of the valve. A 45 degree angle is formed between the valve stem, valve core, and valve body, resulting in a smooth flow path and low flow resistance. Therefore, compared with weir diaphragm valves, it can obtain larger flow rates. This design reduces the resistance of fluid in the pipeline and improves flow efficiency. The straight through (flow) diaphragm valve produced by Shanghai Meiyanyi Pump Valve is particularly suitable for controlling the flow rate of fluids containing suspended solids and can be flexibly installed in any position. The working temperature range of direct flow diaphragm valves is approximately -50 ℃ to 175 ℃, making them important in a wide range of industrial applications, especially in pipelines with strong corrosive media and equipment with strict anti-corrosion requirements.View details>>
-

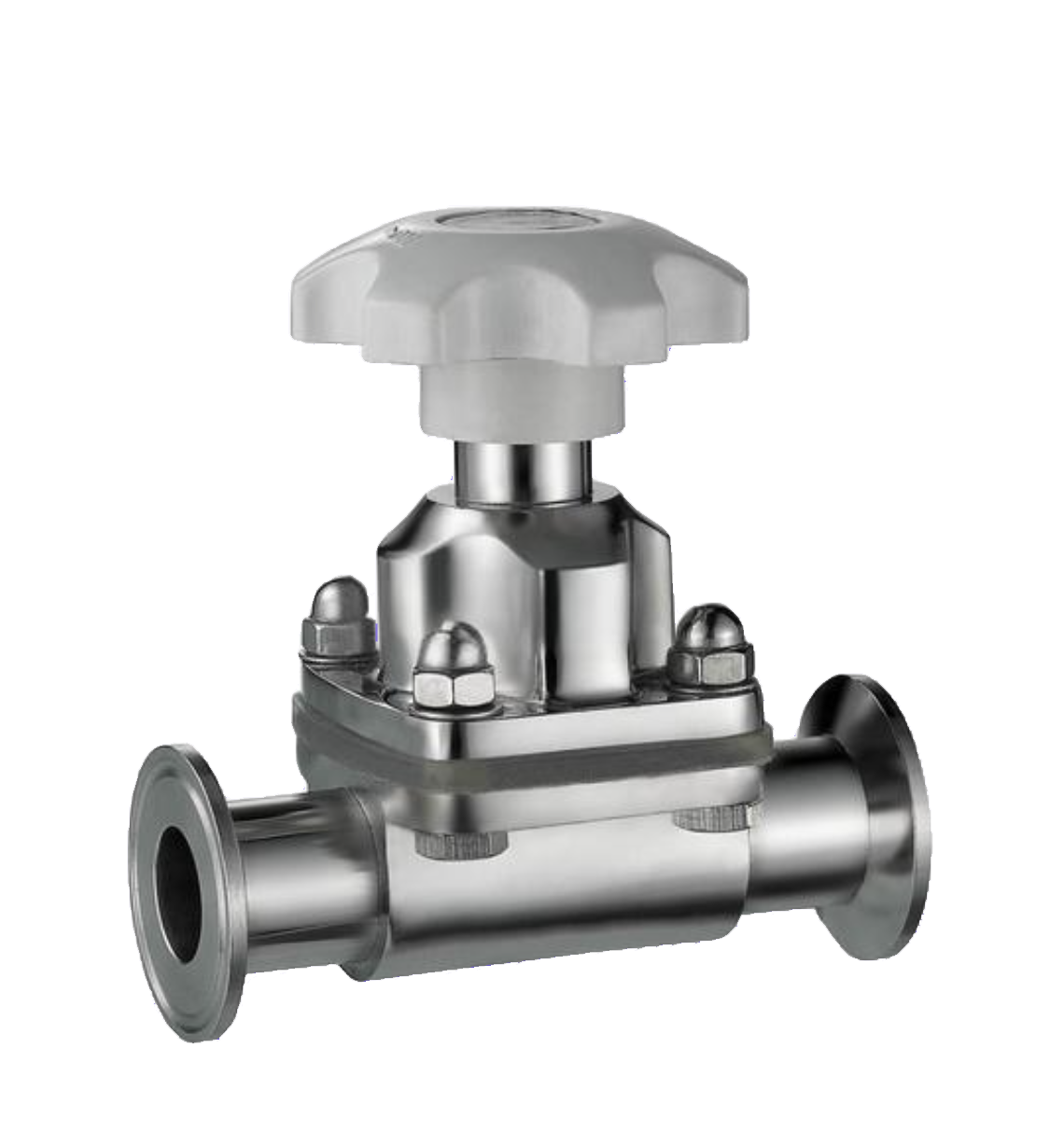

Sanitary Diaphragm Valve
Sanitary grade diaphragm valve is a specialized diaphragm valve that is mainly suitable for various pipeline equipment with food grade hygiene requirements. It is generally manual or pneumatic, and is mostly produced and processed using food grade stainless steel materials. It is mainly connected by clamps and can also be made into flanges or butt welds. Pneumatic sanitary diaphragm valves can be divided into single acting and double acting types. Single acting valves can also be divided into normally closed and normally open types. The sanitary diaphragm valves produced by Shanghai Meiyan Yi Pump Valve are widely used in industries such as chemical, food, and pharmaceutical. Mainly in the fields of food processing such as brewing, dairy products, beverages, and pharmaceuticals, especially in sterile conditions, pipeline equipment. It has a simple structure, flexible operation, low fluid resistance, and is safe and reliable to use. Welcome new and old users to make purchases.View details>>
