ISGB便拆式管道泵
- 品牌：壹泵阀
- 型号：ISGB
- 压力/扬程：9~135米
- 工作温度：-20℃～120℃
- 连接方式：电动
- 产品名称：ISGB便拆式管道泵
- 通径/流量：3.9~1450吨/每小时
- 材质：铸铁、不锈钢
- 驱动方式：
- 适用范围：水
- 产品概述
- 性能参数
- 尺寸重量
ISGB便拆式管道泵
ISGB便拆式管道泵产品概述
ISGB型便拆式管道离心泵（ISGB便拆式管道泵）是在IS型泵、ISG型立式泵的基础上，一方面结合国外先进技术、另一方面根据上海美言壹泵阀多年的生产经验和广大用户的宝贵经验，综合开发成功的一种结构新颖、技术领先其它同类产品的便拆立式离心泵。该系列产品严格按国际标准ISO2858进行设计制造。
ISGB便拆式管道泵系列产品在整体上进行大胆突破设计，泵轴采用独立的支承体，解决了原ISG及ISW型泵加长轴靠电机轴承支承的不足之处，叶轮、泵体采用现代优秀水力模型设计制造，消除立式泵的轴向力及径向力，使泵轴处的轴承和电机轴承仅受微弱的轴向力及径向力，电机采用Y系列标准电机，整台泵采用便拆结构，解决了更换大功率水泵的轴承、机械密封、叶轮等易损件不方便的难题。
ISGB便拆式管道泵系列泵与国内同类产品相比，具有运转更平稳、使用寿命长、配套更方便、维护保养更轻松等无可代替的优点，是替代ISG型立式泵、IS型离心泵、S型双吸泵等常规离心泵的最理想产品。

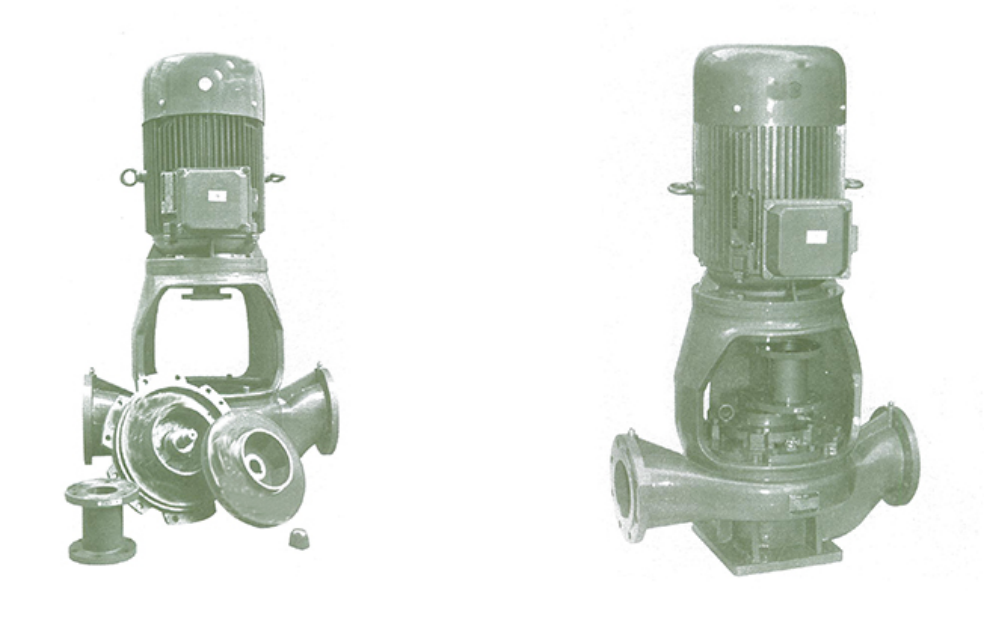

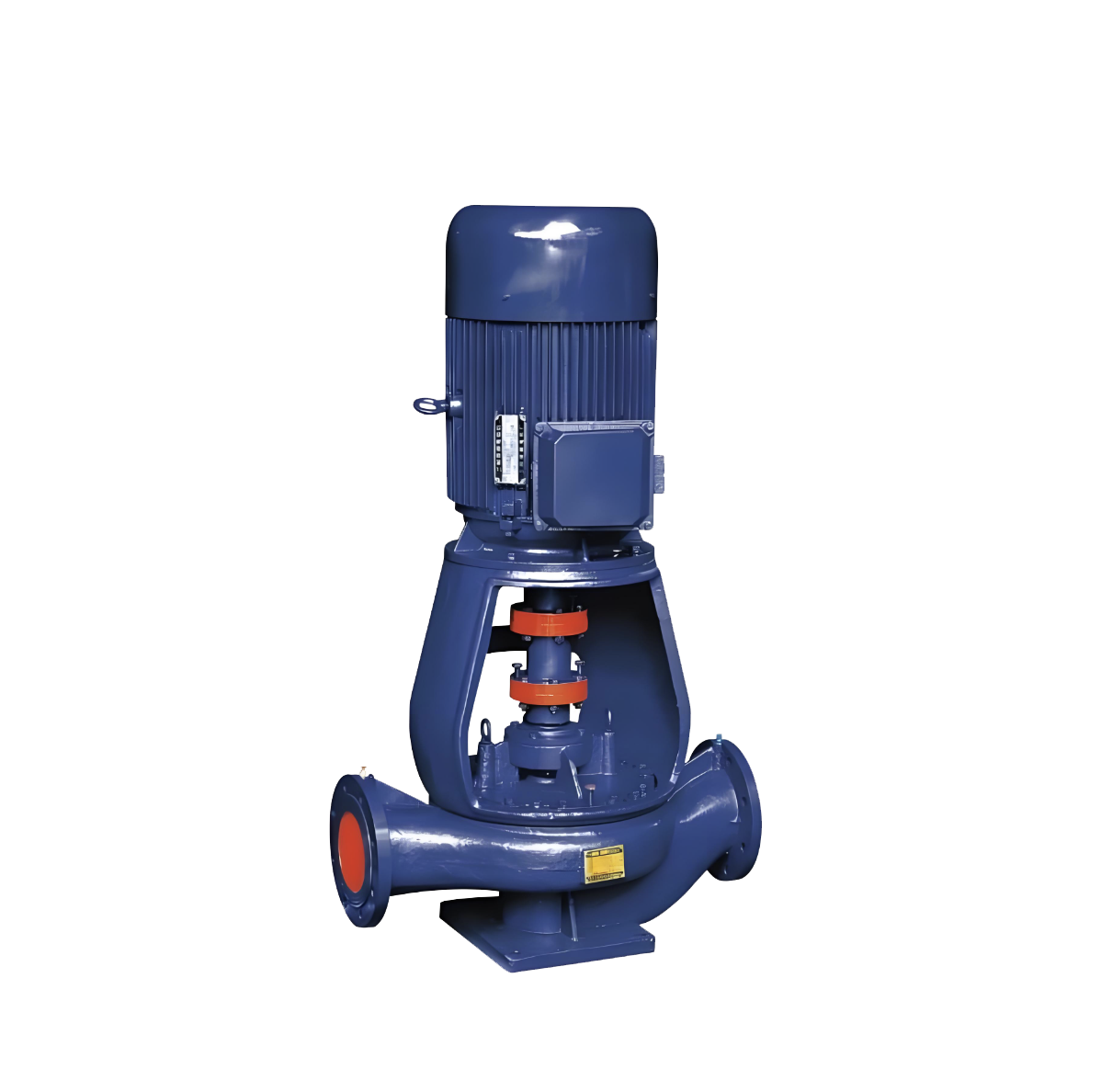

ISGB便拆式管道泵产品图
ISGB便拆式管道泵泵性能范围：
额定流量Qn＝4.4m3/h～1450 m3/h；
额定压力Pn＝0.125MPa～1.25MPa（扬程12.5m～125m）；
转速n=2900r/min、1450r/min、970r/min；
泵最大工作压力P≤1.6MPa（P＝Po+Pn） (Po为泵进口压力)
泵进出口口径40mm～350mm

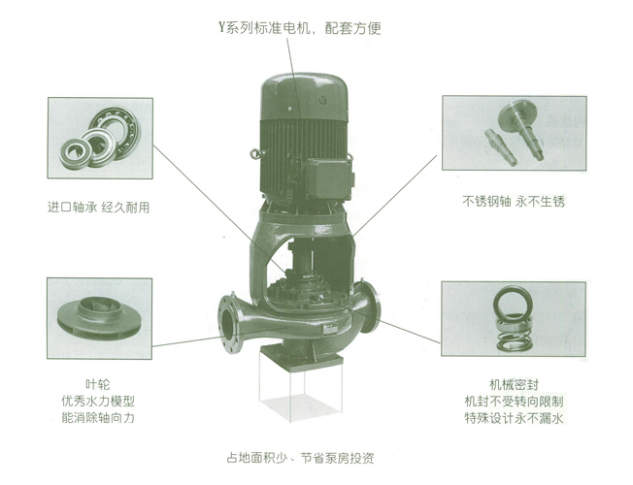

ISGB便拆式管道泵主要结构特点说明图

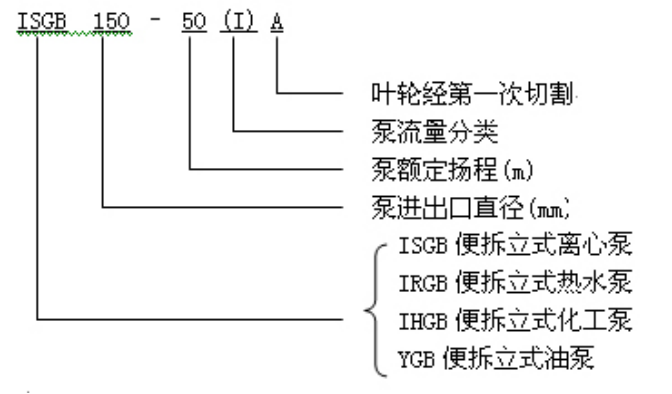

ISGB便拆式管道泵型号意义
ISGB便拆式管道泵主要用途
(1) ISGB、IRGB型泵用于采暖、卫生用水、冷冻水系统和灌溉装置中的无腐蚀的冷水和热水。
(2) IHGB、YGB型泵用于石油、化工、冶金、电力、造纸、食品、制药和合成纤维等部门。
ISGB便拆式管道泵工作条件
(1) 介质温度：T＝20℃～+120℃。
(2) 环境温度：T≤40℃，环境湿度不超过95％。
ISGB便拆式管道泵结构优点
(1) 泵轴与电机轴采用硬性连接，振动小、噪音低。
(2) 泵进出口口径相同，能象阀门一样安装在管路的任意位置，且装有底盘，使鞥安装简便、稳固。
(3) 泵轴有独立的支承点，使电机轴承运行可靠。
(4) 用强制环流的不受转向限制的特殊结构机械密封，运行可靠、寿命长。
(5) 独特的安装结构大大缩小泵的占地面积，节约建设投资30％～50％。
(6) 完美的设计确保泵无泄漏、长寿命运行，节约运行管理费40％～70％。
传动
通过电机联轴器，由电机驱动泵，从传动端看，泵为顺时针方向旋转。
材质
泵壳：铸铁、球墨铸铁、铸钢、不锈钢
叶轮：铸铁、铜合金、不锈钢
泵盖：铸铁、不锈钢
泵轴：45、不锈钢

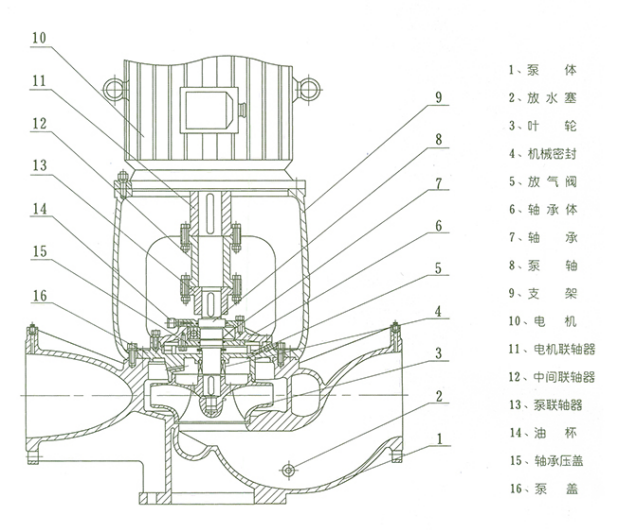

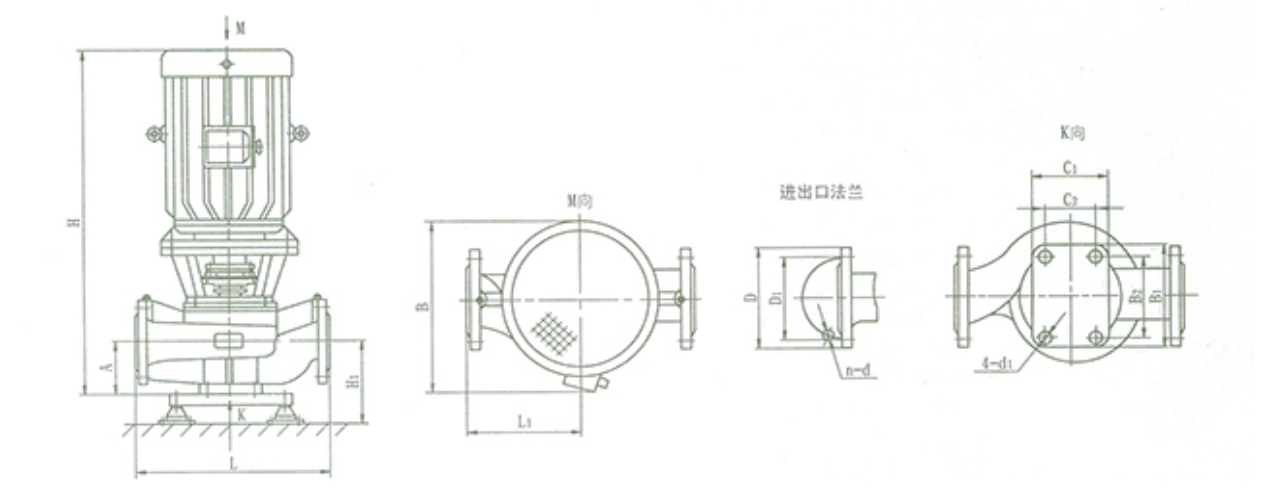

ISGB便拆式管道泵外形结构图及说明
泵体：管道连接形式的螺旋形泵壳，采用现代最优秀水力模型设计制造，法兰符合GB4216.5，并带有Rp1/4或Rp3/8测压口。
叶轮：闭式铸铁叶轮，优秀的水力模型和特殊的结构保证鞥的效率。且可靠地消除泵地轴向力。
机械密封：用于水温150℃以下免保养，并不受转向限制。特殊地设计保证动环地补偿性和密封性。
泵轴：优化设计地鞥周和联轴器融为一体，缩减传动轴地尺寸，使泵更安全可靠地运行，并且使整台泵地体积减小。
泵轴承：采用进口NTN或NSK精密轴承，噪音低、寿命长。
电机：Y或Y2系列鼠笼式交流电机，型式：B5型。使用标准通用电机，维护、保养方便、快捷，大功率配有轴承润滑保养注油孔装置。

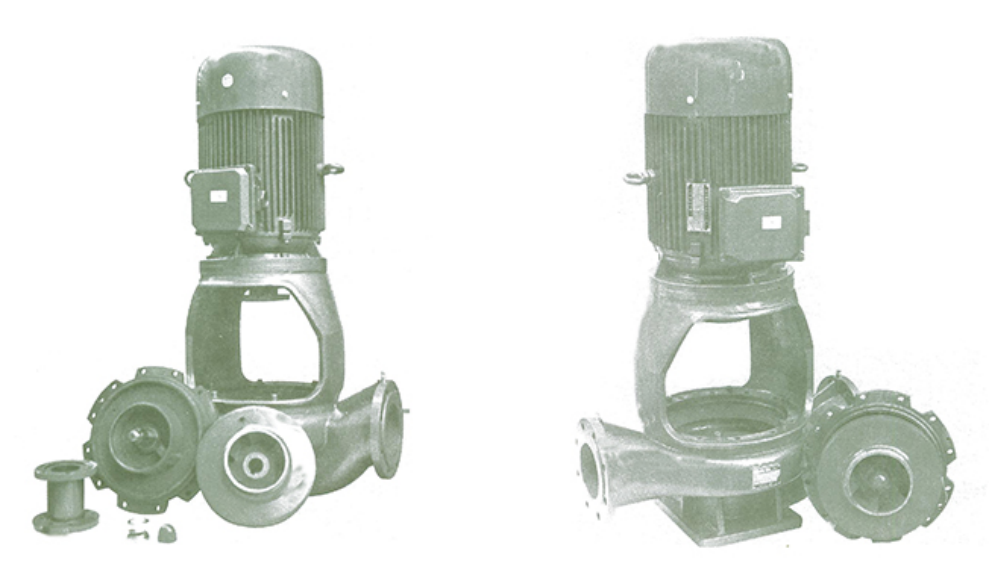

ISGB便拆式管道泵便拆示意图

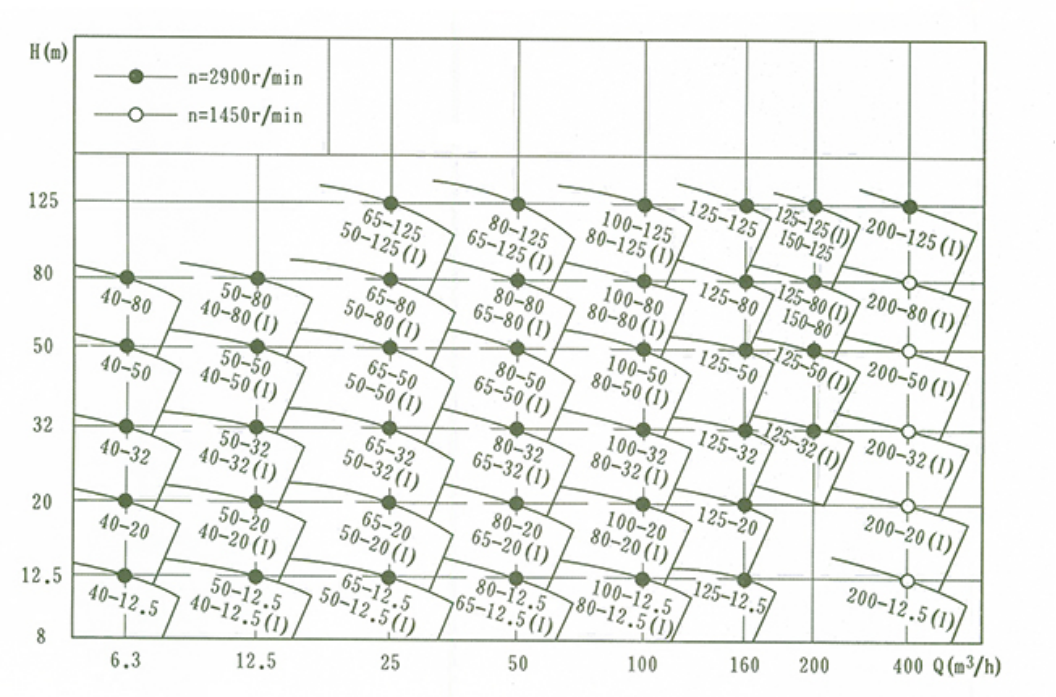

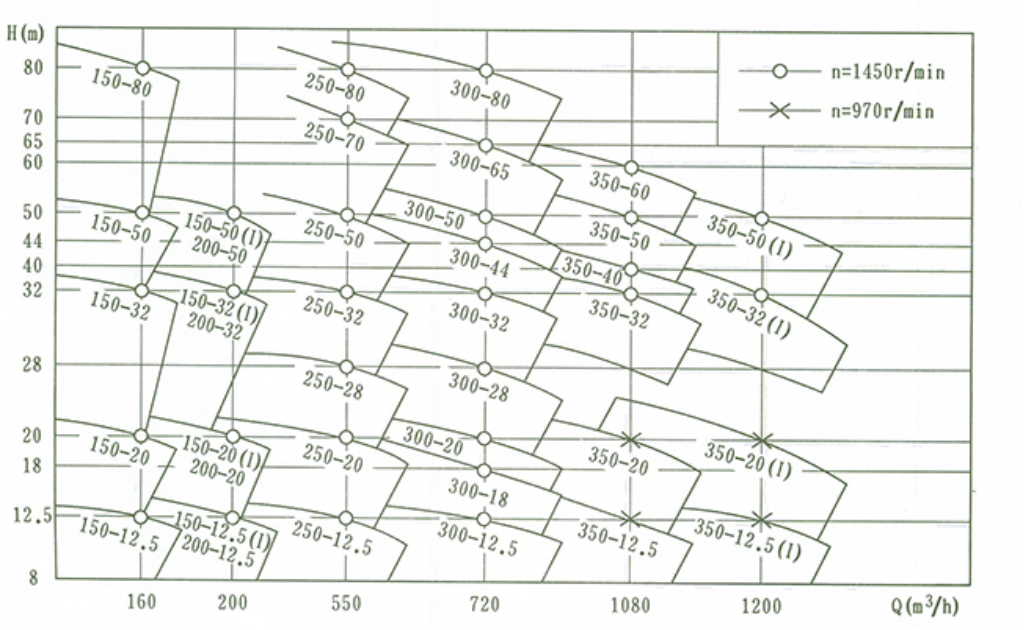

ISGB便拆式管道泵型谱图
ISGB便拆式管道泵性能参数表
| 序号 | 型号 | 流量Q | 扬程Hm | 效率η％ | 转速Nr/min | 电机功率KW | 必需汽蚀余量m | 重量kg | |
| m3/h | L/s | ||||||||
| 001 | ISGB40-12.5 | 4.46.38.3 | 1.221.752.31 | 13.212.511.3 | 485453 | 2900 | 0.55 | 2.3 | 35 |
| 002 | ISGB40-12.5A | 3.95.67.4 | 1.081.562.06 | 10.6109 | 52 | 2900 | 0.37 | 2.3 | 35 |
| 003 | ISGB40-20 | 4.46.38.3 | 1.221.752.31 | 212018 | 414643 | 2900 | 1.1 | 2.3 | 35 |
| 004 | ISGB40-20A | 3.95.67.4 | 1.081.562.06 | 17.61614.4 | 404541 | 2900 | 0.75 | 2.3 | 33 |
| 005 | ISGB40-32 | 4.46.38.3 | 1.221.752.31 | 233230 | 354040 | 2900 | 2.2 | 2.3 | 50 |
| 006 | ISGB40-32A | 4.15.97.8 | 1.141.642.17 | 292826.3 | 343939 | 2900 | 1.5 | 2.3 | 45 |
| 007 | ISGB40-32B | 3.85.57.2 | 1.061.532.00 | 25.52422.5 | 343837 | 2900 | 1.1 | 2.3 | 40 |
| 008 | ISGB40-50 | 4.46.38.3 | 1.221.752.31 | 515048 | 263332 | 2900 | 4.0 | 2.3 | 75 |
| 009 | ISGB40-50A | 4.15.97.8 | 1.141.642.17 | 454442 | 203130 | 2900 | 3.0 | 2.3 | 65 |
| 010 | ISGB40-50B | 3.75.37.0 | 1.031.471.94 | 383634.5 | 29 | 2900 | 2.2 | 2.3 | 55 |
| 011 | ISGB40-80 | 4.46.38.3 | 1.221.752.31 | 828074 | 242828 | 2900 | 7.5 | 2.3 | 110 |
| 012 | ISGB40-80A | 4.15.97.8 | 1.141.642.17 | 727065 | 242827 | 2900 | 5.5 | 2.3 | 105 |
| 013 | ISGB40-80B | 3.85.57.2 | 1.061.532.00 | 61.56056 | 232726 | 2900 | 5.5 | 2.3 | 80 |
| 014 | ISGB40-12.5(I) | 8.812.516.3 | 2.443.474.53 | 13.212.511.3 | 556260 | 2900 | 1.1 | 2.3 | 35 |
| 015 | ISGB40-12.5(I)A | 81114.5 | 2.223.054.03 | 10.6109 | 60 | 2900 | 0.75 | 2.3 | 32 |
| 016 | ISGB40-20(I) | 8.812.516.3 | 2.443.474.53 | 21.52017.8 | 495857 | 2900 | 1.5 | 2.3 | 40 |
| 017 | ISGB40-20(I)A | 81114.5 | 2.223.054.03 | 171614 | 57 | 2900 | 1.1 | 2.3 | 35 |
| 018 | ISGB40-32(I) | 8.812.516.3 | 2.443.474.53 | 333230 | 455251 | 2900 | 3.0 | 2.3 | 60 |
| 019 | ISGB40-32(I)A | 8.211.715.2 | 2.283.254.22 | 292826 | 445150 | 2900 | 2.2 | 2.3 | 50 |
| 020 | ISGB40-32(I)B | 7.310.413.5 | 2.382.893.75 | 262420 | 50 | 2900 | 1.5 | 2.3 | 45 |
| 021 | ISGB40-50(I) | 8.812.516.3 | 2.443.474.53 | 51.25048 | 384646 | 2900 | 5.5 | 2.3 | 90 |
| 022 | ISGB40-50(I)A | 8.311.715.3 | 2.313.254.25 | 454442 | 374645 | 2900 | 4.0 | 2.3 | 80 |
| 023 | ISGB40-50(I)B | 7.510.613.8 | 2.082.943.83 | 373634 | 40 | 2900 | 3.0 | 2.3 | 70 |
| 024 | ISGB40-80(I) | 8.812.516.3 | 2.443.474.53 | 81.28077.5 | 313840 | 2900 | 11.0 | 2.3 | 150 |
| 025 | ISGB40-80(I)A | 8.211.615.2 | 2.283.224.22 | 717068 | 38 | 2900 | 7.5 | 2.3 | 100 |
| 026 | ISGB40-80(I)B | 7.610.814 | 2.113.03.89 | 61.46058 | 37 | 2900 | 7.5 | 2.3 | 95 |
| 027 | ISGB40-80(I)C | 7.110.113.1 | 1.972.873.64 | 53.25250.4 | 36 | 2900 | 5.5 | 2.3 | 90 |
| 028 | ISGB50-12.5 | 8.812.516.3 | 2.443.474.53 | 13.612.511.3 | 556260 | 2900 | 1.1 | 2.3 | 40 |
| 029 | ISGB50-12.5A | 81114.5 | 2.223.054.03 | 11109 | 60 | 2900 | 0.75 | 2.3 | 35 |
| 030 | ISGB50-20 | 8.812.516.3 | 2.443.474.53 | 21.52017.8 | 495857 | 2900 | 1.5 | 2.3 | 45 |
| 031 | ISGB50-20A | 81114.5 | 2.223.054.03 | 171614 | 57 | 2900 | 1.1 | 2.3 | 40 |
| 032 | ISGB50-32 | 8.812.516.3 | 2.443.474.53 | 333230 | 455251 | 2900 | 3.0 | 2.3 | 60 |
| 033 | ISGB50-32A | 8.211.715.2 | 2.283.254.22 | 292826 | 445150 | 2900 | 2.2 | 2.3 | 50 |
| 034 | ISGB50-32B | 7.310.413.5 | 2.382.893.75 | 232220.5 | 50 | 2900 | 1.5 | 2.3 | 46 |
| 035 | ISGB50-50 | 8.812.516.3 | 2.443.474.53 | 525048 | 384646 | 2900 | 5.5 | 2.3 | 405 |
| 036 | ISGB50-50A | 8.311.715.3 | 2.313.254.25 | 45.84442 | 374545 | 2900 | 4.0 | 2.3 | 85 |
| 037 | ISGB50-50B | 7.510.613.8 | 2.082.943.83 | 403835 | 44 | 2900 | 3.0 | 2.3 | 70 |
| 038 | ISGB50-80 | 8.812.516.3 | 2.443.474.53 | 828077.5 | 293840 | 2900 | 11.0 | 2.3 | 160 |
| 039 | ISGB50-80A | 8.211.615.2 | 2.283.224.22 | 71.57068 | 293841 | 2900 | 7.5 | 2.3 | 120 |
| 040 | ISGB50-80B | 7.610.814 | 2.113.03.89 | 61.56058 | 27.53740 | 2900 | 7.5 | 2.3 | 115 |
| 041 | ISGB50-80C | 7.110.013.1 | 1.972.783.64 | 53.25250.4 | 273639 | 2900 | 5.5 | 2.3 | 110 |
| 042 | ISGB50-12.5(I) | 17.52532.5 | 4.866.979.03 | 13.712.510.5 | 676969 | 2900 | 1.5 | 2.5 | 45 |
| 043 | ISGB50-12.5(I)A | 15.622.329 | 4.36.198.1 | 11108.4 | 656768 | 2900 | 1.1 | 2.5 | 40 |
| 044 | ISGB50-20(I) | 17.52532.5 | 4.866.949.03 | 21.52018 | 606867 | 2900 | 3.0 | 2.5 | 60 |
| 045 | ISGB50-20(I)A | 15.622.329 | 1.336.198.1 | 17.51613.6 | 586665 | 2900 | 2.2 | 2.5 | 50 |
| 046 | ISGB50-32(I) | 17.52532.5 | 4.866.949.03 | 34.43227.5 | 556360 | 2900 | 4.0 | 2.5 | 75 |
| 047 | ISGB50-32(I)A | 16.423.430.4 | 4.566.58.44 | 302824 | 546259 | 2900 | 4.0 | 2.5 | 75 |
| 048 | ISGB50-32(I)B | 15.021.628 | 4.176.07.78 | 262420.6 | 61 | 2900 | 3.0 | 2.5 | 65 |
| 049 | ISGB50-50(I) | 17.52532.5 | 4.866.949.03 | 52.75045.5 | 495859 | 2900 | 7.5 | 2.5 | 110 |
| 050 | ISGB50-50(I)A | 16.423.530.5 | 4.566.538.47 | 46.44440 | 485758 | 2900 | 7.5 | 2.5 | 110 |
| 051 | ISGB50-50(I)B | 15.221.828.3 | 4.226.067.86 | 40.53834.5 | 55 | 2900 | 5.5 | 2.5 | 100 |
| 052 | ISGB50-80(I) | 17.52532.5 | 4.866.949.03 | 828076.5 | 395052 | 2900 | 15.0 | 2.5 | 175 |
| 053 | ISGB50-80(I)A | 16.423.430.5 | 4.566.58.47 | 71.57067 | 395152 | 2900 | 11.0 | 2.5 | 165 |
| 054 | ISGB50-80(I)B | 1521.628 | 4.176.07.78 | 616058 | 385054 | 2900 | 11.0 | 2.5 | 165 |
| 055 | ISGB50-125(I) | 17.32532.5 | 4.66.949.03 | 128125122 | 314044 | 2900 | 30.0 | 2.5 | 310 |
| 056 | ISGB50-125(I)A | 16.623.731 | 4.616.588.6 | 115113110 | 304044 | 2900 | 22.0 | 2.5 | 250 |
| 057 | ISGB50-125(I) | 15.722.529.2 | 4.366.258.0 | 10310198 | 39 | 2900 | 18.5 | 2.5 | 215 |
| 058 | ISGB50-125(I)C | 14.420.626.8 | 4.05.727.44 | 868583 | 38 | 2900 | 15.0 | 2.5 | 195 |
| 059 | ISGB65-12.5 | 17.52532.5 | 4.866.949.03 | 13.712.510.5 | 676969 | 2900 | 1.5 | 2.5 | 45 |
| 060 | ISGB65-12.5A | 15.622.329 | 4.36.198.1 | 11108.4 | 656768 | 2900 | 1.1 | 2.5 | 40 |
| 061 | ISGB65-20 | 17.52532.5 | 4.866.949.03 | 222018 | 606867 | 2900 | 3.0 | 2.5 | 60 |
| 062 | ISGB65-20A | 15.622.329 | 4.336.198.1 | 17.51614.4 | 586665 | 2900 | 2.2 | 2.5 | 50 |
| 063 | ISGB65-32 | 17.52532.5 | 4.866.949.03 | 34.43227.5 | 546360 | 2900 | 4.0 | 2.5 | 75 |
| 064 | ISGB65-32A | 16.423.430.1 | 4.566.58.44 | 302824.5 | 546259 | 2900 | 4.0 | 2.5 | 75 |
| 065 | ISGB65-32B | 1521.628 | 4.176.07.78 | 262421 | 516160 | 2900 | 3.0 | 2.5 | 65 |
| 066 | ISGB65-50 | 17.52532.5 | 4.866.949.03 | 52.75045.5 | 495859 | 2900 | 7. | 2.5 | 110 |
| 067 | ISGB65-50A | 16.423.530.5 | 4.566.538.47 | 46.44440 | 485758 | 2900 | 57. | 2.5 | 110 |
| 068 | ISGB65-50 | 15.221.828.3 | 4.226.067.86 | 40.53834 | 55 | 2900 | 55.5 | 2.5 | 100 |
| 069 | ISGB65-80 | 17.52532.5 | 4.866.949.03 | 828076.5 | 395052 | 2900 | 15.0 | 2.5 | 185 |
| 070 | ISGB65-80A | 16.423.430.5 | 4.566.58.47 | 71.57067 | 395052 | 2900 | 11.0 | 2.5 | 170 |
| 071 | ISGB65-80B | 1521.628 | 4.176.07.78 | 616058 | 384954 | 2900 | 11.0 | 2.5 | 170 |
| 072 | ISGB65-125 | 17.52532.5 | 4.866.949.03 | 127125122 | 324044 | 2900 | 30.0 | 2.5 | 320 |
| 073 | ISGB65-125A | 16.623.731 | 4.616.588.6 | 115113110 | 324044 | 2900 | 22.0 | 2.5 | 260 |
| 074 | ISGB65-125B | 15.722.529.2 | 4.366.258.0 | 10310198 | 39 | 2900 | 18.5 | 2.5 | 225 |
| 075 | ISGB65-125C | 14.420.626.8 | 4.05.727.44 | 868583 | 38 | 2900 | 15.0 | 2.5 | 210 |
| 076 | ISGB65-12.5(I) | 355065 | 9.7213.918.1 | 13.812.510 | 677370 | 2900 | 3.0 | 3.0 | 65 |
| 077 | ISGB65-12.5(I)A | 31.344.758 | 8.712.416.1 | 11108 | 667269 | 2900 | 2.2 | 3.0 | 55 |
| 078 | ISGB65-20(I) | 355065 | 9.7213.918.1 | 222017 | 6772.570 | 2900 | 5.5 | 3.0 | 100 |
| 079 | ISGB65-20(I)A | 31.34558 | 8.712.516.1 | 17.51613.6 | 607169 | 2900 | 4.0 | 3.0 | 80 |
| 080 | ISGB65-32(I) | 355065 | 9.7213.918.1 | 353228 | 637170 | 2900 | 7.5 | 3.0 | 105 |
| 081 | ISGB65-32(I)A | 32.746.761 | 9.113.016.9 | 30.62825 | 627069 | 2900 | 7.5 | 3.0 | 105 |
| 082 | ISGB65-32(I)B | 30.043.356.3 | 8.412.015.6 | 262421 | 69 | 2900 | 5.5 | 3.0 | 95 |
| 083 | ISGB65-50(I) | 355065 | 9.7213.918.1 | 53.55046 | 556768 | 2900 | 15.0 | 3.0 | 180 |
| 084 | ISGB65-50(I)A | 32.84761 | 9.113.116.9 | 474440 | 546667 | 2900 | 11.0 | 3.0 | 165 |
| 085 | ISGB65-50(I)B | 30.543.556.6 | 8.512.115.7 | 40.63833.4 | 65 | 2900 | 7.5 | 3.0 | 115 |
| 086 | ISGB65-80(I) | 355065 | 9.713.918.1 | 838072 | 525960 | 2900 | 22.0 | 3.0 | 235 |
| 087 | ISGB65-80(I)A | 32.546.761 | 9.013.016.9 | 737063 | 525960 | 2900 | 18.5 | 3.0 | 205 |
| 088 | ISGB65-80(I)B | 3043.356 | 8.312.015.6 | 636054 | 58 | 2900 | 15.0 | 3.0 | 180 |
| 089 | ISGB65-125(I) | 355065 | 9.7213.918.1 | 128125121 | 445457 | 2900 | 37.0 | 3.0 | 350 |
| 090 | ISGB65-125(I)A | 32.546.560.5 | 9.012.916.8 | 116113110 | 435457 | 2900 | 30.0 | 3.0 | 335 |
| 091 | ISGB65-125(I)B | 3144.558 | 8.612.416.1 | 10310197 | 405356 | 2900 | 30.0 | 3.0 | 335 |
| 092 | ISGB65-125(I)C | 294143.6 | 8.111.414.9 | 878583 | 395155 | 2900 | 22.0 | 3.0 | 270 |
| 093 | ISGB80-12.5 | 355065 | 9.7213.918.1 | 13.812.510 | 677370 | 2900 | 3.0 | 3.0 | 65 |
| 094 | ISGB80-12.5A | 31.344.758 | 8.712.516.1 | 11108 | 667269 | 2900 | 2.2 | 3.0 | 60 |
| 095 | ISGB80-20 | 355065 | 9.7213.918.1 | 222017 | 6772.570 | 2900 | 5.5 | 3.0 | 100 |
| 096 | ISGB80-20A | 31.34558 | 8.712.516.1 | 17.51613.6 | 667169 | 2900 | 4.0 | 3.0 | 80 |
| 097 | ISGB80-32 | 355065 | 9.7213.918.1 | 353228 | 637170 | 2900 | 7.5 | 3.0 | 105 |
| 098 | ISGB80-32A | 32.746.761 | 9.113.016.9 | 30.62825 | 627069 | 2900 | 7.5 | 3.0 | 105 |
| 099 | ISGB80-32B | 30.343.356.3 | 8.412.015.6 | 272420 | 69 | 2900 | 5.5 | 3.0 | 100 |
| 100 | ISGB80-50 | 355065 | 9.7213.918.1 | 53.35046 | 556768 | 2900 | 15.0 | 3.0 | 175 |
| 101 | ISGB80-50A | 32.84761 | 9.113.116.9 | 474440 | 546667 | 2900 | 11.0 | 3.0 | 170 |
| 102 | ISGB80-50B | 30.543.556.6 | 8.512.115.7 | 40.63833.4 | 536567 | 2900 | 7.5 | 3.0 | 120 |
| 103 | ISGB80-80 | 355065 | 9.7213.918.1 | 838072 | 525960 | 2900 | 22.0 | 3.0 | 240 |
| 104 | ISGB80-80A | 32.546.761 | 9.013.016.9 | 737064 | 525960 | 2900 | 18.5 | 3.0 | 210 |
| 105 | ISGB80-80B | 3043.356 | 8.312.015.6 | 636054 | 58 | 2900 | 15.0 | 3.0 | 190 |
| 106 | ISGB80-125 | 355065 | 9.7213.918.1 | 128125122 | 435457 | 2900 | 37.0 | 3.0 | 360 |
| 107 | ISGB80-125A | 32.546.560.5 | 912.916.8 | 116113110 | 425356 | 2900 | 30.0 | 3.0 | 345 |
| 108 | ISGB80-125B | 3144.558 | 8.612.416.1 | 10310197 | 53 | 2900 | 30.0 | 3.0 | 340 |
| 109 | ISGB80-125C | 294153.6 | 8.111.414.9 | 988583 | 51 | 2900 | 22.0 | 3.0 | 375 |
| 110 | ISGB80-12.5(I) | 70100130 | 19.427.836.1 | 13.612.511 | 667675 | 2900 | 5.5 | 4.5 | 110 |
| 111 | ISGB80-12.5(I)A | 62.689116 | 17.424.732.2 | 11108.8 | 647474 | 2900 | 4.0 | 4.5 | 85 |
| 112 | ISGB80-20(I) | 70100130 | 19.427.836.1 | 23.52014 | 707672 | 2900 | 11.0 | 4.5 | 165 |
| 113 | ISGB80-20(I)A | 62.689116 | 17.424.732.2 | 191611 | 687465 | 2900 | 7.5 | 4.5 | 130 |
| 114 | ISGB80-32(I) | 70100130 | 19.427.836.1 | 36.53224 | 707665 | 2900 | 15.0 | 4.5 | 185 |
| 115 | ISGB80-32(I)A | 65.493.5121.6 | 18.226.033.8 | 322821 | 687467 | 2900 | 11.0 | 4.5 | 175 |
| 116 | ISGB80-32(I)B | 60.686.6112.5 | 16.824.131.3 | 272418 | 72 | 2900 | 11.0 | 4.5 | 175 |
| 117 | ISGB80-50(I) | 70100130 | 19.427.836.1 | 545042 | 657473 | 2900 | 22.0 | 4.5 | 250 |
| 118 | ISGB80-50(I)A | 65.493.5121.6 | 18.226.433.8 | 47.54439 | 647372 | 2900 | 18.5 | 4.5 | 220 |
| 119 | ISGB80-50(I)B | 6187113 | 16.924.231.4 | 413832 | 71 | 2900 | 15.0 | 4.5 | 200 |
| 120 | ISGB80-80(I) | 70100130 | 19.427.836.1 | 878068 | 626968 | 2900 | 37.0 | 4.5 | 330 |
| 121 | ISGB80-80(I)A | 65.493.5121.6 | 18.226.033.8 | 767059.5 | 616867 | 2900 | 30.0 | 4.5 | 315 |
| 122 | ISGB80-80(I)B | 6187113 | 16.924.231.4 | 656051 | 66 | 2900 | 30.0 | 4.5 | 315 |
| 123 | ISGB80-125(I) | 70100130 | 19.427.836.1 | 132125114 | 556667 | 2900 | 75.0 | 4.5 | 675 |
| 124 | ISGB80-125(I)A | 66.595123.6 | 18.526.434.3 | 119113104 | 556667 | 2900 | 55.0 | 4.5 | 535 |
| 125 | ISGB80-125(I)B | 6390117 | 17.52532.5 | 106.610192 | 65 | 2900 | 45.0 | 4.0 | 425 |
| 126 | ISGB80-125(I)C | 5882107 | 16.122.829.7 | 908576 | 63 | 2900 | 37.0 | 4.0 | 370 |
| 127 | ISGB100-12.5 | 70100130 | 19.427.836.1 | 13.612.511 | 667675 | 2900 | 5.5 | 4.5 | 115 |
| 128 | ISGB100-12.5A | 62.689116 | 17.424.732.2 | 11108.8 | 647474 | 2900 | 4.0 | 4.5 | 90 |
| 129 | ISGB100-20 | 70100130 | 19.427.836.1 | 23.52014 | 707665 | 2900 | 11.0 | 4.5 | 170 |
| 130 | ISGB100-20A | 62.689116 | 17.424.732.2 | 191611 | 687463 | 2900 | 7.5 | 4.5 | 120 |
| 131 | ISGB100-32 | 70100130 | 19.427.836.1 | 36.53224 | 707665 | 2900 | 15.0 | 4.5 | 200 |
| 132 | ISGB100-32A | 65.493.5121.6 | 18.226.033.8 | 322821 | 687467 | 2900 | 11.0 | 4.5 | 185 |
| 133 | ISGB100-32B | 60.686.6112.5 | 16.824.131.3 | 272418 | 72 | 2900 | 11.0 | 4.5 | 180 |
| 134 | ISGB100-50 | 70100130 | 19.427.836.1 | 545042 | 657473 | 2900 | 22.0 | 4.0 | 245 |
| 135 | ISGB100-50A | 65.493.5121.6 | 18.226.033.8 | 47.54437 | 647372 | 2900 | 18.5 | 4.0 | 215 |
| 136 | ISGB100-50B | 6187113 | 16.924.231.4 | 413834 | 71 | 2900 | 15.0 | 4.0 | 195 |
| 137 | ISGB100-80 | 70100130 | 19.427.836.1 | 878068 | 626968 | 2900 | 37.0 | 4.0 | 345 |
| 138 | ISGB100-80A | 65.493.5121.6 | 18.226.033.8 | 767059.5 | 616867 | 2900 | 30.0 | 4.0 | 330 |
| 139 | ISGB100-80B | 6187113 | 16.924.231.4 | 656051 | 67 | 2900 | 30.0 | 4.0 | 330 |
| 140 | ISGB100-125 | 70100130 | 19.427.836.1 | 132125114 | 556667 | 2900 | 75.0 | 4.0 | 685 |
| 141 | ISGB100-125A | 66.595123.6 | 18.526.434.3 | 119113104 | 556667 | 2900 | 55.0 | 4.0 | 550 |
| 142 | ISGB100-125 | 6390117 | 17.525.032.5 | 106.610192 | 65 | 2900 | 45.0 | 4.0 | 440 |
| 143 | ISGB100-125C | 5882107 | 16.122.829.7 | 908576 | 63 | 2900 | 37.0 | 4.0 | 385 |
| 144 | ISGB125-12.5 | 96160192 | 26.744.453.3 | 1312.512 | 788284 | 2900 | 11.0 | 4.0 | 180 |
| 145 | ISGB125-12.5A | 86143172 | 23.939.747.8 | 10.4109.6 | 77 | 2900 | 7.5 | 4.0 | 130 |
| 146 | ISGB125-20 | 96160192 | 26.744.453.3 | 22.62017 | 768078 | 2900 | 15.0 | 4.0 | 225 |
| 147 | ISGB125-20A | 86143172 | 23.939.747.8 | 181613.6 | 737775 | 2900 | 11.0 | 4.0 | 210 |
| 148 | ISGB125-32 | 96160192 | 26.744.453.3 | 363228 | 78 | 2900 | 22.0 | 4.0 | 265 |
| 149 | ISGB125-32A | 90150180 | 2541.750 | 31.52824.5 | 76 | 2900 | 18.5 | 4.0 | 230 |
| 150 | ISGB125-32 | 83138166 | 21.738.346.1 | 272421 | 73 | 2900 | 15.0 | 4.0 | 215 |
| 151 | ISGB125-50 | 96160192 | 26.744.453.3 | 555046 | 697978 | 2900 | 37.0 | 5.0 | 400 |
| 152 | ISGB125-50A | 90150180 | 2541.750 | 48.44440.5 | 647473 | 2900 | 30.0 | 5.0 | 380 |
| 153 | ISGB125-50B | 83138166 | 21.838.346.1 | 41.337.534.5 | 72 | 2900 | 22.0 | 5.0 | 325 |
| 154 | ISGB125-80 | 96160192 | 26.744.453.3 | 878073 | 657774 | 2900 | 55.0 | 4.5 | 580 |
| 155 | ISGB125-80A | 90150180 | 2541.750 | 767064 | 74 | 2900 | 45.0 | 4.5 | 495 |
| 156 | ISGB125-80B | 83138166 | 21.738.346.1 | 656055 | 73 | 2900 | 37.0 | 4.5 | 430 |
| 157 | ISGB125-125 | 96160192 | 26.744.753.3 | 133125119 | 707268 | 2900 | 90.0 | 4.5 | 800 |
| 158 | ISGB125-125A | 90150180 | 2541.750 | 117110104.6 | 657071 | 2900 | 75.0 | 4.5 | 715 |
| 159 | ISGB125-125B | 86143172 | 23.839.747.8 | 106.410095.2 | 656966 | 2900 | 75.0 | 4.5 | 710 |
| 160 | ISGB125-125C | 80.5134161 | 22.437.244.7 | 968886 | 68 | 2900 | 55.0 | 4.5 | 590 |
| 161 | ISGB125-32(I) | 120200240 | 33.355.666.7 | 353228 | 647675 | 2900 | 30.0 | 4.5 | 325 |
| 162 | ISGB125-32(I)A | 112187224 | 31.151.962.2 | 31.52824 | 637575 | 2900 | 22.0 | 4.5 | 295 |
| 163 | ISGB125-50(I) | 120200240 | 33.355.666.7 | 555046 | 637473 | 2900 | 45.0 | 4.5 | 430 |
| 164 | ISGB125-50(I)A | 112187224 | 31.151.962.2 | 48.44440 | 627373 | 2900 | 37.0 | 4.5 | 420 |
| 165 | ISGB125-50(I)B | 104173208 | 28.948.157.8 | 413734.5 | 617273 | 2900 | 30.0 | 4.5 | 410 |
| 166 | ISGB125-80(I) | 120200240 | 33.355.666.7 | 878072 | 657674 | 2900 | 75.0 | 4.5 | 685 |
| 167 | ISGB125-80(I)A | 112187224 | 31.151.962.2 | 767063 | 647573 | 2900 | 55.0 | 4.5 | 545 |
| 168 | ISGB125-80(I)B | 104173208 | 28.948.157.8 | 656054 | 637472 | 2900 | 45.0 | 4.5 | 460 |
| 169 | ISGB125-125(I) | 120200240 | 33.355.666.7 | 133125120 | 587375 | 2900 | 110.0 | 4.5 | 950 |
| 170 | ISGB125-125(I)A | 112187224 | 31.151.962.2 | 116110105 | 577274 | 2900 | 90.0 | 4.5 | 785 |
| 171 | ISGB125-125(I)B | 104173208 | 28.948.157.8 | 1009591 | 557072 | 2900 | 75.0 | 4.5 | 750 |
| 172 | ISGB150-12.5 | 112160208 | 31.144.457.8 | 13.512.510 | 607266 | 1450 | 11.0 | 3.5 | 200 |
| 173 | ISGB150-12.5A | 98140182 | 27.23950.6 | 11108.5 | 687071 | 1450 | 7.5 | 3.5 | 180 |
| 174 | ISGB150-20 | 112160208 | 31.144.457.8 | 23.52014 | 667166 | 1450 | 15.0 | 3.5 | 250 |
| 175 | ISGB150-20A | 98140182 | 27.23950.6 | 191711 | 657066 | 1450 | 11.0 | 3.5 | 230 |
| 176 | ISGB150-20B | 84120156 | 23.333.343.3 | 15.51410 | 627068 | 1450 | 7.5 | 3.5 | 200 |
| 177 | ISGB150-32 | 112160208 | 31.144.457.8 | 333228 | 627080 | 1450 | 22.0 | 3.5 | 280 |
| 178 | ISGB150-32A | 98140182 | 27.23950.6 | 292826.6 | 607180 | 1450 | 18.5 | 3.5 | 270 |
| 179 | ISGB150-32B | 84120156 | 23.333.343.3 | 252422.5 | 667170 | 1450 | 15.0 | 3.5 | 250 |
| 180 | ISGB150-50 | 112160208 | 31.144.457.8 | 525042 | 607280 | 1450 | 37.0 | 3.5 | 515 |
| 181 | ISGB150-50A | 98140182 | 27.23950.6 | 464439 | 607080 | 1450 | 30.0 | 3.5 | 500 |
| 182 | ISGB150-50B | 84120156 | 23.333.343.3 | 413830 | 667073 | 1450 | 22.0 | 3.5 | 480 |
| 183 | ISGB150-80 | 112160208 | 31.144.457.8 | 838075 | 677269 | 1450 | 55.0 | 3.5 | 900 |
| 184 | ISGB150-80A | 98140182 | 27.23950.6 | 737066 | 657067 | 1450 | 45.0 | 3.5 | 765 |
| 185 | ISGB150-80B | 84120156 | 23.333.343.3 | 656056 | 626765 | 1450 | 37.0 | 3.5 | 660 |
| 186 | ISGB150-80C | 120200240 | 33.355.666.7 | 878072 | 657674 | 1450 | 75.0 | 4.2 | 710 |
| 187 | ISGB150-80A | 112187224 | 31.151.962.2 | 767063 | 647573 | 2900 | 55.0 | 4.2 | 560 |
| 188 | ISGB150-80B | 104173208 | 28.948.157.8 | 656054 | 637472 | 2900 | 45.0 | 4.2 | 465 |
| 189 | ISGB150-125 | 120200240 | 33.355.666.7 | 133125120 | 587375 | 2900 | 110.0 | 4.5 | 980 |
| 190 | ISGB150-125A | 112187224 | 31.151.962.2 | 116110105 | 577274 | 2900 | 90.0 | 4.5 | 805 |
| 191 | ISGB150-125B | 104173208 | 28.948.157.8 | 1009591 | 557072 | 2900 | 75.0 | 4.5 | 725 |
| 192 | ISGB150-12.5(I) | 140200260 | 38.955.672.2 | 13.812.510.6 | 687878 | 1450 | 15.0 | 3.0 | 265 |
| 193 | ISGB150-12.5(I)A | 125179233 | 34.749.764.6 | 11108.5 | 667676 | 1450 | 11.0 | 3.0 | 245 |
| 194 | ISGB150-20(I) | 140200260 | 38.955.672.2 | 21.82017 | 737977 | 1450 | 18.5 | 3.0 | 300 |
| 195 | ISGB150-20(I)A | 129184240 | 35.851.266.7 | 18.51714.4 | 727876 | 1450 | 15.0 | 3.0 | 265 |
| 196 | ISGB150-20(I)B | 117167217.5 | 32.546.460.4 | 15.21412 | 717674 | 1450 | 11.0 | 3.0 | 245 |
| 197 | ISGB150-32(I) | 140200260 | 38.955.672.2 | 33.83228 | 707873 | 1450 | 30.0 | 3.5 | 410 |
| 198 | ISGB150-32(I)A | 131187243 | 36.451.967.5 | 29.52824.5 | 697777 | 1450 | 22.0 | 3.5 | 335 |
| 199 | ISGB150-32(I)B | 121173225 | 33.648.162.5 | 252421 | 697674 | 1450 | 18.5 | 3.5 | 310 |
| 200 | ISGB150-50(I) | 140200260 | 38.955.672.2 | 535044 | 687571 | 1450 | 45.0 | 3.5 | 500 |
| 201 | ISGB150-50(I)A | 131187243 | 36.451.967.5 | 46.64438.3 | 677470 | 1450 | 37.0 | 3.5 | 460 |
| 202 | ISGB150-50(I)B | 122174226.5 | 33.948.362.9 | 40.53833 | 667369 | 1450 | 30.0 | 3.5 | 435 |
| 203 | ISGB150-50(I)C | 112160208 | 31.144.457.8 | 343228 | 71 | 1450 | 22.0 | 3.5 | 370 |
| 204 | ISGB150-80(I) | 140200260 | 38.955.672.2 | 848075 | 626967 | 1450 | 75.0 | 3.5 | 1050 |
| 205 | ISGB150-80(I)A | 131187243 | 36.451.967.5 | 7370.566 | 616866 | 1450 | 75.0 | 3.5 | 900 |
| 206 | ISGB150-80(I)B | 122174226.5 | 33.948.362.9 | 656258 | 606664 | 1450 | 55.0 | 3.5 | 780 |
| 207 | ISGB150-80(I)C | 112160208 | 31.144.457.8 | 56.554.551 | 586462 | 1450 | 45.0 | 3.5 | 650 |
| 208 | ISGB200-12.5 | 140200260 | 38.955.672.2 | 13.812.510.8 | 687878 | 1450 | 15.0 | 3.0 | 270 |
| 209 | ISGB200-12.5A | 125179233 | 34.749.764.6 | 11108.5 | 667676 | 1450 | 11.0 | 3.0 | 245 |
| 210 | ISGB200-20 | 140200260 | 38.955.672.2 | 21.82017 | 737977 | 1450 | 18.5 | 3.0 | 310 |
| 211 | ISGB200-20A | 129184240 | 35.851.266.7 | 18.51714.4 | 727876 | 1450 | 15.0 | 3.0 | 365 |
| 212 | ISGB200-20B | 117167217.5 | 32.546.460.4 | 15.21412 | 717674 | 1450 | 11.0 | 3.0 | 245 |
| 213 | ISGB200-32 | 140200260 | 38.955.672.2 | 33.83228 | 707878 | 1450 | 30.0 | 3.5 | 420 |
| 214 | ISGB200-32A | 131187243 | 36.451.967.5 | 29.52724.5 | 697778 | 1450 | 22.0 | 3.5 | 350 |
| 215 | ISGB200-32B | 121173225 | 33.648.162.5 | 252421 | 697673 | 1450 | 18.5 | 3.5 | 320 |
| 216 | ISGB200-50 | 140200260 | 38.955.672.2 | 535044 | 687571 | 1450 | 45.0 | 3.5 | 495 |
| 217 | ISGB200-50A | 131187243 | 36.451.967.5 | 46.64438.3 | 677470 | 1450 | 37.0 | 3.5 | 460 |
| 218 | ISGB200-50B | 122174226.5 | 33.948.362.9 | 40.53833 | 73 | 1450 | 30.0 | 3.5 | 445 |
| 219 | ISGB200-50C | 112160208 | 31.144.457.8 | 343228 | 71 | 1450 | 22.0 | 3.5 | 380 |
| 220 | ISGB200-12.5 | 280400520 | 77.8111.1144 | 13.412.510.5 | 708079 | 1450 | 22.0 | 4.0 | 385 |
| 221 | ISGB200-12.5A | 250358465 | 69.499.4129.2 | 10.7108.5 | 687877 | 1450 | 18.5 | 4.0 | 470 |
| 222 | ISGB200-20 | 280400520 | 77.8111.1144 | 22.22014 | 758072 | 1450 | 30.0 | 4.0 | 480 |
| 223 | ISGB200-20A | 250358465 | 69.499.4129.2 | 191713 | 737870 | 1450 | 22.0 | 4.0 | 430 |
| 224 | ISGB200-20B | 226322419 | 62.889.4116.4 | 15.51410 | 707573 | 1450 | 18.5 | 4.0 | 390 |
| 225 | ISGB200-32 | 280400520 | 77.8111.1144 | 363226 | 738075 | 1450 | 55.0 | 4.0 | 680 |
| 226 | ISGB200-32A | 262374486 | 72.8103.9135 | 31.52823 | 727974 | 1450 | 45.0 | 4.0 | 560 |
| 227 | ISGB200-32B | 242346450 | 67.296.1125 | 27.52418.5 | 78 | 1450 | 37.0 | 4.0 | 535 |
| 228 | ISGB200-50 | 280400520 | 77.8111.1144 | 54.55039 | 758177 | 1450 | 75.0 | 4.0 | 835 |
| 229 | ISGB200-50A | 262352486 | 72.8103.9135 | 484435 | 738075 | 1450 | 75.0 | 4.0 | 835 |
| 230 | ISGB200-50B | 242346450 | 67.296.1125 | 423829.6 | 727874 | 1450 | 55.0 | 4.0 | 700 |
| 231 | ISGB200-50C | 224320416 | 62.288.9115.6 | 34.93225 | 707672 | 1450 | 45.0 | 4.0 | 585 |
| 232 | ISGB200-80 | 280400520 | 77.8111.1144 | 878072 | 738077 | 1450 | 132.0 | 4.0 | 1565 |
| 233 | ISGB200-80A | 262374486 | 72.8103.9135 | 767063 | 727976 | 1450 | 110.0 | 4.0 | 1415 |
| 234 | ISGB200-80B | 242346450 | 67.296.1125 | 656054 | 717875 | 1450 | 90.0 | 4.0 | 1290 |
| 235 | ISGB200-80C | 224320416 | 62.288.9115.6 | 625648 | 707674 | 1450 | 75.0 | 4.0 | 1050 |
| 236 | ISGB200-125 | 280400520 | 77.8111.1144.4 | 135125104 | 79 | 1450 | 200.0 | 4.0 | 1680 |
| 237 | ISGB200-125A | 256352448 | 71.197.8125 | 12011288 | 78 | 1450 | 200.0 | 4.0 | 1680 |
| 238 | ISGB200-125B | 224320416 | 62.288.9115.6 | 1049672 | 77 | 1450 | 132.0 | 4.0 | 1450 |
| 239 | ISGB250-12.5 | 400650670 | 111.1152.8186.1 | 13.512.511 | 788278 | 1450 | 30.0 | 4.0 | 550 |
| 240 | ISGB250-12.5A | 368506607 | 102.2140.6168.7 | 11.610.89.5 | 748076 | 1450 | 22.0 | 5.0 | 500 |
| 241 | ISGB250-20 | 400550670 | 111.1152.8186.1 | 22.52016 | 788284 | 1450 | 45.0 | 5.0 | 620 |
| 242 | ISGB250-20A | 368506607 | 102.2140.6168.7 | 19.51714.6 | 80 | 1450 | 37.0 | 5.0 | 550 |
| 243 | ISGB250-32 | 400550670 | 111.1152.8186.1 | 363226 | 778081 | 1450 | 75.0 | 5.0 | 915 |
| 244 | ISGB250-32A | 368506607 | 102.2140.6168.7 | 31.52823 | 78 | 1450 | 55.0 | 5.0 | 840 |
| 245 | ISGB250-32B | 339466559 | 94129.3155.2 | 26.52520 | 76 | 1450 | 45.0 | 5.0 | 695 |
| 246 | ISGB250-50 | 400550670 | 111.1152.8186.1 | 54.55039 | 697672 | 1450 | 110.0 | 5.0 | 1557 |
| 247 | ISGB250-50A | 368506607 | 102.2140.6168.7 | 484435.5 | 687470 | 1450 | 90.0 | 5.0 | 1055 |
| 248 | ISGB250-50B | 339466559 | 94129.3155.2 | 4339.532.5 | 667268 | 1450 | 75.0 | 5.0 | 910 |
| 249 | ISGB250-50C | 311428514 | 86.5119142.8 | 383528 | 636965 | 1450 | 75.0 | 5.0 | 910 |
| 250 | ISGB250-70 | 400550670 | 111.1152.8186.1 | 767063 | 757678 | 1450 | 160.0 | 5.0 | 1545 |
| 251 | ISGB250-70A | 368506607 | 102.2140.6168.7 | 656054 | 747577 | 1450 | 132.0 | 5.0 | 1355 |
| 252 | ISGB250-70B | 339466559 | 94129.3155.2 | 555042 | 737474 | 1450 | 90.0 | 5.0 | 1055 |
| 253 | ISGB250-70C | 311428514 | 86.5119142.8 | 49.54438 | 717273 | 1450 | 75.0 | 5.0 | 965 |
| 254 | ISGB250-80 | 500550670 | 111.1152.8186.1 | 848070 | 737775 | 1450 | 200.0 | 5.0 | 1750 |
| 255 | ISGB250-80A | 368506670 | 102.2140.6168.7 | 757162.5 | 727574 | 1450 | 160.0 | 5.0 | 1560 |
| 256 | ISGB250-80B | 339465559 | 94129.3155.2 | 66.563.555.5 | 707372 | 1450 | 132.0 | 5.0 | 1420 |
| 257 | ISGB250-80C | 311428514 | 86.5119142.8 | 585548.5 | 697170 | 1450 | 110.0 | 5.0 | 1350 |
| 258 | ISGB300-12.5 | 500720860 | 138.9200238.9 | 13.512.510.5 | 788378 | 1450 | 37.0 | 5.0 | 985 |
| 259 | ISGB300-12.5A | 460662791 | 127.8184219.8 | 12119.3 | 778277 | 1450 | 30.0 | 5.0 | 925 |
| 260 | ISGB300-18 | 480720800 | 133.3200250 | 201815.5 | 778174 | 1450 | 55.0 | 5.0 | 1135 |
| 261 | ISGB300-18A | 438607821 | 121.7182.5228.1 | 16.51513 | 757972 | 1450 | 45.0 | 5.0 | 1040 |
| 262 | ISGB300-18B | 400600750 | 111.1167.0208.3 | 1412.511 | 737770 | 1450 | 37.0 | 5.0 | 900 |
| 263 | ISGB300-20 | 500720900 | 138.9200250 | 232016 | 807384 | 1450 | 55.0 | 5.0 | 900 |
| 264 | ISGB300-20A | 460662791 | 127.8184219.8 | 20.217.514.2 | 81 | 1450 | 45.0 | 5.0 | 785 |
| 265 | ISGB300-28 | 480720900 | 133.3200250 | 312825 | 778177 | 1450 | 75.0 | 5.0 | 1350 |
| 266 | ISGB300-28A | 444666833 | 123.3185231.4 | 26.52421.5 | 768076 | 1450 | 75.0 | 5.0 | 1350 |
| 267 | ISGB300-28B | 415623779 | 115.3173.1216.4 | 232118.5 | 79 | 1450 | 55.0 | 5.0 | 1170 |
| 268 | ISGB300-32 | 500720900 | 138.9200250 | 363226 | 7982.584 | 1450 | 90.0 | 5.0 | 1350 |
| 269 | ISGB300-32A | 460662791 | 127.8184219.8 | 30.52823.5 | 748074 | 1450 | 75.0 | 5.0 | 1250 |
| 270 | ISGB300-32B | 423609728 | 117.6169.3202.2 | 25.523.520 | 727873 | 1450 | 55.0 | 5.0 | 1080 |
| 271 | ISGB300-44 | 480720900 | 133.3200250 | 484434 | 768482 | 1450 | 132.0 | 5.0 | 1900 |
| 272 | ISGB300-44A | 444666833 | 123.3185231.4 | 41.43830 | 80 | 1450 | 110.0 | 5.0 | 1700 |
| 273 | ISGB300-44B | 409614767 | 113.6170.6213.1 | 353225 | 78 | 1450 | 90.0 | 5.0 | 1550 |
| 274 | ISGB300-50 | 500720900 | 138.9200250 | 54.55042 | 758078 | 1450 | 132.0 | 5.5 | 1725 |
| 275 | ISGB300-50A | 460662791 | 127.8184219.8 | 474436.5 | 747977 | 1450 | 110.0 | 5.5 | 1520 |
| 276 | ISGB300-50B | 423609728 | 117.6169.3202.2 | 413832 | 727775 | 1450 | 90.0 | 5.5 | 1400 |
| 277 | ISGB300-50C | 389561670 | 108.2155.7186 | 35.53327.5 | 697472 | 1450 | 75.0 | 5.5 | 1250 |
| 278 | ISGB300-65 | 500720900 | 138.9200250 | 716558 | 758182 | 1450 | 200.0 | 5.5 | 2150 |
| 279 | ISGB300-65A | 460662791 | 127.8184219.8 | 605549 | 748081 | 1450 | 160.0 | 5.5 | 1730 |
| 280 | ISGB300-65B | 423609728 | 117.6169.3202.2 | 494535 | 737980 | 1450 | 110.0 | 5.5 | 1630 |
| 281 | ISGB300-65C | 389561670 | 108.2155.7186 | 423830 | 727879 | 1450 | 90.0 | 5.5 | 1500 |
| 282 | ISGB300-80 | 500720900 | 138.9200250 | 848072 | 748075 | 1450 | 250.0 | 5.5 | 2280 |
| 283 | ISGB300-80A | 460662791 | 127.8184219.8 | 7470.563.5 | 737974 | 1450 | 200.0 | 5.5 | 2150 |
| 284 | ISGB300-80B | 423609728 | 117.6169.3202.2 | 656256 | 717772 | 1450 | 160.0 | 5.5 | 1980 |
| 285 | ISGB300-80C | 389561670 | 108.2155.7186 | 5754.549 | 687570 | 1450 | 132.0 | 5.5 | 1850 |
| 286 | ISGB350-12.5 | 71810801345 | 199.4300373.6 | 1512.511 | 758381 | 970 | 55.0 | 5.5 | 1200 |
| 287 | ISGB350-12.5A | 6639951245 | 184.2276.4345.8 | 12108.5 | 728179 | 970 | 45.0 | 5.5 | 1020 |
| 288 | ISGB350-20 | 71810801345 | 199.4300373.6 | 23.52018 | 768280 | 970 | 90.0 | 5.5 | 1450 |
| 289 | ISGB350-20A | 6639951245 | 184.2376.4345.8 | 201715 | 748078 | 970 | 75.0 | 5.5 | 1320 |
| 290 | ISGB350-20B | 6209311165 | 172.2258.6323.6 | 17.51513 | 717877 | 970 | 55.0 | 5.5 | 1150 |
| 291 | ISGB350-32 | 71810801345 | 199.4300373.6 | 36.43228.5 | 798378 | 1450 | 132.0 | 5.5 | 2150 |
| 292 | ISGB350-32A | 6639951245 | 184.2276.4345.6 | 30.52725 | 748176 | 1450 | 110.0 | 5.5 | 2000 |
| 293 | ISGB350-32B | 6209311165 | 172.2258.6323.6 | 26.52421 | 737975 | 1450 | 90.0 | 5.5 | 1850 |
| 294 | ISGB350-40 | 71810801345 | 199.4300373.6 | 44.64034.6 | 82 | 1450 | 160.0 | 5.5 | 1700 |
| 295 | ISGB350-40A | 6429651200 | 178.6268.1334.2 | 35.73227.7 | 80 | 1450 | 132.0 | 5.5 | 1500 |
| 296 | ISGB350-40B | 6009001120 | 166.7250311.4 | 31.228.224.6 | 78 | 1450 | 110.0 | 5.5 | 1300 |
| 297 | ISGB350-50 | 71810801345 | 199.4300373.6 | 54.75044.2 | 788377 | 1450 | 200.0 | 5.5 | 2300 |
| 298 | ISGB350-50A | 6639951245 | 184.2276.4345.8 | 48.34436.8 | 778176 | 1450 | 160.0 | 5.5 | 2100 |
| 299 | ISGB350-50B | 6209311165 | 172.2258.6323.6 | 42.53832.3 | 79 | 1450 | 132.0 | 5.5 | 1950 |
| 300 | ISGB350-60 | 71810801345 | 199.4300373.6 | 64.86055 | 82 | 1450 | 250.0 | 5.5 | 2500 |
| 301 | ISGB350-60A | 6639951245 | 184.2376.4345.8 | 59.25448 | 80 | 1450 | 200.0 | 5.5 | 2250 |
| 302 | ISGB350-60B | 6209311165 | 172.2258.6323.6 | 51.346.941.3 | 78 | 1450 | 160.0 | 5.5 | 2100 |
| 303 | ISGB350-12.5(I) | 100012001450 | 277.833.3402.8 | 13.512.510.5 | 768077 | 970 | 55.0 | 6.0 | 1250 |
| 304 | ISGB350-12.5(I)A | 90010801300 | 250300361 | 11.510.59 | 768076 | 970 | 45.0 | 6.0 | 1150 |
| 305 | ISGB350-20(I) | 100012001450 | 277.8333.3402.8 | 232016 | 768076 | 970 | 90.0 | 6.0 | 1580 |
| 306 | ISGB350-20(I)A | 90010801300 | 250300361 | 191714 | 737874 | 970 | 75.0 | 6.0 | 1350 |
| 307 | ISGB350-32(I) | 100012001450 | 277.8333.3402.8 | 363226 | 747875 | 1450 | 160.0 | 6.0 | 1870 |
| 308 | ISGB350-32(I)A | 90010801300 | 250300361 | 31.52823 | 727673 | 1450 | 132.0 | 6.0 | 1720 |
| 309 | ISGB350-32(I)B | 7459851182 | 207273328 | 272520 | 717572 | 1450 | 110.0 | 6.0 | 1650 |
| 310 | ISGB350-50(I) | 100012001450 | 277.8333.3402.8 | 555043 | 707472 | 1450 | 250.0 | 6.0 | 2350 |
| 311 | ISGB350-50(I)A | 90010801300 | 250300361 | 47.54438 | 687270 | 1450 | 200.0 | 6.0 | 2100 |
| 312 | ISGB350-50(I)B | 7459851182 | 207273328 | 4238.534 | 607068 | 1450 | 160.0 | 6.0 | 2000 |
ISGB便拆式管道泵外形安装尺寸图
ISGB便拆式管道泵外形安装尺寸表
| 序号 | 型号 | 外形尺寸 | 安装尺寸 | 进出口法兰尺寸 | 隔振器(垫) | |||||||||
| L | B | H | C1×B1 | A | L1 | C1×B1 | 4-Фd1 | D | D1 | n-d | 规格 | H1 | ||
| ISGB001 | 40-12.5 | 290 | 230 | 6406 | 120×170 | 85 | 145 | 80×130 | 4-Ф14 | Ф150 | Ф110 | 4-Ф18 | SD41-0.5 | 105 |
| ISGB002 | 40-125.A | 290 | 230 | 40 | 120×170 | 85 | 145 | 80×130 | 4-Ф14 | Ф150 | Ф110 | 4-Ф18 | SD41-0.5 | 105 |
| ISGB003 | 40-20 | 360 | 230 | 660 | 120×170 | 95 | 180 | 80×130 | 4-Ф14 | Ф150 | Ф110 | 4-Ф18 | SD41-0.5 | 115 |
| ISGB004 | 40-20A | 360 | 230 | 660 | 120×170 | 95 | 180 | 80×130 | 4-Ф14 | Ф150 | Ф110 | 4-Ф18 | SD41-0.5 | 115 |
| ISGB005 | 40-32 | 360 | 270 | 700 | 120×170 | 95 | 180 | 80×130 | 4-Ф14 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 115 |
| ISGB006 | 40-32A | 360 | 270 | 675 | 120×170 | 95 | 180 | 80×130 | 4-Ф14 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 115 |
| ISGB007 | 40-32B | 360 | 270 | 660 | 120×170 | 95 | 180 | 80×130 | 4-Ф14 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 115 |
| ISGB008 | 40-50 | 390 | 330 | 760 | 145×205 | 100 | 195 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 120 |
| ISGB009 | 40-50A | 390 | 330 | 740 | 145×205 | 100 | 195 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 120 |
| ISGB010 | 40-50B | 390 | 330 | 700 | 145×205 | 100 | 195 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 120 |
| ISGB011 | 40-80 | 460 | 405 | 950 | 145×205 | 100 | 230 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 120 |
| ISGB012 | 40-80A | 460 | 405 | 950 | 145×205 | 100 | 230 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 120 |
| ISGB013 | 40-80B | 460 | 405 | 950 | 145×205 | 100 | 230 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 120 |
| ISGB014 | 40-12.5(I) | 310 | 230 | 715 | 145×205 | 100 | 155 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD41-0.5 | 120 |
| ISGB015 | 40-12.5(I)A | 310 | 230 | 715 | 145×205 | 105 | 155 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD41-0.5 | 120 |
| ISGB016 | 40-20(I) | 360 | 240 | 745 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB017 | 40-20(I)A | 360 | 240 | 730 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB018 | 40-32(I) | 360 | 300 | 805 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB019 | 40-32(I)A | 360 | 300 | 760 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB020 | 40-32(I)B | 360 | 300 | 735 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB021 | 40-50(I) | 400 | 350 | 880 | 145×205 | 105 | 200 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB022 | 40-50(I)A | 400 | 350 | 825 | 145×205 | 105 | 200 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB023 | 40-50(I)B | 400 | 350 | 805 | 145×205 | 110 | 200 | 100×160 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB024 | 40-80(I) | 470 | 430 | 1055 | 170×230 | 110 | 235 | 120×180 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | JG2-1 | 230 |
| ISGB025 | 40-80(I)A | 470 | 370 | 960 | 170×230 | 110 | 235 | 120×180 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | JG2-1 | 230 |
| ISGB026 | 40-80(I)B | 470 | 370 | 960 | 170×230 | 110 | 235 | 120×180 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | JG2-1 | 230 |
| ISGB027 | 40-80(I)C | 470 | 370 | 960 | 170×230 | 100 | 235 | 120×180 | 4-Ф18 | Ф150 | Ф110 | 4-Ф18 | JG2-1 | 230 |
| ISGB028 | 50-12.5 | 310 | 230 | 715 | 145×205 | 100 | 155 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD41-0.5 | 120 |
| ISGB029 | 50-12.5A | 310 | 230 | 715 | 145×205 | 105 | 155 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD41-0.5 | 120 |
| ISGB030 | 50-20 | 360 | 240 | 745 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB031 | 50-20A | 360 | 240 | 730 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB032 | 50-32 | 360 | 300 | 80 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB033 | 50-32A | 360 | 300 | 5760 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB034 | 50-32B | 360 | 300 | 735 | 145×205 | 105 | 180 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB035 | 50-50 | 400 | 350 | 880 | 145×205 | 105 | 200 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB036 | 50-50A | 400 | 350 | 825 | 145×205 | 105 | 200 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB037 | 50-50B | 400 | 350 | 80 | 145×205 | 105 | 200 | 100×160 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB038 | 50-80 | 470 | 430 | 1055 | 170×230 | 110 | 235 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | JG2-1 | 230 |
| ISGB039 | 50-80A | 470 | 360 | 960 | 170×230 | 110 | 235 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | JG2-1 | 230 |
| ISGB040 | 50-80B | 470 | 360 | 960 | 170×230 | 110 | 235 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | JG2-1 | 230 |
| ISGB041 | 50-80C | 470 | 360 | 960 | 170×230 | 110 | 235 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | JG2-1 | 230 |
| ISGB042 | 50-12.5(I) | 330 | 235 | 740 | 170×230 | 105 | 165 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB043 | 50-12.5(I)A | 330 | 235 | 725 | 170×230 | 105 | 165 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB044 | 50-20(I) | 390 | 280 | 805 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB045 | 50-20(I)A | 390 | 280 | 760 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB046 | 50-32(I) | 390 | 305 | 825 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB047 | 50-32(I)A | 390 | 305 | 825 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB048 | 50-32(I)B | 390 | 305 | 805 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB049 | 50-50(I) | 410 | 350 | 880 | 170×230 | 110 | 205 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 130 |
| ISGB050 | 50-50(I)A | 410 | 350 | 880 | 170×230 | 110 | 205 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 130 |
| ISGB051 | 50-50(I)B | 410 | 350 | 880 | 170×230 | 110 | 205 | 120×180 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | SD61-0.5 | 130 |
| ISGB052 | 50-80(I) | 500 | 435 | 1065 | 195×285 | 120 | 250 | 150×240 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | JG2-1 | 240 |
| ISGB053 | 50-80(I)A | 500 | 435 | 1065 | 195×285 | 120 | 250 | 150×240 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | JG2-1 | 240 |
| ISGB054 | 50-80(I)B | 500 | 435 | 1065 | 195×285 | 120 | 250 | 150×240 | 4-Ф18 | Ф165 | Ф125 | 4-Ф18 | JG2-1 | 240 |
| ISGB055 | 50-125(I) | 570 | 510 | 1240 | 260×310 | 125 | 285 | 210×260 | 4-Ф23 | Ф165 | Ф125 | 4-Ф18 | JG2-2 | 245 |
| ISGB056 | 50-125(I)A | 570 | 470 | 1135 | 260×310 | 125 | 285 | 210×260 | 4-Ф23 | Ф165 | Ф125 | 4-Ф18 | JG2-2 | 245 |
| ISGB057 | 50-125(I)B | 570 | 435 | 1110 | 260×310 | 125 | 285 | 210×260 | 4-Ф23 | Ф165 | Ф125 | 4-Ф18 | JG2-2 | 245 |
| ISGB058 | 50-125(I)C | 570 | 435 | 1065 | 260×310 | 125 | 285 | 210×260 | 4-Ф23 | Ф165 | Ф125 | 4-Ф18 | JG2-2 | 245 |
| ISGB059 | 65-12.5 | 330 | 235 | 740 | 170×230 | 105 | 165 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB060 | 65-12.5A | 330 | 235 | 725 | 170×230 | 105 | 165 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB061 | 65-20 | 390 | 280 | 805 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB062 | 65-20A | 390 | 280 | 760 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB063 | 65-32 | 390 | 305 | 825 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 125 |
| ISGB064 | 65-32A | 390 | 305 | 825 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB065 | 65-32B | 390 | 305 | 805 | 170×230 | 105 | 195 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD41-0.5 | 125 |
| ISGB066 | 65-50 | 410 | 350 | 880 | 170×230 | 110 | 205 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD41-0.5 | 130 |
| ISGB067 | 65-50A | 410 | 350 | 880 | 170×230 | 110 | 205 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 130 |
| ISGB068 | 65-50B | 410 | 350 | 880 | 170×230 | 110 | 205 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 130 |
| ISGB069 | 65-80 | 500 | 435 | 1065 | 190×285 | 120 | 250 | 150×240 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | JG2-1 | 240 |
| ISGB070 | 65-80A | 500 | 435 | 1065 | 190×285 | 120 | 250 | 150×240 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | JG2-1 | 240 |
| ISGB071 | 65-80B | 500 | 435 | 1065 | 190×285 | 120 | 250 | 150×240 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | JG2-1 | 240 |
| ISGB072 | 65-125 | 570 | 510 | 1240 | 260×310 | 125 | 285 | 210×260 | 4-Ф23 | Ф185 | Ф145 | 4-Ф18 | JG2-2 | 245 |
| ISGB073 | 65-125A | 570 | 470 | 1135 | 260×310 | 125 | 285 | 210×260 | 4-Ф23 | Ф185 | Ф145 | 4-Ф18 | JG2-2 | 245 |
| ISGB074 | 65-125B | 570 | 435 | 1110 | 260×310 | 125 | 285 | 210×260 | 4-Ф23 | Ф185 | Ф145 | 4-Ф18 | JG2-2 | 245 |
| ISGB075 | 65-125C | 570 | 435 | 1065 | 260×310 | 125 | 285 | 210×260 | 4-Ф23 | Ф185 | Ф145 | 4-Ф18 | JG2-2 | 245 |
| ISGB076 | 65-12.5(I) | 400 | 285 | 825 | 170×230 | 125 | 200 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 145 |
| ISGB077 | 65-12.5(I)A | 400 | 245 | 780 | 170×230 | 125 | 200 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 145 |
| ISGB078 | 65-20(I) | 400 | 360 | 905 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 150 |
| ISGB079 | 65-20(I)A | 440 | 315 | 850 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 150 |
| ISGB080 | 65-32(I) | 440 | 360 | 905 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 150 |
| ISGB081 | 65-32(I)A | 440 | 360 | 905 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 150 |
| ISGB082 | 65-32(I)B | 440 | 315 | 905 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | SD61-0.5 | 150 |
| ISGB083 | 65-50(I) | 460 | 430 | 1005 | 170×230 | 130 | 230 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | JG2-1 | 250 |
| ISGB084 | 65-50(I)A | 460 | 430 | 1005 | 170×230 | 130 | 230 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | JG2-1 | 250 |
| ISGB085 | 65-50(I)B | 460 | 360 | 910 | 170×230 | 130 | 230 | 120×180 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | JG2-1 | 250 |
| ISGB086 | 65-80(I) | 520 | 465 | 1155 | 195×285 | 140 | 260 | 150×240 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | JG2-2 | 260 |
| ISGB087 | 65-80(I)A | 520 | 430 | 1130 | 195×285 | 140 | 260 | 150×240 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | JG2-2 | 260 |
| ISGB088 | 65-80(I)B | 520 | 430 | 1085 | 195×285 | 140 | 260 | 150×240 | 4-Ф18 | Ф185 | Ф145 | 4-Ф18 | JG2-2 | 260 |
| ISGB089 | 65-125(I) | 620 | 530 | 1250 | 260×310 | 140 | 310 | 210×260 | 4-Ф23 | Ф185 | Ф145 | 4-Ф18 | JG3-1 | 282 |
| ISGB090 | 65-125(I)A | 620 | 530 | 1250 | 260×310 | 140 | 310 | 210×260 | 4-Ф23 | Ф185 | Ф145 | 4-Ф18 | JG3-1 | 282 |
| ISGB091 | 65-125(I)B | 620 | 530 | 1250 | 260×310 | 140 | 310 | 210×260 | 4-Ф23 | Ф185 | Ф145 | 4-Ф18 | JG3-1 | 282 |
| ISGB092 | 65-125(I)C | 620 | 470 | 1145 | 260×310 | 140 | 310 | 210×260 | 4-Ф23 | Ф185 | Ф145 | 4-Ф18 | JG3-1 | 282 |
| ISGB093 | 80-12.5 | 400 | 285 | 825 | 170×230 | 125 | 200 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | SD61-0.5 | 145 |
| ISGB094 | 80-12.5A | 400 | 245 | 780 | 170×230 | 125 | 200 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | SD61-0.5 | 145 |
| ISGB095 | 80-20 | 440 | 360 | 905 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | SD61-0.5 | 150 |
| ISGB096 | 80-20A | 440 | 315 | 850 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | SD61-0.5 | 150 |
| ISGB097 | 80-32 | 440 | 360 | 905 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | SD61-0.5 | 150 |
| ISGB098 | 80-32A | 440 | 360 | 905 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | SD61-0.5 | 150 |
| ISGB099 | 80-32B | 440 | 315 | 905 | 170×230 | 130 | 220 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | SD61-0.5 | 150 |
| ISGB100 | 80-50 | 460 | 430 | 1005 | 170×230 | 130 | 230 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-1 | 250 |
| ISGB101 | 80-50A | 460 | 430 | 1005 | 170×230 | 130 | 230 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-1 | 250 |
| ISGB102 | 80-50B | 460 | 360 | 910 | 170×230 | 130 | 230 | 120×180 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-1 | 250 |
| ISGB103 | 80-80 | 520 | 465 | 1155 | 195×285 | 140 | 260 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-2 | 260 |
| ISGB104 | 80-80A | 520 | 445 | 1130 | 195×285 | 140 | 260 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-2 | 260 |
| ISGB105 | 80-80B | 520 | 445 | 1085 | 195×285 | 140 | 260 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-2 | 260 |
| ISGB106 | 80-125 | 620 | 530 | 1250 | 260×310 | 140 | 310 | 210×260 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG3-1 | 282 |
| ISGB107 | 80-125A | 620 | 530 | 1250 | 260×310 | 140 | 310 | 210×260 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG3-1 | 282 |
| ISGB108 | 80-125B | 620 | 530 | 1250 | 260×310 | 140 | 310 | 210×260 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG3-1 | 282 |
| ISGB109 | 80-125C | 620 | 470 | 1145 | 260×310 | 140 | 310 | 210×260 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG3-1 | 282 |
| ISGB110 | 80-12.5(I) | 460 | 360 | 930 | 195×285 | 145 | 230 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | SD61-0.5 | 165 |
| ISGB111 | 80-12.5(I)A | 460 | 360 | 875 | 195×285 | 145 | 230 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | SD61-0.5 | 165 |
| ISGB112 | 80-20(I) | 460 | 430 | 1020 | 195×285 | 145 | 230 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-1 | 265 |
| ISGB113 | 80-20(I)A | 460 | 350 | 925 | 195×285 | 145 | 230 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-1 | 265 |
| ISGB114 | 80-32(I) | 510 | 430 | 1110 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-1 | 280 |
| ISGB115 | 80-32(I)A | 510 | 430 | 1110 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-1 | 280 |
| ISGB116 | 80-32(I)B | 510 | 430 | 1110 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-1 | 280 |
| ISGB117 | 80-50(I) | 520 | 475 | 1185 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-2 | 280 |
| ISGB118 | 80-50(I)A | 520 | 430 | 1160 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-2 | 280 |
| ISGB119 | 80-50(I)B | 520 | 430 | 1115 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф200 | Ф160 | 8-Ф18 | JG2-2 | 280 |
| ISGB120 | 80-80(I) | 570 | 520 | 1290 | 260×310 | 165 | 285 | 210×260 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG2-2 | 285 |
| ISGB121 | 80-80(I)A | 570 | 520 | 1290 | 260×310 | 165 | 285 | 210×260 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG2-2 | 285 |
| ISGB122 | 80-80(I)B | 570 | 520 | 1290 | 260×310 | 165 | 285 | 210×260 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG2-2 | 285 |
| ISGB123 | 80-125(I) | 660 | 700 | 1510 | 310×360 | 175 | 330 | 250×300 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG3-1 | 317 |
| ISGB124 | 80-125(I)A | 660 | 640 | 1440 | 310×360 | 175 | 330 | 250×300 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG3-1 | 317 |
| ISGB125 | 80-125(I)B | 660 | 580 | 1355 | 310×360 | 175 | 330 | 250×300 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG3-1 | 317 |
| ISGB126 | 80-125(I)C | 660 | 520 | 1315 | 310×360 | 175 | 330 | 250×300 | 4-Ф23 | Ф200 | Ф160 | 8-Ф18 | JG3-1 | 317 |
| ISGB127 | 100-12.5 | 460 | 360 | 930 | 195×285 | 145 | 230 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | SD61-0.5 | 165 |
| ISGB128 | 100-12.5 | 460 | 315 | 875 | 195×285 | 145 | 230 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | SD61-0.5 | 165 |
| ISGB129 | 100-20 | 460 | 430 | 1020 | 195×285 | 145 | 230 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | JG2-1 | 165 |
| ISGB130 | 100-20A | 460 | 350 | 925 | 195×285 | 145 | 230 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | JG2-1 | 165 |
| ISGB131 | 100-32 | 510 | 430 | 1110 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | JG2-1 | 280 |
| ISGB132 | 100-32A | 510 | 430 | 1110 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | JG2-1 | 280 |
| ISGB133 | 100-32B | 510 | 430 | 1110 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | JG2-1 | 280 |
| ISGB134 | 100-50 | 520 | 475 | 1185 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | JG2-2 | 280 |
| ISGB135 | 100-50A | 520 | 430 | 1160 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | JG2-2 | 280 |
| ISGB136 | 100-50B | 520 | 430 | 1115 | 195×285 | 160 | 250 | 150×240 | 4-Ф18 | Ф220 | Ф180 | 8-Ф18 | JG2-2 | 280 |
| ISGB137 | 100-80 | 570 | 520 | 1290 | 260×310 | 165 | 285 | 210×260 | 4-Ф23 | Ф220 | Ф180 | 8-Ф18 | JG2-2 | 285 |
| ISGB138 | 100-80A | 570 | 520 | 1290 | 260×310 | 165 | 285 | 210×260 | 4-Ф23 | Ф220 | Ф180 | 8-Ф18 | JG2-2 | 285 |
| ISGB139 | 100-80B | 570 | 520 | 1290 | 260×310 | 165 | 285 | 210×260 | 4-Ф23 | Ф220 | Ф180 | 8-Ф18 | JG2-2 | 285 |
| ISGB140 | 100-125 | 660 | 680 | 1510 | 310×360 | 175 | 330 | 250×300 | 4-Ф23 | Ф220 | Ф180 | 8-Ф18 | JG3-1 | 317 |
| ISGB141 | 100-125A | 660 | 640 | 1140 | 310×360 | 175 | 330 | 250×300 | 4-Ф23 | Ф220 | Ф180 | 8-Ф18 | JG3-1 | 317 |
| ISGB142 | 100-125B | 660 | 580 | 1355 | 310×360 | 175 | 330 | 250×300 | 4-Ф23 | Ф220 | Ф180 | 8-Ф18 | JG3-1 | 317 |
| ISGB143 | 100-125C | 660 | 520 | 1315 | 310×360 | 175 | 330 | 250×300 | 4-Ф23 | Ф220 | Ф180 | 8-Ф18 | JG3-1 | 317 |
| ISGB144 | 125-12.5 | 580 | 430 | 1145 | 260×310 | 185 | 280 | 210×260 | 4-Ф18 | Ф250 | Ф210 | 8-Ф18 | JG2-1 | 305 |
| ISGB145 | 125-12.5A | 580 | 360 | 1050 | 260×310 | 185 | 280 | 210×260 | 4-Ф18 | Ф250 | Ф210 | 8-Ф18 | JG2-1 | 305 |
| ISGB146 | 125-20 | 580 | 430 | 1145 | 260×310 | 185 | 280 | 210×260 | 4-Ф18 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB147 | 125-20A | 580 | 430 | 1145 | 260×310 | 185 | 280 | 210×260 | 4-Ф18 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB148 | 125-32 | 580 | 460 | 1215 | 260×310 | 185 | 280 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB149 | 125-32A | 580 | 430 | 1190 | 260×310 | 185 | 280 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB150 | 125-32B | 580 | 430 | 1145 | 260×310 | 185 | 280 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB151 | 125-50 | 620 | 510 | 1310 | 260×310 | 185 | 300 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB152 | 125-50A | 620 | 510 | 1310 | 260×310 | 185 | 300 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB153 | 125-50B | 620 | 460 | 1205 | 260×310 | 185 | 300 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB154 | 125-80 | 650 | 660 | 1475 | 310×360 | 195 | 310 | 250×300 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB155 | 125-80A | 650 | 570 | 1390 | 310×360 | 195 | 310 | 250×300 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB156 | 125-80B | 650 | 510 | 1350 | 310×360 | 195 | 310 | 250×300 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB157 | 125-125 | 700 | 685 | 1590 | 360×460 | 195 | 350 | 300×400 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB158 | 125-125A | 700 | 685 | 1540 | 360×460 | 195 | 350 | 300×400 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB159 | 125-125B | 700 | 685 | 1540 | 360×460 | 195 | 350 | 300×400 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB160 | 125-125C | 700 | 660 | 1455 | 360×460 | 195 | 350 | 300×400 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB161 | 125-32(I) | 580 | 485 | 1320 | 260×310 | 185 | 280 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB162 | 125-32(I)A | 580 | 430 | 1215 | 260×310 | 185 | 280 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG2-2 | 305 |
| ISGB163 | 125-50(I) | 620 | 540 | 1350 | 260×310 | 185 | 300 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 327 |
| ISGB164 | 125-50(I)A | 620 | 500 | 1310 | 260×310 | 185 | 300 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 327 |
| ISGB165 | 125-50(I)B | 620 | 490 | 1310 | 260×310 | 185 | 300 | 210×260 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 327 |
| ISGB166 | 125-80(I) | 650 | 660 | 1545 | 310×360 | 195 | 310 | 250×300 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB167 | 125-80(I)A | 650 | 640 | 1475 | 310×360 | 195 | 310 | 250×300 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB168 | 125-80(I)B | 650 | 620 | 1390 | 310×360 | 195 | 310 | 250×300 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB169 | 125-125(I) | 700 | 760 | 1740 | 360×460 | 195 | 350 | 300×400 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB170 | 125-125(I)A | 700 | 700 | 1590 | 360×460 | 195 | 350 | 300×400 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB171 | 125-125(I)B | 700 | 680 | 1540 | 360×460 | 195 | 350 | 300×400 | 4-Ф23 | Ф250 | Ф210 | 8-Ф18 | JG3-1 | 337 |
| ISGB172 | 150-12.5 | 720 | 435 | 1190 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 325 |
| ISGB173 | 150-12.5A | 720 | 420 | 1135 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 325 |
| ISGB174 | 150-20 | 720 | 435 | 1225 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 325 |
| ISGB175 | 150-20A | 720 | 435 | 1190 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 325 |
| ISGB176 | 150-20B | 720 | 420 | 1135 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 325 |
| ISGB177 | 150-32 | 800 | 465 | 1300 | 310×360 | 215 | 400 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 335 |
| ISGB178 | 150-32A | 800 | 465 | 1260 | 310×360 | 215 | 400 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 335 |
| ISGB179 | 150-32B | 800 | 450 | 1235 | 310×360 | 215 | 400 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 335 |
| ISGB180 | 150-50 | 820 | 570 | 1390 | 310×360 | 225 | 410 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-1 | 367 |
| ISGB181 | 150-50A | 820 | 570 | 1375 | 310×360 | 225 | 410 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-1 | 367 |
| ISGB182 | 150-50B | 820 | 540 | 1310 | 310×360 | 225 | 410 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-1 | 367 |
| ISGB183 | 150-80 | 1020 | 685 | 1530 | 360×460 | 235 | 500 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-1 | 377 |
| ISGB184 | 150-80A | 1020 | 645 | 1445 | 360×460 | 235 | 500 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-1 | 377 |
| ISGB185 | 150-80B | 1020 | 645 | 1420 | 360×460 | 235 | 500 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-1 | 377 |
| ISGB186 | 150-80 | 700 | 670 | 1545 | 310×360 | 195 | 350 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-1 | 337 |
| ISGB187 | 150-80A | 700 | 640 | 1475 | 310×360 | 195 | 350 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-1 | 337 |
| ISGB188 | 150-80B | 700 | 585 | 1390 | 310×360 | 195 | 350 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-1 | 337 |
| ISGB189 | 150-125 | 760 | 900 | 1740 | 360×460 | 210 | 380 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-2 | 352 |
| ISGB190 | 150-125A | 760 | 700 | 1590 | 360×460 | 210 | 380 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-2 | 352 |
| ISGB191 | 150-125B | 760 | 700 | 1540 | 360×460 | 210 | 380 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG3-2 | 352 |
| ISGB192 | 150-12.5(I) | 720 | 435 | 1225 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 325 |
| ISGB193 | 150-12.5(I)A | 720 | 435 | 1180 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 325 |
| ISGB194 | 150-20(I) | 720 | 475 | 1260 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 325 |
| ISGB195 | 150-20(I)A | 720 | 475 | 1225 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф22 | JG2-2 | 325 |
| ISGB196 | 150-20(I)B | 720 | 445 | 1190 | 260×310 | 205 | 350 | 210×260 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG2-2 | 325 |
| ISGB197 | 150-32(I) | 800 | 530 | 1365 | 310×360 | 215 | 400 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-1 | 357 |
| ISGB198 | 150-32(I)A | 800 | 505 | 1300 | 310×360 | 215 | 400 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-1 | 357 |
| ISGB199 | 150-32(I)B | 800 | 505 | 1260 | 310×360 | 215 | 400 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-1 | 357 |
| ISGB200 | 150-50(I) | 820 | 595 | 1415 | 310×360 | 225 | 410 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-1 | 367 |
| ISGB201 | 150-50(I)A | 820 | 595 | 1390 | 310×360 | 225 | 410 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-1 | 367 |
| ISGB202 | 150-50(I)B | 820 | 560 | 1375 | 310×360 | 225 | 410 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-1 | 367 |
| ISGB203 | 150-50(I)C | 820 | 535 | 1310 | 310×360 | 225 | 410 | 250×300 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-1 | 367 |
| ISGB204 | 150-80(I) | 1020 | 700 | 1735 | 360×460 | 235 | 500 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-2 | 377 |
| ISGB205 | 150-80(I)A | 1020 | 700 | 1735 | 360×460 | 235 | 500 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-2 | 377 |
| ISGB206 | 150-80(I)B | 1020 | 675 | 1665 | 360×460 | 235 | 500 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-2 | 377 |
| ISGB207 | 150-80(I)C | 1020 | 635 | 1580 | 360×460 | 235 | 500 | 300×400 | 4-Ф23 | Ф285 | Ф240 | 8-Ф18 | JG3-2 | 377 |
| ISGB208 | 200-12.5 | 760 | 435 | 1225 | 310×360 | 225 | 370 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG2-2 | 345 |
| ISGB209 | 200-12.5A | 760 | 435 | 1180 | 310×360 | 225 | 370 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG2-2 | 345 |
| ISGB210 | 200-20 | 760 | 475 | 1260 | 310×360 | 225 | 370 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG2-2 | 345 |
| ISGB211 | 200-20A | 760 | 475 | 1225 | 310×360 | 225 | 370 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG2-2 | 345 |
| ISGB212 | 200-20B | 760 | 445 | 1190 | 310×360 | 225 | 370 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG2-2 | 345 |
| ISGB213 | 200-32 | 840 | 540 | 1365 | 310×360 | 225 | 420 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 367 |
| ISGB214 | 200-32A | 840 | 505 | 1300 | 310×360 | 225 | 420 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 367 |
| ISGB215 | 200-32B | 840 | 505 | 1260 | 310×360 | 225 | 420 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 367 |
| ISGB216 | 200-50 | 880 | 595 | 1415 | 360×460 | 240 | 440 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 382 |
| ISGB217 | 200-50A | 880 | 595 | 1390 | 360×460 | 240 | 440 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 382 |
| ISGB218 | 200-50B | 880 | 560 | 1375 | 360×460 | 240 | 440 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 382 |
| ISGB219 | 200-50C | 880 | 535 | 1310 | 360×460 | 240 | 440 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 382 |
| ISGB220 | 200-12.5(I) | 900 | 525 | 1360 | 310×360 | 245 | 450 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG2-2 | 365 |
| ISGB221 | 200-12.5(I)A | 900 | 525 | 1320 | 310×360 | 245 | 450 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG2-2 | 365 |
| ISGB222 | 200-20(I) | 900 | 545 | 1425 | 310×360 | 245 | 450 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 387 |
| ISGB223 | 200-20(I)A | 900 | 525 | 1360 | 310×360 | 245 | 450 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 387 |
| ISGB224 | 200-20(I)B | 900 | 525 | 1320 | 310×360 | 245 | 450 | 250×300 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 387 |
| ISGB225 | 200-32(I) | 940 | 645 | 1655 | 360×460 | 250 | 450 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 392 |
| ISGB226 | 200-32(I)A | 940 | 605 | 1570 | 360×460 | 250 | 450 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 392 |
| ISGB227 | 200-32(I)B | 940 | 605 | 1530 | 360×460 | 250 | 450 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-1 | 392 |
| ISGB228 | 200-50(I) | 960 | 700 | 1735 | 360×460 | 260 | 460 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 402 |
| ISGB229 | 200-50(I)A | 960 | 700 | 1735 | 360×460 | 260 | 460 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 402 |
| ISGB230 | 200-50(I)B | 960 | 635 | 1665 | 360×460 | 260 | 460 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 402 |
| ISGB231 | 200-50(I)C | 960 | 600 | 1580 | 360×460 | 260 | 460 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 402 |
| ISGB232 | 200-80(I) | 1120 | 850 | 2140 | 420×520 | 265 | 560 | 350×450 | 4-Ф27 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 407 |
| ISGB233 | 200-80(I)A | 1120 | 850 | 2020 | 420×520 | 265 | 560 | 350×450 | 4-Ф27 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 407 |
| ISGB234 | 200-80(I)B | 1120 | 800 | 1870 | 420×520 | 265 | 560 | 350×450 | 4-Ф27 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 407 |
| ISGB235 | 200-80(I)C | 1120 | 710 | 1800 | 420×520 | 265 | 560 | 350×450 | 4-Ф27 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 407 |
| ISGB236 | 200-125(I) | 870 | 700 | 2010 | 360×460 | 240 | 435 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 382 |
| ISGB237 | 200-125(I)A | 870 | 700 | 2010 | 360×460 | 240 | 435 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 382 |
| ISGB238 | 200-125(I)B | 870 | 655 | 2010 | 360×460 | 240 | 435 | 300×400 | 4-Ф23 | Ф340 | Ф295 | 12-Ф22 | JG3-2 | 382 |
| ISGB239 | 250-12.5 | 950 | 570 | 1535 | 360×460 | 310 | 400 | 300×400 | 4-Ф23 | Ф405 | Ф355 | 12-Ф26 | JG3-1 | 452 |
| ISGB240 | 250-12.5A | 950 | 535 | 1470 | 360×460 | 310 | 400 | 300×400 | 4-Ф23 | Ф405 | Ф355 | 12-Ф26 | JG3-1 | 452 |
| ISGB241 | 250-20 | 950 | 620 | 1550 | 360×460 | 310 | 400 | 300×400 | 4-Ф23 | Ф405 | Ф355 | 12-Ф26 | JG3-1 | 452 |
| ISGB242 | 250-20A | 950 | 620 | 1535 | 360×460 | 310 | 400 | 300×400 | 4-Ф23 | Ф405 | Ф355 | 12-Ф26 | JG3-1 | 452 |
| ISGB243 | 250-32 | 1100 | 670 | 1785 | 420×520 | 320 | 500 | 350×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG3-2 | 462 |
| ISGB244 | 250-32A | 1100 | 645 | 1715 | 420×520 | 320 | 500 | 350×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG3-2 | 462 |
| ISGB245 | 250-32B | 1100 | 605 | 1630 | 420×520 | 320 | 500 | 350×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG3-2 | 462 |
| ISGB246 | 250-50 | 1140 | 720 | 1960 | 420×520 | 325 | 540 | 350×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG3-2 | 467 |
| ISGB247 | 250-50A | 1140 | 720 | 1780 | 420×520 | 325 | 540 | 350×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG3-2 | 467 |
| ISGB248 | 250-50B | 1140 | 695 | 1730 | 420×520 | 325 | 540 | 350×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG3-2 | 467 |
| ISGB249 | 250-50C | 1140 | 695 | 1730 | 420×520 | 325 | 540 | 350×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG3-2 | 467 |
| ISGB250 | 250-70 | 1280 | 820 | 2400 | 480×530 | 325 | 640 | 400×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG4-1 | 513 |
| ISGB251 | 250-70A | 1280 | 820 | 2320 | 480×530 | 325 | 640 | 400×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG4-1 | 513 |
| ISGB252 | 250-70B | 1280 | 800 | 2240 | 480×530 | 325 | 640 | 400×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG4-1 | 513 |
| ISGB253 | 250-70C | 1280 | 785 | 2120 | 480×530 | 325 | 640 | 400×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG4-1 | 513 |
| ISGB254 | 250-80 | 1280 | 875 | 2450 | 480×530 | 325 | 640 | 400×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG4-1 | 513 |
| ISGB255 | 250-80A | 1280 | 875 | 2450 | 480×530 | 325 | 640 | 400×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG4-1 | 513 |
| ISGB256 | 250-80B | 1280 | 875 | 2360 | 480×530 | 325 | 640 | 400×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG4-1 | 513 |
| ISGB257 | 250-80C | 1280 | 875 | 2280 | 480×530 | 325 | 640 | 400×450 | 4-Ф27 | Ф405 | Ф355 | 12-Ф26 | JG4-1 | 513 |
| ISGB258 | 300-12.5 | 1250 | 620 | 1640 | 480×530 | 380 | 580 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-1 | 522 |
| ISGB259 | 300-12.5A | 1250 | 600 | 1580 | 480×530 | 380 | 580 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-1 | 522 |
| ISGB260 | 300-18 | 1200 | 645 | 1820 | 480×530 | 380 | 570 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 522 |
| ISGB261 | 300-18A | 1200 | 620 | 1765 | 480×530 | 380 | 570 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 522 |
| ISGB262 | 300-18B | 1200 | 620 | 1685 | 480×530 | 380 | 570 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 522 |
| ISGB263 | 300-20 | 1200 | 645 | 1820 | 480×530 | 380 | 570 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 522 |
| ISGB264 | 300-20A | 1200 | 620 | 1790 | 480×530 | 380 | 570 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 522 |
| ISGB265 | 300-28 | 1250 | 695 | 1800 | 480×530 | 370 | 625 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 512 |
| ISGB266 | 300-28A | 1250 | 695 | 1760 | 480×530 | 370 | 625 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 512 |
| ISGB267 | 300-28B | 1250 | 670 | 1740 | 480×530 | 370 | 625 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 512 |
| ISGB268 | 300-32 | 1250 | 695 | 1800 | 480×530 | 370 | 625 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 512 |
| ISGB269 | 300-32A | 1250 | 695 | 1770 | 480×530 | 370 | 625 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 512 |
| ISGB270 | 300-32B | 1300 | 670 | 1630 | 480×530 | 370 | 625 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG3-2 | 512 |
| ISGB271 | 300-44 | 1300 | 905 | 2300 | 480×530 | 360 | 650 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 548 |
| ISGB272 | 300-44A | 1300 | 905 | 2270 | 480×530 | 360 | 650 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 548 |
| ISGB273 | 300-44B | 1300 | 740 | 2250 | 480×530 | 360 | 650 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 548 |
| ISGB274 | 300-50 | 1300 | 905 | 2300 | 480×530 | 360 | 650 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 548 |
| ISGB275 | 300-50A | 1300 | 905 | 2300 | 480×530 | 360 | 650 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 548 |
| ISGB276 | 300-50B | 1300 | 740 | 2040 | 480×530 | 360 | 650 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 548 |
| ISGB277 | 300-50C | 1300 | 740 | 1990 | 480×530 | 360 | 650 | 400×450 | 4-Ф27 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 548 |
| ISGB278 | 300-65 | 1400 | 870 | 2365 | 540×590 | 370 | 700 | 450×500 | 4-Ф32 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 578 |
| ISGB279 | 300-65A | 1400 | 870 | 2365 | 540×590 | 370 | 700 | 450×500 | 4-Ф32 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 578 |
| ISGB280 | 300-65B | 1400 | 785 | 2125 | 540×590 | 370 | 700 | 450×500 | 4-Ф32 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 578 |
| ISGB281 | 300-65C | 1400 | 720 | 2045 | 540×590 | 370 | 700 | 450×500 | 4-Ф32 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 578 |
| ISGB282 | 300-80 | 1400 | 965 | 2385 | 540×590 | 370 | 700 | 450×500 | 4-Ф32 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 578 |
| ISGB283 | 300-80A | 1400 | 885 | 2350 | 540×590 | 370 | 700 | 450×500 | 4-Ф32 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 578 |
| ISGB284 | 300-80B | 1400 | 885 | 2350 | 540×590 | 370 | 700 | 450×500 | 4-Ф32 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 578 |
| ISGB285 | 300-80C | 1400 | 885 | 2225 | 540×590 | 370 | 700 | 450×500 | 4-Ф32 | Ф460 | Ф410 | 12-Ф26 | JG4-1 | 578 |
| ISGB286 | 350-12.5 | 1350 | 750 | 1850 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB287 | 350-12.5A | 1350 | 700 | 1800 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB288 | 350-20 | 1350 | 850 | 2245 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB289 | 350-20A | 1350 | 800 | 2165 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB290 | 350-20B | 1350 | 800 | 1985 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB291 | 350-32 | 1350 | 900 | 2300 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB292 | 350-32A | 1350 | 900 | 2300 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB293 | 350-32B | 1350 | 900 | 2225 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB294 | 350-40 | 1420 | 925 | 2240 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB295 | 350-40A | 1420 | 925 | 2215 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB296 | 350-40B | 1420 | 875 | 2070 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB297 | 350-50 | 1420 | 1000 | 2425 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB298 | 350-50A | 1420 | 985 | 2335 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB299 | 350-50B | 1420 | 975 | 2335 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB300 | 350-60 | 1420 | 1040 | 2445 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB301 | 350-60A | 1420 | 1040 | 2355 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB302 | 350-60B | 1420 | 1040 | 2355 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB303 | 350-12.5(I) | 1350 | 745 | 2315 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB304 | 350-12.5(I)A | 1350 | 745 | 2285 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB305 | 350-20(I) | 1350 | 965 | 2350 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB306 | 350-20(I)A | 1350 | 965 | 2300 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB307 | 350-32(I) | 1350 | 1000 | 2420 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB308 | 350-32(I)A | 1350 | 1000 | 2330 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB309 | 350-32(I)B | 1350 | 1000 | 2250 | 540×590 | 420 | 640 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB310 | 350-50(I) | 1420 | 1100 | 2550 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB311 | 350-50(I)A | 1420 | 1100 | 2460 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
| ISGB312 | 350-50(I)B | 1420 | 1100 | 2460 | 540×590 | 420 | 660 | 450×500 | 4-Ф32 | Ф520 | Ф470 | 16-Ф26 | JG4-1 | 628 |
联系我们
- 全国销售热线：
+86 21 5640 2009 - 水泵客服电话：
+86 138 1691 3072 - 阀门客服电话：
+86 1381 6913 072 - 企业电子邮箱：
my1pv@1bengfa.com
企业微信
COPYRIGHT © 上海美言壹泵阀有限公司 主营：水泵、阀门
沪ICP备09010762号
