ISB便拆式卧式管道泵
- 品牌：壹泵阀
- 型号：ISB
- 压力/扬程：9~127米
- 工作温度：0℃～80℃
- 连接方式：法兰
- 产品名称：ISB便拆式卧式管道泵
- 通径/流量：3.9~1900吨/每小时
- 材质：铸铁、不锈钢SS304、SS304L、SS316、SS316L
- 驱动方式：电动
- 适用范围：清水、腐蚀性介质
- 产品概述
- 性能参数
- 尺寸重量
ISB便拆式卧式管道泵
ISB型便拆式卧式管道离心泵（简称：ISB便拆式卧式管道泵），为便拆式卧式单级单吸管道离心泵，非自吸式装有标准风冷电机和机械密封。电机使用符合IEC（欧共体标准）和DIN（德国工业标准）全封闭风冷电机。独特设计的电机和泵体，采用同轴联接，同心度加工精度高。用来输送稀薄、清洁的、非侵蚀型、非易爆且不含固体颗粒或纤维的液体。设计应用于星级宾馆、公寓大厦、高层住宅的生活给水、空调系统、冷却、冷冻水循环、采暖系统补水、消防系统增压、游泳池水循环等场合，以及供水和分配水，在自来水厂和分站的增压、人工喷水灌溉、滴水灌溉和泛滥式灌溉。在冷却和加热系统中的循环。在造纸厂和制糖工业、钢铁生产、调制水、冷凝水传输和锅炉给水。洗涤和清洗装置，喷漆时的水地分间车间，水箱和蓄水池的抽空和注满水，除尘装置的增湿。还可用于环境工程方面的过滤装置、水处理系统、除尘装置、再冷却系统和滤水处理。

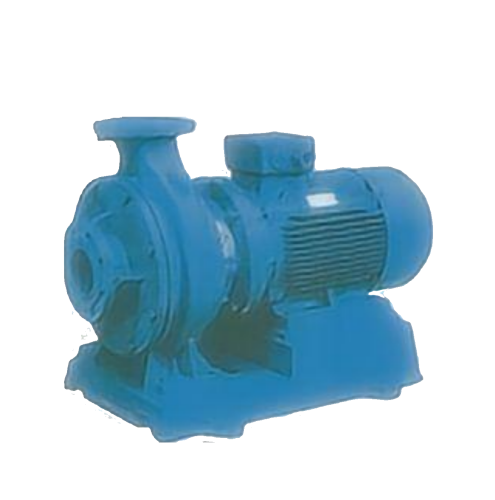

ISB型便拆式卧式管道泵产品图

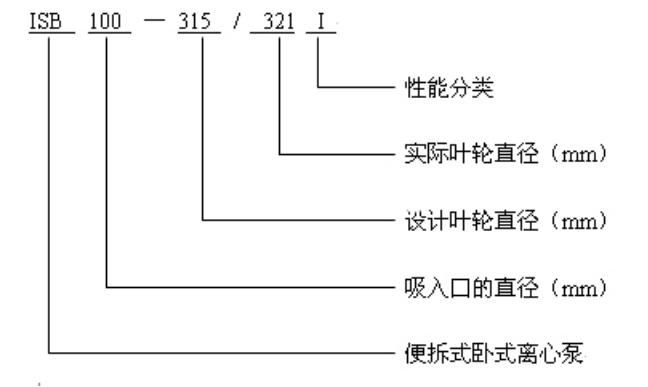

ISB便拆式卧式管道泵型号说明
ISB便拆式卧式管道泵性能范围
泵
| 性能 | 流量 | 扬程 | 配套功率 | 工作压力 | 介质温度范围 | 进出口径 |
| 参数 | 1900m3/h | 133m | 250kw | 10巴巴和16巴 | -10℃—+80℃ | DN40-DN400mm |
电机
| 性能 | 转速 | 电压 | 频率 | 防护等级 | 绝缘等级 | 环境温度 |
| 参数 | 2900/1450/970r/min | 380V | 50Hz | IP44、IP54 | B、F级 | 最高+40℃ |
ISB便拆式卧式管道泵外形结构图

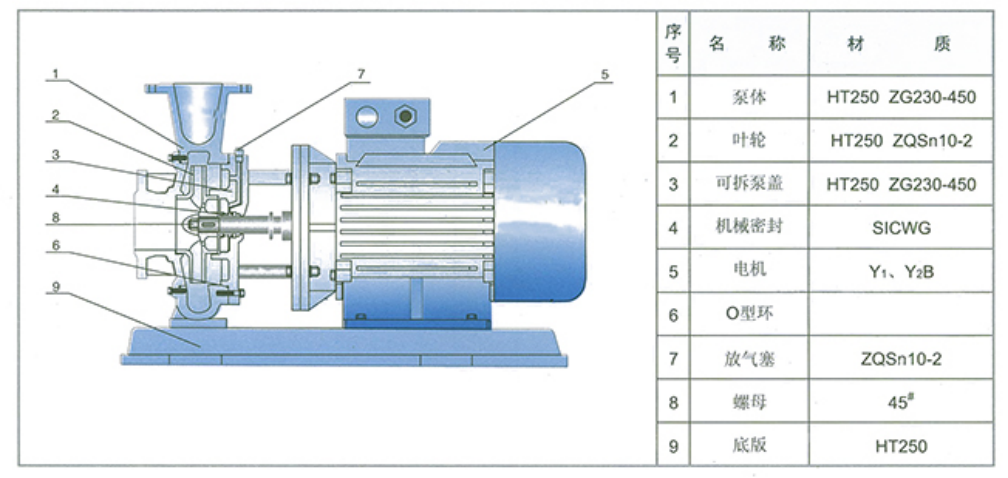

ISB便拆式卧式管道泵外形结构零部件名称及材质：1、泵体：HT250 ZG230-450 2、叶轮：HT250 ZCSn10-2 3、可拆泵盖：HT250 ZG230-450 4、机械密封：SICWG 5、电机：Y1、Y2B 6、0型环：氟橡胶 7、放气塞：ZQSn10-2 8、螺母：45号刚 9、底版：HT250
ISB便拆式卧式管道泵特点
泵壳
带有法兰的螺旋形通道铸铁泵壳，采用电机加长轴联接，当泵转子部件需保养或更换配件时，不需拆电机、泵体、只需打开泵盖取出叶轮、密封、更换便可，法琳娜尺寸符合GB216.5，进出口的尺寸相同。泵壳底部装有一放水螺塞。
叶轮
该类型泵的叶轮为密闭轴向型叶轮，背部有平衡孔，表面光滑，被加工的尺寸上高度精确，并保证具有良好的平衡。
轴封
ISB型泵都有一只免维护非平衡性碳/碳化钨橡胶波纹管机械轴封，气门螺塞通道中液体的循环确保轴封润滑和冷却。
轴
轴表面为高精度表面，尺寸合理，大大延长了轴封的寿命。
安装
当安装泵时，为了极限的防止振动和噪音的传递，可将泵安装在隔振材料上，使来自泵组振动和噪音进一步减少。泵在安装或运行时不允许作为管道的支撑，在所有的工况下均不受外力。
联接
可以安装在水平或垂直的管路中，这要取决于电机大小。
装有7.5kw及以上电机的泵只可水平安装，即电机/泵的轴要水平。
建议在泵的进出口装上闸阀，防止泵在清洗或修理时系统内的水流失。
ISB便拆式卧式管道泵性能参数表 I
| 型 号 | 流量 | 扬程m | 效率% | 转速r/min | 电机功率 | 必需气蚀余量 | 重量Kg | 型号 | 流量 | 扬程m | 效率% | 转速r/min | 电机功率 | 必需气蚀余量 | 重量Kg | |||
| m3/h | L/S | m3/h | L/S | |||||||||||||||
| 40-100/96 | 3.95.67.4 | 1.081.562.06 | 10.6109 | 495543 | 2900 | 0.37 | 2.3 | 29 | 65-160/152 | 16.423.430.4 | 4.566.58.44 | 302824.5 | 576562 | 2900 | 4.0 | 2.5 | 75 | |
| 40-100/106 | 4.46.38.3 | 1.221.752.31 | 13.212.511.3 | 515756 | 2900 | 0.55 | 2.3 | 30 | 65-160/165 | 17.52532.5 | 4.866.949.04 | 34.43227.5 | 576663 | 2900 | 4.0 | 2.5 | 75 | |
| 40-125/132 | 3.95.67.4 | 1.081.562.06 | 17.61614.4 | 444846 | 2900 | 0.75 | 2.3 | 32 | 65-200/185 | 15.221.828.3 | 4.226.067.86 | 40.53834 | 495858 | 2900 | 5.5 | 2.5 | 100 | |
| 40-125/142 | 4.46.38.3 | 1.221.752.31 | 212018 | 444947 | 2900 | 1.1 | 2.3 | 35 | 65-200/195 | 16.423.530.5 | 4.566.538.47 | 46.44440 | 616061 | 2900 | 7.5 | 2.5 | 110 | |
| 40-160/142 | 3.85.57.2 | 1.061.532.00 | 25.52422.5 | 404040 | 2900 | 1.1 | 2.3 | 32 | 65-200/205 | 17.52532.5 | 4.866.949.03 | 52.75045.5 | 526162 | 2900 | 7.5 | 2.5 | 115 | |
| 40-160/152 | 4.15.97.8 | 1.131.632.16 | 292826.3 | 364141 | 2900 | 1.5 | 2.3 | 33 | 65-250/235 | 1521.628 | 4.176.07.78 | 616058 | 415154 | 2900 | 11.0 | 2.5 | 170 | |
| 40-160/165 | 4.46.38.3 | 1.221.752.31 | 3432.30 | 404443 | 2900 | 2.2 | 2.3 | 35 | 65-200/245 | 16.423.430.5 | 4.566.58.47 | 71.57067 | 485355 | 2900 | 11.0 | 2.5 | 170 | |
| 40-200/185 | 3.75.37.3 | 1.031.471.74 | 383634.5 | 323232 | 2900 | 2.2 | 2.3 | 50 | 65-250/255 | 17.52532.5 | 4.896.949.03 | 828076.5 | 425355 | 2900 | 15.0 | 2.5 | 185 | |
| 40-200/195 | 4.15.97.8 | 1.41.642.17 | 454442 | 243432 | 2900 | 3.0 | 2.3 | 58 | 65-315/285 | 14.420.626.8 | 4.05.727.44 | 868583 | 334144 | 2900 | 15.0 | 2.5 | 210 | |
| 40-200/205 | 4.46.38.3 | 1.221.752.31 | 515048 | 293635 | 2900 | 4.0 | 2.3 | 69 | 65-315/295 | 15.722.529.2 | 4.366.258.0 | 10310198 | 344245 | 2900 | 18.5 | 2.5 | 225 | |
| 40-250/235 | 3.85.57.2 | 1.061.532.00 | 61.56056 | 263029 | 2900 | 5.5 | 2.3 | 80 | 65-315/307 | 16.623.731 | 4.616.588.6 | 115113110 | 354347 | 2900 | 22.0 | 2.5 | 260 | |
| 40-250/245 | 4.15.97.8 | 1.141.642.17 | 727065 | 273130 | 2900 | 5.5 | 2.3 | 105 | 65-315/316 | 17.52532.5 | 4.866.949.03 | 127125122 | 354347 | 2900 | 30.0 | 2.5 | 320 | |
| 50-250/255 | 4.46.38.3 | 1.221.752.31 | 828074 | 273131 | 2900 | 7.5 | 2.3 | 110 | 80-100/96 | 31.34558 | 8.712.516.1 | 11108 | 697571 | 2900 | 2.2 | 3.0 | 60 | |
| 50-100/96 | 81114.5 | 2.223.054.03 | 11109 | 576360 | 2900 | 0.75 | 2.3 | 35 | 80-100/106 | 355065 | 9.7213.918.1 | 13.812.510 | 707673 | 2900 | 3.0 | 3.0 | 65 | |
| 50-100/106 | 8.812.516.5 | 2.443.474.53 | 13.612.511.3 | 586563 | 2900 | 1.1 | 2.3 | 40 | 80-125/132 | 31.34558 | 8.712.516.1 | 17.51613.6 | 677472 | 2900 | 4.0 | 3.0 | 80 | |
| 50-125/132 | 81114.5 | 2.223.054.03 | 171614 | 616058 | 2900 | 1.1 | 2.3 | 40 | 80-125/142 | 355065 | 9.7213.918.1 | 222017 | 707573 | 2900 | 5.5 | 3.0 | 100 | |
| 50-125/142 | 8.812.516.3 | 2.443.474.53 | 21.52017.8 | 526160 | 2900 | 1.5 | 2.3 | 45 | 80-160/142 | 30.343.356.3 | 8.412.015.6 | 272420 | 647270 | 2900 | 5.5 | 3.0 | 100 | |
| 50-160/142 | 7.310.413.5 | 2.032.893.75 | 232220.5 | 505050 | 2900 | 1.5 | 2.3 | 46 | 80-160/152 | 32.746.761 | 9.113.016.9 | 30.62825 | 657372 | 2900 | 7.5 | 3.0 | 105 | |
| 50-160/152 | 8.211.715.2 | 2.283.254.22 | 292826 | 405150 | 2900 | 2.2 | 2.3 | 50 | 80-160/165 | 355065 | 9.7213.918.1 | 353228 | 667475 | 2900 | 7.5 | 3.0 | 105 | |
| 50-160/165 | 8.812.516.3 | 2.443.474.53 | 333230 | 455251 | 2900 | 3.0 | 2.3 | 60 | 80-200/185 | 30.543.556.6 | 8.512.115.7 | 40.63833.4 | 566869 | 2900 | 7.5 | 3.0 | 120 | |
| 50-200/185 | 7.510.613.8 | 2.082.943.83 | 403835 | 444444 | 2900 | 3.0 | 2.3 | 70 | 80-200/195 | 32.84761 | 9.113.116.9 | 474440 | 576972 | 2900 | 11.0 | 3.0 | 170 | |
| 50-200/195 | 8.311.715.3 | 2.313.254.25 | 45.84442 | 374545 | 2900 | 4.0 | 2.3 | 85 | 80-200/205 | 355065 | 9.7213.918.1 | 53.35046 | 587071 | 2900 | 15.0 | 3.0 | 175 | |
| 50-200/205 | 8.812.516.3 | 2.443.474.53 | 525048 | 384646 | 2900 | 5.5 | 2.3 | 105 | 80-250/235 | 3043.356 | 8.312.015.6 | 636054 | 546162 | 2900 | 15.0 | 3.0 | 190 | |
| 50-250/225 | 7.110.013.1 | 1.972.783.64 | 53.25250.4 | 273639 | 2900 | 5.5 | 2.3 | 110 | 80-250/245 | 32.546.761 | 9.013.016.9 | 737064 | 536263 | 2900 | 18.5 | 3.0 | 210 | |
| 50-250/235 | 7.610.814 | 2.113.03.98 | 61.56058 | 27.53740 | 2900 | 7.5 | 2.3 | 115 | 80-250/255 | 355365 | 9.7213.918.1 | 838072 | 556263 | 2900 | 22.0 | 3.0 | 240 | |
| 50-250/245 | 8.211.615.2 | 2.283.224.22 | 71.57068 | 293841 | 2900 | 7.5 | 2.3 | 120 | 80-315/285 | 294153.6 | 9.111.414.9 | 888583 | 405357 | 2900 | 22.0 | 3.0 | 275 | |
| 50-250/255 | 8.812.516.3 | 2.443.474.53 | 828077.5 | 293840 | 2900 | 11.0 | 2.3 | 160 | 80-315/295 | 3144.558 | 8.612.416.1 | 10310197 | 435558 | 2900 | 30.0 | 3.0 | 340 | |
| 65-100/96 | 15.622.329 | 4.36.198.1 | 11108.4 | 687070 | 2900 | 1.1 | 2.5 | 40 | 80-315/301 | 32.546.560.5 | 912.916.8 | 116113110 | 445659 | 2900 | 30.0 | 3.0 | 345 | |
| 65-100/106 | 17.52532.5 | 4.686.949.03 | 13.712.510.5 | 707271 | 2900 | 1.5 | 2.5 | 45 | 80-315/321 | 355065 | 9.7213.918.1 | 128125122 | 455760 | 2900 | 37.0 | 3.0 | 360 | |
| 65-125/132 | 15.622.329 | 4.336.198.1 | 17.51614.4 | 516968 | 2900 | 2.2 | 2.5 | 50 | 100-200/195 | 62.689116 | 17.424.732.2 | 11108.8 | 677777 | 2900 | 4.0 | 4.5 | 115 | |
| 65-125/142 | 17.52532.5 | 4.866.949.03 | 222018 | 637170 | 2900 | 3.0 | 2.5 | 60 | 100-200/205 | 70100130 | 19.427.836.1 | 13.612.511 | 697977 | 2900 | 5.5 | 4.5 | 90 | |
| 65-160/142 | 1521.628 | 4.176.108.44 | 262421 | 536362 | 2900 | 3.0 | 2.5 | 65 | 100-250/245 | 62.689116 | 17.424.732.2 | 191611 | 717766 | 2900 | 7.5 | 4.5 | 120 | |
ISB便拆式卧式管道泵性能参数表 II
| 型 号 | 流量 | 扬程m | 效率% | 转速r/min | 电机功率 | 必需气蚀余量 | 重量Kg | 型号 | 流量 | 扬程m | 效率% | 转速r/min | 电机功率 | 必需气蚀余量 | 重量Kg | |||
| m3/h | L/S | m3/h | L/S | |||||||||||||||
| 100-250/250 | 70100130 | 19.427.836.1 | 23.52014 | 737968 | 1450 | 11.0 | 4.5 | 170 | 150-250/245 | 129184240 | 35.851.266.7 | 18.51714.4 | 758179 | 1450 | 15.0 | 3.0 | 265 | |
| 100-315/295 | 60.686.6112.5 | 16.824.131.3 | 272418 | 667568 | 1450 | 11.0 | 4.5 | 180 | 150-250/255 | 140200260 | 38.955.672.2 | 21.82017 | 768280 | 1450 | 18.5 | 3.0 | 300 | |
| 100-315/307 | 65.493.5121.6 | 18.226.233.8 | 322821 | 717770 | 1450 | 11.0 | 4.5 | 185 | 150-315/295 | 121173225 | 33.648.162.5 | 252421 | 717977 | 1450 | 18.5 | 3.5 | 310 | |
| 100-315/321 | 70100130 | 19.427.836.1 | 36.53224 | 737768 | 1450 | 15.0 | 4.0 | 200 | 150-315/307 | 131187243 | 36.451.967.5 | 29.52824.4 | 728080 | 1450 | 22.0 | 3.5 | 335 | |
| 100-400/375 | 6187113 | 16.924.231.4 | 413834 | 637371 | 1450 | 15.0 | 4.0 | 195 | 150-315/321 | 140200260 | 38.955.672.2 | 33.83228 | 738176 | 1450 | 30.0 | 3.5 | 410 | |
| 100-400/385 | 65.493.5121.6 | 18.226.033.8 | 47.54437 | 657573 | 1450 | 18.5 | 4.0 | 215 | 150-400/365 | 112160208 | 31.144.457.8 | 343228 | 687272 | 1450 | 22.0 | 3.5 | 430 | |
| 100-400/400 | 70100130 | 19.427.836.1 | 545042 | 647678 | 1450 | 22.0 | 4.0 | 245 | 150-400/375 | 122174226 | 33.948.362.9 | 413833 | 707574 | 1450 | 30.0 | 3.5 | 480 | |
| 100-250/230（I） | 6187113 | 16.924.231.4 | 656051 | 637069 | 2900 | 30.0 | 4.0 | 330 | 150-400/385 | 131187243 | 36.451.967.5 | 46.64438.3 | 717776 | 1450 | 37.0 | 3.5 | 500 | |
| 100-250/245（I） | 65.493.5121.6 | 18.226.033.8 | 767053.5 | 647170 | 2900 | 30.0 | 4.0 | 330 | 150-400/400 | 140200260 | 38.955.672.2 | 535044 | 727872 | 1450 | 45.0 | 3.5 | 515 | |
| 100-250/250（I） | 70100130 | 19.427.836.1 | 878576 | 556566 | 2900 | 37.0 | 4.0 | 345 | 150-510/475 | 112160208 | 31.144.457.8 | 56.554.551 | 626766 | 1450 | 45.0 | 4.2 | 530 | |
| 100-315/285（I） | 5882107 | 16.122.829.7 | 908576 | 556566 | 2900 | 37.0 | 4.0 | 385 | 150-510/485 | 122174226 | 33.948.362.9 | 656258 | 636968 | 1450 | 55.0 | 4.2 | 765 | |
| 100-315/295（I） | 6390117 | 17.525.032.5 | 106.610192 | 576768 | 2900 | 45.0 | 4.0 | 440 | 150-510/495 | 131187243 | 36.451.967.5 | 737066 | 657169 | 1450 | 75.0 | 4.2 | 860 | |
| 100-315/307（I） | 66.595123.6 | 18.526.434.3 | 119113104 | 586869 | 2900 | 55.0 | 4.0 | 550 | 150-510/510 | 140200260 | 38.955.672.2 | 848075 | 667269 | 1450 | 75.0 | 4.2 | 860 | |
| 100-315/321（I） | 70100130 | 19.427.836.1 | 132125114 | 586969 | 2900 | 75.0 | 4.0 | 685 | 200-250/235 | 157243316 | 43.767.587.8 | 1613.59.0 | 767876 | 1450 | 15 | 4.0 | 270 | |
| 125-200/195 | 96143.172 | 23.939.747.8 | 10.4109.6 | 808382 | 1450 | 7.5 | 4.0 | 130 | 200-250/245 | 189270351 | 52.57597.5 | 191713 | 778177 | 1450 | 18.5 | 4.0 | 390 | |
| 125-200/205 | 86160192 | 26.744.453.3 | 13.12.512 | 818582 | 1450 | 11.0 | 4.0 | 180 | 200-250/255 | 210300360 | 58.383.3100 | 22.52016 | 788378 | 1450 | 22 | 4.0 | 430 | |
| 125-250/245 | 86143172 | 23.939.747.8 | 181613.6 | 778076 | 1450 | 11.0 | 4.0 | 210 | 200-315/295 | 189270324 | 52.57590 | 272320 | 778178 | 1450 | 22 | 6.0 | 430 | |
| 125-250/255 | 96160192 | 26.744.453.3 | 22.62017 | 798380 | 1450 | 15.0 | 4.0 | 225 | 200-315/307 | 196281337 | 54.478.193.6 | 312724 | 788280 | 1450 | 30 | 6.0 | 480 | |
| 125-315/295 | 83138166 | 21.738.346.1 | 272421 | 697671 | 1450 | 15.0 | 4.0 | 260 | 200-315/321 | 210300360 | 58.383.3100 | 363228 | 778381 | 1450 | 37 | 6.0 | 535 | |
| 125-315/307 | 90150180 | 2541.750 | 31.52824.5 | 707976 | 1450 | 18.5 | 4.0 | 280 | 200-400/365 | 176.4252302 | 497084 | 343025 | 767973 | 1450 | 45 | 4.0 | 585 | |
| 125-315/321 | 96160192 | 26.744.453.3 | 363228 | 728177 | 1450 | 22.0 | 5.0 | 315 | 200-400/375 | 189270324 | 52.57590 | 483733 | 778179 | 1450 | 45 | 4.0 | 585 | |
| 125-400/375 | 83138166 | 21.738.346.1 | 41.337.534.5 | 717571 | 1450 | 22.0 | 5.0 | 355 | 200-400/380 | 201.6288345.5 | 568096 | 484438 | 718381 | 1450 | 55 | 4.0 | 700 | |
| 125-400/385 | 90150180 | 2541.750 | 48.44440.5 | 727776 | 1450 | 30.0 | 5.0 | 437 | 200-400/400 | 210300360 | 58.383.3100 | 555044 | 788482 | 1450 | 55 | 4.0 | 700 | |
| 125-400/400 | 96160192 | 26.744.453.3 | 555046 | 748280 | 1450 | 37.0 | 4.5 | 451 | 200-500/425 | 176.4252201.4 | 497084 | 605549 | 747877 | 1450 | 55 | 3.0 | 700 | |
| 100-250/230（I） | 83138166 | 21.738.346.1 | 656055 | 677673 | 2900 | 37.0 | 4.5 | 430 | 200-500/485 | 189270324 | 52.57590 | 676055 | 767978 | 1450 | 75 | 3.0 | 835 | |
| 100-250/245（I） | 90150180 | 2541.750 | 767064 | 687775 | 2900 | 45.0 | 4.5 | 495 | 200-500/505 | 201.6288345.6 | 568096 | 777067 | 768280 | 1450 | 90 | 3.0 | 1290 | |
| 100-250/255（I） | 96160192 | 26.744.453.3 | 878073 | 688077 | 2900 | 55.0 | 4.5 | 580 | 200-500/540 | 210300360 | 58.383.3100 | 878075 | 778381 | 1450 | 110 | 3.0 | 1415 | |
| 100-315/285（I） | 80.5134161 | 22.437.244.7 | 968886 | 677268 | 2900 | 55.0 | 4.5 | 590 | 200-315/235（I） | 226322419 | 62.889.4116.4 | 15.51410 | 737883 | 1450 | 18.5 | 4.0 | 390 | |
| 100-315/295（I） | 86143172 | 23.839.747.8 | 106.411195.2 | 687369 | 2900 | 75.0 | 4.5 | 710 | 200-315/245（I） | 250358465 | 69.499.4129.2 | 191713 | 768173 | 1450 | 22.0 | 4.0 | 430 | |
| 100-315/307（I） | 90150180 | 2541.750 | 117110104.6 | 687374 | 2900 | 75.0 | 4.5 | 715 | 200-315/252（I） | 280400520 | 77.8111.1144.4 | 22.22014 | 788375 | 1450 | 30.0 | 4.0 | 480 | |
| 100-315/321（I） | 96160192 | 26.744.753.3 | 133125119 | 737571 | 2900 | 90.0 | 4.5 | 800 | 200-315/295（I） | 242346450 | 67.296.1125 | 27.52418.5 | 748175 | 1450 | 37.0 | 4.0 | 535 | |
| 150-250/235 | 117167217.5 | 32.546.460.4 | 15.21412 | 747977 | 1450 | 11.0 | 3.0 | 245 | 200-315/307（I） | 262374486 | 72.8103.9135 | 31.52825 | 758177 | 1450 | 45.0 | 4.0 | 560 | |
ISB便拆式卧式管道泵性能参数表 III
| 型 号 | 流量 | 扬程m | 效率% | 转速r/min | 电机功率 | 必需气蚀余量 | 重量Kg | 型号 | 流量 | 扬程m | 效率% | 转速r/min | 电机功率 | 必需气蚀余量 | 重量Kg | |||
| m3/h | L/S | m3/h | L/S | |||||||||||||||
| 200-315/321（I） | 280400520 | 77.8111.1144.4 | 363226 | 768378 | 1450 | 55.0 | 4.0 | 680 | 300-500/465 | 432609728 | 117.6169.3202.2 | 656256 | 748675 | 1450 | 160 | 5.5 | 1980 | |
| 200-400/365（I） | 224320416 | 62.288.9115.6 | 34.93225 | 707970 | 1450 | 45 | 4.0 | 585 | 300-500/505 | 460662791 | 127.8184219.8 | 7470.563.5 | 768277 | 1450 | 200 | 5.5 | 2150 | |
| 200-400/375（I） | 242346450 | 67.296.1125 | 423829.6 | 758172 | 1450 | 55 | 4.0 | 700 | 300-500/540 | 500720900 | 138.9200250 | 868072 | 778378 | 1450 | 250 | 5.5 | 2280 | |
| 200-400/385（I） | 262352486 | 72.8103.9135 | 484435 | 758379 | 1450 | 75 | 4.0 | 835 | 350-410/330 | 6209311165 | 172.2258.6323.6 | 17.515.013.0 | 717877 | 970 | 55 | 5.5 | 1320 | |
| 200-400/400（I） | 280400520 | 77.8111.1144.4 | 54.55039 | 798479 | 1450 | 75 | 4.0 | 835 | 350-410/375 | 6639951240 | 184.2276.4345.8 | 20.017.015.0 | 748078 | 970 | 75 | 5.5 | 1490 | |
| 200-500/425（I） | 224320416 | 62.288.9115.6 | 625648 | 747975 | 1450 | 75 | 4.0 | 1050 | 350-410/410 | 71810801345 | 199.4300.0373.6 | 23.520.018.0 | 768280 | 970 | 90 | 5.5 | 1730 | |
| 200-500/465（I） | 242346450 | 67.296.1125 | 656054 | 768077 | 1450 | 90 | 5.0 | 1290 | 350-480/425 | 6209311165 | 172.2258.0323.6 | 26.524.021.0 | 737975 | 970 | 90 | 5.5 | 1750 | |
| 200-500/505（I） | 262374486 | 72.8103.9135 | 767063 | 778279 | 1450 | 110 | 5.0 | 1415 | 350-480/450 | 6639951245 | 184.2276.4345.8 | 30.527.025.0 | 748176 | 970 | 110 | 5.5 | 1910 | |
| 200-500/540（I） | 280400520 | 72.8141.1144.4 | 878077 | 768379 | 1450 | 132 | 5.0 | 1595 | 350-480/485 | 71810801345 | 199.4300.0375.5 | 36.43228.5 | 798378 | 970 | 110 | 5.5 | 2120 | |
| 250-250/245 | 368506607 | 102.2140.6168.7 | 19.51714.6 | 768082 | 1450 | 37 | 5.0 | 550 | 350-400/375 | 6209311165 | 172.2258.6323.6 | 42.538.032.3 | 757974 | 1450 | 132 | 5.5 | 1620 | |
| 250-250/255 | 400550670 | 111.1152.8186.1 | 22.52016 | 818587 | 1450 | 45 | 5.0 | 620 | 350-400/385 | 6639951245 | 184.2276.2345.8 | 48.344.036.8 | 778176 | 1450 | 160 | 5.5 | 2030 | |
| 250-315/295 | 339466559 | 94129.3155.2 | 26.52520 | 747678 | 1450 | 45 | 5.0 | 695 | 350-400/400 | 71810801345 | 199.4300.0373.6 | 54.750.044.2 | 788277 | 1450 | 200 | 5.5 | 2120 | |
| 250-315/307 | 368506607 | 102.2140.6168.7 | 31.52823 | 757880 | 1450 | 55 | 5.0 | 840 | 350-450/425 | 6209311165 | 172.2258.6323.6 | 51.346.141.3 | 787878 | 1450 | 160 | 5.5 | 2050 | |
| 250-315/321 | 400550670 | 111.1152.8186.1 | 363226 | 778081 | 1450 | 75 | 5.0 | 915 | 350-450/435 | 6639951245 | 184.2276.4345.8 | 59.254.048.0 | 808080 | 1450 | 200 | 5.5 | 2430 | |
| 250-400/365 | 311428514 | 86.5119142.8 | 383530 | 667268 | 1450 | 75 | 5.0 | 910 | 350-450/450 | 71810801345 | 199.4300.0373.6 | 64.860.055.0 | 808080 | 1450 | 250 | 5.5 | 2630 | |
| 250-400/375 | 339466559 | 94129.3155.2 | 4339.533.5 | 697574 | 1450 | 75 | 5.0 | 910 | 350-350/325（I） | 90010801300 | 250300361 | 11.510.59 | 766076 | 970 | 45 | 6.0 | 1150 | |
| 250-400/385 | 368506607 | 102.2140.6168.7 | 484437.5 | 707575 | 1450 | 90 | 5.0 | 1055 | 350-350/355（I） | 100012001450 | 277.8333.3402.8 | 13.512.510.5 | 768077 | 970 | 55 | 6.0 | 1250 | |
| 250-400/400 | 400550670 | 111.1152.8186.1 | 54.45040 | 727975 | 1450 | 110 | 5.0 | 1557 | 350-480/450（I） | 90010801300 | 250300361 | 191714 | 768177 | 970 | 75 | 6.0 | 1350 | |
| 250-500/425 | 311428514 | 86.5119142.8 | 585548.5 | 727473 | 1450 | 110 | 5.0 | 1350 | 350-480/485（I） | 100012001450 | 277.8333.3402.8 | 232016 | 798379 | 970 | 90 | 6.0 | 1580 | |
| 250-500/465 | 339466559 | 94129.3155.2 | 66.563.555.5 | 737675 | 1450 | 132 | 5.0 | 1420 | 350-315/295（I） | 7459851182 | 207273328 | 272520 | 747875 | 1450 | 110 | 6.0 | 1650 | |
| 250-500/505 | 368506670 | 102.2140.6168.7 | 757162.5 | 757877 | 1450 | 160 | 5.0 | 1560 | 350-315/301（I） | 90010801300 | 250300361 | 31.52823 | 787976 | 1450 | 132 | 6.0 | 1720 | |
| 250-500/540 | 400550670 | 111.1152.8186.1 | 848070 | 738078 | 1450 | 200 | 5.0 | 1750 | 350-315/321（I） | 100012001450 | 277.8333.3402.8 | 363226 | 778178 | 1450 | 160 | 6.0 | 1870 | |
| 300/250/245 | 460662791 | 127.8184219.8 | 20.217.514.2 | 828486 | 1450 | 45 | 5.0 | 785 | 350-400/365（I） | 720900990 | 200250275 | 373330 | 687070 | 1450 | 132 | 6.0 | 1810 | |
| 300/250/255 | 500720900 | 138.9200250 | 232016 | 838687 | 1450 | 55 | 5.0 | 900 | 350-400/375（I） | 7459851182 | 207273328 | 4238.534 | 687371 | 1450 | 160 | 6.0 | 2000 | |
| 300-315/295 | 423609728 | 117.6169.3202.2 | 25.523.520 | 758176 | 1450 | 55 | 5.0 | 1080 | 350-400/385（I） | 90010801300 | 250300361 | 47.54438 | 717573 | 1450 | 200 | 6.0 | 2100 | |
| 300-315/307 | 460662791 | 127.8184219.8 | 30.52823.5 | 778377 | 1450 | 75 | 5.0 | 1250 | 350-400/400（I） | 100012001450 | 277.8333.3402.8 | 555043 | 737775 | 1450 | 250 | 6.0 | 2350 | |
| 300-315/321 | 500720900 | 138.9200250 | 363226 | 828584 | 1450 | 90 | 5.0 | 1350 | 400-300/290 | 109214561729 | 303.3404.4480.3 | 1210.29 | 788481 | 970 | 55 | 6.0 | 1480 | |
| 300-400/365 | 389561670 | 108.2155.7186 | 35.53327.5 | 727775 | 1450 | 75 | 5.5 | 1250 | 400-300/305 | 120016001900 | 333.3444.4527.6 | 1412.510.5 | 788783 | 970 | 75 | 6.0 | 1650 | |
| 300-400/375 | 423609728 | 117.6169.3202.2 | 413832 | 758078 | 1450 | 90 | 5.5 | 1400 | 400-350/340 | 109214561729 | 303.3404.4480. | 19.51713 | 808473 | 970 | 90 | 6.0 | 1780 | |
| 300-400/385 | 460662728 | 127.8184.219.8 | 474436.5 | 778280 | 1450 | 110 | 5.5 | 1520 | 400-350/355 | 120016001900 | 333.3444.4527.6 | 232015 | 818584 | 970 | 110 | 6.0 | 1850 | |
| 300-400/400 | 500720900 | 138.9200250 | 54.55042 | 798680 | 1450 | 132 | 5.5 | 1725 | 400-400/385 | 99413251573 | 276368437.1 | 2623.519 | 798477 | 970 | 132 | 6.0 | 2150 | |
| 300-500/425 | 389561670 | 108.2155.7186 | 5754.549 | 717873 | 1450 | 132 | 5.5 | 1850 | 400-400/395 | 109214561729 | 303.3404.4480.3 | 3027.522.5 | 838781 | 970 | 160 | 6.0 | 2320 | |
| 4000-400/400 | 120016001900 | 333.3444.4527.8 | 353226 | 848881 | 970 | 200 | 6.0 | 2450 | ||||||||||

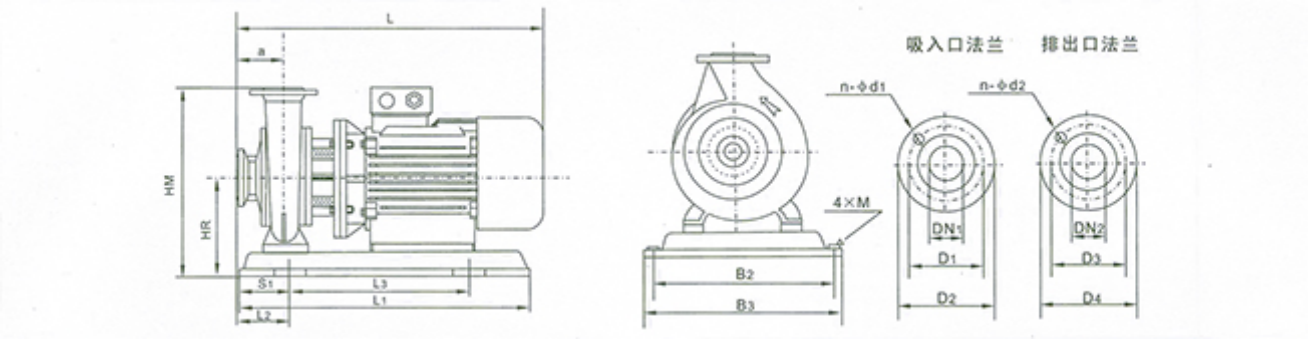

ISB便拆式卧式管道泵外形安装尺寸图
ISB便拆式卧式管道泵外形安装尺寸表 I
| 型 号 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法兰 | 排出口法兰 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 40-100/96 | 40 | 350 | 360 | 340 | 50 | 250 | 45 | 180 | 310 | 80 | 320 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-100/106 | 40 | 350 | 360 | 340 | 50 | 250 | 45 | 180 | 310 | 80 | 320 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-125/132 | 40 | 350 | 360 | 340 | 50 | 250 | 45 | 180 | 310 | 80 | 320 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-125/142 | 40 | 350 | 360 | 340 | 50 | 250 | 45 | 180 | 310 | 80 | 320 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-160/142 | 40 | 480 | 360 | 470 | 95 | 300 | 85 | 210 | 370 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-160/152 | 40 | 480 | 360 | 470 | 95 | 300 | 85 | 210 | 370 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-160/165 | 40 | 490 | 360 | 470 | 95 | 300 | 85 | 210 | 370 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-200/185 | 40 | 550 | 390 | 530 | 125 | 300 | 115 | 240 | 410 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-200/195 | 40 | 550 | 390 | 530 | 125 | 300 | 115 | 240 | 410 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-200/205 | 40 | 580 | 390 | 530 | 125 | 300 | 115 | 240 | 410 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-250/235 | 40 | 625 | 450 | 600 | 135 | 350 | 125 | 260 | 460 | 80 | 400 | 4×18 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-250/245 | 40 | 625 | 450 | 600 | 135 | 350 | 125 | 260 | 460 | 80 | 400 | 4×18 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-250/255 | 40 | 625 | 450 | 600 | 135 | 350 | 125 | 260 | 460 | 80 | 400 | 4×18 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 50-100/96 | 50 | 445 | 360 | 420 | 70 | 250 | 85 | 180 | 320 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-100/106 | 50 | 445 | 360 | 420 | 70 | 250 | 85 | 180 | 320 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-125/135 | 50 | 445 | 360 | 420 | 80 | 250 | 85 | 192 | 340 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-125/142 | 50 | 445 | 360 | 420 | 80 | 250 | 85 | 192 | 340 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-160/142 | 50 | 450 | 360 | 480 | 90 | 320 | 80 | 210 | 370 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-160/152 | 50 | 450 | 360 | 480 | 90 | 320 | 80 | 210 | 370 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-160/165 | 50 | 540 | 360 | 520 | 100 | 350 | 85 | 210 | 370 | 80 | 350 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-200/185 | 50 | 540 | 390 | 520 | 70 | 400 | 60 | 240 | 420 | 80 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-200/195 | 50 | 580 | 390 | 560 | 80 | 470 | 72 | 240 | 420 | 80 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-200/205 | 50 | 615 | 390 | 590 | 100 | 490 | 95 | 240 | 420 | 80 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-250/225 | 50 | 665 | 450 | 640 | 160 | 350 | 145 | 260 | 480 | 100 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-250/235 | 50 | 665 | 450 | 640 | 160 | 350 | 145 | 260 | 480 | 100 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-250/245 | 50 | 665 | 450 | 640 | 160 | 350 | 145 | 260 | 480 | 100 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-250/255 | 50 | 760 | 490 | 740 | 185 | 400 | 170 | 260 | 480 | 100 | 440 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 65-100/96 | 65 | 450 | 360 | 430 | 100 | 250 | 90 | 180 | 340 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-100/106 | 65 | 460 | 360 | 440 | 105 | 250 | 98 | 180 | 340 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-125/132 | 65 | 505 | 360 | 480 | 130 | 250 | 117 | 192 | 360 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-125/142 | 65 | 540 | 390 | 520 | 150 | 300 | 130 | 192 | 360 | 80 | 350 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-160/142 | 65 | 450 | 390 | 520 | 130 | 300 | 110 | 212 | 360 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
注：尺寸最终以订货后提供尺寸为准。
ISB便拆式卧式管道泵外形安装尺寸表 II
| 型 号 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法兰 | 排出口法兰 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 65-160/152 | 65 | 450 | 390 | 520 | 130 | 300 | 110 | 212 | 390 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-160/165 | 65 | 580 | 390 | 560 | 150 | 300 | 130 | 212 | 390 | 80 | 350 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-200/185 | 65 | 630 | 450 | 610 | 150 | 350 | 130 | 240 | 450 | 100 | 400 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-200/195 | 65 | 630 | 450 | 610 | 150 | 350 | 130 | 240 | 450 | 100 | 400 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-200/205 | 65 | 630 | 450 | 610 | 150 | 350 | 130 | 240 | 450 | 100 | 400 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-250/235 | 65 | 760 | 490 | 740 | 190 | 400 | 170 | 260 | 485 | 100 | 440 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-250/245 | 65 | 760 | 490 | 740 | 190 | 400 | 170 | 260 | 485 | 100 | 440 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-250/255 | 65 | 760 | 490 | 740 | 190 | 400 | 170 | 260 | 485 | 100 | 440 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-315/285 | 65 | 835 | 540 | 810 | 200 | 450 | 180 | 280 | 550 | 125 | 490 | 4×18 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-315/295 | 65 | 835 | 540 | 810 | 190 | 450 | 180 | 280 | 550 | 125 | 490 | 4×18 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-315/307 | 65 | 865 | 540 | 840 | 210 | 450 | 195 | 280 | 550 | 125 | 490 | 4×18 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-315/316 | 65 | 970 | 540 | 840 | 230 | 540 | 205 | 300 | 570 | 125 | 490 | 4×18 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 80-100/96 | 80 | 530 | 360 | 500 | 115 | 300 | 105 | 190 | 350 | 100 | 320 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-100/106 | 80 | 565 | 390 | 540 | 130 | 300 | 120 | 190 | 350 | 100 | 320 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-125/132 | 80 | 600 | 390 | 580 | 100 | 400 | 90 | 210 | 370 | 100 | 350 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-125/142 | 80 | 640 | 400 | 620 | 125 | 400 | 110 | 210 | 370 | 100 | 350 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-160/142 | 80 | 630 | 450 | 630 | 150 | 350 | 130 | 240 | 420 | 100 | 400 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-160/152 | 80 | 630 | 450 | 630 | 150 | 350 | 130 | 240 | 420 | 100 | 400 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-160/165 | 80 | 630 | 450 | 630 | 150 | 350 | 130 | 240 | 420 | 100 | 400 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-200/185 | 80 | 670 | 490 | 630 | 145 | 400 | 125 | 240 | 440 | 100 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-200/195 | 80 | 675 | 490 | 630 | 145 | 400 | 125 | 240 | 440 | 100 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-200/205 | 80 | 675 | 490 | 630 | 145 | 400 | 125 | 240 | 440 | 100 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-250/235 | 80 | 790 | 485 | 770 | 185 | 400 | 165 | 260 | 485 | 125 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-250/245 | 80 | 835 | 485 | 810 | 230 | 400 | 205 | 260 | 485 | 125 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-250/255 | 80 | 860 | 485 | 840 | 190 | 500 | 170 | 260 | 485 | 125 | 490 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-315/285 | 80 | 970 | 605 | 950 | 230 | 540 | 205 | 305 | 605 | 125 | 550 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-315/295 | 80 | 970 | 605 | 950 | 230 | 540 | 205 | 305 | 605 | 125 | 550 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-315/301 | 80 | 970 | 605 | 950 | 230 | 540 | 205 | 305 | 605 | 125 | 550 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-315/321 | 80 | 970 | 605 | 950 | 230 | 540 | 205 | 305 | 605 | 125 | 550 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 100-200/195 | 100 | 591 | 450 | 560 | 100 | 400 | 80 | 240 | 420 | 100 | 350 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-200/205 | 100 | 626 | 450 | 600 | 120 | 400 | 100 | 240 | 420 | 100 | 400 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-250/245 | 100 | 634 | 450 | 605 | 120 | 400 | 102 | 240 | 420 | 100 | 440 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
注：尺寸最终以订货后提供尺寸为准。
ISB便拆式卧式管道泵外形安装尺寸表 III
| 型 号 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法兰 | 排出口法兰 | ||||||
| Mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 100-250/250 | 100 | 749 | 490 | 710 | 175 | 400 | 155 | 240 | 420 | 100 | 400 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/295 | 100 | 765 | 490 | 740 | 150 | 400 | 170 | 240 | 440 | 100 | 440 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/307 | 100 | 765 | 490 | 740 | 150 | 400 | 170 | 240 | 440 | 100 | 440 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/321 | 100 | 765 | 490 | 740 | 150 | 400 | 170 | 240 | 440 | 100 | 440 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-400/375 | 100 | 750 | 490 | 730 | 95 | 500 | 115 | 260 | 485 | 100 | 440 | 4×22 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-400/385 | 100 | 795 | 490 | 770 | 165 | 400 | 185 | 260 | 485 | 100 | 440 | 4×22 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-400/400 | 100 | 820 | 540 | 800 | 180 | 400 | 200 | 260 | 485 | 100 | 440 | 4×22 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-250/230（I） | 100 | 949 | 610 | 710 | 95 | 540 | 85 | 300 | 550 | 125 | 550 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-250/245（I） | 100 | 949 | 610 | 710 | 95 | 540 | 85 | 300 | 550 | 125 | 550 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-250/255（I） | 100 | 949 | 610 | 710 | 95 | 540 | 85 | 300 | 550 | 125 | 550 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/285（I） | 100 | 1050 | 660 | 1000 | 220 | 600 | 200 | 325 | 605 | 125 | 600 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/295（I） | 100 | 1050 | 660 | 1000 | 220 | 600 | 200 | 325 | 605 | 125 | 600 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/307（I） | 100 | 1085 | 660 | 1030 | 235 | 600 | 215 | 325 | 605 | 125 | 600 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/321（I） | 100 | 1415 | 730 | 1360 | 390 | 600 | 380 | 325 | 605 | 125 | 600 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 125-200/195 | 125 | 710 | 490 | 690 | 155 | 400 | 145 | 260 | 460 | 125 | 440 | 4×18 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-200/205 | 125 | 785 | 490 | 760 | 195 | 400 | 180 | 260 | 460 | 125 | 440 | 4×18 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/245 | 125 | 785 | 490 | 760 | 195 | 400 | 180 | 260 | 480 | 125 | 440 | 4×18 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/255 | 125 | 785 | 490 | 760 | 250 | 500 | 230 | 260 | 480 | 125 | 440 | 4×18 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/295 | 125 | 785 | 490 | 760 | 200 | 400 | 180 | 260 | 485 | 125 | 440 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/307 | 125 | 840 | 490 | 810 | 215 | 400 | 205 | 260 | 485 | 125 | 440 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/321 | 125 | 860 | 540 | 840 | 250 | 500 | 170 | 260 | 485 | 125 | 490 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-400/375 | 125 | 855 | 540 | 830 | 185 | 500 | 165 | 280 | 655 | 125 | 490 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-400/385 | 125 | 970 | 610 | 950 | 225 | 540 | 205 | 280 | 655 | 125 | 550 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-400/400 | 125 | 970 | 610 | 950 | 225 | 540 | 205 | 280 | 655 | 125 | 550 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/230（I） | 125 | 970 | 610 | 950 | 195 | 600 | 175 | 325 | 605 | 125 | 550 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/245（I） | 125 | 1030 | 610 | 1000 | 210 | 600 | 200 | 325 | 605 | 125 | 550 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/255（I） | 125 | 1100 | 660 | 1060 | 240 | 600 | 230 | 325 | 605 | 125 | 550 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/285（I） | 125 | 1190 | 730 | 1160 | 290 | 600 | 280 | 350 | 665 | 125 | 600 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/295（I） | 125 | 1190 | 730 | 1160 | 290 | 600 | 280 | 350 | 665 | 125 | 670 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/307（I） | 125 | 1190 | 730 | 1160 | 290 | 600 | 280 | 350 | 665 | 125 | 670 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/321（I） | 125 | 1230 | 730 | 2000 | 310 | 600 | 300 | 350 | 665 | 125 | 670 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 150-250/235 | 150 | 800 | 610 | 780 | 150 | 500 | 120 | 330 | 685 | 140 | 550 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
注：尺寸最终以订货后提供尺寸为准。
ISB便拆式卧式管道泵外形安装尺寸表 III
| 型 号 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法兰 | 排出口法兰 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 150-250/245 | 150 | 845 | 610 | 820 | 180 | 500 | 160 | 330 | 685 | 140 | 550 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-250/255 | 150 | 870 | 610 | 830 | 180 | 500 | 165 | 330 | 685 | 140 | 550 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-315/295 | 150 | 910 | 660 | 165 | 165 | 600 | 145 | 380 | 740 | 140 | 600 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-315/307 | 150 | 910 | 660 | 165 | 165 | 600 | 145 | 380 | 740 | 140 | 600 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-315/321 | 150 | 975 | 660 | 190 | 190 | 600 | 175 | 380 | 760 | 140 | 600 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-400/365 | 150 | 990 | 660 | 950 | 200 | 600 | 175 | 415 | 740 | 140 | 600 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-400/375 | 150 | 990 | 660 | 950 | 200 | 600 | 175 | 415 | 715 | 140 | 600 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-400/385 | 150 | 1050 | 660 | 1000 | 230 | 600 | 200 | 415 | 715 | 140 | 600 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-400/400 | 150 | 870 | 660 | 800 | 130 | 600 | 100 | 415 | 715 | 140 | 600 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-510/475 | 150 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 1450 | 160 | 670 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-510/485 | 150 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 1450 | 160 | 670 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-510/795 | 150 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 1450 | 160 | 670 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-510/510 | 150 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 1450 | 160 | 670 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 200-250/235 | 200 | 907 | 660 | 880 | 160 | 600 | 140 | 360 | 740 | 160 | 600 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-250/245 | 200 | 947 | 660 | 920 | 180 | 600 | 160 | 360 | 740 | 160 | 600 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-250/255 | 200 | 930 | 660 | 900 | 170 | 600 | 150 | 360 | 760 | 160 | 600 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-315/295 | 200 | 995 | 660 | 970 | 200 | 600 | 185 | 380 | 780 | 160 | 600 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-315/307 | 200 | 1050 | 730 | 970 | 180 | 600 | 275 | 415 | 835 | 160 | 670 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-315/321 | 200 | 1050 | 730 | 970 | 180 | 660 | 115 | 415 | 835 | 160 | 670 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-400/365 | 200 | 1075 | 730 | 1000 | 190 | 660 | 170 | 415 | 835 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-400/375 | 200 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 855 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-400/380 | 200 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 855 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-400/400 | 200 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 855 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-500/425 | 200 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 855 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-500/485 | 200 | 1550 | 810 | 1500 | 370 | 660 | 350 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-500/505 | 200 | 1495 | 810 | 1450 | 350 | 800 | 325 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-500/540 | 200 | 1495 | 810 | 1450 | 350 | 800 | 325 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-250/235（I） | 205 | 1075 | 730 | 1050 | 210 | 660 | 195 | 415 | 965 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-250/245（I） | 205 | 1100 | 730 | 1050 | 210 | 660 | 195 | 415 | 965 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-250/252（I） | 205 | 1185 | 730 | 1150 | 260 | 660 | 245 | 430 | 1030 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-315/295（I） | 205 | 1255 | 730 | 1230 | 300 | 660 | 285 | 430 | 1030 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-315/307（I） | 205 | 1255 | 810 | 1230 | 300 | 660 | 285 | 460 | 1160 | 200 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
注：尺寸最终以订货后提供尺寸为准。
ISB便拆式卧式管道泵外形安装尺寸表 III
| 型 号 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法兰 | 排出口法兰 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 200-315/321（I） | 205 | 1305 | 730 | 1270 | 300 | 700 | 285 | 460 | 1160 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-400/365（I） | 205 | 1205 | 730 | 1180 | 260 | 1000 | 240 | 415 | 815 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-400/375（I） | 205 | 1205 | 730 | 1180 | 260 | 1000 | 240 | 415 | 815 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-400/385（I） | 205 | 1205 | 730 | 1180 | 260 | 1000 | 240 | 415 | 815 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-400/400（I） | 205 | 1205 | 730 | 1810 | 430 | 1000 | 405 | 415 | 815 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-500/425（I） | 205 | 1495 | 810 | 1460 | 350 | 800 | 330 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-500/465（I） | 205 | 1495 | 810 | 1460 | 350 | 800 | 330 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-500/505（I） | 205 | 1495 | 810 | 1460 | 350 | 800 | 330 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-500/540（I） | 205 | 1495 | 810 | 1460 | 350 | 800 | 330 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 250-250/245 | 205 | 1075 | 730 | 1030 | 250 | 660 | 235 | 415 | 965 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-250/255 | 205 | 1100 | 730 | 1050 | 250 | 660 | 235 | 415 | 965 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-315/295 | 205 | 1185 | 730 | 1140 | 300 | 660 | 285 | 430 | 1030 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-315/307 | 205 | 1255 | 730 | 1210 | 300 | 660 | 285 | 430 | 1030 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-315/321 | 205 | 1255 | 730 | 1210 | 300 | 660 | 285 | 430 | 1030 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-400/365 | 250 | 1235 | 730 | 1200 | 270 | 700 | 250 | 460 | 1150 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-400/375 | 250 | 1305 | 730 | 1290 | 270 | 700 | 245 | 460 | 1150 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-400/385 | 250 | 1305 | 730 | 1290 | 270 | 700 | 245 | 460 | 1150 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-400/400 | 250 | 1495 | 730 | 1470 | 350 | 700 | 335 | 460 | 1150 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-500/425 | 250 | 1760 | 810 | 1470 | 400 | 1000 | 370 | 520 | 1250 | 200 | 750 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-500/465 | 250 | 1760 | 810 | 1470 | 400 | 1000 | 370 | 520 | 1250 | 200 | 750 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-500/505 | 250 | 1760 | 810 | 1470 | 400 | 1000 | 370 | 520 | 1250 | 200 | 750 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-500/540 | 250 | 1860 | 810 | 1840 | 450 | 1000 | 420 | 520 | 1250 | 200 | 750 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 300-250/245 | 300 | 1275 | 730 | 1230 | 300 | 660 | 285 | 450 | 1060 | 250 | 670 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-250/252 | 300 | 1325 | 730 | 1280 | 330 | 660 | 310 | 450 | 1060 | 250 | 670 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-315/295 | 300 | 1325 | 730 | 1280 | 330 | 660 | 310 | 460 | 1030 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-315/307 | 300 | 1515 | 730 | 1480 | 440 | 660 | 410 | 460 | 1030 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-315/321 | 300 | 1515 | 820 | 1480 | 370 | 800 | 340 | 460 | 1030 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-400/365 | 300 | 1630 | 910 | 1600 | 320 | 1000 | 300 | 460 | 1250 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-400/375 | 300 | 1660 | 910 | 1620 | 320 | 1000 | 310 | 460 | 1205 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-400/385 | 300 | 1660 | 910 | 1620 | 320 | 1000 | 310 | 460 | 1205 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-400/400 | 300 | 1565 | 810 | 1540 | 300 | 1000 | 270 | 460 | 1160 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-500/425 | 300 | 1635 | 810 | 1600 | 330 | 1000 | 300 | 460 | 1160 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
注：尺寸最终以订货后提供尺寸为准。
ISB便拆式卧式管道泵外形安装尺寸表 IV
| 型 号 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法兰 | 排出口法兰 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 300-500-465 | 300 | 1915 | 810 | 1880 | 460 | 1000 | 440 | 550 | 1350 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-500/505 | 300 | 1915 | 910 | 1880 | 460 | 1000 | 440 | 550 | 1350 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-500/540 | 300 | 1915 | 910 | 1880 | 460 | 1000 | 440 | 550 | 1350 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 350-410/330 | 350 | 1720 | 810 | 1690 | 360 | 100 | 345 | 510 | 1200 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-410/375 | 350 | 1720 | 810 | 1690 | 360 | 1000 | 345 | 510 | 1200 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-410/410 | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 550 | 1300 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/425 | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 580 | 1450 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/450 | 350 | 2180 | 910 | 2150 | 580 | 1000 | 575 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/485 | 350 | 2180 | 910 | 2150 | 580 | 1000 | 575 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/375 | 350 | 1980 | 910 | 1900 | 500 | 1000 | 450 | 550 | 1300 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/385 | 350 | 1980 | 910 | 1900 | 500 | 1000 | 450 | 550 | 1300 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/400 | 350 | 1980 | 910 | 1900 | 500 | 1000 | 450 | 550 | 1300 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-450/425 | 350 | 2180 | 910 | 1900 | 610 | 1000 | 550 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-450/435 | 350 | 2180 | 910 | 1900 | 610 | 1000 | 550 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-450/450 | 350 | 2180 | 910 | 1900 | 610 | 1000 | 550 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-350/325（I） | 350 | 1275 | 810 | 1250 | 250 | 800 | 225 | 460 | 1060 | 250 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-350/355（I） | 350 | 1325 | 810 | 1300 | 280 | 800 | 250 | 460 | 1060 | 250 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/365（I） | 350 | 1520 | 810 | 1500 | 330 | 900 | 300 | 460 | 1150 | 250 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/375（I） | 350 | 1520 | 810 | 1500 | 330 | 900 | 300 | 460 | 1150 | 250 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-315/295（I） | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 550 | 810 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-315/301（I） | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 550 | 810 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-315/321（I） | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 550 | 810 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/365（I） | 350 | 2100 | 910 | 2050 | 550 | 1000 | 525 | 580 | 910 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/375（I） | 350 | 2100 | 910 | 2050 | 550 | 1000 | 525 | 580 | 910 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/385（I） | 350 | 2100 | 910 | 2050 | 550 | 1000 | 525 | 580 | 910 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/400（I） | 350 | 2100 | 910 | 2050 | 550 | 1000 | 525 | 580 | 910 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 400-300/290 | 400 | 1410 | 910 | 1350 | 200 | 1000 | 175 | 460 | 1150 | 250 | 750 | 4×28 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-300/305 | 400 | 1520 | 910 | 1460 | 250 | 1000 | 230 | 460 | 1150 | 250 | 750 | 4×18 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-350/340 | 400 | 1630 | 910 | 1560 | 300 | 1000 | 280 | 460 | 1250 | 250 | 850 | 4×18 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-350/355 | 400 | 1660 | 910 | 1600 | 330 | 1000 | 300 | 460 | 1250 | 250 | 850 | 4×18 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-400/385 | 400 | 1980 | 910 | 1600 | 510 | 1000 | 490 | 510 | 1300 | 250 | 850 | 4×32 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-400/395 | 400 | 2050 | 910 | 1600 | 550 | 1000 | 525 | 510 | 1300 | 250 | 850 | 4×32 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-400/450 | 400 | 2050 | 910 | 1600 | 550 | 1000 | 525 | 510 | 1300 | 250 | 850 | 4×32 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
联系我们
- 全国销售热线：
+86 21 5640 2009 - 水泵客服电话：
+86 138 1691 3072 - 阀门客服电话：
+86 1381 6913 072 - 企业电子邮箱：
my1pv@1bengfa.com
企业微信
COPYRIGHT © 上海美言壹泵阀有限公司 主营：水泵、阀门
沪ICP备09010762号
