IJ悬臂式化工泵

品牌：壹泵阀
型号：IJ
压力/扬程：3.7~132米
工作温度：0℃～80℃
连接方式：法兰

产品名称：IJ悬臂式化工泵
通径/流量：3.2~400吨/每小时
材质：不锈钢SS304、SS304L、SS316、SS316L
驱动方式：电动
适用范围：固体量小于50％之内的浆液以及含结晶杂质介质

产品概述
性能参数
尺寸重量

IJ悬臂式化工泵

IJ型悬臂式化工离心泵（简称IJ悬臂式化工泵）是在IH系列泵的基础上，参照国外ZUI新技术并结合用户实际使用后而优化设计的新产品。其额定性能和安装尺寸符合ISO2858标准，制造技术条件符合ISO5199标准，FLJ型悬臂式化工离心泵主要适用于化工流程中的含固体量小于50％之内的浆液以及含结晶杂质介质的输送。

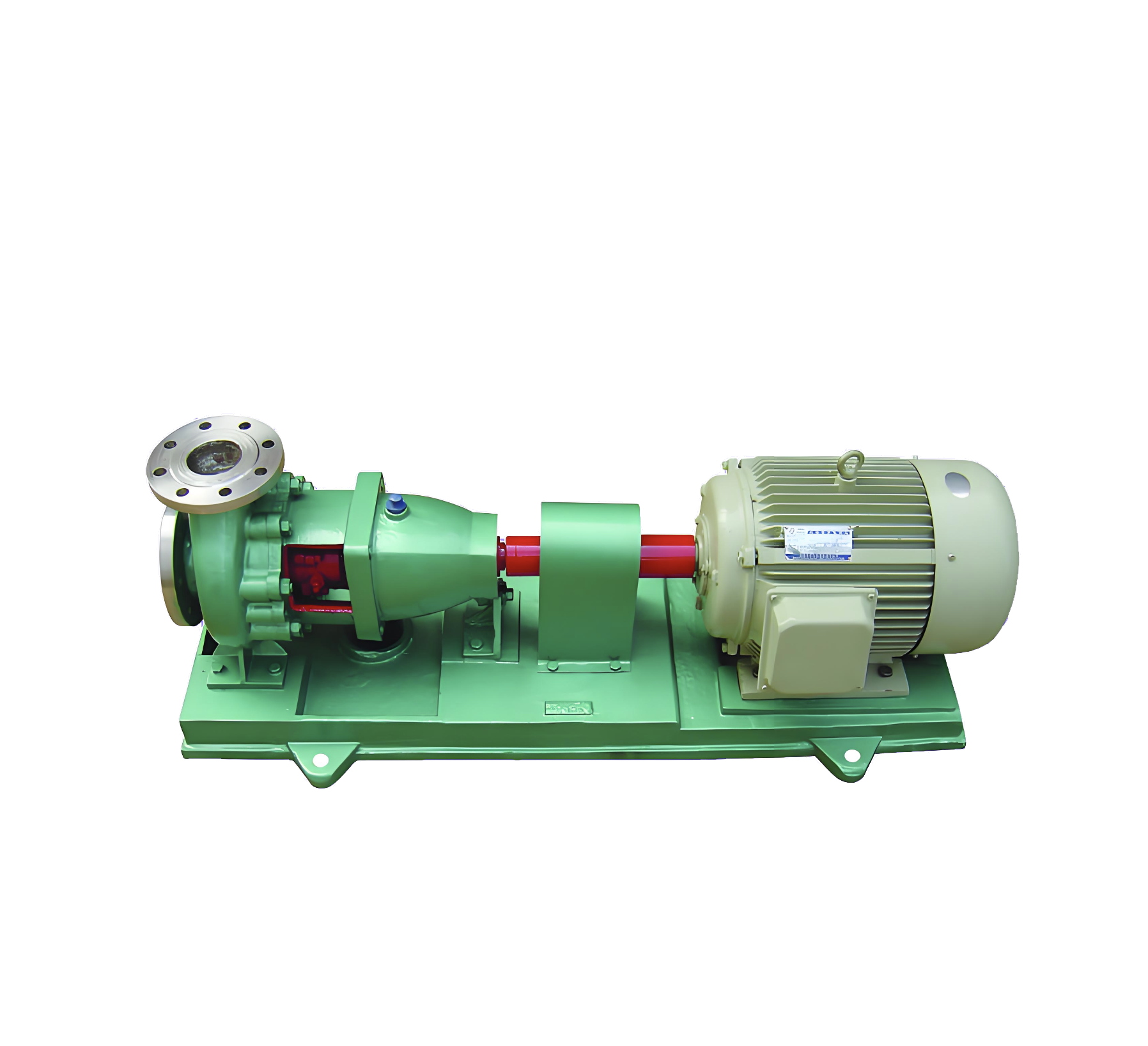

IJ悬臂式化工泵产品图

IJ悬臂式化工泵特点
1、缩短了叶轮的悬臂，加粗了轴的直径；
2、非对称截面的蜗壳、泵壳无口环；
3、采用三只进口轴承；
4、装有与国外先进的双端面机械密封或填料密封相似的新型密封。

IJ悬臂式化工泵优越性
1、可以输送高粘度或含固体的介质，这时泵的效率较IH泵；
2、非对称截面蜗壳减少了流体的冲击损失，缩短了泵壳尺寸；
3、增加轴的强度，减少了转子的挠度，因而运行稳定、密封寿命长；
4、叶轮螺母与叶轮做成一体，改善了泵的入口条件，提高泵的抗汽蚀性能；
5、先进的轴密封形式，使密封效果更佳，减少了泵的泄漏；
6、可以不拆卸泵壳和叶轮的情况下调节泵的间隙，减少了维修时间，节省维修成本。

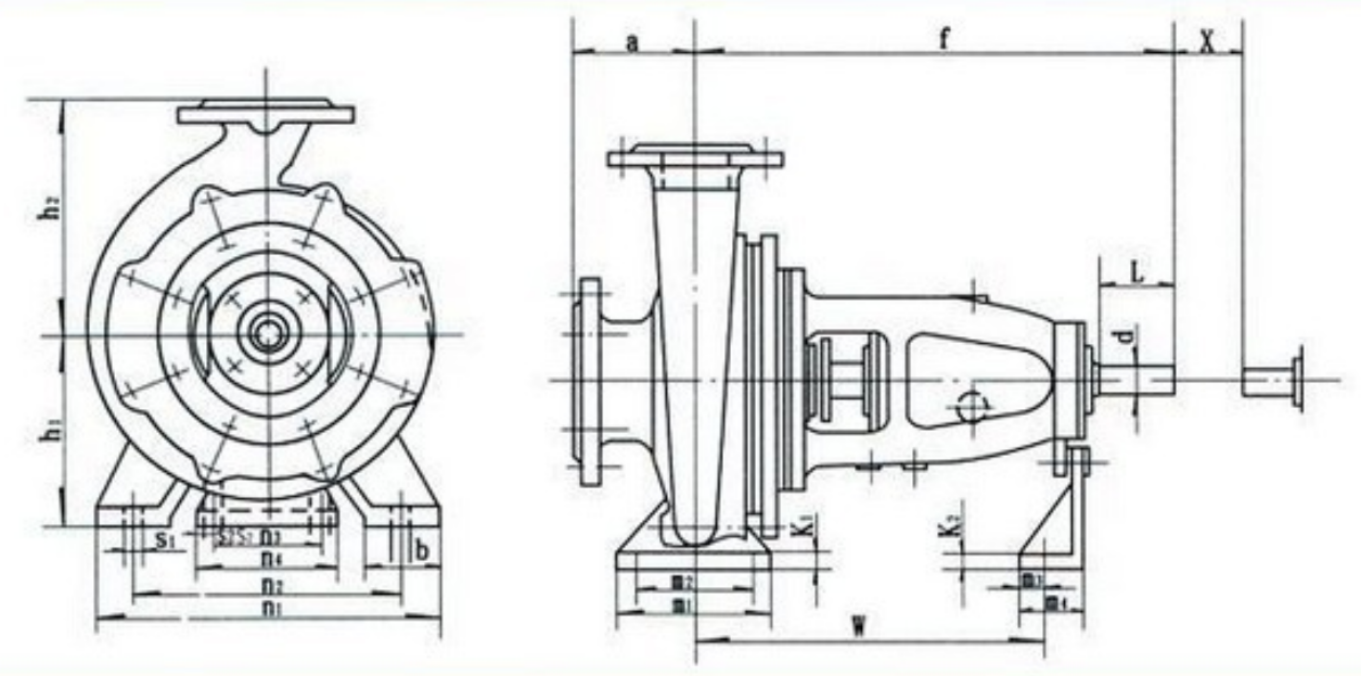

IJ悬臂式化工泵外形结构图

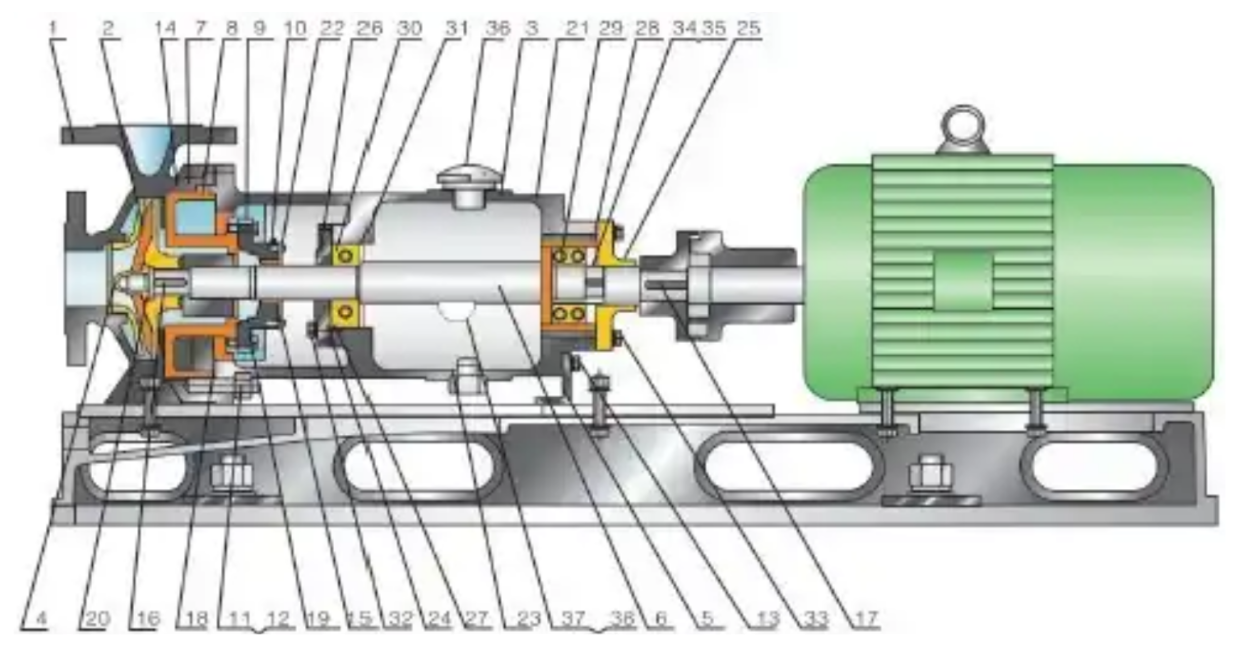

IJ悬臂式化工泵零部件结构名称表

1	泵体	Pump body	20	叶轮据母0型图	0 ring ot imoeler nu
2	叶轮	impeller	21	铭脾	Mingpi
3	悬架体	Suspension body	22	油封挡板	Oil seal baffle
4	叶轮螺母	Impeller nut	23	管诸及垫阅	Manage and review materials
5	支架	Bracket	24	轴承前盖	Bearing front cover
6	主轴	principal axis	25	辅承后盖	Supporting back cover
7	泵盖	Pump cover	26	油封	oil seal
8	机械密封	Mechanical seal	27	前盖垫	Front cover pad
9	静环压盖	Static ring cover	28	后善垫	Houshan cushion
0	水接头	Water connector	29	轴承	Bearing
11	双头螺柱	Double headed stud	30	轴承	Bearing
12	端母	End Mother	31	挡图	Block diagram
13	螺栓/整圈	Bolt/whole circle	32	螺栓	Bolt
14	叶轮O型图	O-ring diagram of impeller	33	螺栓	Bolt
15	油封	oil seal	34	小国螺母	Small country nut
6	叶轮键	Leaf wheel key	35	止退垫图	Anti retreat pad diagram
17	联轴器键	Coupling key	36	气孔盖	Air hole cover
18	泵盖垫或O型圈	Pump cover gasket or O-ring	37	油标	Oil standard
19	静环压盖垫	static ring cover gasket

IJ悬臂式化工泵性能参数表

泵型号 Model	流量? Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)	功率P(KW) Power		效率Efficiency η (％)	必需汽蚀余量 NPSH r (m)
泵型号 Model	m3/h	L/S	扬程 Head H(m)	转速 Speed (r/min)	轴功率 Shaft Power	电机功率 Motor Power	效率Efficiency η (％)	必需汽蚀余量 NPSH r (m)
IJ32-20-125	3.2	0.88	20	2900	0.48	按液体的比重和粘度选用 Select according to viscosity and granity of liquid	35	5.0
IJ32-20-160	3.2	0.88	32		0.93		30	3.5
IJ32-20-200	3.2	0.88	50		1.62		27	4.0
IJ32-20-250	3.2	0.88	80		4.1		17	4.5
IJ40-20-125	6.3	1.74	20		0.66		52	5.0
IJ40-25-160	6.3	1.74	32		1.53		36	3.5
IJ40-25-200	6.3	1.74	50		2.52		34	3.5
IJ40-25-250	6.3	1.74	80		5.3		26	4.5
IJ50-32-125	7.5	2.08	23	2900	1.09		43	2.0
	12.5	3.47	20		1.33		51	2.0
	15.0	4.17	18		1.50		49	2.5
IJ50-32-125A	6.8	1.89	18.8	2900	1.87		40	2.0
	11.3	3.14	16.4		1.01		50	2.0
	13.6	3.78	14.7		1.16		47	2.5
IJ50-32-125	3.75	1.04	5.57	1450	0.16		36	2.0
	6.3	1.74	5.0		0.19		45	2.0
	7.5	2.08	4.5		0.21		44	2.0
IJ50-32-125A	3.4	0.94	4.7	1450	0.13		33.3	2.0
	5.7	1.59	4.1		0.149		43	2.0
	6.8	1.89	3.7		0.163		42	2.2
IJ50-32-160	7.5	2.08	34.5	2900	2.13		33	2.0
	12.5	3.47	32		2.37		46	2.0
	15.0	4.17	30		2.45		50	2.5
IJ50-32-160A	6.8	1.89	28.5	2900	1.76		30	2.0
	11.3	3.14	26.4		1.85		44	2.0
	13.6	3.78	24.8		1.91		48	2.5
IJ50-32-160	3.75	1.04	8.6	1450	0.30		29	2.0
	6.3	1.74	8.0		0.34		40	2.0
	7.5	2.08	7.5		0.36		43	2.2
IJ50-32-160A	3.4	0.94	7.1	1450	0.253		25.9	2.0
	5.7	1.59	6.6		0.277		37.1	2.0
	6.8	1.89	6.2		0.280		41	2.2
IJ50-32-200	7.5	2.08	51.8	2900	3.78		28	2.0
	12.5	3.47	50		4.36		39	2.0
	15.0	4.17	48		4.56		43	2.5
IJ50-32-200A	6.8	1.89	42.7	2900	3.16		25	2.0
	11.3	3.14	41		3.24		38	2.0
	13.6	3.78	39.5		3.57		41	2.5
IJ50-32-200	3.75	1.04	12.9	1450	0.57		23	2.0
	6.3	1.74	12.5		0.65		33	2.0
	7.5	2.08	12.0		0.68		36	2.2
IJ50-32-200A	3.4	0.94	10.6	1450	0.488		20	2.0
	5.7	1.59	10.3		0.516		31	2.0
	6.8	1.89	9.9		0.540		34	2.2
IJ50-32-250	7.5	2.08	82	2900	7.28		23	2.0
	12.5	3.47	80		8.25		33	2.0
	15.0	4.17	78.5		8.79		36.5	2.5
IJ50-32-250A	7	1.94	71.9	2900	6.84		20	2.0
	11.7	3.25	70		6.97		32	2.0
	14	3.89	68.8		7.71		34	2.5
IJ50-32-250B	6.6	1.83	63.6	2900	5.71		20	2.0
IJ50-32-250B	11.0	3.06	62	2900	6.19		30	2.0
IJ50-32-250	3.75	1.04	20.5	1450	1.23		17	2.0
	6.3	1.74	20		1.27		27	2.0
	7.5	2.08	6.2		1.29		31	2.2
IJ50-32-250A	3.51	0.98	18.0	1450	1.12		15.4	2.0
	5.9	1.64	17.5		1.125		25	2.0
	7.02	1.95	17.2		1.18		27.9	2.2
IJ65-50-125	15	4.17	21.3	2900	1.85		47	2.0
	25	6.94	20		2.2		62	2.0
	30	8.33	18.6		2.4		63	2.5

IJ悬臂式化工泵性能参数表2

泵型号 Model	流量 Q Capacity Q		扬程 Head H(m)	转速 Speed(r/min)	功率 P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
泵型号 Model	M3/h	L/S	扬程 Head H(m)	转速 Speed(r/min)	轴功率Shaft Power	电机功率Motor Power	效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
IJ65-50-125A	13.6	3.78	17.6	2900	1.48	按液体的比重和粘度选用 Select according to viscosity and granite of liquid	44	2
	22.7	6.31	16.5		1.67		61	2
	27.3	7.58	15.4		1.91		59.9	2.5
IJ65-50-125	7.5	2.08	5.4	1450	0.25		44	2
	12.5	3.47	5		0.31		55	2
	15	4.17	4.5		0.33		56	2.2
IJ65-50-125A	6.8	1.89	4.5	1450	0.23		41	2
	11.3	3.14	4.1		0.234		54	2
	13.6	3.78	3.7		0.258		53	2.2
IJ65-50-160	15	4.17	34.2	2900	3.18		44	2
	25	6.94	32		3.82		57	2
	30	8.33	30		4.15		59	2.5
IJ65-50-160A	13.6	3.78	28.4	2900	2.56		41	2
	22.7	6.31	26.5		2.93		56	2
	27.3	7.58	24.8		3.29		56	2.5
IJ65-50-160	7.5	2.08	8.55	1450	0.45		39	2
	12.5	3.47	8		0.53		51	2
	15	4.17	7.5		0.58		52.5	2.2
IJ65-50-160A	6.8	1.89	7.09	1450	0.37		35.5	2
	11.3	3.14	6.6		0.41		49.6	2
	13.6	3.78	6.2		0.46		49.9	2.2
IJ65-40-200	15	4.17	53.2	2900	5.3		41	2
	25	6.94	50		6.55		52	2
	30	8.33	47.6		7.27		53.5	2.5
IJ65-40-200A	13.6	3.78	43.9	2900	4.28		38	2
	22.7	6.31	41		5.07		50	2
	27.3	7.58	39.3		5.73		51	2.5
IJ65-40-200	7.5	2.08	13.3	1450	0.78		35	2
	12.5	3.47	12.5		0.93		46	2
	15	4.17	11.9		1.02		47.5	2.2
IJ65-40-200A	6.8	1.89	11	1450	0.64		31.8	2
	11.3	3.14	10.3		0.72		44	2
	13.6	3.78	9.8		0.81		44.8	2.2
IJ65-40-250	15	4.17	81.2	2900	9.76		34	2
	25	6.94	80		11.84		46	2
	30	8.33	78.4		12.8		50	2.5
IJ65-40-250A	14	3.89	71	2900	8.73		31	2
	23.4	6.5	74.8		10.6		45	2
	28	7.78	68.6		11.13		47	2.5
IJ65-40-250B	13.2	3.67	62.8	2900	7.29		31	2
	22	6.11	61.8		8.42		44	2
	26.4	7.33	53		8.45		45	2.5
IJ65-40-250	7.5	2.08	20.3	1450	1.48		28	2
	12.5	3.47	20		1.75		39	2
	15	4.17	19.6		1.86		43	2.2
IJ65-40-250A	7	1.94	17.8	1450	1.35		25	2
	11.7	3.25	17.5		1.47		37.9	2
	14	3.89	17.2		1.64		40	2.2
IJ65-40-315	15	4.17	126.8	2900	18.5		28	2
	25	6.94	125		21.8		39	2
	30	8.33	124		23.8		42.5	2.5
IJ65-40-315A	14	3.89	111.2	2900	18.1		25	2
	23.4	6.5	109.5		18.36		38	2
	28	7.78	108.8		22.12		40	2.5
IJ65-40-315B	13.2	3.67	98	2900	14.69		24	2
	22	6.11	96.5		15.63		37	2
	26.4	7.33	95.9		17.67		39	2.5
IJ65-40-315	7.5	2.08	32.4	1450	3		22	2
	12.5	3.47	32		3.3		33	2
	15	4.17	31.7		3.5		37	2.2
IJ65-40-315A	7	1.94	28.4	1450	2.84		19	2
	11.7	3.25	28		2.78		31	2
	14	3.89	27.8		3.12		34	2.2

IJ悬臂式化工泵性能参数表3

泵型号 Model		流量? Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)	功率P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
IJ80-65-125	30		8.33	23.2	2900	3.16	按液体的比重和粘度选用 Select according to viscosity and granite of liquid	60	3
	50		13.9	20		3.95		69	3
	60		16.7	17.6		4.29		67	4
IJ80-65-125A	27.2		7.56	19.1	2900	2.48		57	3
	45.3		12.58	16.5		3.04		67	3
	54.4		15.12	14.5		3.36		64	4
IJ80-65-125	15		4.17	5.8	1450	0.44		54	3
	25		6.94	5		0.53		64	3
	30		8.33	4.4		0.58		62	4
IJ80-65-125A	13.6		3.78	4.8	1450	0.349		51	3
	22.6		6.28	4.1		0.407		62	3
	27.2		7.56	3.6		0.452		59	4
IJ80-65-160	30		8.33	36	2900	5.16		57	2
	50		13.9	32		6.5		67	2.3
	60		16.7	28.4		7.14		65	3.3
IJ80-65-160A	27.2		7.56	29.7	2900	4.08		54	2
	45.4		12.6	26.4		5.02		65	2.3
	54.4		15.12	23.4		5.39		62	3.3
IJ80-65-160	15		4.17	9	1450	0.74		50	2
	25		6.94	8		0.88		62	2.3
	30		8.33	7.2		0.95		62	3.3
IJ80-65-160A	13.6		3.78	7.4	1450	0.58		47.3	2
	22.7		6.31	6.6		0.68		60	2.3
	27.2		7.56	5.9		0.74		59	3.3
IJ80-50-200	30		8.33	55.2	2900	8.5		53	2
	50		13.9	50		10.8		63	2.5
	60		16.7	45.2		11.9		62	3.2
IJ80-50-200A	27.2		7.56	45.4	2900	6.73		50	2
	45.3		12.58	41		8.29		61	2.5
	54.4		15.12	37.2		9.35		59	3.2
IJ80-50-200	15		4.17	13.5	1450	1.25		44	2
	25		6.94	12.5		1.49		57	2.3
	30		8.33	11.5		1.6		58	3.3
IJ80-50-200A	13.6		3.78	11.1	1450	1		41	2
	22.7		6.31	10.3		1.135		56.1	2.3
	27.2		7.56	9.5		1.28		55	3.3
IJ80-50-250	30		8.33	84	2900	16		43	2.5
	50		13.9	80		20.6		53	2.5
	60		16.7	75		12.7		54	2.5
IJ80-50-250A	28.14		7.82	73.55	2900	13.2		42.7	2.5
	46.9		13.03	70.5		16.1		56	2.5
	56.28		15.63	67.4		17.8		58.03	3
IJ80-50-250B	26.4		7.33	64.8	2900	11.4		40.86	2.5
	44		12.22	62.2		13.8		54	2.5
	52.8		14.67	60		15		57.52	3
IJ80-50-250	15		4.17	21	1450	2.15		40	2.5
	25		6.94	20		2.72		50	2.5
	30		8.33	18.8		3.01		51	2.5
IJ80-50-250A	14.04		3.9	18.2	1450	1.66		42	2.5
	23.4		6.5	17.6		2.25		50	2.5
	28.08		7.8	16.7		2.63		48.5	2.5
IJ80-50-315	30		8.33	128	2900	33.1		38	2.5
	50		13.9	125		34.1		50	2.5
	60		16.7	123		38		53	3
IJ80-50-315A	28.14		7.82	113.4	2900	21.5		40.4	2
	46.9		13.03	110		28.1		50	2
	56.28		15.63	107.7		30		55	2.5
IJ80-50-315B	26.4		7.33	100.5	2900	17		43.5	2
	44		12.22	97		24.2		48	2
	52.8		14.67	95		25		54.6	2.5
IJ80-50-315	15		4.17	32.5	1450	3.59		37	2.5
	25		6.94	32		4.54		48	2.5
	30		8.33	31.5		4.95		52	3

IJ悬臂式化工泵性能参数表4

泵型号 Model	流量?Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)		功率P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量NPSH r (m)
IJ80-50-315A	14.1	3.92	29.2	1450	3.52		按液体的比重和粘度选用 Select according to viscosity and granite of liquid	31.8	2.5
	23.5	6.53	28.3		4.12			44	2.5
	28.2	7.83	27.1		4.41			47.2	3
IJ100-80-125	60	16.7	23.7	2900	5.96			65	3
	100	27.8	20		7.47			73	4.2
	120	33.3	16.3		7.72			69	4.8
IJ100-80-125A	55	15.3	19.4	2900	4.68			62	3
	91.8	25.5	16.8		5.9			71	4.2
	109	30.5	13.7		6.12			67	4.8
IJ100-80-160	60	16.7	37	2900	10.1			60	3.8
	100	27.8	32		11.9			73	4.3
	120	33.3	28		12.5			73	5
IJ100-80-160A	54.6	15.17	30.6	2900	7.98			57	3.8
	91	25.28	26.5		9.25			71	4.3
	109.2	30.34	23.2		9.85			70.4	5
IJ100-80-160	30	8.33	9.25	1450	1.3			58	3.8
	50	13.9	8		1.58			69	4.3
	60	16.7	7		1.68			68	5
IJ100-80-160A	27.3	7.58	7.66	1450	1.03			55.3	3.8
	45.5	12.64	6.6		1.22			67	4.3
	54.6	15.16	5.8		1.32			65.3	5
IJ100-65-200	60	16.7	56	2900	14.5			63	3.4
	100	27.8	50		18.9			72	3.9
	120	23.3	44		20.3			71	5.2
IJ100-65-200A	54.6	15.17	46.5	2900	11.5			60.1	3.4
	91	25.28	41.5		14.7			70	3.9
	109.2	30.34	36.6		16			68	5.2
IJ100-65-200	30	8.33	14	1450	1.91			60	3.4
	50	13.9	12.5		2.5			68	3.9
	60	16.7	11		2.85			63	5.3
IJ100-65-200A	27.3	7.58	11.6	1450	1.51			57	3.4
	45.5	12.64	10.3		1.83			66	3.9
	54.6	15.16	9.1		2.25			60.1	5.2
IJ100-65-250	60	16.7	88	2900	25.2			57	3
	100	27.8	80		32			68	3.6
	120	33.3	74		36.1			67	4.5
IJ100-65-250A	56.11	15.58	77	2900	21.8			54	3
	93.5	25.97	70		27.4			65	3.6
	112.2	31.16	64.7		30.9			64	4.5
IJ100-65-250B	52.7	14.64	67.9	2900	18.3			53.3	3
	87.8	24.39	61.7		23.1			64	3.6
	105.4	29.28	57		26			62.9	4.5
IJ100-65-250	30	8.33	22	1450	3.6			50	3
	50	13.9	20		4.3			63	3.6
	60	16.7	18.5		4.7			64	4.5
IJ100-65-250A	28	7.79	19.2	1450	3.12			47	3
	45.5	12.64	17.4		3.53			61	3.6
	56	15.58	16.2		4.06			60.9	4.5
IJ100-65-315	60	16.7	132	2900	44.9			48	2.8
	100	27.8	125		54.9			62	3.2
	120	33.8	119		60.8			64	4.2
IJ100-65-315A	56.1	15.58	115.5	2900	39.2			45	2.8
	93.5	25.97	109		45.5			61	3.2
	112.2	31.16	104		52.1			61	4.2
IJ100-65-315B	52.7	14.64	102	2900	33.3			44	2.8
	88	24.44	97		38.7			60	3.2
	105.4	29.28	92		44			60	4.2
IJ100-65-315	30	8.33	33.5	1450	6.2			44	2.8
	50	13.9	32		7.5			58	3.2
	60	16.7	30.5		8.3			60	4.2
IJ100-65-315A	28	7.79	29.3	1450	5.46			41	2.8
	46.5	12.92	28		6.33			56	3.2
	56	15.58	26.7		7.15			57	4.2

IJ悬臂式化工泵性能参数表5

泵型号 Model	流量? Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)	功率P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
IJ125-80-160				2900		按液体的比重和粘度选用 Select according to viscosity and granite of liquid
	160	44.4	32		17.7		79	5.3

IJ125-80-200				2900
	160	44.4	50		28.3		77	4.3

IJ125-80-200				2900
	160	44.4	80		47.1		74	4

IJ125-100-200	120	33.3	61	2900	29.3		68	4.5
	200	55.6	50		35.4		77	5
	240	66.7	41		38.3		70	5.8
IJ125-100-200A	109.1	30.3	50.5	2900	23.1		64.9	4.5
	182	50.56	41.4		27.4		75	5
	218.2	60.6	34		30.1		67.1	5.8
IJ125-100-200	60	16.7	15.25	1450	3.89		64	4.5
	100	27.8	12.5		4.66		73	5
	120	33.3	10.25		5.08		66	5.8
IJ125-100-200A	54.7	15.2	12.6	1450	3.08		61	4.5
	91	25.28	10.3		3.6		71	5
	109.4	30.4	8.5		4.02		63	5.8
IJ125-100-250	120	33.3	90	2900	47.4		62	3.7
	200	55.6	80		58.1		75	4.5
	240	66.7	73		64.5		74	5.5
IJ125-100-250A	112	31.1	78	2900	40.3		59	3.7
	186.5	51.8	69.5		48.35		73	4.5
	224	62.2	63.5		54.5		71	5.5
IJ125-100-250B	105.5	29.3	69	2900	34.2		58	3.7
	175.5	48.75	61.5		41.4		71	4.5
	211	58.6	56		46		69.9	5.5
IJ125-100-250	60	16.7	22.5	1450	6.23		59	3.7
	100	27.8	20		7.56		72	4.5
	120	33.3	18.25		8.4		71	5.5
IJ125-100-250A	56	15.56	19.5	1450	5.31		56	3.7
	93	25.83	17.4		6.29		70	4.5
	112	31.1	15.9		7.13		68	5.5
IJ125-100-315	120	33.3	132.5	2900	65.3		52.6	4
	200	55.6	125		94.6		72	4.5
	240	66.7	120		103		75	5
IJ125-100-315A	60	16.7	33.5	1450	10.3		53	4
	100	27.8	32		13.5		65	4.5
	120	33.3	30.5		15.1		66	5
IJ125-100-400	60	16.7	52	1450	17.7		48	3.5
	100	27.8	50		24.8		55	3.5
	120	33.3	48.5		25.8		62	4
IJ125-100-400A	54.6	15.17	46	1450	13		44	3.5
	91	25.28	41		19		51	3.5
	109.2	30.34	36.6		19.6		58	4
IJ125-125-250	120	33.3	24.8	1450	12.3		66	2.5
	200	55.6	20		14.1		77	2.8
	240	66.7	15		14.4		68	3.5
IJ125-125-250A	109.1	30.3	20.5	1450	9.7		62.8	2.5
	182	50.56	16.5		10.9		75	2.8
	218.2	60.6	12.4		11.3		65.2	3.5
IJ125-125-315	120	33.3	36.3	1450	18.8		63	2.5
	200	55.6	32		23.2		75	2.8
	240	66.7	28.5		25.9		72	3.8
IJ125-125-315A	109.1	30.3	30	1450	14.85		60	2.5
	182	50.56	25.5		17.32		73	2.8
	218.2	60.6	23.5		20.23		69	3.8
IJ125-125-400	120	33.3	57.5	1450	30.8		61	2
	200	55.6	50		38.9		70	2.5
	240	66.7	44		45.6		63	3

IJ悬臂式化工泵性能参数表6

泵型号 Model	流量?Q Capacity Q		扬程 Head H(m)	转速 Speed (r/min)	功率P (KW) Power		效率 Efficiency η(％)	必需汽蚀余量 NPSH r (m)
IJ125-125-400A	109.1	30.3	47.5	1450	24.3	按液体的比重和粘度选用 Select according to viscosity and granite of liquid	58	2
	182	50.56	41		29.9		68	2.5
	218.2	60.6	36.5		36.1		60	3
IJ200-150-250	240	66.7	23	1450	23.3			2.5
	400	111.1	20		29.4		74	2.8
	460	127.8	18		30.6			3
IJ200-150-315	240	66.7	35.6	1450	34.7		67	3
	400	111.1	32		44.1		79	3.5
	460	127.8	29.4		47.8		77	4
IJ200-150-315A	218.2	60.6	29.4	1450	27.3		64	3
	363	100.8	25.5		32.7		77	3.5
	418	116.1	24.3		37.4		74	4
IJ200-150-400	240	66.7	55.8	1450	54.4		67	3
	400	111.1	50		69.8		78	3.5
	460	127.8	47		78.5		75	4
IJ200-150-400A	218.2	60.6	46	1450	42.7		64	3
	363	100.8	41		53.3		76	3.5
	418	116.1	38.8		61.3		72	4
IJ250-200-250A	600		12	1450
IJ250-200-250B	540		11	1450
IJ250-200-315A	650		24	1450
IJ250-200-315B	600		20	1450
IJ250-200-315C	550		16	1450
IJ250-200-400A	650		52	1450
IJ250-200-400B	550		45	1450
IJ250-200-400C	500		40	1450
IJ250-200-500A	700		75	1450
IJ250-200-500B	650		65	1450
IJ250-200-500C	550		55	1450
IJ300-250-315A	950		22	1450
IJ300-250-315B	900		20	1450
IJ300-250-315C	800		16	1450
IJ300-250-400A	1000		44	1450
IJ300-250-400B	900		38	1450
IJ300-250-400C	850		30	1450
IJ300-250-500A	1200		80	1450
IJ300-250-500B	1100		70	1450
IJ300-250-500C	1000		55	1450

IJ悬臂式化工泵性能参数表7

泵型号 Model	叶轮形式 impeller type	泵额定转速n=2900r/min speed
		流量 M3/h Capacity	扬程 H m Head	相对密度＝1.00		相对密度＝1.00		相对密度＝1.00
				relative density<1.0		relative density<1.35		relative density<1.86
				电机功率及型号? motor power or model
				Kw		Kw		Kw
IJ32-20-125		3.2	20	1.1	YB802-2/1.1	1.5	YB802-2/1.1	1.5	YB90S-2/1.5
IJ32-20-160		3.2	32	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
IJ32-20-200		3.2	50	3	YB100L-2/3.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
IJ32-20-250		3.2	80	5.5	YB132S1-2/5.5	11	YB132S2-2/7.5	11	YB160M1-2/11
IJ40-25-160		6.3	20	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
IJ40-25-160		6.3	32	2.2	YB90L-2/2.2	4	YB100L-2/3.0	4	YB112M-2/4.0
IJ40-25-200		6.3	50	4	YB112M-2/4.0	7.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
IJ40-25-250		6.3	80	7.5	YB132S2-2/7.5	15	YB160M1-2/11	15	YB160M2-2/15
IJ50-32-125		12.5	20	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
IJ50-32-125A		11.3	16.4	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
IJ50-32-160		12.5	32	3	YB100L-2/3.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
IJ50-32-160A		11.3	26.4	2.2	YB90L-2/2.2	4	YB100L-2/4.0	4	YB112M-2/4.0
IJ50-32-200		12.5	50	5.5	YB132S1-2/5.5	11	YB132S2-2/7.5	11	YB160M1-2/11
IJ50-32-200A		11.3	41	4	YB112M-2/4.0	7.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
IJ50-32-250		12.5	80	11	YB160M1-2/11	18.5	YS160M2-2/15	18.5	YB160L-2/18.5
IJ50-32-250A		11.7	70	7.5	YB132S2-2/7.5	15	YB160M1-2/11	15	YB160M2-2/15
IJ50-32-250B		11	62	7.5	YB132S2-2/7.5	15	YB160M1-2/11	15	YB160M2-2/15
IJ65-50-125		25	20	3	YB100L-2/3.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
IJ65-50-125A		22.7	16.5	2.2	YB90L-2/2.2	4	YB100L-2/3.0	4	YB112M-2/4.0
IJ65-50-160		25	32	5.5	YB132S1-2/5.5	7.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
IJ65-50-160A		22.7	26.5	4	YB112M-2/4.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
IJ65-40-200		25	50	7.5	YB132S2-2/7.5	11	YB160M1-2/11	15	YS160M2-2/15
IJ65-40-200A		22.7	41	5.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5	11	YB160M1-2/11
IJ65-40-250		25	80	15	YS160M2-2/15	18.5	YB160L-2/18.5	22	YB180M-2/22
IJ65-40-250A		23.4	74.8	11	YB160M1-2/11	15	YS160M2-2/15	22	YB180M-2/22
IJ65-40-250B		22	61.8	11	YB160M1-2/11	15	YS160M2-2/15	18.5	YB160L-2/18.5
IJ65-40-315		25	125	30	YB200L1-2/30	30	YB200L1-2/30	45	YB225M-2/45
IJ65-40-315A		23.4	109.5	22	YB180M-2/22	30	YB200L1-2/30	37	YB200L2-2/37
IJ65-40-315B		22	96.5	18.5	YB160L-2/18.5	22	YB180M-2/22	30	YB200L1-2/30
IJ80-65-125		50	20	4	YB112M-2/4.0	5.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
IJ80-65-125A		45.3	16.5	4	YB112M-2/4.0	5.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
IJ80-65-160		50	32	7.5	YB132S2-2/7.5	11	YB160M1-2/11	15	YS160M2-2/15
IJ80-65-160A		45.4	26.4	5.5	YB132S1-2/5.5	7.5	YB132S1-2/5.5	11	YB160M1-2/11
IJ80-50-200		50	50	11	YB160M1-2/11	15	YS160M2-2/15	22	YB180M-2/22
IJ80-50-200A		45.3	41	11	YB160M1-2/11	15	YS160M2-2/15	18.5	YB160L-2/18.5
IJ80-50-250		50	80	22	YB180M-2/22	30	YB200L1-2/30	45	YB225M-2/45
IJ80-50-250A		46.9	70.5	18.5	YB160L-2/18.5	22	YB180M-2/22	30	YB200L1-2/30
IJ80-50-250B		44	62.2	15	YB160M2-2/15	22		30
IJ80-50-315		50	125	37	YB200L2-2/37	55	YB250M-2/55	75	YB280S-2/75
IJ80-50-315A		46.9	110	30	YB200L1-2/30	45	YB225M-2/45	55	YB250M-2/55
IJ80-50-315B		44	9.7	30	YB200L1-2/30	37	YB200L2-2/37	45	YB225M-2/45
IJ100-80-125		100	20	11	YB160M1-2/11	11	YB160M1-2/11	15	YB160M2-2/15
IJ100-80-125A		91.8	16.8	7.5	YB132S2-2/7.5	11	YB160M1-2/11	11	YB160M1-2/11
IJ100-80-160		100	32	15	YB160M2-2/15	18.5	YB160L-2/18.5	22	YB180M-2/22
IJ100-80-160A		91	26.5	11	YB160M1-2/11	15	YB160M2-2/15	18.5	YB160L-2/18.5
IJ100-65-200		100	50	22	YB180M-2/22	30	YB200L1-2/30	37	YB200L2-2/37
IJ100-65-200A		91	41.5	18.5	YB160L-2/18.5	22	YB180M-2/22	30	YB200L1-2/30

IJ悬臂式化工泵性能参数表8

泵型号 Model	泵额定转速 n=1450r/min speed
	流量 M3/h Capacity	扬程 H m Head	相对密度＝1.84		相对密度＝1.00		相对密度＝1.25
			relative density<1.0		relative density<1.35		relative density<1.86

			Kw		Kw		Kw
IJ32-20-125
IJ32-20-160
IJ32-20-200
IJ32-20-250
IJ40-25-160
IJ40-25-160
IJ40-25-200
IJ40-25-250
IJ50-32-125	6.3	5	0.55	YB801-4/0.55	0.55	YB801-4/0.55	0.55	YB801-4/0.55
IJ50-32-125A	5.7	4.1					0.55	YB801-4/0.55
IJ50-32-160	6.3	8					0.75	YB802-4/0.75
IJ50-32-160A	5.7	6.6					0.75	YB802-4/0.75
IJ50-32-200	6.3	12.5	0.75	YB802-4/0.75	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5
IJ50-32-200A	5.7	10.3	0.75	YB802-4/0.75	0.75	YB802-4/0.75	1.1	YB90S-4/1.1
IJ50-32-250	6.3	20	1.5	YB90L-4/1.5	2.2	YB100L-4/2.2	3	YB100L2-4/3.0
IJ50-32-250A	5.9	17.5					2.2	YB100L1-4/2.2
IJ50-32-250B							2.2	YB100L1-4/2.2
IJ65-50-125	12.5	8	0.55	YB801-4/0.55	0.55	YB801-4/0.55	1.1	YB90S-4/1.1
IJ65-50-125A	11.3	4.1	0.55		0.55	YB801-4/0.55	0.55	YB801-4/0.55
IJ65-50-160	12.5	8			0.75	YB802-4/0.75	1.1	YB90S-4/1.1
IJ65-50-160A	11.3	6.6	0.55		0.75		1.1	YB90S-4/1.1
IJ65-40-200	12.5	12.5	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2
IJ65-40-200A	11.3	10.3	0.75	YB802-4/0.75	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5
IJ65-40-250	12.5	20	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0	4	YB112M-4/4.0
IJ65-40-250A	11.7	17.5	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0
IJ65-40-250B			4	YB112M-4/4.0	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5
IJ65-40-315	12.5	32	4	YB112M-4/4.0	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5
IJ65-40-315A	11.7	28	3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
IJ65-40-315B			3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
IJ80-65-125	25	5	0.75	YB802-4/0.75	0.75	YB802-4/0.75	1.1	YB90S-4/1.1
IJ80-65-125A	22.6	4.1	0.55	YB801-4/0.55	0.55	YB801-4/0.55	0.75	YB802-4/0.75
IJ80-65-160	25	8	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2
IJ80-65-160A	22.7	6.6	0.75	YB802-4/0.75	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5
IJ80-50-200	25	12.5	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0
IJ80-50-200A	22.7	10.3	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2	2.2	YB100L1-4/2.2
IJ80-50-250	25	20	3		4		5.5
IJ80-50-250A	23.4	17.6	3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
IJ80-50-250B			5.5	YB132S-4/5.5	7.5	YB132M-4/7.5	11	YB160M-4/11
IJ80-50-315	25	32	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5	11	YB160M-4/11
IJ80-50-315A	23.5	28.3	5.5
IJ80-50-315B
IJ100-80-125			2.2	YB100L1-4/2.2	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0
IJ100-80-125A
IJ100-80-160	50	8
IJ100-80-160A	45.5	6.6	1.5	YB90L-4/1.5
IJ100-65-200	50	12.5	3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
IJ100-65-200A	45.5	10.3	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0	4	YB112M-4/4.0
IJ100-65-250	50	20	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5	1.1	YB160M-4/11
IJ100-65-250A	45.5	17.4	4	YB112M-4/4.0	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5

IJ悬臂式化工泵性能参数表9

泵型号 Model	叶轮形式 impeller type	泵额定转速? n=2900r/min speed
		流量 M3/h Capacity	扬程 H m Head	相对密度＝1.00 relative density<1.0		相对密度＝1.00 relative density<1.35			相对密度＝1.00 relative density<1.86
				电机功率及型号? motor power or model
				Kw	-		Kw	-		Kw	-
IJ100-65-250	-	100	80	37	YB200L2-2/37		45	YB225M-2/45		75	YB280S-2/75
IJ100-65-250A	-	93.5	70	30	YB200L2-2/30		37	YB200L2-2/37		55	YB250M-2/55
IJ100-65-250B	-	87.8	61.7	30	YB200L2-2/30		37	YB200L2-2/37		45	YB225M-2/45
IJ100-65-315	-	100	125	75	YB280S-2/75		75	YB280S-2/75		110	YB135S-2/110
IJ100-65-315A	-	93.5	109	55	YB250M-2/55		-			-	-
IJ100-65-315B	-	88	97	45	YB225M-2/55		55	YB250M-2/55		75	YB280S-2/75
IJ125-80-160	-	160	32	22	YB180M-2/22		30	YB200L1-2/30		37	YB200L2-2/37
IJ125-80-200	-	160	50	37	YB200L2-2/37		45	YB225M-2/45		55	YB250M-2/55
IJ125-80-250	-	160	80	55	YB250M-2/55		75	YB280S-2/75		90	YB280M-2/90
IJ125-100-200	-	200	50	45	YB225M-2/45		55	YB250M-2/55		75	YB280S-2/75
IJ125-100-200A	-	182	41.4	30	YB200L1-2/30		37	YB200L2-2/37		55	YB250M-2/55
IJ125-100-250	-	200	80	75	YB280S-2/75		90	YB280M-2/90		110	-
IJ125-100-250A	-	186.5	69.5	55	YB250M-2/55		75	YB280S-2/75		90	YB280M-2/90
IJ125-100-250B	-	175.5	61.5	45	YB225M-2/45		75	YB280S-2/75		90	YB280M-2/90
IJ125-100-315	-	200	125	110	YB315S-2/110		132	YB315M1-2/132		-	-

IJ悬臂式化工泵性能参数表10

泵型号 Model	叶轮形式 impeller type	泵额定转速?n=2900r/min?speed
		流量M3/h Capacity	扬程 H m Head	相对密度＝1.00 relative density<1.0		相对密度＝1.00 relative density<1.35			相对密度＝1.00 relative density<1.86
				电机功率及型号? motor power or model
				Kw			Kw		Kw
IJ100-65-315		50	32	7.5	YB132M-4/7.5		11	YB160M-4/11	15	YB160L-4/15
IJ100-65-315A		46.5	28	7.5	YB132M-4/7.5		11	YB160M-4/11	15	YB160L-4/15
IJ100-65-315B				5.5	YB132S-4/5.5		7.5	YB132M-4/7.5	11	YB160M-4/11
IJ125-100-200		100	12.5	5.5	YB132S-4/5.5		7.5	YB132M-4/7.5	11	YB160M-4/11
IJ125-100-200A		91	10.3	4	YB112M-4/4.0		5.5	YB132S-4/5.5	7.5	YB132M-4/7.5
IJ125-100-250		100	20	11	YB160M-4/11		11	YB160M-4/11	15	YB160L-4/15
IJ125-100-250A		93	17.4	7.5	YB132M-4/7.5		11	YB160M-4/11	15	YB160L-4/15
IJ125-100-250B				18.5	YB180L-4/18.5		22	YB180L-4/22	30	YB200L-4/30
IJ125-100-315		100	32	15	YB160L-4/15		22	YB180L-4/22	30	YB200L4/30
IJ125-100-400		100	50	32	YB200L-4/30		37	YB225S-4/37	55	YB250M-4/55
IJ150-125-250		200	20	18.5	YB180L-4/18.5		22	YB180L-4/22	30	YB200L-4/30
IJ150-125-250A		182	16.5	15	YB160L-4/15		15	YB160L-4/15	22	YB180L-4/22
IJ150-125-315		200	32	30	YB200L-4/30		37	YB225S-4/37	45	YB225M-4/45
IJ150-125-315A		182	25.5	22	YB180L-4/22		30	YB220L-4/30	37	YB225S-4/37
IJ150-125-400		200	50	45	YB225M-4/45		55	YB250M-4/55	75	YB280S-4/75
IJ150-125-400A		182	41	37	YB225S-4/37		45	YB225M-4/45	75	YB280S-4/75
IJ200-150-250		400	20	37	YB225S-4/37		45	YB225M-4/45	75	YB280M-4/90
IJ200-150-250A		360	16.2	30	YB200L-4/30		30	YB200L-4/30	45	YB225M-4/45
IJ200-150-315		400	32	45	YB225M-4/45		75	YB280S-4/75	90	YB280S-4/75
IJ200-150-315A		363	25.5	37	YB225S-4/37		45	YB225M-4/45	75	YB280S-4/75
IJ200-150-400		400	50	75	YB280S-4/75		110	YB315S-4/110	132	YB315M1-4/132
IJ200-150-400A		363	41	55	YB225M-4/45		75	YB280S-4/75	110	YB315S-4/110

IJ悬臂式化工泵外形尺寸图

IJ悬臂式化工泵外形尺寸表

产品型号					系欣座												螺栓孔		轴端		间局
	a	F	hi	hz	b	01	02	m3	m	nl	n2	n3		ki	k2	W	S	S2	d	L	X
50-32-125	80	385	112	140	50	100	70	19	60	190	140	110	145		10	285	M12	M12	24	50	100
50-32-160			132	160						240	190
50-32-200			160	180
50-32-250	100	500	180	225	65	125	95	25	65	320	250				14	370			32	80
65-50-125	80	385	112	140	50	100	70	19	60	210	160	110	145		10	285	M12	M12	24	50	100
65-50-160			132	160						240	190
65-40-200	100		160	180						265	212
65-40-250		500	180	225	65	125	95	25	65	320	250				14	370			32	80
65-40-315	125		200	250						345	280
80-65-125	100	385	132	160	50	100	70	19	60	240	190	110	145		10	285	M12	M12	24	50	100
80-65-160			160	180						265	212
80-50-200				200
80-50-250	125	500	180	225	65	125	95	25	65	320	250				14	370			32	80
80-50-315			225	280						345	280
100-80-12	100	385	160	180	65	125	95	19	60	280	212	110	145		10	285	M12	M12	24	50	100
100-80-160		500		200				24								370			32	80
100-65-200			180	225				25	65	320	250				14						140
																	M16
100-65-250	125		200	250	80	160	120			360	280
100-65-315		530	225	280				28		400	315								42	110
125-100-200	125	500	200	280	80	160	120	25	65	360	280	110	145		14	370	M16	M12	32	80	140
125-100-250	140	530	225					28		400	315								42	110
125-100-315			250	315
125-100-400			280	355	100	200	150			500	400						M20
150-125-250	140	530	250	355	80	160	120	28	65	400	315	110	145		14	370	M16	K12	42	110	140
150-125-315			280		100	200	150			500	400						M20
150-125-400			315	400
200-150-256	160	530	280	375	100	200	150	28	65	500	400	110	145		14	370	M20	M12	42	110	180
200-150-315		670	315	400				38	38	550	450	140	200		30	500		M16	48
200-150-400				450

注：X是驱动一侧退出转子所需的间隔

备注：IJ悬臂式化工泵的外形尺寸表仅供参考，如有需要确切的外形安装尺寸请直接联系我公司的技术人员免费索取，谢谢！

您还可能对以下产品感兴趣
