XBD-HW卧式消防切线泵
- 品牌：壹泵阀
- 型号：XBD-HY、XBD-HW
- 压力/扬程：0.3~2.3Mpa
- 工作温度：0℃～80℃
- 连接方式：法兰
- 产品名称：XBD-HW卧式消防切线泵
- 通径/流量：3~96L/S
- 材质：铸铁
- 驱动方式：电动
- 适用范围：消防供水、消防稳压、消防增压等
- 产品概述
- 性能参数

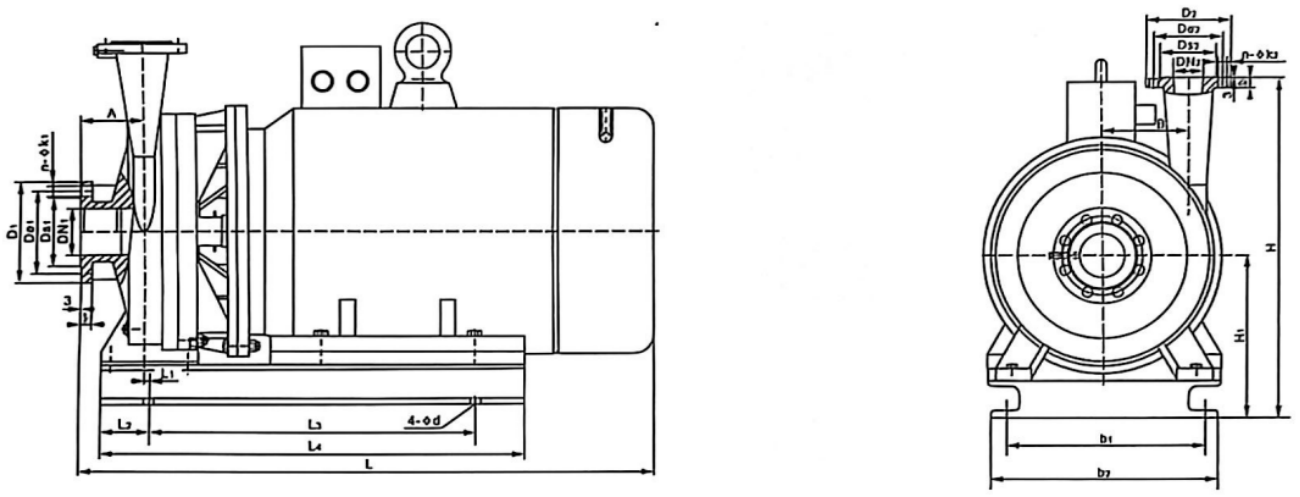

- 尺寸重量
XBD-HW卧式消防切线泵
XBD-HW卧式消防切线泵概述
XBD-HY系列消防切线恒压泵是消防泵组的型号和对两款消防切线泵系列的总称，（单泵主要分XBD-HW卧式消防切线泵和XBD-HL立式消防切线泵），其性能、技术条 件完全符合国家新颁布的GB6245-1998《消防泵性能要 求和试验方法》标准的要求。专用于消防系统的稳压送压供水。

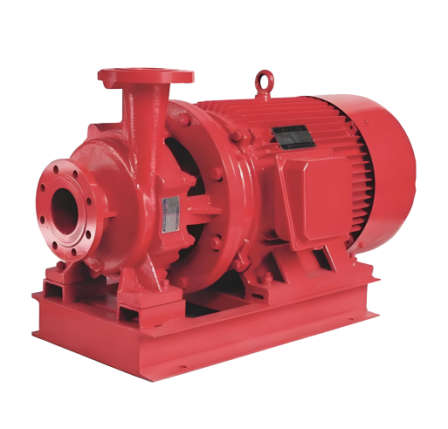

XBD-HW卧式消防切线泵产品图
XBD-HW卧式消防切线泵特点
XBD-HY系列消防切线恒压泵具有变流稳压的 特点，即在全流量范围内，扬程变化不大，这种性能特点完全符合消防现场的使用特点，从而避免了普通离心泵在消防现场中小流量时超压而在大流量时供不上水的现象。
根据消防切线恒压泵自身之特点，结合上海美言壹泵阀具体情况，消防切线泵采用卧式结构。对于75kW 以下(包括75kW)的消防切线泵也可采用立式结构，整个系列均采用加长轴的Y2型直联电机，取消了联轴器，这大大提高了泵机组的可靠性；消防切线泵采用径向开式叶轮，轴向力小，无口环，杜绝了锈蚀咬死，因而使其运行平稳、噪声低、使用寿命长。
泵壳采用铸铁制造，其它过流部件可根据用户 具体需要采用不锈钢、青铜或其它抗腐蚀性材料制 造。
XBD-HW卧式消防切线泵用途
XBD-HY系列消防切线恒压泵主要用于工业、民用建筑固定消防系统(消火栓灭火系统、自动喷淋系统和水喷雾灭火系统)的给水，另外，也可用于消 防和生活(生产)共用的给水系统及建筑、市政、工 矿、锅炉给水等各种场合。
XBD-HW卧式消防切线泵工作条件
转速：1500/3000r/min(电机同步转速)
介质温度：≤80℃清水
流量范围：5~96L/s
压力范围：0.3~2.6MPa

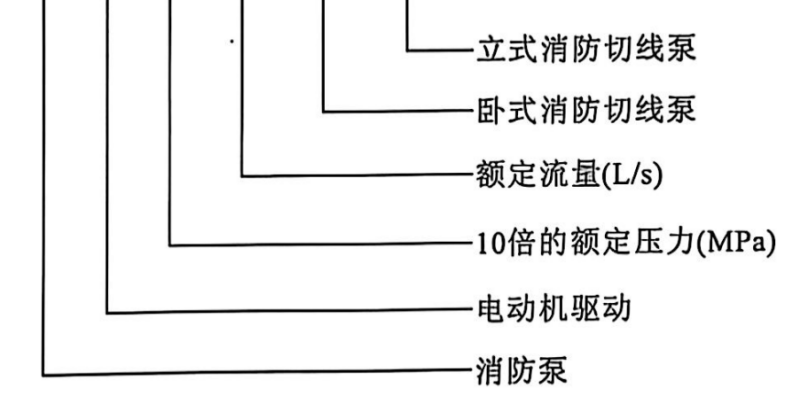

XBD-HW卧式消防切线泵型号意义
XB D 12 / 60 - HW (HL)

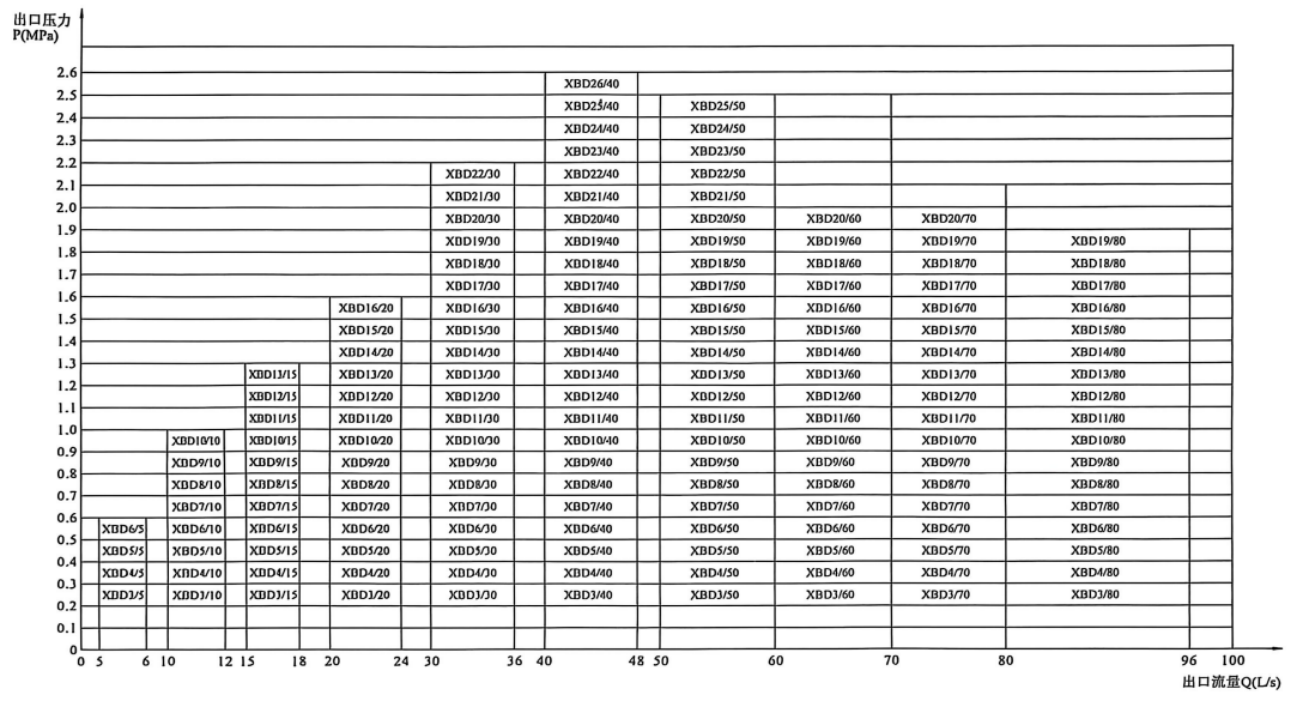

XBD-HW卧式消防切线泵出口压力和流量表

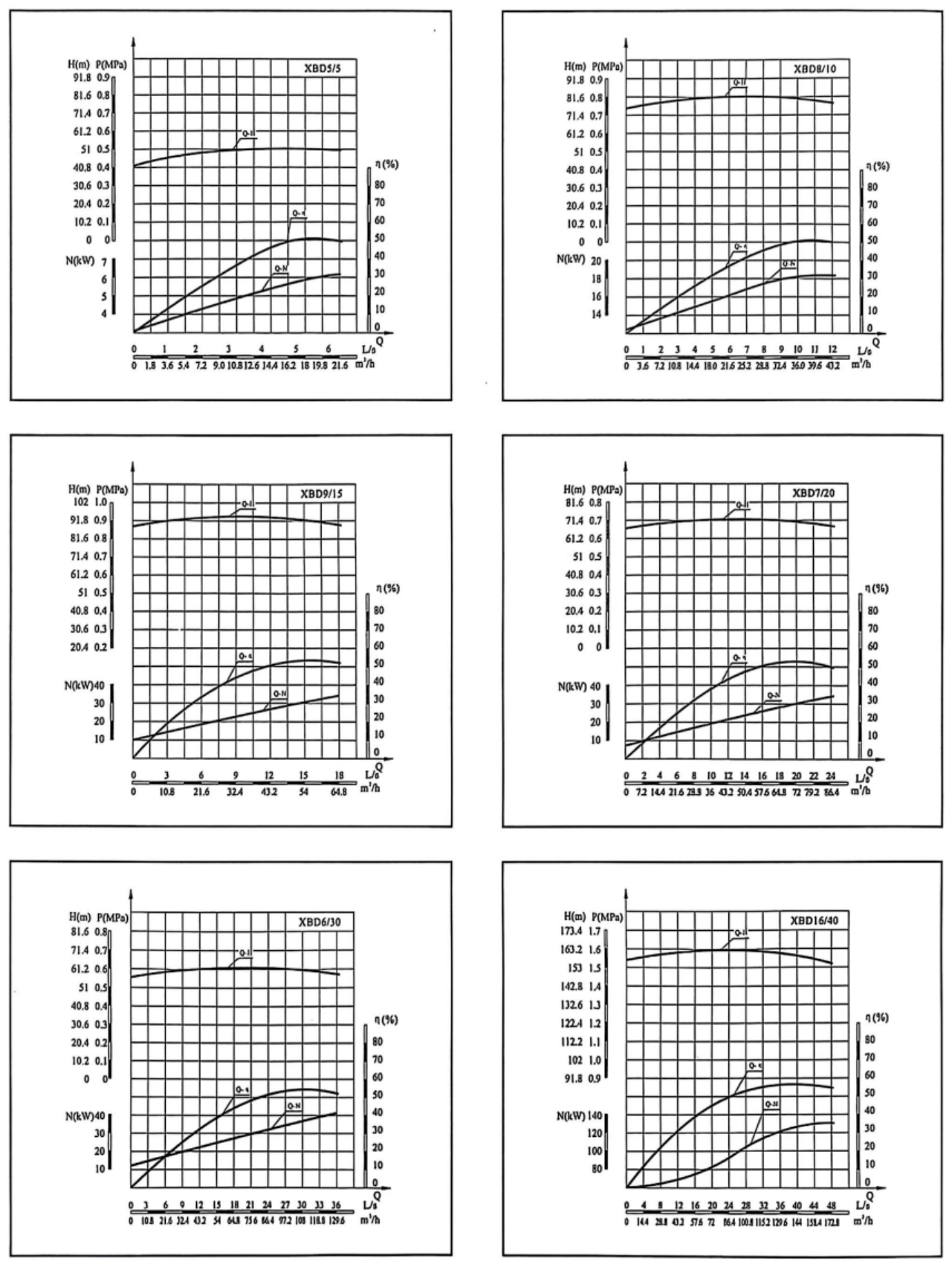

XBD-HW卧式消防切线泵性能曲线图

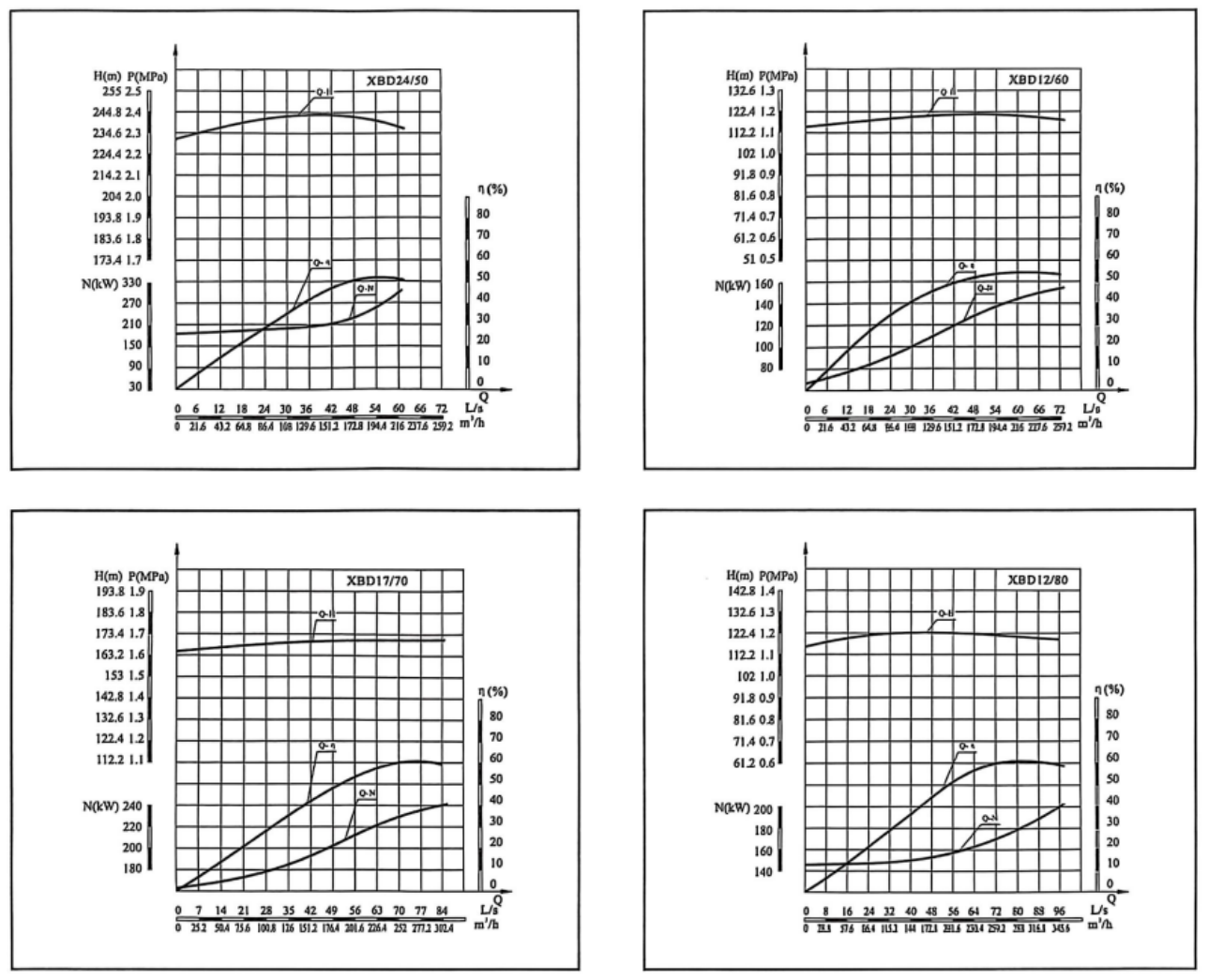

XBD-HW卧式消防切线泵性能曲线图2
XBD-HW卧式消防切线泵型号及性能参数表
| 序号 | 型 号 | 流 量 (L/s) | 出口压力 (MPa) | 扬程 (m) | 转速 (r/min) | 电 机 | |
| 型号 | 功率(kW) | ||||||
| 1 | XBD3/5-HW(HL) | 3/5/6 | 0.3 | 30 | 2890 | Y2100L-2 | 3 |
| 2 | XBD4/5-HW(HL) | 3/5/6 | 0.4 | 40 | 2910 | Y2112M1-2 | 4 |
| 3 | XBD5/5-HW(HL) | 3/5/6 | 0.5 | 50 | 2905 | Y2132SI-2 | 5.5 |
| 4 | XBD6/5-HW(HL) | 6/10/12 | 0.6 | 60 | 2935 | Y2132S2-2 | 7.5 |
| 5 | XBD3/10-HW(HL) | 6/10/12 | 0.3 | 30 | 2905 | Y2132S1-2 | 5.5 |
| 6 | XBD4/10-HW(HL) | 6/10/12 | 0.4 | 40 | 2935 | Y2132S2-2 | 7.5 |
| 7 | XBD5/10-HW(HL) | 6/10/12 | 0.5 | 50 | 2935 | Y2160M1-2 | 11 |
| 8 | XBD6/10-HW(HL) | 6/10/12 | 0.6 | 60 | 2935 | Y2160M1-2 | 11 |
| 9 | XBD7/10-HW(HL) | 6/10/12 | 0.7 | 70 | 2935 | Y2160M2-2 | 15 |
| 10 | XBD8/10-HW(HL) | 6/10/12 | 0.8 | 80 | 2935 | Y2160L-2 | 18.5 |
| 11 | XBD9/10-HW(HL) | 6/10/12 | 0.9 | 90 | 2945 | Y2180M-2 | 22 |
| 12 | XBD10/10-HW(HL) | 6/10/12 | 1.0 | 100 | 2945 | Y2180M-2 | 22 |
| 13 | XBD3/15-HW(HL) | 9/15/18 | 0.3 | 30 | 2935 | Y2160Sz-2 | 7.5 |
| 14 | XBD4/15-HW(HL) | 9/15/18 | 0.4 | 40 | 2935 | Y2160M1-2 | 11 |
| 15 | XBD5/15-HW(HL) | 9/15/18 | 0.5 | 50 | 2935 | Y2160M2-2 | 15 |
| 16 | XBD6/15-HW(HL) | 9/15/18 | 0.6 | 60 | 2940 | Y2160M2-2 | 15 |
| 17 | XBD7/15-HW(HL) | 9/15/18 | 0.7 | 70 | 2940 | Y2160L-2 | 18.5 |
| 18 | XBD8/15-HW(HL) | 9/15/18 | 0.8 | 80 | 2945 | Y2180M-2 | 22 |
| 19 | XBD9/15-HW(HL) | 9/15/18 | 0.9 | 90 | 2945 | Y2200LI-2 | 30 |
| 20 | XBD10/15-HW(HL) | 9/15/18 | 1.0 | 100 | 2945 | Y2200L1-2 | 30 |
| 21 | XBD11/15-HW(HL) | 9/15/18 | 1.1 | 110 | 2945 | Y2225S-2 | 37 |
| 22 | XBD12/15-HW(HL) | 9/15/18 | 1.2 | 120 | 2950 | Y2225M-2 | 45 |
| 23 | XBD13/15-HW(HL) | 9/15/18 | 1.3 | 130 | 2965 | Y2225M-2 | 45 |
| 24 | XBD3/20-HW(HL) | 12/20/24 | 0.3 | 30 | 2935 | Y2160M1-2 | 11 |
| 25 | XBD4/20-HW(HL) | 12/20/24 | 0.4 | 40 | 2935 | Y2160M2-2 | 15 |
| 26 | XBD5/20-HW(HL) | 12/20/24 | 0.5 | 50 | 2945 | Y2160L-2 | 18.5 |
| 27 | XBD6/20-HW(HL) | 12/20/24 | 0.6 | 60 | 2945 | Y2180M-2 | 22 |
| 28 | XBD7/20-HW(HL) | 12/20/24 | 0.7 | 70 | 2945 | Y2200L1-2 | 30 |
| 29 | XBD8/20-HW(HL) | 12/20/24 | 0.8 | 80 | 2945 | Y₂200L1-2 | 30 |
| 30 | XBD9/20-HW(HL) | 12/20/24 | 0.9 | 90 | 2950 | Y2200L2-2 | 37 |
XBD-HW卧式消防切线泵型号及性能参数表2
| 序号 | 型 号 | 流 量 (L/s) | 出口压力 (MPa) | 扬程 (m) | 转速 (r/min) | 电 机 | |
| 型号 | 功本(kW) | ||||||
| 31 | XBD10/20-HW(HL) | 12/20/24 | 1.0 | 100 | 2950 | Y2200L2-2 | 37 |
| 32 | XBD11/20-HW(HL) | 12/20/24 | 1.1 | 110 | 2965 | Y2200L-2 | 37 |
| 33 | XBD12/20-HW(HL) | 12/20/24 | 1.2 | 120 | 2965 | Y2225M-2 | 45 |
| 34 | XBD13/20-HW(HL) | 12/20/24 | 1.3 | 130 | 2965 | Y2225M-2 | 45 |
| 35 | XBD14/20-HW(HL) | 12/20/24 | 1.4 | 140 | 2965 | Y2250M-2 | 55 |
| 36 | XBD15/20-HW | 12/20/24 | 1.5 | 150 | 2965 | Y2250M-2 | 55 |
| 37 | XBD16/20-HW | 12/20/24 | 1.6 | 160 | 2965 | Y2250M-2 | 55 |
| 38 | XBD3/30-HW(HL) | 18/30/36 | 0.3 | 30 | 1470 | Y2180L-4 | 22 |
| 39 | XBD4/30-HW(HL) | 18/30/36 | 0.4 | 40 | 2945 | Y2180M-2 | 22 |
| 40 | XBD5/30-HW(HL) | 18/30/36 | 0.5 | 50 | 2945 | Y2200L1-2 | 30 |
| 41 | XBD6/30-HW(HL) | 18/30/36 | 0.6 | 60 | 2950 | Y2200L2-2 | 37 |
| 42 | XBD7/30-HW(HL) | 18/30/36 | 0.7 | 70 | 2965 | Y2200L2-2 | 37 |
| 43 | XBD8/30-HW(HL) | 18/30/36 | 0.8 | 80 | 2965 | Y2250M-2 | 45 |
| 44 | XBD9/30-HW(HL) | 18/30/36 | 0.9 | 90 | 2965 | Y2250M-2 | 45 |
| 45 | XBD10/30-HW(HL) | 18/30/36 | 1.0 | 100 | 2965 | Y2250M-2 | 55 |
| 46 | XBD11/30-HW(HL) | 18/30/36 | 1.1 | 110 | 2965 | Y2250M-2 | 55 |
| 47 | XBD12/30-HW | 18/30/36 | 1.2 | 120 | 2965 | Y2280S-2 | 75 |
| 48 | XBD13/30-HW | 18/30/36 | 1.3 | 130 | 2965 | Y2280S-2 | 75 |
| 49 | XBD14/30-HW | 18/30/36 | 1.4 | 140 | 2965 | Y2280S-2 | 75 |
| 50 | XBD15/30-HW | 18/30/36 | 1.5 | 150 | 2975 | Y2280M-2 | 90 |
| 51 | XBD16/30-HW | 18/30/36 | 1.6 | 160 | 2975 | Y2280M-2 | 90 |
| 52 | XBD17/30-HW | 18/30/36 | 1.7 | 170 | 2975 | Y2315S-2 | 110 |
| 53 | XBD18/30-HW | 18/30/36 | 1.8 | 180 | 2975 | Y2315S-2 | 110 |
| 54 | XBD19/30-HW | 18/30/36 | 1.9 | 190 | 2975 | Y2315M-2 | 132 |
| 55 | XBD20/30-HW | 18/30/36 | 2.0 | 200 | 2975 | Y2315M-2 | 132 |
| 56 | XBD21/30-HW | 18/30/36 | 2.1 | 210 | 2975 | Y2315L1-2 | 160 |
| 57 | XBD22/30-HW | 18/30/36 | 2.2 | 220 | 2975 | Y2315L2-2 | 200 |
| 58 | XBD3/40-HW(HL) | 24/40/48 | 0.3 | 30 | 1470 | Y2200L-4 | 30 |
| 59 | XBD4/40-HW(HL) | 24/40/48 | 0.4 | 40 | 1475 | Y2200L-4 | 30 |
| 60 | XBDS/40-HW(HL) | 24/40/48 | 0.5 | 50 | 2965 | Y2200L2-2 | 37 |
XBD-HW卧式消防切线泵型号及性能参数表3
| 序号 | 型 号 | 流 量 (L/s) | 出口压力 (MPa) | 扬程 (m) | 转速(r/min) | 电 机 | |
| 型号 | 功率(kW) | ||||||
| 61 | XBD6/40-HW(HL) | 24/40/48 | 0.6 | 60 | 2965 | Y225SM-2 | 45 |
| 62 | XBD7/40-HW(HL) | 24/40/48 | 0.7 | 70 | 2965 | Y2250M-2 | 55 |
| 63 | XBD8/40-HW(HL) | 24/40/48 | 0.8 | 80 | 2965 | Y2250M-2 | 55 |
| 64 | XBD9/40-HW | 24/40/48 | 0.9 | 90 | 2965 | Y2280S-2 | 75 |
| 65 | XBD10/40-HW | 24/40/48 | 1.0 | 100 | 2965 | Y2280S-2 | 75 |
| 66 | XBD11/40-HW | 24/40/48 | 1.1 | 110 | 2975 | Y2280S-2 | 75 |
| 67 | XBD12/40-HW | 24/40/48 | 1.2 | 120 | 2975 | Y2280S-2 | 75 |
| 68 | XBD13/40-HW | 24/40/48 | 1.3 | 130 | 2975 | Y2280M-2 | 90 |
| 69 | XBD14/40-HW | 24/40/48 | 1.4 | 140 | 2975 | Y2280M-2 | 90 |
| 70 | XBD15/40-HW | 24/40/48 | 1.5 | 150 | 2975 | Y2315S-2 | 110 |
| 71 | XBD16/40-HW | 24/40/48 | 1.6 | 160 | 2975 | Y2315S-2 | 110 |
| 72 | XBD17/40-HW | 24/40/48 | 1.7 | 170 | 2975 | Y2315M-2 | 132 |
| 73 | XBD18/40-HW | 24/40/48 | 1.8 | 180 | 2975 | Y2315M-2 | 132 |
| 74 | XBD19/40-HW | 24/40/48 | 1.9 | 190 | 2975 | Y2315M-2 | 132 |
| 75 | XBD20/40-HW | 24/40/48 | 2.0 | 200 | 2975 | Y2315L1-2 | 160 |
| 76 | XBD21/40-HW | 24/40/48 | 2.1 | 210 | 2975 | Y2315L1-2 | 160 |
| 77 | XBD22/40-HW | 24/40/48 | 2.2 | 220 | 2970 | Y2315L2-2 | 200 |
| 78 | XBD23/40-HW | 24/40/48 | 2.3 | 230 | 2970 | Y2315L2-2 | 200 |
| 79 | XBD3/50-HW(HL) | 30/50/60 | 0.3 | 30 | 1475 | Y2200L-4 | 30 |
| 80 | XBD4/50-HW(HL) | 30/50/60 | 0.4 | 40 | 1475 | Y2225S-4 | 37 |
| 81 | XBD5/50-HW(HL) | 30/50/60 | 0.5 | 50 | 2965 | Y2225M-2 | 45 |
| 82 | XBD6/50-HW(HL) | 30/50/60 | 0.6 | 60 | 2965 | Y2250M-2 | 55 |
| 83 | XBD7/50-HW | 30/50/60 | 0.7 | 70 | 2965 | Y2280S-2 | 75 |
| 84 | XBD8/50-HW | 30/50/60 | 0.8 | 80 | 2965 | Y2280S-2 | 75 |
| 85 | XBD9/50-HW | 30/50/60 | 0.9 | 90 | 2975 | Y2280M-2 | 90 |
| 86 | XBD10/50-HW | 30/50/60 | 1.0 | 100 | 2975 | Y2280M-2 | 90 |
| 87 | XBD11/50-HW | 30/50/60 | 1.1 | 110 | 2975 | Y2315S-2 | 110 |
| 88 | XBD12/50-HW | 30/50/60 | 1.2 | 120 | 2975 | Y2315S-2 | 110 |
| 89 | XBD13/50-HW | 30/50/60 | 1.3 | 130 | 2975 | Y2315M-2 | 132 |
| 90 | XBD14/50-HW | 30/50/60 | 1.4 | 140 | 2975 | Y2315M-2 | 132 |
XBD-HW卧式消防切线泵型号及性能参数表4
| 序号 | 型 号 | 流 量 (L/s) | 出口压力 (MPa) | 扬程 (m) | 转速 (r/min) | 电 机 | |
| 型 号 | 功宰(kW) | ||||||
| 91 | XBD15/50-HW | 30/50/60 | 1.5 | 150 | 2975 | Y2315M-2 | 132 |
| 92 | XBD16/50-HW | 30/50/60 | 1.6 | 160 | 2975 | Y2315L1-2 | 160 |
| 93 | XBD17/50-HW | 30/50/60 | 1.7 | 170 | 2975 | Y2315L1-2 | 160 |
| 94 | XBD18/50-HW | 30/50/60 | 1.8 | 180 | 2975 | Y2315L2-2 | 200 |
| 95 | XBD19/50-HW | 30/50/60 | 1.9 | 190 | 2975 | Y2315L2-2 | 200 |
| 96 | XBD20/50-HW | 30/50/60 | 2.0 | 200 | 2970 | Y2315L2-2 | 200 |
| 97 | XBD3/60-HW(HL) | 36/60/72 | 0.3 | 30 | 1475 | Y2225S-4 | 37 |
| 98 | XBD4/60-HW(HL) | 36/60/72 | 0.4 | 40 | 1475 | Y2220M-4 | 45 |
| 99 | XBD5/60-HW(HL) | 36/60/72 | 0.5 | 50 | 1485 | Y2250M-4 | 55 |
| 100 | XBD6/60-HW | 36/60/72 | 0.6 | 60 | 2965 | Y2280S-2 | 75 |
| 101 | XBD7/60-HW | 36/60/72 | 0.7 | 70 | 2965 | Y2280S-2 | 75 |
| 102 | XBD8/60-HW | 36/60/72 | 0.8 | 80 | 2975 | Y2280M-2 | 90 |
| 103 | XBD9/60-HW | 36/60/72 | 0.9 | 90 | 2975 | Y2315S-2 | 110 |
| 104 | XBD10/60-HW | 36/60/72 | 1.0 | 100 | 2975 | Y2315S-2 | 110 |
| 105 | XBD11/60-HW | 36/60/72 | 1.1 | 110 | 2975 | Y2315M-2 | 132 |
| 106 | XBD12/60-HW | 36/60/72 | 1.2 | 120 | 2975 | Y2315M-2 | 132 |
| 107 | XBD13/60-HW | 36/60/72 | 1.3 | 130 | 2975 | Y2315L1-2 | 160 |
| 108 | XBD14/60-HW | 36/60/72 | 1.4 | 140 | 2975 | Y2315L1-2 | 160 |
| 109 | XBD15/60-HW | 36/60/72 | 1.5 | 150 | 2975 | Y2315L1-2 | 160 |
| 110 | XBD16/60-HW | 36/60/72 | 1.6 | 160 | 2975 | Y2315L1-2 | 160 |
| 111 | XBD17/60-HW | 36/60/72 | 1.7 | 170 | 2970 | Y2315L2-2 | 200 |
| 112 | XBD18/60-HW | 36/60/72 | 1.8 | 180 | 2970 | Y2315L2-2 | 200 |
| 113 | XBD19/60-HW | 36/60/72 | 1.9 | 190 | 2970 | Y2355M1-2 | 220 |
| 114 | XBD20/60-HW | 36/60/72 | 2.0 | 200 | 2970 | Y2355M1-2 | 220 |
| 115 | XBD3/70-HW(HL) | 42/70/84 | 0.3 | 30 | 1475 | Y2225M-4 | 45 |
| 116 | XBD4/70-HW(HL) | 42/70/84 | 0.4 | 40 | 1485 | Y2250M-4 | 55 |
| 117 | XBD5/70-HW | 42/70/84 | 0.5 | 50 | 1485 | Y2280S-4 | 75 |
| 118 | XBD6/70-HW | 42/70/84 | 0.6 | 60 | 1485 | Y2280S-4 | 75 |
| 119 | XBD7/70-HW | 42/70/84 | 0.7 | 70 | 2975 | Y2280M-2 | 90 |
| 120 | XBD8/70-HW | 42/70/84 | 0.8 | 80 | 2975 | Y2315S-2 | 110 |
XBD-HW卧式消防切线泵型号及性能参数表5
| 序号 | 型 号 | 流量 (L/s) | 出口压力 (MPa) | 扬程 (m) | 转速 (r/min) | 电 机 | |
| 型号 | 功率(kW) | ||||||
| 121 | XBD9/70-HW | 42/70/84 | 0.9 | 90 | 2975 | Y2315M-2 | 132 |
| 122 | XBD10/70-HW | 42/70/84 | 1.0 | 100 | 2975 | Y2315M-2 | 132 |
| 123 | XBD11/70-HW | 42/70/84 | 1.1 | 110 | 2975 | Y2315M-2 | 132 |
| 124 | XBD12/70-HW | 42/70/84 | 1.2 | 120 | 2975 | Y2315L1-2 | 160 |
| 125 | XBD13/70-HW | 42/70/84 | 1.3 | 130 | 2975 | Y2315L1-2 | 160 |
| 126 | XBD14/70-HW | 42/70/84 | 1.4 | 140 | 2975 | Y2315L2-2 | 200 |
| 127 | XBD15/70-HW | 42/70/84 | 1.5 | 150 | 2970 | Y2315L2-2 | 200 |
| 128 | XBD16/70-HW | 42/70/84 | 1.6 | 160 | 2970 | Y2315L2-2 | 200 |
| 129 | XBD17/70-HW | 42/70/84 | 1.7 | 170 | 2970 | Y2315L2-2 | 200 |
| 130 | XBD18/70-HW | 42/70/84 | 1.8 | 180 | 2970 | Y2355M2-2 | 250 |
| 131 | XBD19/70-HW | 42/70/84 | 1.9 | 190 | 2970 | Y₂355M2-2 | 250 |
| 132 | XBD20/70-HW | 42/70/84 | 2.0 | 200 | 2970 | Y2355M2-2 | 250 |
| 133 | XBD3/80-HW(HL) | 48/80/96 | 0.3 | 30 | 1475 | Y2250M-4 | 55 |
| 134 | XBD4/80-HW(HL) | 48/80/96 | 0.4 | 40 | 1485 | Y2250M-4 | 55 |
| 135 | XBD5/80-HW | 48/80/96 | 0.5 | 50 | 1485 | Y2280S-4 | 75 |
| 136 | XBD6/80-HW | 48/80/96 | 0.6 | 60 | 1485 | Y2280M-4 | 90 |
| 137 | XBD7/80-HW | 48/80/96 | 0.7 | 70 | 2975 | Y2315S-2 | 110 |
| 138 | XBD8/80-HW | 48/80/96 | 0.8 | 80 | 2975 | Y2315S-2 | 110 |
| 139 | XBD9/80-HW | 48/80/96 | 0.9 | 90 | 2975 | Y2315M-2 | 132 |
| 140 | XBD10/80-HW | 48/80/96 | 1.0 | 100 | 2975 | Y2315L1-2 | 160 |
| 141 | XBD11/80-HW | 48/80/96 | 1.1 | 110 | 2975 | Y2315L1-2 | 160 |
| 142 | XBD12/80-HW | 48/80/96 | 1.2 | 120 | 2975 | Y2315L1-2 | 160 |
| 143 | XBD13/80-HW | 48/80/96 | 1.3 | 130 | 2970 | Y2315L2-2 | 200 |
| 144 | XBD14/80-HW | 48/80/96 | 1.4 | 140 | 2970 | Y2315L2-2 | 200 |
| 145 | XBD15/80-HW | 48/80/96 | 1.5 | 150 | 2970 | Y2315L2-2 | 200 |
| 146 | XBD16/80-HW | 48/80/96 | 1.6 | 160 | 2970 | Y2355M1-2 | 220 |
| 147 | XBD17/80-HW | 48/80/96 | 1.7 | 170 | 2970 | Y2355M2-2 | 250 |
| 148 | XBD18/80-HW | 48/80/96 | 1.8 | 180 | 2970 | Y2355M2-2 | 250 |
| 149 | XBD19/80-HW | 48/80/96 | 1.9 | 190 | 2970 | Y2355M2-2 | 250 |
XBD-HW卧式消防切线泵外形尺寸图
XBD-HW卧式消防切线泵外形尺寸表
| 序号 | 型 号 | 外型尺寸 | 安 装 尺 寸 | 底座尺寸 | 进口法兰尺寸 | 出 口 法 兰 尺 寸 | 重量 | |||||||||||||||||||
| L | H | A | B | L1 | Ht | L2 | L3 | L4 | bi | bz | 4-中d | DN1 | Dsi | Dei | Di | Si | n-φki | DN2 | Ds2 | Dez | D2 | Sz | n-φk2 | |||
| 1 | XBD3/5-HW | 574 | 452 | 105 | 78 | 45 | 229 | 100 | 215 | 415 | 240 | 280 | 22 | 50 | 99 | 125 | 165 | 20 | 4-φ19 | 40 | 84 | 110 | 150 | 18 | 4-φ19 | 75 |
| 2 | XBD4/5-HW | 639 | 452 | 105 | 78 | 45 | 229 | 100 | 255 | 455 | 240 | 280 | 22 | 50 | 99 | 125 | 165 | 20 | 4-中19 | 40 | 84 | 110 | 150 | 18 | 4φ19 | 115 |
| 3 | XBD5/5-HW | 637 | 466 | 105 | 100 | 33 | 263 | 100 | 270 | 470 | 280 | 320 | 22 | 50 | 99 | 125 | 165 | 20 | 4-φ19 | 40 | 84 | 110 | 150 | 18 | 4φ19 | 125 |
| 4 | XBD6/5-HW | 752 | 474 | 105 | 100 | 33 | 271 | 100 | 375 | 575 | 320 | 360 | 22 | 50 | 99 | 125 | 165 | 20 | 4-φ19 | 40 | 84 | 110 | 150 | 18 | 4中19 | 179 |
| 5 | XBD3/10-HW | 649 | 447 | 110 | 73 | 45 | 229 | 100 | 260 | 460 | 240 | 280 | 22 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 50 | 99 | 125 | 165 | 20 | 4-中19 | 101 |
| 6 | XBD4/10-HW | 764 | 489 | 110 | 73 | 45 | 271 | 100 | 370 | 570 | 320 | 360 | 22 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 50 | 99 | 125 | 165 | 20 | 4-φ19 | 134 |
| 7 | XBD5/10-HW | 787 | 542 | 135 | 104 | 33 | 271 | 100 | 380 | 580 | 320 | 360 | 22 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 50 | 99 | 125 | 165 | 20 | 4-中19 | 182 |
| 8 | XBD6/10-HW | 787 | 542 | 135 | 104 | 33 | 271 | 100 | 380 | 580 | 340 | 360 | 22 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 50 | 99 | 125 | 165 | 20 | 4-φ19 | 195 |
| 9 | XBD7/10-HW | 832 | 542 | 135 | 104 | 33 | 271 | 100 | 425 | 625 | 320 | 360 | 22 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 50 | 99 | 125 | 165 | 20 | 4-中19 | 206 |
| 10 | XBD8/10-HW | 805 | 561 | 110 | 130 | 15 | 311 | 100 | 440 | 640 | 320 | 360 | 22 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 50 | 99 | 125| | 165 | 20 | 4φ19 | 232 |
| 11 | XBD9/10-HW | 945 | 565 | 110 | 130 | 15 | 315 | 100 | 535 | 735 | 360 | 400 | 22 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 50 | 99 | 125 | 165 | 20 | 4-φ19 | 333 |
| 12 | XBD10/10-HW | 945 | 565 | 110 | 130 | 15 | 315 | 100 | 535 | 735 | 360 | 400 | 22 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 50 | 99 | 12S | 165 | 20 | 4-φ19 | 370 |
| 13 | XBD3/15-HW | 813 | 611 | 155 | 69 | 45 | 271 | 100 | 380 | 580 | 320 | 360 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-中19 | 203 |
| 14 | XBD4/15-HW | 813 | 611 | 155 | 69 | 45 | 271 | 100 | 380 | 580 | 320 | 360 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-中19 | 212 |
| 15 | XBD5/15-HW | 830 | 581 | 110 | 100 | 33 | 271 | 100 | 430 | 630 | 320 | 360 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118| | 145 | 185 | 20 | 4-中19 | 236 |
| 16 | XBD6/15-HW | 855 | 601 | 110 | 100 | 37.5 | 300 | 100 | 435 | 635 | 320 | 360 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 258 |
| 17 | XBD7/15-HW | 810 | 601 | 110 | 100 | 37.5 | 300 | 100 | 435 | 635 | 320 | 360 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 273 |
| 18 | XBD8/15-HW | 968 | 615 | 130 | 127 | 15 | 315 | 100 | 535 | 735 | 360 | 400 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 325 |
| 19 | XBD9/15-HW | 968 | 615 | 130 | 127 | 15 | 315 | 100 | 535 | 735 | 360 | 400 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-中19 | 345 |
| 20 | XBD10/15-HW | 968 | 615 | 130 | 127 | 15 | 315 | 100 | 535 | 735 | 360 | 400 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 375 |
| 21 | XBD11/15-HW | 967 | 695 | 130 | 148 | 15 | 340 | 100 | 535 | 735 | 360 | 400 | 22 | 80 | 132 | 160 | 200 | 22 | 8-中19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 408 |
XBD-HW卧式消防切线泵外形尺寸表2
| 序号 | 型 号 | 外型尺寸 | 安装尺寸 | 底座尺寸 | 进口法兰尺寸 | 出口法兰尺寸 | 重量 | |||||||||||||||||||
| L | H | A | B | L1 | Hi | L2 | L3 | L4 | bi | b2 | 4-φd | DN | Dsi | Dei | D1 | SI | n-φki | DN2 | Ds2 | De2 | D2 | S2 | n-φk2 | |||
| 22 | XBD12/15-HW | 1017 | 673 | 130 | 148 | 15 | 318 | 100 | 570 | 770 | 460 | 500 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 450 |
| 23 | XBD13/15-HW | 1102 | 698 | 130 | 148 | 15 | 343 | 100 | 540 | 840 | 460 | 500 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4φ19 | 467 |
| 24 | XBD3/20-HW | 806 | 619 | 140 | 66 | 45 | 271 | 100 | 375 | 575 | 320 | 360 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 260 |
| 25 | XBD4/20-HW | 846 | 619 | 140 | 66 | 45 | 271 | 100 | 420 | 620 | 320 | 360 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4φ19 | 275 |
| 26 | XBD5/20-HW | 950 | 670 | 120 | 100 | 37.5 | 320 | 100 | 525 | 725 | 360 | 400 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4φ19 | 326 |
| 27 | XBD6/20-HW | 950 | 670 | 120 | 100 | 37.5 | 320 | 100 | 525 | 725 | 360 | 400 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 364 |
| 28 | XBD7/20-HW | 950 | 670 | 120 | 100 | 37.5 | 320 | 100 | 525 | 725 | 360 | 400 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 389 |
| 29 | XBD8/20-HW | 980 | 660 | 140 | 124 | 15 | 315 | 100 | 540 | 740 | 360 | 400 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 392 |
| 30 | XBD9/20-HW | 1031 | 662 | 140 | 124 | 15 | 317 | 100 | 575 | 775 | 400 | 440 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4φ19 | 457 |
| 31 | XBD10/20-HW | 1031 | 662 | 140 | 124 | 15 | 317 | 100 | 575 | 775 | 400 | 440 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 465 |
| 32 | XBD11/20-HW | 1114 | 648 | 140 | 145 | 15 | 343 | 100 | 645 | 845 | 460 | 500 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 598 |
| 33 | XBD12/20-HW | 1184 | 682 | 140 | 145 | 15 | 377 | 100 | 710 | 910 | 520 | 560 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4φ19 | 603 |
| 34 | XBD13/20-HW | 1184 | 682 | 140 | 145 | 15 | 377 | 100 | 710 | 910 | 520 | 560 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 65 | 118 | 145 | 185 | 20 | 4φ19 | 612 |
| 35 | XBD14/20-HW | 1308 | 687 | 140 | 165 | 15 | 377 | 100 | 710 | 910 | 520 | 560 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ23 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 618 |
| 36 | XBD15/20-HW | 1358 | 687 | 140 | 165 | 15 | 377 | 100 | 760 | 960 | 520 | 560 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ23 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 623 |
| 37 | XBD16/20-HW | 1358 | 687 | 140 | 165 | 15 | 377 | 100 | 760 | 960 | 520 | 560 | 22 | 80 | 132 | 160 | 200 | 22 | 8-φ23 | 65 | 118 | 145 | 185 | 20 | 4-φ19 | 632 |
| 38 | XBD3/30-HW | 1011 | 735 | 150 | 127 | 15 | 315 | 100 | 560 | 760 | 360 | 400 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 512 |
| 39 | XBD4/30-HW | 1001 | 735 | 150 | 90 | 33 | 315 | 100 | 535 | 735 | 360 | 400 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 525 |
| 40 | XBD5/30-HW | 1001 | 735 | 150 | 90 | 33 | 315 | 100 | 535 | 735 | 360 | 400 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 527 |
| 41 | XBD6/30-HW | 1051 | 737 | 150 | 90 | 33 | 317 | 100 | 570 | 770 | 400 | 440 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 541 |
| 42 | XBD7/30-HW | 1136 | 763 | 150 | 90 | 33 | 343 | 100 | 635 | 835 | 460 | 500 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 546 |
| 43 | XBD8/30-HW | 1120 | 693 | 140 | 120 | 15 | 343 | 100 | 650 | 850 | 460 | 500 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 606 |
| 44 | XBD9/30-HW | 1190 | 727 | 140 | 120 | 15 | 377 | 100 | 715 | 915 | 520 | 560 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 688 |
| 45 | XBD10/30-HW | 1190 | 727 | 140 | 120 | I5 | 377 | 100 | 715 | 915 | 520 | 560 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 703 |
| 46 | XBD11/30-HW | 1188 | 757 | 140 | 141 | 15 | 377 | 100 | 715 | 915 | 520 | 560 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 716 |
| 47 | XBD12/30-HW | 1238 | 757 | 140 | 141 | 15 | 377 | 100 | 765 | 965 | 520 | 560 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 815 |
| 48 | XBD13/30-HW | 1238 | 757 | 140 | 141 | 15 | 377 | 100 | 765 | 965 | 520 | 560 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 905 |
| 49| | XBD14/30-HW | 1237 | 747 | 140 | 161 | 15 | 377 | 100 | 765 | 965 | 520 | 560 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 952 |
| 50 | XBD15/30-HW | 1427 | 788 | 140 | 161 | 15 | 418 | 100 | 800 | 1000 | 600 | 640 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 1030 |
| 51 | XBD16/30-HW | 1427 | 788 | 140 | 161 | 15 | 418 | 100 | 800 | 1000 | 600 | 640 | 22 | 100 | 156 | 180 | 220 | 24 | 8-中19 | 80 | 132 | 160 | 200 | 22 | 8-φ19 | 1150 |
| 52 | XBD17/30-HW | 1456 | 788 | 150 | 193 | -5 | 418 | 100 | 870 | 1070 | 600 | 640 | 22 | 100 | 156 | 180 | 220 | 24 | 8-中19 | 80 | 132 | 160 | 200 | 26 | 8-φ19 | 1185 |
| 53 | XBD18/30-HW | 1456 | 788 | 150 | 193 | -5 | 418 | 100 | 870 | 1070 | 600 | 640 | 22 | 100 | 156 | 180 | 220 | 24 | 8-中19 | 80 | 132 | 160 | 200 | 26 | 8-φ19 | 1236 |
XBD-HW卧式消防切线泵外形尺寸表3
| 序号 | 型 号 | 外型尺寸 | 安 装 尺 寸 | 底座尺寸 | 进口法兰尺寸 | 出 口 法 兰 尺 寸 | 重量 | |||||||||||||||||||
| L | H | A | B | L1 | Hi | L2 | L3 | L4 | bi | b2 | 4-φd | DN1 | Ds1 | Dei | D1 | SI | n-φki | DN2 | Ds2 | De2 | D₂ | S2 | n-φk2 | |||
| 54 | XBD19/30-HW | 1456 | 788 | 150 | 193 | -5 | 418 | 100 | 940 | 1140 | 600 | 640 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 26 | 8-中19 | 1285 |
| 55 | XBD20/30-HW | 1456 | 788 | 150 | 193 | -5 | 418 | 100 | 940 | 1140 | 600 | 640 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 26 | 8-φ19 | 1320 |
| 56 | XBD21/30-HW | 1456 | 788 | 150 | 193 | -5 | 418 | 100 | 940 | 1140 | 600 | 640 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 26 | 8-中19 | 1385 |
| 57 | XBD22/30-HW | 1456 | 788 | 150 | 193 | -5 | 418 | 100 | 940 | 1140 | 600 | 640 | 22 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 80 | 132 | 160 | 200 | 26 | 8-φ19 | 1416 |
| 58 | XBD3/40-HW | 1026 | 800 | 160 | 146 | 15 | 340 | 100 | 565 | 765 | 360 | 400 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 607 |
| 59 | XBD4/40-HW | 1041 | 777 | 160 | 146 | 15 | 317 | 100 | 565 | 765 | 400 | 440 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 685 |
| 60 | XBD5/40-HW | 1147 | 743 | 160 | 89 | 33 | 343 | 100 | 635 | 835 | 460 | 500 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-中19 | 721 |
| 61 | XBD6/40-HW | 1147 | 743 | 160 | 89 | 33 | 343 | 100 | 635 | 835 | 460 | 500 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 785 |
| 62 | XBD7/40-HW | 1217 | 777 | 160 | 89 | 33 | 377 | 100 | 705 | 905 | 520 | 560 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 808 |
| 63 | XBD8/40-HW | 1213 | 777 | 160 | 116 | 15 | 377 | 100 | 720 | 920 | 520 | 560 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 814 |
| 64 | XBD9/40-HW | 1263 | 777 | 160 | 116 | 15 | 377 | 100 | 770 | 970 | 520 | 560 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-中19 | 825 |
| 65 | XBD10/40-HW | 1263 | 777 | 160 | 116 | 15 | 377 | 100 | 770 | 970 | 520 | 560 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-中19 | 832 |
| 66 | XBD11/40-HW | 1411 | 840 | 160 | 138 | 15 | 440 | 100 | 805 | 1005 | 600 | 640 | 22 | 125 | 184 | 210 | 250 | 26 | 8-中19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1187 |
| 67 | XBD12/40-HW | 1411 | 840 | 160 | 138 | 15 | 440 | 100 | 805 | 1005 | 600 | 640 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1195 |
| 68 | XBD13/40-HW | 1411 | 840 | 160 | 138 | 15 | 440 | 100 | 805 | 1005 | 600 | 640 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1201 |
| 69 | XBD14/40-HW | 1470 | 840 | 160 | 158 | 15 | 440 | 100 | 855 | 1055 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 162 | 190 | 235 | 28 | 8-φ23 | 1295 |
| 70 | XBD15/40-HW | 1470 | 840 | 160 | 158 | 15 | 440 | 100 | 855 | 1055 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 162 | 190 | 235 | 28 | 8-φ23 | 1379 |
| 71 | XBD16/40-HW | 1470 | 880 | 160 | 158 | 15 | 475 | 100 | 925 | 1125 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 162 | 190 | 235 | 28 | 8-中23 | 1389 |
| 72 | XBD17/40-HW | 1469 | 880 | 160 | 190 | -5 | 475 | 100 | 945 | 1145 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-中28 | 100 | 162 | 190 | 235 | 28 | 8-φ23 | 1398 |
| 73 | XBD18/40-HW | 1469 | 880 | 160 | 190 | -5 | 475 | 100 | 945 | 1145 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 162 | 190 | 235 | 28 | 8-中23 | 1402 |
| 74 | XBD19/40-HW | 1469 | 880 | 160 | 190 | -5 | 475 | 100 | 945 | 1145 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-中28 | 100 | 162 | 190 | 235 | 28 | 8-φ23 | 1412 |
| 75 | XBD20/40-HW | 1469 | 880 | 160 | 190 | -5 | 475 | 100 | 945 | 1145 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 162 | 190 | 235 | 28 | 8-φ23 | 1438 |
| 76 | XBD21/40-HW | 1469 | 880 | 160 | 190 | -5 | 475 | 100 | 945 | 1145 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 162 | 190| | 235 | 28 | 8-φ23 | 1445 |
| 77 | XBD22/40-HW | 1689 | 875 | 160 | 190 | -5 | 470 | 100 | 1060 | 1260 | 750 | 800 | 25 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 162 | 190 | 235 | 28 | 8-φ23 | 1455 |
| 78 | XBD23/40-HW | 1687 | 865 | 160 | 210 | -5 | 470 | 100 | 1060 | 1260 | 750 | 800 | 25 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 162 | 190 | 235 | 28 | 8-中23 | 1460 |
| 79 | XBD3/50-HW | 1055 | 852 | 170 | 142 | 15 | 317 | 100 | 570 | 770 | 400 | 440 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 914 |
| 80 | XBD4/50-HW | 1080 | 852 | 170 | 142 | 15 | 317 | 100 | 595 | 795 | 400 | 440 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 926 |
| 81 | XBD5/50-HW | 1230 | 827 | 170 | 86 | 33 | 377 | 100 | 710 | 910 | 520 | 560 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 930 |
| 82 | XBD6/50-HW | 1230 | 827 | 170 | 86 | 33 | 377 | 100 | 710 | 910 | 520 | 560 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 938 |
| 83 | XBD7/50-HW | 1280 | 827 | 170 | 86 | 33 | 377 | 100 | 760 | 960 | 520 | 560 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1371 |
| 84 | XBD8/50-HW | 1267 | 807 | 160 | 113 | 15 | 377 | 100 | 775 | 975 | 520 | 560 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-中19 | 1378 |
| 85 | XBD9/50-HW | 1457 | 848 | 160 | 113 | 15 | 418 | 100 | 810 | 1010 | 600 | 640 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1384 |
XBD-HW卧式消防切线泵外形尺寸表4
| 序号 | 型 号 | 外型尺寸 | 安 装 尺 寸 | 底 座 尺 寸 | 进 口 法 兰 尺 寸 | 出 口 法 兰 尺 寸 | 重量 | |||||||||||||||||||
| L | H | A | B | LI | Hi | L2 | L3 | L4 | bi | b2 | 4-φd | DN1 | Dsi | Der | Di | St | n-φki | DNz | Ds2 | De2 | D2 | S2 | n-中k2 | |||
| 86 | XBD10/50-HW | 1457 | 848 | 160 | 113 | 15 | 418 | 100 | 810 | 1010 | 600 | 640 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1390 |
| 87 | XBD11/50-HW | 1475 | 878 | 160 | 135 | 15 | 418 | 100 | 855 | 1055 | 600 | 640 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1490 |
| 88 | XBD12/50-HW | 1475 | 878 | 160 | 135 | 15 | 418 | 100 | 855 | 1055 | 600 | 640 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1496 |
| 89 | XBD13/50-HW | 1475 | 878 | 160 | 135 | 15 | 418 | 100 | 925 | 1125 | 600 | 640 | 22 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1500 |
| 90 | XBD14/50-HW | 1473 | 873 | 160 | 155 | 15 | 418 | 100 | 925 | 1125 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1513 |
| 91 | XBD15/50-HW | 1473 | 873 | 160 | 155 | 15 | 418 | 100 | 925 | 1125 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1644 |
| 92 | XBD16/50-HW | 1473 | 873 | 160 | 155 | 15 | 418 | 100 | 925 | 1125 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-中23 | 1652 |
| 93 | XBD17/50-HW | 1471 | 868 | 160 | 187 | -5 | 418 | 100 | 945 | 1145 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1658 |
| 94 | XBD18/50-HW | 1471 | 868 | 160 | 187 | -5 | 418 | 100 | 945 | 1145 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1664 |
| 95 | XBD19/50-HW | 1471 | 868 | 160 | 187 | -5 | 418 | 100 | 945 | 1145 | 600 | 640 | 22 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1668 |
| 96 | XBD20/50-HW | 1691 | 920 | 160 | 187 | -5 | 470 | 100 | 1065 | 1265 | 750 | 800 | 25 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 100| | 156 | 190 | 235 | 28 | 8-中23 | 1678 |
| 97 | XBD3/60-HW | 1094 | 883 | 180 | 160 | -5 | 373 | 100 | 620 | 820 | 460 | 500 | 22 | 150| | 211 | 240 | 285 | 26 | 8-φ23 | 100 | 184 | 210 | 250 | 26 | 8-φ19 | 895 |
| 98 | XBD4/60-HW | 1179 | 883 | 180 | 160 | -5 | 373 | 100 | 685 | 885 | 460 | 500 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 100 | 184 | 210 | 250 | 26 | 8-φ19 | 906 |
| 99 | XBD5/60-HW | 1249 | 887 | 180 | 160 | -5 | 377 | 100 | 755 | 955 | 520 | 560 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 100 | 184 | 210 | 250 | 26 | 8-φ19 | 928 |
| 00 | XBD6/60-HW | 1282 | 923 | 170 | 84 | 33 | 383 | 100 | 765 | 965 | 520 | 560 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 100 | 184 | 210 | 250 | 26 | 8-φ19 | 950 |
| 101 | XBD7/60-HW | 1472 | 923 | 170 | 84 | 33 | 383 | 100 | 765 | 965 | 600 | 640 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 957 |
| 102 | XBD8/60-HW | 1470 | 948 | 170 | 110 | 15 | 418 | 100 | 815 | 1015 | 600 | 640 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1102 |
| 103 | XBD9/60-HW | 1470 | 948 | 170 | 110 | 15 | 418 | 100 | 815 | 1015 | 600 | 640 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1208 |
| 104 | XBD10/60-HW | 1540 | 948 | 170 | 110 | 15 | 418 | 100 | 865 | 1065 | 600 | 640 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1269 |
| 105 | XBD11/60-HW | 1537 | 863 | 170 | 132 | 15 | 418 | 100 | 930 | 1130 | 600 | 640 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1295 |
| 106 | XBD12/60-HW | 1537 | 863 | 170 | 132 | 15 | 418 | 100 | 930 | 1130 | 600 | 640 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1314 |
| 107 | XBD13/60-HW | 1537 | 863 | 170 | 132 | 15 | 418 | 100 | 930 | 1130 | 600 | 640 | 22 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 100 | 156 | 180 | 220 | 24 | 8-φ19 | 1358 |
| 108 | XBD14/60-HW | 1563 | 868 | 170 | 152 | 15 | 418 | 100 | 930 | 1130 | 600 | 640 | 22 | 150 | 211 | 250 | 300 | 34 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1389 |
| 109 | XBD15/60-HW | 1563 | 868 | 170 | 152 | 15 | 418 | 100 | 930 | 1130 | 600 | 640 | 22 | 150 | 211 | 250 | 300 | 34 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1402 |
| 110 | XBD16/60-HW | 1563 | 868 | 170 | 152 | 15 | 418 | 100 | 930 | 1130 | 600 | 640 | 22 | 150 | 211 | 250 | 300 | 34 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-中23 | 1468 |
| 111 | XBD17/60-HW | 1704 | 940 | 170 | 185 | -5 | 470 | 100 | 1065 | 1265 | 750 | 800 | 25 | 150 | 211 | 250 | 300 | 34 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1502 |
| 112 | XBD18/60-HW | 1704 | 940 | 170 | 185 | -5 | 470 | 100 | 1065 | 1265 | 750 | 800 | 25 | 150 | 211 | 250 | 300 | 34 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1526 |
| 113 | XBD19/60-HW | 1704 | 940 | 170 | 185 | -5 | 470 | 100 | 1065 | 1265 | 750 | 800 | 25 | 150 | 211 | 250 | 300 | 34 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1608 |
| 114 | XBD20/60-HW | 1704 | 940 | 170 | 185 | -5 | 470 | 100 | 1065 | 1265 | 750 | 800 | 25 | 150 | 211 | 250 | 300 | 34 | 8-φ28 | 100 | 156 | 190 | 235 | 28 | 8-φ23 | 1658 |
| 115 | XBD3/70-HW | 1202 | 968 | 200 | 135 | 15 | 343 | 100 | 670 | 870 | 460 | 500 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 1065 |
| 116 | XBD4/70-HW | 1272 | 1002 | 200 | 135 | 15 | 377 | 100 | 740 | 940 | 520 | 560 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 1098 |
| 117 | XBD5/70-HW | 1317 | 918 | 200 | 181 | -5 | 383 | 100 | 805 | 1005 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 1152 |
XBD-HW卧式消防切线泵外形尺寸表5
| 序号 | 型 号 | 外型尺寸 | 安装尺寸 | 底座尺寸 | 进口法兰尺寸 | 出 口 法 兰 尺 寸 | 重量 | |||||||||||||||||||
| L | H | A | B | LI | Hi | L2 | L3 | L4 | bi | b2 | 4-φd | DN1 | Dsi | Del | Di | SI | n-φki | DN2 | Ds2 | Dc2 | D2 | S2 | n-中k2 | |||
| 118 | XBD6/70-HW | 1547 | 953 | 200 | 181 | -5 | 418 | 100 | 880 | 1080 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 150| | 211 | 240 | 285 | 26 | 8-φ23 | 1205 |
| 119 | XBD7/70-HW | 1503 | 918 | 200 | 106 | 15 | 418 | 100 | 815 | 1015 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 240 | 250 | 26 | 8-φ19 | 1292 |
| 120 | XBD8/70-HW | 1573 | 918 | 200 | 106 | 15 | 418 | 100 | 865 | 1065 | 60 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-中19 | 1311 |
| 121 | XBD9/70-HW | 1573 | 918 | 200 | 106 | 15 | 418 | 100 | 865 | 1065 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1495 |
| 122 | XBD10/70-HW | 1573 | 918 | 200 | 106 | 15 | 418 | 100 | 935 | 1135 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1532 |
| 123 | XBD11/70-HW | 1570 | 958 | 200 | 130 | 15 | 418 | 100 | 935 | 1135 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1568 |
| 124 | XBD12/70-HW | 1570 | 958 | 200 | 130 | 15 | 418 | 100 | 935 | 1135 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-中19 | 1589 |
| 125 | XBD13/70-HW | 1570 | 958 | 200 | 130 | 15 | 418 | 100 | 935 | 1135 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1620 |
| 126 | XBD14/70-HW | 1568 | 848 | 200 | 150 | 15 | 418 | 100 | 930 | 1130 | 600 | 640 | 22 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 1635 |
| 127 | XBD15/70-HW | 1838 | 995 | 200 | 150 | 15 | 470 | 100 | 1050 | 1250 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 1752 |
| 128 | XBD16/70-HW | 1838 | 995 | 200 | 150 | 15 | 470 | 100 | 1050 | 1250 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 1789 |
| 129 | XBD17/70-HW | 1836 | 950 | 200 | 178 | -5 | 470 | 100 | 1070 | 1270 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-φ23 | 1802 |
| 130 | XBD18/70-HW | 1836 | 950 | 200 | 178 | -5 | 470 | 100 | 1105 | 1305 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-中23 | 1856 |
| 131 | XBD19/70-HW | 1836 | 950 | 200 | 178 | -5 | 470 | 100 | 1105 | 1305 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-中23 | 1875 |
| 132 | XBD20/70-HW | 1836 | 950 | 200 | 178 | -5 | 470 | 100 | 1105 | 1305 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-φ23 | 1889 |
| 133 | XBD3/80-HW | 1205 | 928 | 200 | 132 | 15 | 343 | 100 | 675 | 875 | 460 | 500 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 925 |
| 134 | XBD4/80-HW | 1275 | 962 | 200 | 132 | 15 | 377 | 100 | 745 | 945 | 520 | 560 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 150 | 211 | 240 | 285 | 26 | 8-中23 | 957 |
| 135 | XBD5/80-HW | 1320 | 1013 | 200 | 178 | -5 | 383 | 100 | 810 | 1010 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 150 | 211 | 240 | 285 | 26 | 8-φ23 | 1058 |
| 136 | XBD6/80-HW | 1550 | 1048 | 200 | 178 | -5 | 418 | 100 | 885 | 1085 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 150 | 211 | 240 | 285 | 26 | 8-中23 | 1165 |
| 137 | XBD7/80-HW | 1506 | 948 | 180 | 103 | 15 | 418 | 100 | 870 | 1070 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1256 |
| 138 | XBD8/80-HW | 1506 | 948 | 180 | 103 | 15 | 418 | 100 | 940 | 1140 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1348 |
| 139 | XBD9/80-HW | 1506 | 948 | 180 | 103 | 15 | 418 | 100 | 940 | 1140 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1402 |
| 140 | XBD10/80-HW | 1506 | 948 | 180 | 103 | 15 | 418 | 100 | 940 | 1140 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1456 |
| 141 | XBD11/80-HW | 1552 | 983 | 180 | 128 | 15 | 418 | 100 | 935 | 1135 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1506 |
| 142 | XBD12/80-HW | 1552 | 983 | 180 | 128 | 15 | 418 | 100 | 935 | 1135 | 600 | 640 | 22 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1598 |
| 143 | XBD13/80-HW | 1822 | 1035 | 180 | 128 | 15 | 470 | 100 | 1055 | 1255 | 750 | 800 | 25 | 200 | 266 | 295 | 340 | 30 | 12φ23 | 125 | 184 | 210 | 250 | 26 | 8-φ19 | 1625 |
| 144 | XBD14/80-HW | 1820 | 1025 | 180 | 148 | 15 | 470 | 100 | 1055 | 1255 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-中28 | 1689 |
| 145 | XBD15/80-HW | 1820 | 1025 | 180 | 148 | 15 | 470 | 100 | 1085 | 1285 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 1745 |
| 146 | XBD16/80-HW | 1820 | 1025 | 180 | 148 | 15 | 470 | 100 | 1085 | 1285 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-中28 | 1793 |
| 147 | XBD17/80-HW | 1818 | 1010 | 180 | 165 | -5 | 470 | 100 | 1095 | 1295 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 1802 |
| 148 | XBD18/80-HW | 1818 | 1010 | 180 | 165 | -5 | 470 | 100 | 1095 | 1295 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 1962 |
| 149 | XBD19/80-HW | 1818 | 1010 | 180 | 165 | -5 | 470 | 100 | 1095 | 1295 | 750 | 800 | 25 | 200 | 274 | 310 | 360 | 34 | 12φ28 | 125 | 184 | 220 | 270 | 30 | 8-φ28 | 1979 |
联系我们
- 全国销售热线：
+86 21 5640 2009 - 水泵客服电话：
+86 138 1691 3072 - 阀门客服电话：
+86 1381 6913 072 - 企业电子邮箱：
my1pv@1bengfa.com
企业微信
COPYRIGHT © 上海美言壹泵阀有限公司 主营：水泵、阀门
沪ICP备09010762号
