ISGD低转速管道泵

  • 品牌：壹泵阀
  • 型号：ISGD
  • 压力/扬程：2.8~52米
  • 工作温度：-20℃～120℃
  • 连接方式：法兰
  • 产品名称：ISGD低转速管道泵
  • 通径/流量：2.2~120吨/每小时
  • 材质：铸铁、不锈钢
  • 驱动方式：电动、联轴器
  • 适用范围：清水、热水或物理化学性质类似于水的液体。
  • 产品概述
  • 性能参数
  • 尺寸重量


ISGD低转速管道泵


ISGD立式低转速管道离心泵（简称：ISGD低转速管道泵）是在ISG管道离心泵型基础上并参照IS型离心泵的性能参数，根据管道式离心泵的独特结构组合设计制造的低转速型产品。低转速管道泵采用国内水泵专家提供的最先进水力模型，高效节能，性能可靠，深受国内外客商的赞益。立式低转速管道泵的主要特点：ISGD型低转速管道泵是在ISG型立式管道离心泵基础上配用低转速电机，大幅度降低了运行噪音，成倍延长易损件命名用寿命，最适用于空调循环及采暖循环和各种循环系统末端增压。创新设计的立式结构使其占地面积和占用空间更少，使用更方便。

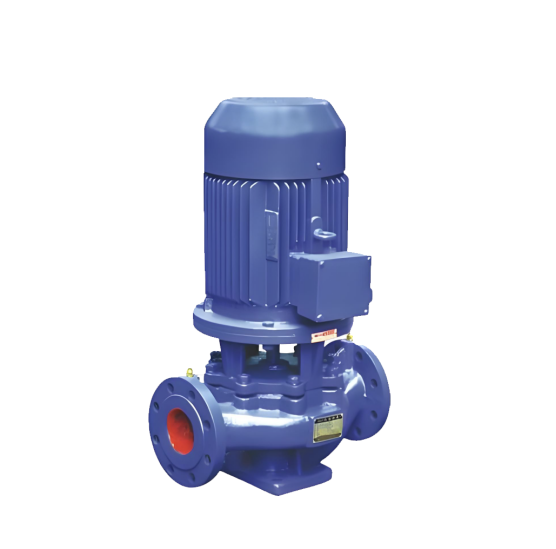

                           ISGD立式低转速管道离心泵产品图

ISGD低转速管道泵主要用途

上海美言壹泵阀有限公司生产的ISGD型立式低转速管道离心泵：主要用于空调系统冷冻水，冷却水循环及末端增压，城市供热系统局部或末端增压循环，及城市建筑消防系统局部恒压及各种空调热水锅炉配套。

ISGD低转速管道泵工作条件

ISGD型电机0.75kw以上泵系统最高工作压力为1.6MPa即泵吸入口压力+泵扬程≤1.6MPa，泵静压试验压力为2.5MPa，0.75kw以下泵系统最高工作压力为0.8MPa。

订货时请注明系统工作压力，泵系统工作压力大于1.6MPa时，应在订货时另行提出，以便在制造时泵的过流部分和联接部分采用铸钢材料。

ISGD泵介质为冷热水或物理化学性质类似于水的液体，介质温度不超过120℃。

ISGD低转速管道泵外形结构图

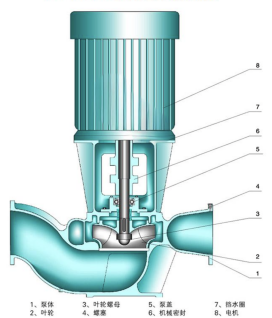

外形结构零部件名称：1、泵体2、叶轮3、叶轮螺母4、螺塞5、泵盖6、机械密封7、挡水圈8、电机



ISGD低转速管道泵性能参数

型号流量扬程m效率％转速r/min电机功率KW必需汽蚀余量重量㎏型号流量扬程m效率％转速r/min电机功率KW必需汽蚀余量重量㎏
m3/hl/Sm3/hl/S
40-1002.23.24.20.610.891.173.332.84814000.122.51740-250(Ⅰ)3.86.37.51.061.752.0820.52019.53214501.52.554
40-1252.23.24.20.610.891.175.554.54014000.182.51940-250(Ⅰ)A3.45.66.70.941.561.8616.41615.63214501.12.549
40-125A2.02.83.70.560.781.034.443.63914000.122.51940-250(Ⅰ)B3.15.16.10.861.421.6913.21312.53014500.752.542
40-1602.23.24.20.610.891.178.587.53614000.252.52450-1003.86.37.51.061.752.083.432.85414000.122.519
40-160A2.02.83.70.560.781.036.86.463514000.182.52250-1253.86.37.51.061.752.085.45.04.65414000.252.525
40-2002.23.24.20.610.891.171312.5123114500.552.53850-125A3.45.66.70.941.561.864.34.03.75214000.182.519
40-200A2.02.83.70.560.781.0310.4109.63014000.372.53050-1603.86.37.51.061.752.088.58.07.54714500.552.542
40-2502.23.24.20.610.891.1720.52018.52514501.12.55250-160A3.05.16.10.731.421.695.65.34.94514000.252.537
40-250A2.02.83.70.560.781.0316.416152514500.752.54750-2003.86.37.51.061.752.0813.112.5124014500.752.548
40-250B1.62.33.40.440.640.9413.213122414500.552.54650-200A3.35.56.50.921.531.81109.593914500.552.546
40-100(Ⅰ)3.86.37.51.061.752.083.432.85414000.122.51750-2503.86.37.51.061.752.0820.52019.53214501.52.558
40-125(Ⅰ)3.86.37.51.061.752.085.45.04.65414000.252.52950-250A3.45.66.70.941.561.8616.41615.63214501.12.550
40-125(Ⅰ)A3.45.66.70.941.561.864.34.03.75214000.182.52450-250B3.15.16.10.861.421.6913.21312.53014500.752.549
40-160(Ⅰ)3.86.37.51.061.752.088.57.07.54714500.552.54350-100(Ⅰ)7.512.5152.083.474.173.532.56314000.252.523
40-160(Ⅰ)A3.05.16.10.831.421.695.65.34.94514000.252.53050-125(Ⅰ)7.512.5152.083.474.175.45.04.76314000.372.534
40-200(Ⅰ)3.86.37.51.061.752.0813.112.5124014500.752.54550-125(Ⅰ)A6.611.013.21.833.063.674.13.83.66014000.252.533
40-200(Ⅰ)A3.35.56.50.921.531.81109.593914500.552.54450-160(Ⅰ)7.512.5152.083.474.178.887.25914500.552.846

ISGD低转速管道泵性能参数表2

型号流量扬程m效率％转速r/min电机功率KW必需汽蚀余量重量㎏型号流量扬程m效率％转速r/min电机功率KW必需汽蚀余量重量㎏
m3/hl/Sm3/hl/S
50-160(Ⅰ)A6.510.813.01.813.03.616.665.45714000.372.83465-250A7.011.714.11.943.253.9218.417.6174414501.52.868
50-200(Ⅰ)7.512.5152.083.474.1713.212.511.85414501.12.85265-250B6.110.212.31.692.833.4214.113.413.04314501.12.863
50-200(Ⅰ)A6.811.313.51.893.143.7510.710.19.65314500.752.84865-3157.512.5152.083.474.1732.33231.73614504.02.889
50-250(Ⅰ)7.512.5152.083.474.47212019.44514502.22.87365-315A711.7141.943.253.9228.12827.63614503.02.885
50-250(Ⅰ)A7.011.714.11.943.253.9218.417.6174414501.52.86565-315B6.110.112.11.692.813.3621.22120.83414503.02.882
50-250(Ⅰ)B6.110.212.31.692.833.4214.113.413.04314501.12.86065-100(Ⅰ)1525304.176.948.333.532.57014000.372.833
50-315(Ⅰ)7.512.5152.083.474.1732.33231.736145004.02.88965-125(Ⅰ)1525304.176.948.335.654.57014500.752.849
50-315(Ⅰ)A711.7141.943.253.9228.12827.63614503.02.88465-125(Ⅰ)A13.121.826.13.056.057.254.33.83.46514500.552.848
50-315(Ⅰ)B6.110.212.11.692.813.3621.22120.83414503.02.88265-160(Ⅰ)1525304.176.948.33987.26814501.12.854
65-1007.512.5152.083.474.173.532.56314000.252.82965-160(Ⅰ)A13.021.625.93.616.07.196.76.05.46514500.752.848
65-1257.512.5152.083.474.175.45.04.76314000.372.83265-200(Ⅰ)1525304.176.948.3313.212.511.86414502.22.871
5-125A6.611.013.21.833.063.674.13.83.66014000.252.82765-200(Ⅰ)A14.023.327.93.896.477.7511.510.910.26314501.52.862
65-1607.512.5152.083.474.178.887.25914500.552.84665-250(Ⅰ)1525304.176.948.33212018.85914503.02.885
65-160A6.510.813.01.813.03.616.665.45714000.372.83565-250(Ⅰ)A13.322.226.63.696.177.3916.615.814.85814502.22.880
65-2007.512.5152.083.474.1713.212.511.85414501.12.85265-250(Ⅰ)B11.919.823.83.315.56.6113.212.611.85714501.52.874
65-200A6.811.313.51.893.143.7510.710.19.35314500.752.84865-315(Ⅰ)1525304.176.948.3332.53231.55014505.52.8120
65-2507.512.5152.083.474.17212019.44514502.22.87665-315(Ⅰ)A1423283.896.397.7828.327.927.45014504.02.8110

ISGD低转速管道泵性能参数表3

型号流量扬程m效率％转速r/min电机功率KW必需汽蚀余量重量㎏型号流量扬程m效率％转速r/min电机功率KW必需汽蚀余量重量㎏
m3/hl/Sm3/hl/S
65-315(Ⅰ)B12.120.224.23.365.616.7521.32120.64914503.02.810080-160(Ⅰ)3050608.3313.8916.679.286.87314502.23.082
80-1001525304.176.948.333.532.57014500.372.83380-160(Ⅰ)A26.744.553.47.4212.3614.837.36.35.47114501.53.074
80-1251525304.176.948.335.654.57014500.752.84880-200(Ⅰ)3050608.3313.8916.6713.512.511.87214503.03.097
80-125A13.121.826.13.056.057.254.33.83.46514500.552.84580-200(Ⅰ)A26.744.653.57.4212.3614.8310.89.99.47114502.23.093
80-1601525304.176.948.33987.26814501.12.85580-250(Ⅰ)3050608.3313.8916.6721.320196614505.53.0134
80-160A13.021.625.93.616.07.196.76.05.46514500.752.85180-250(Ⅰ)A2846.7567.7812.9715.5618.617.416.66514504.03.0106
80-2001525304.176.948.3313.212.511.86414502.22.87280-250(Ⅰ)B24.240.448.56.7211.2213.4713.913.112.46314503.03.0100
80-200A14.023.327.93.896.477.7511.510.910.26314501.52.86480-315(Ⅰ)3050608.3313.8916.6734323061145011.03.0217
80-2501525304.176.948.33212018.85914503.02.88980-315(Ⅰ)A2846.7567.7812.9715.5629.627.926.16114507.53.0180
80-250A13.322.226.63.696.177.3916.615.814.85814502.22.88580-315(Ⅰ)B24.340.548.66.7211.2213.4722.32119.16014505.53.0166
80-250B11.919.823.83.315.56.6113.212.611.85714501.52.878100-1003050608.3313.8916.673.532.57314500.753.062
80-3151525304.176.948.3332.53231.55014505.52.8120100-1253050608.3313.8916.676547314501.13.070
80-315A1423283.896.397.7828.327.927.45014504.02.8102100-125A26.844.653.57.4412.414.94.843.26314501.13.068
80-315B12.120.224.33.365.616.7521.32120.64914503.02.895100-1603050608.3313.8916.679.286.87314502.23.087
80-100(Ⅰ)3050608.3313.8916.673.532.587314501.753.058100-160A26.744.553.47.4212.3614.837.36.35.47114501.53.079
80-125(Ⅰ)3050608.3313.8916.676547314501.13.061100-2003050608.3313.8916.6713.512.511.87214503.03.0100
80-125(Ⅰ)A26.844.653.57.4412.414.94.843.26314501.13.061100-200A26.744.653.57.4212.3614.8310.79.99.47114502.23.090

ISGD低转速管道泵性能参数表4

型号流量扬程m效率％转速r/min电机功率KW必需汽蚀余量重量㎏型号流量扬程m效率％转速r/min电机功率KW必需汽蚀余量重量㎏
m3/hl/Sm3/hl/S
100-2503050608.3313.8916.6721.320196514505.53.0140100-315(Ⅰ)B4779.09513.0621.9426.392120197014507.53.0165
100-250A2846.7567.7812.9715.5618.617.416.66514504.03.0112100-400(Ⅰ)6010012016.6722.7833.33525048.565145030.33.0375
100-250B24.240.448.56.7211.2213.4713.913.112.46314503.03.0105100-400(Ⅰ)A56.49411315.6726.1131.3946444365145022.03.0295
100-3153050608.3313.8916.6734323061145011.03.0225100-400(Ⅰ)B52.38710514.5324.1729.1739383764145018.53.0257
100-315A2846.7567.7812.9715.5629.627.926.16114507.53.0180100-400(Ⅰ)C48.6819713.5422.5626.943432.83262145015.03.0239
100-315B24.340.548.66.7211.2213.4722.32119.16014505.53.0165125-12548809613.322.226.75.554.37614502.23.0148
100-125(Ⅰ)6010012016.6727.7833.336.5547814502.23.095125-125A4371.56611.619.913.94.443.47514501.53.0125
100-125(Ⅰ)A52.287.110414.524.228.94.33.83.47614501.53.087125-16048809613.322.226.79877414503.03.0205
100-160(Ⅰ)6010012016.727.7833.3310877814504.03.0118125-160A4269.38311.919.3236.865.37314502.23.0165
100-160(Ⅰ)A52.287.110414.524.228.97.36.35.47614503.03.0113125-20048809613.323.226.713.812.511.57314505.53.0249
100-200(Ⅰ)6010012016.6722.7833.3314.012.5117514505.53.0148125-200A45759012.520.8251211107214504.03.0237
100-200(Ⅰ)A51.786.110314.3623.9228.6110.89.38.27314504.03.0123125-25048809613.322.226.7222018.37214507.52.8220
100-250(Ⅰ)6010012016.6722.7833.3321.52018.574145011.03.0208125-250A45759012.520.8251917.5167114507.52.8210
100-250(Ⅰ)A5693.311215.5625.9231.1118.717.416.17314507.53.0165125-250B41.5698311.511.22316.31513.87014505.52.8195
100-250(Ⅰ)B52.28710414.524.1728.891615147214505.53.0149125-31548809613.322.226.733.33229.867145015.02.5300
100-315(Ⅰ)6010012016.6722.7833.3333.53230.571145015.03.0234125-315A45759012.520.82529.327.52666145011.02.5282
100-315(Ⅰ)A55.091.0110.015.2825.2830.56282725.771145011.03.0213125-315B43729611.92023.926.52523.865145011.02.5245



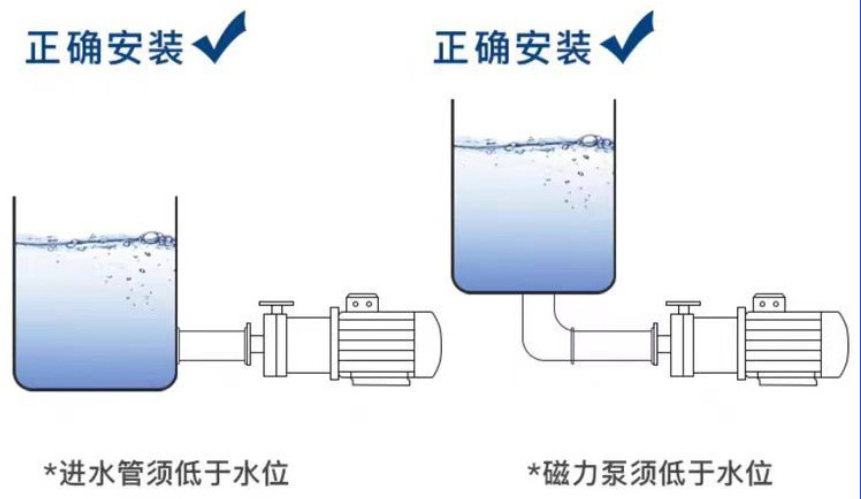

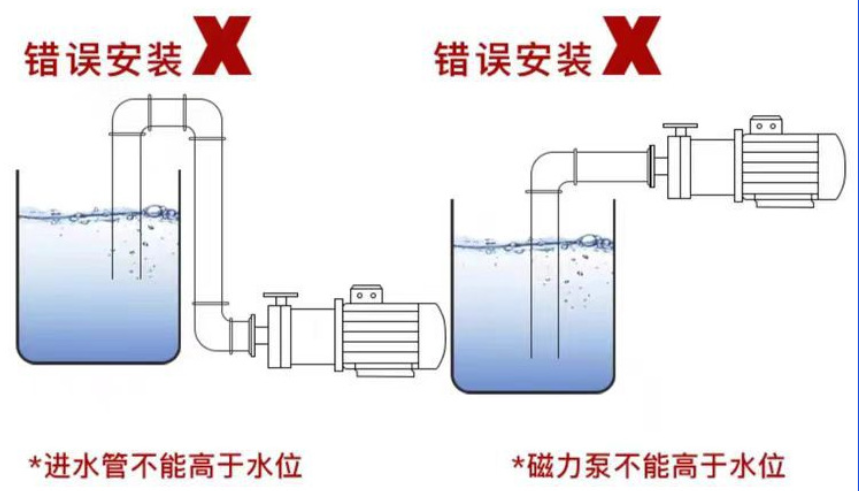

ISGD低转速管道泵安装示意图


备注：如果您需要ISGD低转速管道泵外形安装尺寸图纸请直接联系我司技术人员免费索取，谢谢！


ISGD低转速管道泵故障原因及其排除方法

故 障 现 象可 能 产 生 的 原 因排 除 方 法
1、水泵不出水a.进出口阀门未打开，进出管路阻塞，叶轮流道阻塞。b.电机运行方向不对，电机缺相转速很慢。c.吸入管漏气。d.泵没有灌满液体，泵腔有空气。e.进出口供水不足，吸程过高，底阀漏水。f.管路阻力过大，泵选型不当。a.检查，去除阻塞物。b.调整电机方向，紧固电机接线。c.拧紧各密封面，排除空气。d.打开泵上盖或打开排气阀，排尽空气。e.停机即拿出、调整（并网自来水管和带吸程使用易出现此现象）。f.减少管路弯道，重新选泵。
2、水泵流量不足a.先按1、原因检查。.b.管道、泵叶轮流道部分阻塞，水垢沉积，阀门开度不足。c.电压偏低。d.叶轮磨损a.先按1、排除。b.去除阻塞物，重新调整阀门开度。c.稳压。d.更换叶轮。
3、功率过大a.超过额定流量使用。b.吸程过高。c.泵轴承磨损。a.调节流量，关小出口阀门。b.降低吸程。c.更换轴承。
4、杂音振动a.管路支撑不稳。b.液体混有气体。c.产生汽蚀。d.轴承损坏。e.电机超载，发热运行。a.稳固管路。b.提高吸入压力、排气。c.降低真空度。d.更换轴承。e.调整按5。
5、电机发热a.流量过大，超载运行。b.碰擦。c.电机轴承损坏。d.电压不足。a.关小出口阀。b.检查排除。c.更换轴承。d.稳压。
6、水泵漏水a.机械密封磨损。b.泵体有砂孔或破裂。c.密封面不平整。d.安装螺栓松懈。a.更换。b.焊补或更换。c.修整。d.紧固。
