SLOW大型单级双吸中开蜗壳式离心泵
- 品牌：壹泵阀
- 型号：SLOW
- 压力/扬程：14~78米
- 工作温度：0℃～80℃
- 连接方式：法兰
- 产品名称：SLOW大型单级双吸中开蜗壳式离心泵
- 通径/流量：6800~44000吨/每小时
- 材质：铸铁、不锈钢
- 驱动方式：电动、双吸
- 适用范围：适用于水、海水及类似于水的介质，也可以用于腐蚀性介质，水厂、电厂、泵站 及大型给排水工程。
- 产品概述
- 性能参数
- 尺寸重量
SLOW大型单级双吸中开蜗壳式离心泵
概述
SLOW大型单级双吸中开蜗壳式离心泵,进口直径1000mm~2000mm ,是我公司专门为水厂、电厂、泵站 及大型给排水工程等而设计制造的。输送介质为水及类似于水的液体,液体温度-10oC~80oC。优秀的水力模型,独特的设计,精心的制造,严格的检验,使产品的综合性能国内领先,完全可替代进口泵,为国家节约大量外 汇和投资 。

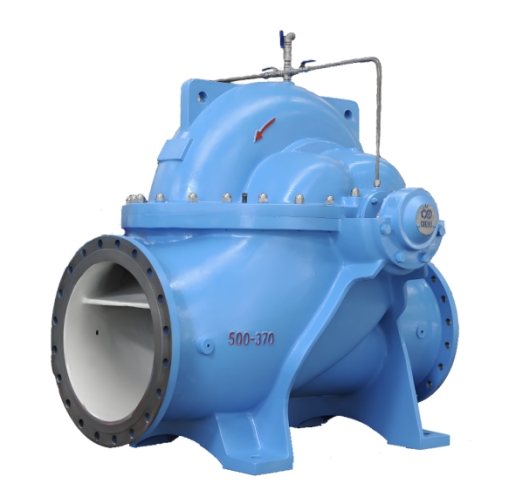

SLOW大型单级双吸中开蜗壳式离心泵产品图
SLOW大型单级双吸中开蜗壳式离心泵特点
部分泵采用滚动轴承,油脂或稀油润滑,见结构图 一
部分泵采用滑动轴承,稀油润滑,见结构图二(根据需要可带稀油站) 。
叶轮叶片出口边倾斜,两侧叶片对称交错布置,减小泵运行时的脉动 。
采用双涡壳设计,减小径向力,使泵运行更加平稳。
采用国际先进的流体力学软件进行设计,三维软件造型, CFD分析,有限元软件进行强度校核,确保泵高效、平稳、可靠地运行。
全部采用填料密封,对开式填料压盖,方便检修,根据客户要求可定制机械密封 。

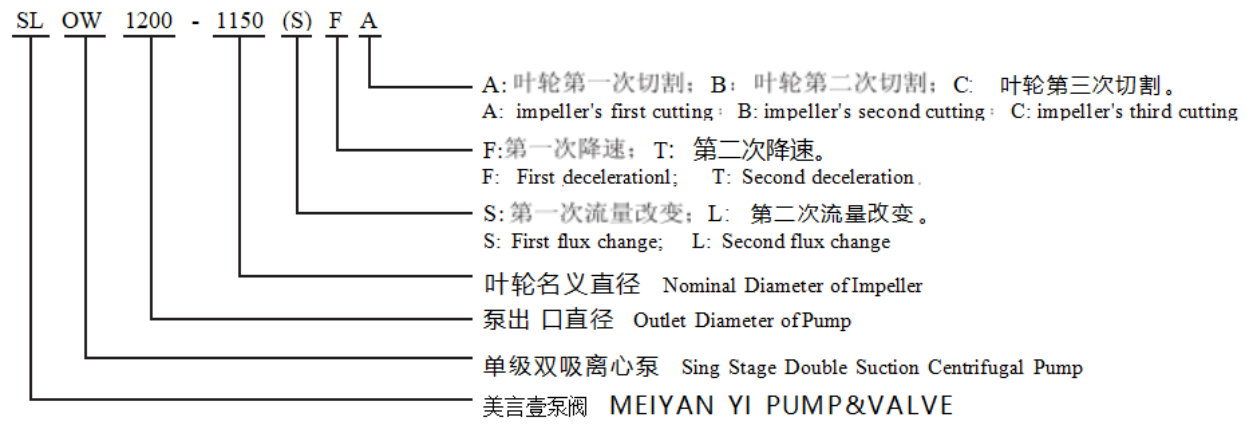

SLOW大型单级双吸中开蜗壳式离心泵型号意义
SLOW大型单级双吸中开蜗壳式离心泵主要零部件材质
| 名称Name | 材料Material | 名称Name | 材料Material |
| 泵体Pump casing | ◆ 铸铁 Cast iron HT250 | 轴shaft | 令 碳钢 Carbon steel 45 |
| 球铁 Ball iron QT400-18 | 不锈钢 Stainless steel 2Cr13 | ||
| 铸钢 Cast steel ZG230-450 | |||
| 泵盖Pump cover | ◆ 铸铁 Cast iron HT250 | 轴套Shaft sleeve | ◆ 铸铁 Cast iron HT200 |
| 球铁 Ball iron QT400-18 | 不锈钢 Stainless steel 2Cr13 | ||
| 铸钢 Cast steel ZG230-450 | |||
| 叶轮Impeller | ◆ 铸铁 Cast iron HT250 | 密封环Seal-ring | ◆ 铸铁 Cast iron HT200 |
| 球铁 Ball iron QT400-18 | 球铁 Ball iron QT400-18 | ||
| 不锈钢 Stainless steel 1Cr18Ni9Ti |

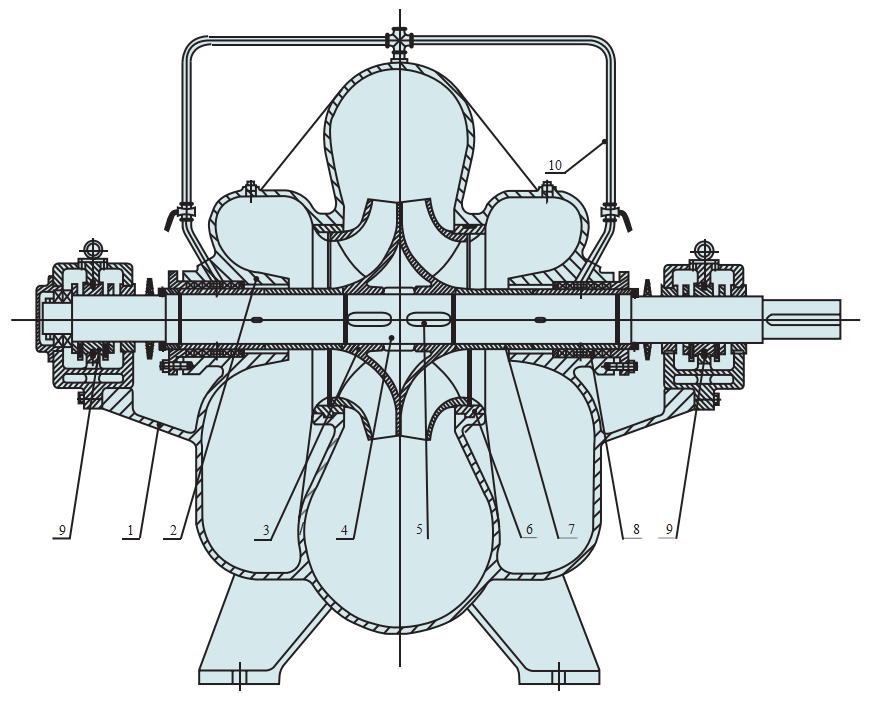

SLOW大型单级双吸中开蜗壳式离心泵结构图（一）及零部件名称
| 1 | 泵体Pump casing | 3 | 叶轮Impeller | 5 | 键 Key | 7 | 轴套 Muff | 9 | 轴承 Bearing | 11 | 轴承 Bearing |
| 2 | 泵盖Pump cover | 4 | 轴 Shaft | 6 | 密封环 Seal-ring | 8 | 填料Stuffing | 10 | 水封管部件Water-sealing pipepart |

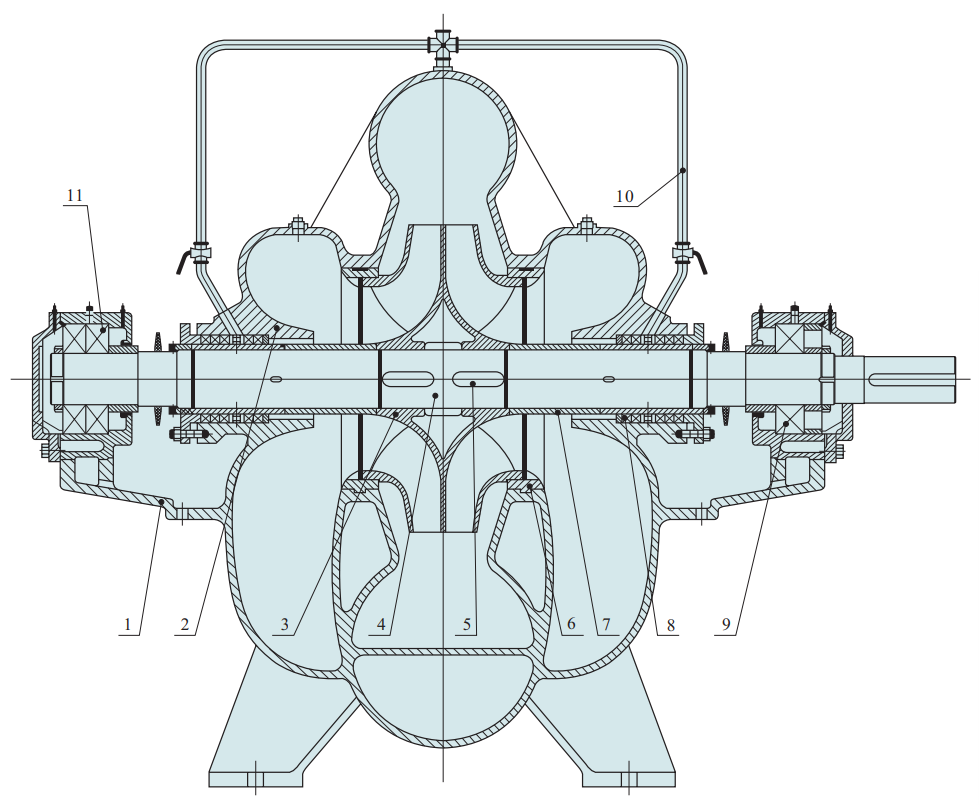

SLOW大型单级双吸中开蜗壳式离心泵结构图（二）及零部件名称
| 1 | 泵体Pump casing | 3 | 叶轮Impeller | 5 | 键 Key | 7 | 轴套 Muff | 9 | 滑动轴承部件Part ofrolling bearing |
| 2 | 泵盖Purp cover | 4 | 轴 Shaft | 6 | 密封环 Seal-ring | 8 | 填料Stuffing | 10 | 水封管部件Water-sealing pipepart |

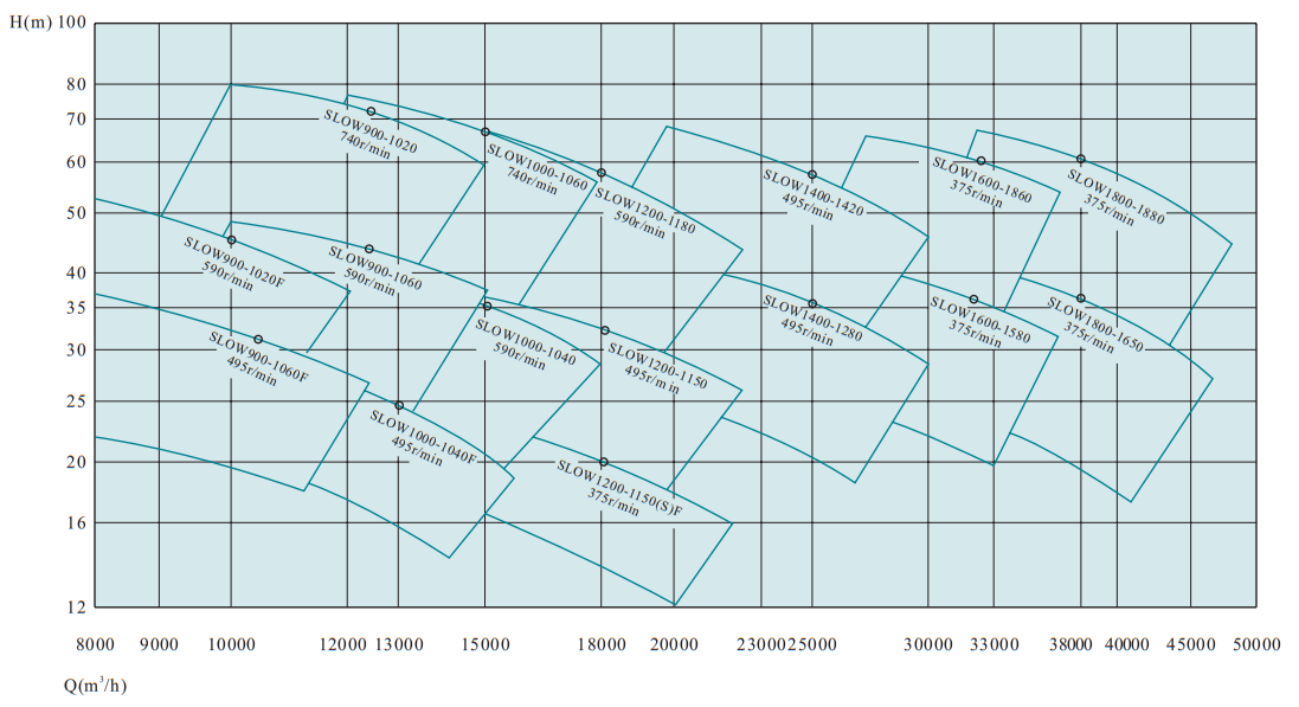

SLOW大型单级双吸中开蜗壳式离心泵型谱图
SLOW大型单级双吸中开蜗壳式离心泵型号及性能参数表
| 泵 型 号pump type | 流量CapacityQ | 扬程HeadH | 转速Speedn | 电机功率Motor powerP | 效率Eff.n | 必需汽蚀余量(NPSH)r | 泵净重WeightW | |
| ( m3/h ) | ( L/s ) | ( m | ( r/min ) | ( KW ) | ( % | ( m | ( Kg | |
| SLOW900-1060 | 100001250015000 | 277834724167 | 484538 | 590 | 2000 | 89 | 7 | 11800 |
| SLOW900-1060A | 92501150013800 | 256931943833 | 413832 | 590 | 1600 | 88.5 | ||
| SLOW900-1060B | 85001050012500 | 236129173472 | 353228 | 590 | 1250 | 88 | ||
| SLOW900-1060F | 85001050012500 | 236129173472 | 343127 | 495 | 1250 | 89 | 6.5 | 11800 |
| SLOW900-1060FA | 7800980011500 | 216727223194 | 292622 | 495 | 1000 | 88.5 | ||
| SLOW900-1060FB | 7000880010500 | 194424442917 | 242219 | 495 | 710 | 88 | ||
| SLOW900-1020 | 100001250015000 | 277834724167 | 787258 | 740 | 3150 | 88 | 9 | 11800 |
| SLOW900-1020A | 92501150013800 | 256931943833 | 676150 | 740 | 2500 | 87.5 | ||
| SLOW900-1020B | 85001050012800 | 236129173556 | 565142 | 740 | 2000 | 87 | ||
| SLOW900-1020F | 80001000012000 | 222227783333 | 514638 | 590 | 1600 | 88 | 7.5 | 11800 |
| SLOW900-1020FA | 7500920011000 | 208325563056 | 433932 | 590 | 1400 | 87.5 | ||
| SLOW900-1020FB | 6800850010300 | 188923612861 | 363328 | 590 | 1000 | 87 | ||
| SLOW1000-1040 | 120001500018000 | 333341675000 | 393529 | 590 | 2000 | 89 | 7.5 | 13600 |
| SLOW1000-1040A | 112001400017000 | 311138894722 | 353126 | 590 | 1600 | 88.5 | ||
| SLOW1000-1040B | 105001300015800 | 291736114389 | 302722 | 590 | 1250 | 88 | ||
| SLOW1000-1040F | 100001300015000 | 277836114167 | 282420 | 495 | 1120 | 89 | 6.5 | 1360 |
| SLOW1000-1040FA | 94001180014200 | 261132783944 | 252218 | 495 | 900 | 88.5 | ||
| SLOW1000-1040FB | 88001100013500 | 244430563750 | 211814 | 495 | 800 | 88 | ||
| SLOW1000-1060 | 120001500018000 | 333341675000 | 756856 | 740 | 3550 | 88 | 9 | 13600 |
| SLOW1000-1060A | 110001380016500 | 305638334583 | 645847 | 740 | 2800 | 87.5 | ||
| SLOW1000-1060B | 100001280015300 | 277835564250 | 544940 | 740 | 2240 | 87 | ||
| SLOW1200-1150 | 150001800022500 | 416750006250 | 363226 | 495 | 2000 | 90 | 8.6 | 16500 |
| SLOW1200-1150A | 140001680021000 | 388946675833 | 312822 | 495 | 1800 | 89 | ||
| SLOW1200-1150B | 130001550019000 | 361143065278 | 272419 | 495 | 1400 | 88 | ||
SLOW大型单级双吸中开蜗壳式离心泵型号及性能参数表2
| 泵 型 号 pump type | 流量CapacityQ | 扬程HeadH | 转速 Speedn | 电机功率Motor powerP | 效率 Effn | 必需汽蚀余量 (NPSH)r | 泵净重Weight W | |
| (m³/h) | (L/s) | (m) | (r/min) | (KW) | (%) | (m) | (Kg) | |
| SLOW1200-1180 | 150001800022500 | 416750006250 | 655843 | 590 | 3550 | 89 | 9 | 16500 |
| SLOW1200-1180A | 138001650020800 | 383345835778 | 565037 | 590 | 2800 | 88 | ||
| SLOW1200-1180B | 128001530019000 | 355642505278 | 474231 | 590 | 2240 | 87 | ||
| SLOW1200-1150(S)F | 150001800022000 | 416750006111 | 232016 | 375 | 1250 | 88 | 8 | 16500 |
| SLOW1200-1150(S)FA | 135001600020000 | 375044445556 | 191612 | 375 | 900 | 88 | ||
| SLOW1400-1280 | 215002500028500 | 597269447917 | 403630 | 495 | 3150 | 90 | 8.8 | 21300 |
| SLOW1400-1280A | 200002300026000 | 555663897222 | 343126 | 495 | 2500 | 89 | ||
| SLOW1400-1280B | 180002100024000 | 500058336667 | 282521 | 495 | 1800 | 88 | ||
| SLOW1400-1420 | 215002500028500 | 597269447917 | 625849 | 495 | 5000 | 89 | 9.2 | 21300 |
| SLOW1400-1420A | 200002300026000 | 555663897222 | 524941 | 495 | 4000 | 88.5 | ||
| SLOW1400-1420B | 180002100024000 | 500058336667 | 454035 | 495 | 3150 | 88 | ||
| SLOW1600-1580 | 280003200036000 | 7778888910000 | 403632 | 375 | 4000 | 90 | 8.9 | 30800 |
| SLOW1600-1580A | 258002950033000 | 716781949167 | 333026 | 375 | 2800 | 89 | ||
| SLOW1600-1580B | 235002700030000 | 652875008333 | 272522 | 375 | 2240 | 88 | ||
| SLOW1600-1860 | 280003200036000 | 7778888910000 | 646050 | 375 | 6500 | 90 | 9.4 | 30800 |
| SLOW1600-1860A | 255002900032800 | 708380569111 | 535042 | 375 | 4500 | 89 | ||
| SLOW1600-1860B | 230002650029500 | 638973618194 | 434034 | 375 | 3550 | 88 | ||
| SLOWi800-1650 | 320003800044000 | 88891055612222 | 413630 | 375 | 5000 | 90 | 9.1 | 38500 |
| SLOW1800-1650A | 290003450040000 | 8056958311111 | 343025 | 375 | 3550 | 89 | ||
| SLOW1800-1650B | 260003100036000 | 7222861110000 | 272420 | 375 | 2500 | 88 | ||
| SLOW1800-1880 | 320003800044000 | 88891055612222 | 686050 | 375 | 8000 | 89 | 9.1 | 38500 |
| SLOW1800-1880A | 290003450040000 | 8056958311111 | 565042 | 375 | 5600 | 88.5 | ||
| SLOW1800-1880B | 260003100036000 | 7222861110000 | 454034 | 375 | 4000 | 88 | ||

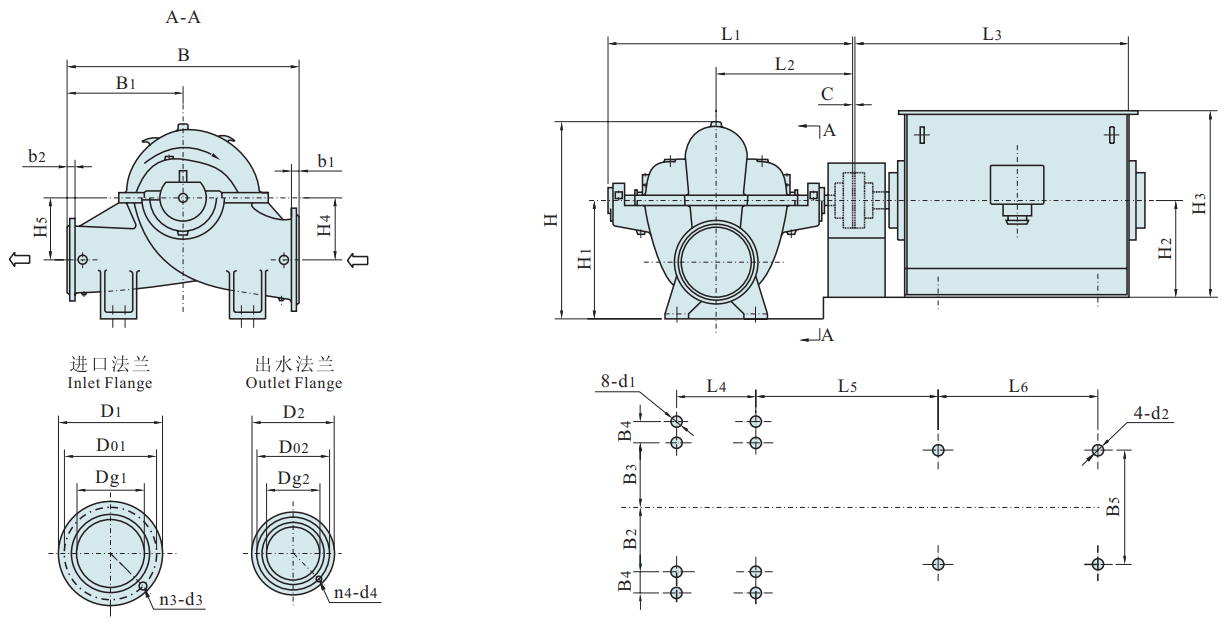

SLOW大型单级双吸中开蜗壳式离心泵外形安装及法兰尺寸图
SLOW大型单级双吸中开蜗壳式离心泵型号及安装尺寸表
| 泵型号 pump type | B | B1 | B2 | B3 | B4 | B5 | H | H1 | H2 | H3 | H4 | H5 | L1 | L2 | L3 | L4 | L5 | L6 | 8-d1 | 4-d2 |
| SLOW900-1060 SLOW900-1060FSLOW900-1020 SLOW900-1020F | 2800 | 1200 | 600 | 730 | 200 | 2800 | 1700 | 975 | 975 | 3210 | 1750 | 1250 | 8-φ42 | |||||||
| SLOW1000-1040 SLOW1000-1060 | 3200 | 1400 | 700 | 900 | 200 | 3130 | 1900 | 150 | 150 | 3610 | 1980 | 8-φ42 | ||||||||
| SLOW1200-1150 SLOW1200-1180 SLOW1200-1150(S)F | 3600 | 1600 | 800 | 1000 | 200 | 3580 | 2100 | 1150 | 1150 | 4540 | 2250 | 8-φ42 | ||||||||
| SLOW1400-1280 SLOW1400-1420 | 4100 | 1900 | 1000 | 1200 | 200 | 3830 | 2300 | 1250 | 1250 | 4720 | 2550 | 8-50 | ||||||||
| SLOW1600-1580 SLOW1600-1860 | 4500 | 2100 | 1200 | 1400 | 250 | 4250 | 2500 | 1350 | 1350 | 5220 | 2800 | 8-φ55 | ||||||||
| SLOW1800-1650 SLOW1800-1880 | 5000 | 2400 | 1400 | 1600 | 250 | 4730 | 2700 | 1500 | 1500 | 5750 | 3100 | 8-φ65 |
SLOW大型单级双吸中开蜗壳式离心泵型号及法兰尺寸表
| 泵型号 pump type | D1 | D01 | Dg1 | n3-d3 | b1 | 压力等级PressureGrade | D2 | D02 | Dg2 | n4-d4 | b2 | 压力等级PressureGrade |
| SLOW900-1060 SLOW900-1060FSLOW900-1020 SLOW900-1020F | 1230 | 1160 | 1000 | 28- φ 37 | 50 | 1.0MPa | 1115 | 1050 | 900 | 28-34 | 46 | 1.0MPa |
| SLOW1000-1040 SLOW1000-1060 | 1455 | 1380 | 1200 | 32- φ 40 | 56 | 1.0MPa | 1230 | 1160 | 1000 | 28-φ37 | 50 | 1.0MPa |
| SLOW1200-1150 SLOW1200-1180 SLOW1200-1150(S)F | 1675 | 1590 | 1400 | 36- 43 | 62 | 1.0MPa | 1455 | 1380 | 1200 | 32-φ40 | 56 | 1.0MPa |
| SLOW1400-1280 SLOW1400-1420 | 1915 | 1820 | 1600 | 40- φ 49 | 68 | 1.0MPa | 1675 | 1590 | 1400 | 36-φ43 | 62 | 1.0MPa |
| SLOW1600-1580 SLOW1600-1860 | 2115 | 2020 | 1800 | 44- φ 49 | 70 | 1.0MPa | 1915 | 1820 | 1600 | 40-φ49 | 68 | 1.0MPa |
| SLOW1800-1650 SLOW1800-1880 | 2325 | 2230 | 2000 | 48- φ 49 | 74 | 1.0MPa | 2115 | 2020 | 1800 | 44-φ49 | 70 | 1.0MPa |
管路损耗参考表
| 管径Pipediameter(mm) | 流 量Capacity(L/s) | |||||||||||||||||||||||
| 1 | 2 | 4 | 6 | 8 | 10 | B m a | 直管摩擦损失简rief table for th eters of a 100m nd multiple for | 表(估计用)100e frictional los straight pipe t the old one | m直管损失米s of a straight akes the newly | 数以新铸铁管pipe(for evalu iron pipe as | 为标准，旧管加倍。ation),the lost the standard | |||||||||||||
| 25 | 32.7 | 13.0 | ||||||||||||||||||||||
| 38 | 3.5 | 14 | 55 | 15 | 20 | |||||||||||||||||||
| 50 | 0.8 | 3.1 | 13 | 29 | 25 | 30 | ||||||||||||||||||
| 65 | 1.6 | 3.2 | 7.1 | 13 | 20 | 40 | 50 | |||||||||||||||||
| 75 | 0.4 | 0.8 | 33 | 5.9 | 9.6 | 21.6 | 60 | 70 | ||||||||||||||||
| 100 | 0.23 | 0.8 | 1.3 | 2.1 | 6.8 | 8.6 | 13 | 19.4 | 80 | 90 | ||||||||||||||
| 125 | 0.23 | 0.4 | 0.63 | 1.3 | 2.7 | 4.1 | 5.9 | 10.7 | 100 | 110 | ||||||||||||||
| 150 | 0.16 | 0.26 | 0.58 | 1.1 | 1.6 | 23 | 4.2 | 6.4 | 9.4 | 120 | 130 | |||||||||||||
| 175 | 0.11 | 0.27 | 0.5 | 0.74 | 1.05 | 1.9 | 2.9 | 4.3 | 5.8 | 7.7 | 9.6 | 140 | 160 | |||||||||||
| 200 | 0.13 | 0.26 | 0.37 | 0.53 | 0.93 | 1.5 | 2.1 | 2.9 | 3.7 | 4.7 | 6.1 | 7.2 | 8.5 | 180 | 200 | |||||||||
| 250 | 0.07 | 0.12 | 0.18 | 0.30 | 0.48 | 0.68 | 0.93 | 1.2 | 1.5 | 1.9 | 2.3 | 2.8 | 33 | 3.7 | 4.9 | 5.2 | ||||||||
| 300 | 0.07 | 0.12 | 0.19 | 0.27 | 0.37 | 0.49 | 0.61 | 0.76 | 0.9 | 1.1 | 1.3 | 1.5 | 2.0 | 2.4 | 3.0 | |||||||||
阀及弯管折合直管长度(每个)
The length of a straight pipe converted into from both vave and elbow/each)
| 种 类Variety | 折合直管直径倍数Convert into the tmes of thediameter of a staight pipe | 备 注Remark |
| 标 准 弯 管Standand clbow | 12 | 未畅开加倍Multiple in case of unopen |
| 全开闸阀Fully opened gate valve | 25 | |
| 逆止阀Back valve | 100 | |
| 底阀Foot valve | 100 | 部分堵塞加倍Partial block-up multipled |
注：例如100mm直径管，底阀折合100倍直径等于100×100=10000mm=10m直径长度，假定流量为8L/s查上表，直管每100m损失1.3m,则10m损失0.13m, 即一个100mm 底阀，流量为8L/s时，损失扬程0.13m。
Note:For instance,a 100mm diameter pipe,the foot valve has a 100×100=10000mm=10m diameter when which is con verted into 100 times that of the pipd's diameter.Suppose the flow is 8L/s Looked Into tha above table,the loss of the straight pipe is 1.3m cach 100m,then the one for 100mm is 0.13m,that is,for a 100mm foot valve with a flow 8L/s,its head low is 0.13m.
一定管路直径之最大流量限制
Limit of the maximun flow for a pipe with a certain diameter
| 管路直径Pipeline diameter(mm) | 最大流量Maximum flow(L/S) | 最大流速Maximum flow rato(m/s) | 管路直径Pipeline diameter(mm) | 最大流量Maximum flow(L/S) | 最大流速Maximum flow rate(m/s) |
| 25 | 1 | 2.04 | 125 | 30.0 | 2.44 |
| 38 | 2.5 | 1.69 | 150 | 43.0 | 2.45 |
| 50 | 4.17 | 2.12 | 175 | 60.0 | 2.49 |
| 65 | 6.67 | 2.01 | 200 | 83.3 | 2.69 |
| 75 | 10.0 | 2.26 | 250 | 133.0 | 2.72 |
| 100 | 18.4 | 2.33 | 300 | 192.0 | 2.71 |
注：超过此限使管路损失显著增加。
Note:The pipeline los would be made geatly increased once the limit is over.
