3G、3GR、3GBW(LQ3G)保温沥青螺杆泵
- 品牌：壹泵阀
- 型号：3G、3GR、3GBW(LQ3G)
- 压力/扬程：0.5~5Pma
- 工作温度：0℃～150℃，保温
- 连接方式：法兰
- 产品名称：3G、3GR、3GBW(LQ3G)保温沥青螺杆泵
- 通径/流量：0.2-250吨/每小时
- 材质：铸铁、不锈钢
- 驱动方式：电动
- 适用范围：沥青等，适用于各种粘度范围1mm2/s-760mm2/s的高浓度介质。
- 产品概述
- 性能参数
- 尺寸重量
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵概述
3G卧式螺杆泵、3GR反向旋转型卧式三螺杆泵、3GBW(LQ3G)保温型卧式三螺杆泵（简称：3G、3GR、3GBW保温沥青三螺杆泵），3GBW保温型三螺杆泵又称LQ3G沥青螺杆泵；该类别的三螺杆泵是容积式泵的一种，显著的优点是结构简单、体积小、允许高转速、工作平稳可靠、压力脉动小、流量稳定、噪音低、效率高，是高粘度保温泵。LQG系列三螺杆泵、保温型沥青泵特别适用于沥青库、油田、重油等油库和导热油蒸汽加热，沥青，重油等设备配套。它是利用螺杆齿合原理，依靠旋转的螺杆在泵套内相互啮合，把被输送的介质封闭在齿合腔内，沿螺杆轴向连续匀速地推至排出口，为系统提供稳定的压力。上海美言壹泵阀生产的三螺杆泵具有良好能力的容积式低压转子泵，适用于输送具有润滑性无固体颗粒杂质的各种燃料油、乳化液、重柴油、液压油、机械油等。粒度范围可达3~760mm2/s;输送介质的压力在5.0MPa以内，高粘度介质可通过加温降粘后输送，其温度一般不超过150℃。

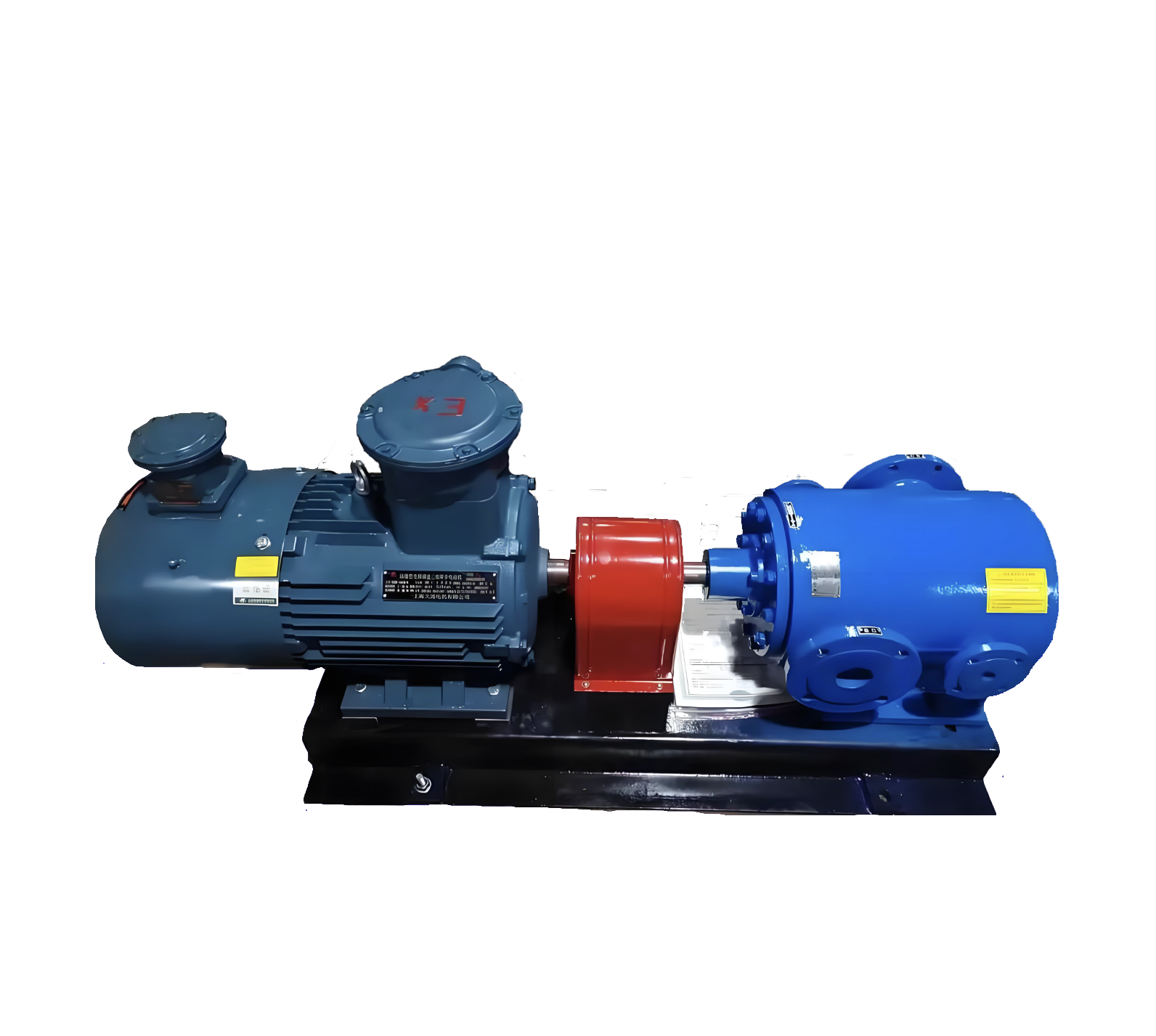

3G、3GR、3GBW(LQ3G)保温沥青螺杆泵产品图
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵型号及意义
例如：3GBW80ᵡ2-46R
3：代表数字
G：代表螺杆
BW：代表保温
80：代表螺杆外径
2：代表螺距倍数
46：代表螺旋角度
R：代表反向旋转型
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵外形结构图及说明
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵外形结构图
1、3G、3GR、3GBW(LQ3G)保温沥青螺杆泵有一根主螺杆(简称主杆)，两根从动螺杆（简称从杆）装上轴套一起相互啮合设置在轴套内，衬套安装在泵体内，两端有前后端盖以及轴承，机封和轴承座等主要部件固定组成。当主动螺杆在原动机带动下旋转，从动螺杆由螺旋型面两边的压力差，有输送介质推动而旋转，此时被输送液体进入泵吸入口后沿着螺杆轴向均匀进入密封腔内，由于主，从螺杆在一定啮合螺旋面长度下形成密封腔，且在运动过程中密封腔体体积不变化。从而能平稳无搅动地将介质从泵吸入腔输送到排除腔，达到输送介质的功能，由于螺杆型线密封性能良好，从动螺杆能自转，所以本泵具有不设置同步齿轮，输送压力高；结构紧凑；性能稳定；效率高；均匀连续；无脉冲现象，噪声振动小；使用寿命长和维护方便等特点。
2、3G、3GR、3GBW(LQ3G)保温沥青螺杆泵结构形式有型号说明的几种，但主要部件泵芯是相同的，泵芯分轴承内置和轴承外置两种，与不同结构泵体、后端盖、安全阀和底板或顶盖组成不同泵头。
3、3G、3GR、3GBW(LQ3G)保温沥青螺杆泵轴伸支撑较小，因由原动机经弹性联轴器直联驱动，不得由皮带轮等产生较大额外径向力的传动方式传动。
4、为了防止由某种原因使管路阻力突然增加致使泵的压力超过允许值而损坏泵、原动机、泵配带安全阀或其他保护装置，限制泵的最高压力。

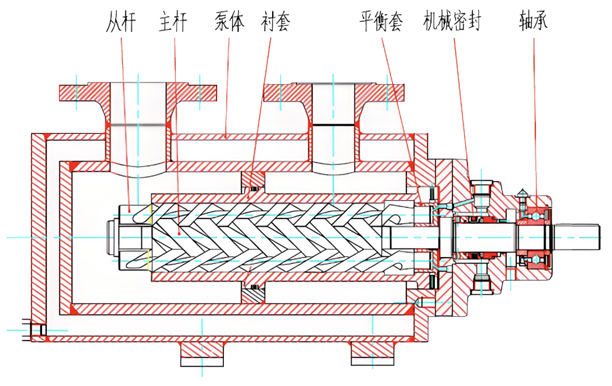

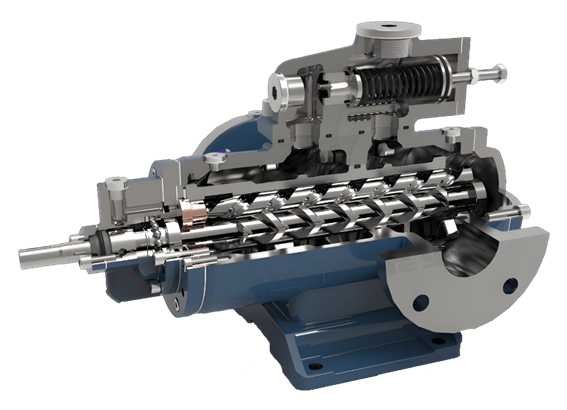

3G、3GR、3GBW(LQ3G)保温沥青螺杆泵工作原理及剖面图：
吸入端，螺纹退出啮合，吸入；
○形空间形成并封闭后，油液平 移上 行 ；
排出端，形空间开启，螺纹进 入 啮 合 ，排 出。
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵是利用螺杆的回转来吸排液体的。中间螺杆为主动螺杆，由原动机带动回转，两边的螺杆为从动螺杆，随主动螺杆作反向旋转。主、从动螺 杆的螺纹均为双头螺纹。
由于各螺杆的相互啮合以及螺杆与衬筒内壁的紧密配合，在泵的吸入口和排出口之间，就会被分隔成一个或多个密封空间。随着螺杆的转动和啮合，这些密封空间在泵的吸入端不断形成，将吸入室中的液体封入其中，并自吸入室沿螺杆轴向连续地推移至排出端，将封闭在 各空间中的液体不断排出，犹如一螺母在螺纹回转时被不断向前推进的情形那样，其中螺纹圈数看做液体，当螺钉旋转时螺纹在转动时就相当于液体在螺杆泵里面的情形，这就是螺杆泵的基本工作原理。
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵适用范围及对比优点：
（1）压力和流量范围宽阔，流量范围0.2～320m3/h最高工作压力可达5MPa；
（2）运送液体的种类和粘度范围宽广,粘度范围1mm2/s-760mm2/s；
（3）因为三螺杆泵内的回转部件惯性力较低，故可使用很高的转速；
（4）吸入性能好，具有很强的自吸能力；
（5）流量均匀连续，振动小，噪音低，几乎没有脉动；
（6）三螺杆泵结构坚实，安装方便有(卧式、立式、法兰式、插装式）保养容易；
（7）三螺杆泵具有很强的耐热性，一般工作温度是（1~250°C)超过此温度需特制；
（8）根据所输送介质需要还可提供加热或冷却结构；
（9）三螺杆泵几乎没有磨损，三螺杆泵只要选型正确，使用寿命长。
（10）三螺杆泵的工作效率高。
与其他泵对比优点：
1．和离心泵相比螺杆泵无需安装阀们流量是稳定的线性流动
2．和柱塞泵相比螺杆泵具有自吸能力强、吸入高度强
3．和隔膜泵相比螺杆泵可输送各种混合杂质含有气体及固体颗粒或纤维的介质，也可输送各种腐蚀性物质
4．和齿轮相比，螺杆泵可输送高粘度的物质
5．和柱塞泵，隔膜泵及齿轮泵不同的是，螺杆泵可用于药剂填充和计量
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵用途及特点
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵广泛应用于石油、化纤、冶金、机械、电力、机床、船舶、玻璃、公路等各行各业。三螺杆泵适用于输送燃料油、润滑油、液压油、原油、沥青及其他类似油的润滑性液体。三螺杆泵在工业领域中作润滑泵，在液压系统中作液压泵，在燃油系统中作输送及增压泵；在输油系统中作输送及加油泵。流量范围0.2～250m³/h，最高工作压力可达4mpa。
1.没有困油现象，流量和压力均匀，工作平稳，噪声和振动较小。
2.轴向吸入，不存在离心力对液体吸入的影响，吸人性能好。 且无往复运动部件和泵阀，故适用于高转速，因此螺杆泵的流 量范围大，常用回流法调节流量。
3.3G、3GR、3GBW(LQ3G)保温沥青螺杆泵泵受力平衡和密封性能良好，n、高，允许工作压力高，可达20MPa, 特殊的可达40MPa。单螺杆泵和双螺杆泵额定排出压力不宜太高，前者最大不超过2.4MPa; 后者通常不超过1.6MPa。
4. 注意起动及停车时的开关阀顺序( 起动前吸排阀全开； 停用时断电后先关排出阀，完全停转后关吸入阀，防止被内液体吸空)。为轻载起动，在起动前将安全调压阀调整松，达到额定转速后调至要求压力。
5. 螺杆较长，刚性较差，易变形。安装时注意间隙均匀，大流量泵重心线尽可能通过船体肋骨；吸排管路 应固定并与泵吸排口对中；螺杆起吊时防止受力弯曲；备用螺杆应悬吊保存。使用中应防止过热。
6.防止油温太低、粘度过高、滤器脏堵等。
3G、3GR、3GBW(LQ3G)保温沥青螺杆泵性能参数表 (转速: 1450r/min)
| 规格 | 压力 兆帕 (mp a) | 运动粘度mm²/s | ||||||||||||||
| 6 | 40 | 75 | ||||||||||||||
| 流量Q | 轴功 率kw | 电机 功率 kw | 电机 型号 | 流量Q | 轴功 率kw | 电机 功率 kw | 电机 型号 | 流量Q | 轴功 率kw | 电机 功率 kw | 电机 型号 | |||||
| m³h | /min | m³h | I/min | m³h | I/min | |||||||||||
| 30x2-40 | 0.5 | 1.4 | 23.3 | 0.25 | 0.55 | Y801-4 | 1.52 | 25.26 | 0.28 | 0.55 | Y801-4 | 1.56 | 26 | 0.28 | 0.55 | Y801-4 |
| 1 | 1.39 | 23.09 | 0.5 | 0.75 | Y802-4 | 1.46 | 24.3 | 0.53 | 0.75 | Y802-4 | ||||||
| 30x4-40 | 1.5 | 1.19 | 19.8 | 0.65 | 1.1 | Y90s-4 | 1.3 | 21.72 | 0.71 | 1.1 | Y90s-4 | 1.4 | 23.3 | 0.76 | 1.1 | Y90s-4 |
| 2 | 1.24 | 20.64 | 0.9 | 1.5 | Y901-4 | 1.32 | 22 | 0.96 | 1.5 | Y901-4 | ||||||
| 2.5 | 1.24 | 20.7 | 1.13 | 1.5 | Y901-4 | |||||||||||
| 30x2-46 | 0.5 | 1.75 | 29.1 | 0.32 | 0.55 | Y801-4 | 1.89 | 31.53 | 0.34 | 0.55 | Y801-4 | 1.95 | 32.5 | 0.35 | 0.55 | Y801-4 |
| 1 | 1.79 | 29.89 | 0.65 | 1.1 | Y90s-4 | 1.89 | 31.5 | 0.69 | 1.1 | Y90s-4 | ||||||
| 30x4-46 | 1.5 | 1.53 | 25.5 | 0.83 | 1.1 | Y90s-4 | 1.68 | 27.93 | 0.91 | 1.5 | Y901-4 | 1.8 | 30 | 0.98 | 1.5 | Y90I-4 |
| 2 | 1.59 | 26.58 | 1.16 | 2.2 | Y10011-4 | 1.7 | 28.3 | 1.23 | 2.2 | Y10011-4 | ||||||
| 2.5 | 1.6 | 26.7 | 1.45 | 2.2 | Y10011-4 | |||||||||||
| 30x2-52* 30x3-52 | 0.5 | 2.06 | 34.3 | 0.37 | 0.55 | Y801-4 | 2.23 | 37.18 | 0.41 | 0.55 | Y801-4 | 2.3 | 38.3 | 0.42 | 0.55 | Y801-4 |
| 1 | 1.92 | 31.9 | 0.7 | 1.1 | Y90s-4 | 2.09 | 34.8 | 0.76 | 1.1 | Y90s-4 | 2.2 | 36.7 | 0.8 | 1.1 | Y90s-4 | |
| 1.5 | 1.96 | 32.59 | 1.06 | 1.5 | Y901-4 | 2.1 | 35 | 1.14 | 1.5 | Y901-4 | ||||||
| 2 | 1.9 | 31.7 | 1.38 | 2.2 | Y10011-4 | |||||||||||
| 30x2-54* 30x3-54 | 0.5 | 2.24 | 37.3 | 0.41 | 0.55 | Y801-4 | 2.43 | 40.42 | 0.44 | 0.75 | Y801-4 | 2.5 | 41.7 | 0.45 | 0.75 | Y801-4 |
| 1 | 2 | 33.4 | 0.73 | 1.1 | Y90s-4 | 2.18 | 36.38 | 0.79 | 1.1 | Y90s-4 | 2.3 | 38.3 | 0.84 | 1.1 | Y90s-4 | |
| 1.5 | 2.05 | 34.14 | 1.12 | 1.5 | Y901-4 | 2.2 | 36.7 | 1.2 | 2.2 | Y10011-4 | ||||||
| 2 | 2 | 33.3 | 1.45 | 2.2 | Y10011-4 | |||||||||||
| 30x4-46 36x4 | 0.5 | 2.77 | 46.2 | 0.5 | 0.75 | Y802-4 | 3 | 50.06 | 0.55 | 0.75 | Y802-4 | 3.1 | 51.6 | 0.56 | 0.75 | Y802-4 |
| 1 | 2.6 | 43.4 | 0.95 | 1.5 | Y901-4 | 2.84 | 47.3 | 1.03 | 1.5 | Y901-4 | 2.99 | 49.8 | 1.09 | 1.5 | Y901-4 | |
| 1.5 | 2.44 | 40.6 | 1.33 | 2.2 | Y10011-4 | 2.67 | 44.53 | 1.46 | 2.2 | Y10011-4 | 2.87 | 47.8 | 1.56 | 2.2 | Y10011-4 | |
| 2 | 2.54 | 42.27 | 1.84 | 3 | Y10012-4 | 2.7 | 45.1 | 1.96 | 3 | Y10012-4 | ||||||
| 2.5 | 2.57 | 42.8 | 2.33 | 4 | Y112m-4 | |||||||||||
| 35x3-52 | 0.5 | 3.24 | 54.1 | 0.59 | 1.1 | Y90s-4 | 3.52 | 58.6 | 0.64 | 1.1 | Y90s-4 | 3.63 | 60.4 | 0.66 | 1.1 | Y90s-4 |
| 1 | 3.03 | 50.4 | 1.1 | 1.5 | Y90I-4 | 3.3 | 54.95 | 1.2 | 2.2 | Y10011-4 | 3.47 | 57.9 | 1.26 | 2.2 | Y10011-4 | |
| 1.5 | 2.95 | 49.22 | 1.61 | 2.2 | Y10011-4 | 3.17 | 52.9 | 1.73 | 3 | Y10012-4 | ||||||
| 2 | 3.02 | 50.3 | 2.19 | 3 | Y10012-4 | |||||||||||
| 42x4a | 0.5 | 4.93 | 82.2 | 0.9 | 1.5 | Y901-4 | 5.34 | 89.08 | 0.97 | 1.5 | Y901-4 | 5.51 | 91.8 | 1 | 1.5 | Y901-4 |
| 1 | 4.55 | 75.8 | 1.65 | 2.2 | Y10011-4 | 4.95 | 82.56 | 1.8 | 3 | Y10012-4 | 5.22 | 87 | 1.9 | 3 | Y10012-4 | |
| 1.5 | 4.19 | 69.9 | 2.28 | 3 | Y10012-4 | 4.6 | 76.65 | 2.5 | 4 | Y112m-4 | 4.94 | 82.3 | 2.69 | 4 | Y112m-4 | |
| 2 | 4.36 | 72.7 | 3.17 | 5.5 | Y132s-4 | 4.65 | 77.5 | 3.38 | 5.5 | Y132s-4 | ||||||
| 2.5 | 4.37 | 72.8 | 3.97 | 5.5 | Y132s-4 | |||||||||||
| 45x4-27 | 0.5 | 2.95 | 49.1 | 0.53 | 0.75 | Y802-4 | 3.19 | 53.22 | 0.58 | 1.1 | Y802-4 | 3.29 | 54.9 | 0.6 | 1.1 | Y802-4 |
| 1 | 2.68 | 44.7 | 0.97 | 1.5 | Y901-4 | 2.92 | 48.71 | 1.06 | 1.5 | Y901-4 | 3.08 | 51.3 | 1.12 | 1.5 | Y90I-4 | |
| 1.5 | 2.4 | 40.1 | 1.31 | 2.2 | Y10011-4 | 2.64 | 43.94 | 1.44 | 2.2 | Y10011-4 | 2.83 | 47.2 | 1.54 | 2.2 | Y10011-4 | |
| 2 | 2.49 | 41.45 | 0.81 | 3 | Y10012-4 | 2.66 | 44.3 | 1.93 | 3 | Y10012-4 | ||||||
| 2.5 | 2.55 | 42.5 | 2.31 | 4 | Y112m-4 | |||||||||||
| 45x4-36 | 0.5 | 3.91 | 65.2 | 2.13 | 3 | Y10012-4 | 4.29 | 71.48 | 2.34 | 4 | Y112m-4 | 4.61 | 76.8 | 2.51 | 4 | Y112m-4 |
| 1 | 3.75 | 62.5 | 1.36 | 2.2 | Y10011-4 | 4.09 | 68.09 | 1.48 | 2.2 | Y10011-4 | 4.3 | 71.7 | 1.56 | 2.2 | Y10011-4 | |
| 1.5 | 3.37 | 56.2 | 1.84 | 3 | Y10012-4 | 3.7 | 61.64 | 2.01 | 3 | Y10012-4 | 3.97 | 66.2 | 2.16 | 3 | Y10012-4 | |
| 2 | 3.49 | 58.09 | 2.58 | 4 | Y112m-4 | 3.72 | 61.9 | 2.7 | 4 | Y112m-4 | ||||||
| 2.5 | 3.56 | 59.4 | 3.24 | 5.5 | Y132s-4 | |||||||||||
| 45x3-46 | 0.5 | 5.95 | 99.1 | 1.08 | 1.5 | Y901-4 | 6.45 | 107.4 | 1.17 | 2.2 | Y10011-4 | 6.65 | 110.8 | 1.21 | 2.2 | Y10011-4 |
| 1 | 5.63 | 93.8 | 2.04 | 3 | Y10012-4 | 6.13 | 102.2 | 2.23 | 3 | Y10012-4 | 6.46 | 107.7 | 2.53 | 4 | Y112m-4 | |
| 1.5 | 5.57 | 92.81 | 3.03 | 4 | Y112m-4 | 5.98 | 99.7 | 3.26 | 5.5 | Y132s-4 | ||||||
| 45x2-52 | 0.5 | 6.76 | 113 | 1.23 | 2.2 | Y10011-4 | 7.33 | 122.1 | 1.33 | 2.2 | Y10011-4 | 7.55 | 125.9 | 1.37 | 2.2 | Y10011-4 |
| 1 | 6.88 | 114.7 | 2.5 | 4 | Y112m-4 | 7.25 | 120.8 | 2.63 | 4 | Y112m-4 | ||||||
| 50×3-44 | 0.5 | 7.3 | 122 | 1.33 | 2.2 | Y10011-4 | 7.91 | 131.9 | 1.44 | 2.2 | Y10011-4 | 8.16 | 135.9 | 1.48 | 2.2 | Y10011-4 |
| 1 | 6.84 | 114 | 2.48 | 4 | Y112m-4 | 7.45 | 124.2 | 2.71 | 4 | Y112m-4 | 7.85 | 130.9 | 2.85 | 4 | Y112m-4 | |
| 1.5 | 6.89 | 114.8 | 3.75 | 5.5 | Y132s-4 | 7.4 | 123.4 | 4.03 | 5.5 | Y132s-4 | ||||||
| 2 | 6.8 | 113.3 | 4.94 | 7.5 | Y132m-4 | |||||||||||
| 50x3-46 50x2 | 0.5 | 8.11 | 135 | 1.47 | 2.2 | Y10011-4 | 8.79 | 146.5 | 1.6 | 2.2 | Y10011-4 | 9.06 | 151 | 1.65 | 2.2 | Y10011-4 |
| 1 | 7.58 | 126 | 2.75 | 4 | Y112m-4 | 8.26 | 137.6 | 3 | 4 | Y112m-4 | 8.7 | 145 | 3.16 | 5.5 | Y132s-4 | |
| 1.5 | 7.59 | 126.6 | 4.14 | 5.5 | Y132s-4 | 8.16 | 135.9 | 4.44 | 7.5 | Y132m-4 | ||||||
| 2 | 7.7 | 128.4 | 5.59 | 7.5 | Y132m-4 | |||||||||||
| 50x2-52 | 0.5 | 9.5 | 158 | 1.73 | 3 | Y10012-4 | 10.3 | 171.7 | 1.87 | 3 | Y10012-4 | 10.6 | 177 | 1.93 | 3 | Y10012-4 |
| 1 | 9.53 | 158.9 | 3.46 | 5.5 | Y132s-4 | 10 | 167.4 | 3.65 | 5.5 | Y132s-4 | ||||||
| 1.5 | 9.52 | 158.6 | 5.18 | 7.5 | Y132m-4 | |||||||||||
| 60x4-40 | 0.5 | 11 | 183 | 2 | 3 | Y10012-4 | 11.9 | 198.8 | 2.17 | 3 | Y10012-4 | 12.3 | 204.9 | 2.23 | 3 | Y10012-4 |
| 1 | 10.4 | 173 | 3.77 | 5.5 | Y132s-4 | 11.3 | 188.5 | 4.11 | 5.5 | Y132s-4 | 11.9 | 198.6 | 4.33 | 7.5 | Y132m-4 | |
| 1.5 | 9.8 | 163 | 5.34 | 7.5 | Y132m-4 | 10.7 | 179.1 | 5.85 | 7.5 | Y132m-4 | 11.5 | 192.3 | 6.29 | 11 | Y160m-4 | |
| 2 | 10.3 | 172.1 | 7.5 | 11 | Y160m-4 | 11 | 183.5 | 8 | 11 | Y160m-4 | ||||||
| 2.5 | 10.4 | 172.7 | 9.41 | 15 | Y1601-4 | |||||||||||
| 60×3-46 | 0.5 | 13.7 | 228 | 2.48 | 4 | Y112m-4 | 14.8 | 246.6 | 2.69 | 4 | Y112m-4 | 15.3 | 254.3 | 2.77 | 4 | Y112m-4 |
| 1 | 12.9 | 215 | 4.69 | 7.5 | Y132m-4 | 14.1 | 234.6 | 5.11 | 7.5 | Y132m-4 | 14.8 | 247.2 | 5.39 | 7.5 | Y132m-4 | |
| 1.5 | 13.4 | 222.6 | 7.28 | 11 | Y160m-4 | 14.4 | 239.1 | 7.82 | 11 | Y160m-4 | ||||||
| 2 | 13.6 | 225.8 | 9.84 | 15 | Y1601-4 | |||||||||||
| 60×3-52 | 0.5 | 16.9 | 282 | 3.07 | 4 | Y112m-4 | 18.3 | 305.2 | 3.32 | 5.5 | Y132s-4 | 18.9 | 314.7 | 3.43 | 5.5 | Y132s-4 |
| 1 | 15.8 | 263 | 5.73 | 7.5 | Y132m-4 | 17.2 | 286.7 | 6.25 | 11 | Y160m-4 | 18.1 | 302.1 | 6.58 | 11 | Y160m-4 | |
| 1.5 | 16.3 | 267.2 | 8.73 | 11 | Y160m-4 | 17.2 | 287 | 9.38 | 15 | Y1601-4 | ||||||
| 2 | 16.2 | 269.4 | 11.7 | 15 | Y1601-4 | |||||||||||
| 70x3-46 70x4 70x2* | 0.5 | 22.7 | 379 | 4.12 | 5.5 | Y132s-4 | 24.6 | 410.2 | 4.47 | 7.5 | Y132m-4 | 25.4 | 422.9 | 4.61 | 7.5 | Y132m-4 |
| 1 | 21.7 | 362 | 7.88 | 11 | Y160m-4 | 23.7 | 394.2 | 8.59 | 11 | Y160m-4 | 24.9 | 415.4 | 9.05 | 15 | Y1601-4 | |
| 1.5 | 19.2 | 321 | 10.5 | 15 | Y1601-4 | 21.1 | 351.5 | 11.5 | 15 | Y1601-4 | 22.7 | 377.6 | 12.3 | 15 | Y1601-4 | |
| 2 | 20.1 | 334.1 | 14.6 | 18.5 | Y180m-4 | 21.4 | 356.2 | 15.5 | 22 | Y1801-4 | ||||||
| 2.5 | 20 | 333.8 | 18.2 | 22 | Y1801-4 | |||||||||||
| 70x2-49 | 0.5 | 24.7 | 412 | 4.48 | 7.5 | Y132m-4 | 26.8 | 446.2 | 4.86 | 7.5 | Y132m-4 | 27.6 | 460 | 5.01 | 7.5 | Y132m-4 |
| 1 | 25.4 | 423.9 | 9.24 | 15 | Y160|-4 | 26.8 | 446.7 | 9.73 | 15 | Y1601-4 | ||||||
| 1.5 | 25 | 416.5 | 13.6 | 18.5 | Y180m-4 | |||||||||||
| 70x2-52 | 0.5 | 27 | 450 | 4.9 | 7.5 | Y132m-4 | 29.2 | 487.1 | 5.31 | 7.5 | Y132m-4 | 30.1 | 502.2 | 5.47 | 7.5 | Y132m-4 |
| 1 | 27.7 | 461.3 | 10.1 | 15 | Y1601-4 | 29.2 | 486.1 | 10.6 | 15 | Y1601-4 | ||||||
| 1.5 | 27.3 | 454.1 | 14.8 | 18.5 | Y180m-4 | |||||||||||
| 80×3-27 | 0.5 | 16.5 | 275 | 2.99 | 4 | Y112m-4 | 17.9 | 297.9 | 3.25 | 5.5 | Y132s-4 | 18.4 | 307.1 | 3.35 | 5.5 | Y132s-4 |
| 1 | 15.4 | 257 | 5.59 | 7.5 | Y132m-4 | 16.8 | 279.5 | 6.09 | 11 | Y160m-4 | 17.7 | 294.5 | 6.42 | 11 | Y160m-4 | |
| 1.5 | 15.5 | 257.8 | 8.42 | 11 | Y160m-4 | 16.6 | 276.9 | 9.05 | 15 | Y1601-4 | ||||||
| 80x3-36 | 0.5 | 22.9 | 381 | 4.15 | 5.5 | Y132s-4 | 24.8 | 412.7 | 4.5 | 7.5 | Y132m-4 | 25.5 | 425.4 | 4.63 | 7.5 | Y132m-4 |
| 1 | 21.1 | 351 | 7.64 | 11 | Y160m-4 | 22.9 | 382.2 | 8.33 | 11 | Y160m-4 | 24.2 | 402.8 | 8.78 | 11 | Y160m-4 | |
| 1.5 | 21.2 | 353.9 | 11.6 | 15 | Y1601-4 | 22.8 | 380.1 | 12.4 | 15 | Y1601-4 | ||||||
| 80×3-40 | 0.5 | 26.2 | 437 | 4.76 | 7.5 | Y132m-4 | 28.4 | 473.7 | 5.16 | 7.5 | Y132m-4 | 29.3 | 488.4 | 5.32 | 7.5 | Y132m-4 |
| 1 | 26.2 | 437.2 | 9.52 | 15 | Y1601-4 | 27.6 | 460.7 | 10 | 15 | Y1601-4 | ||||||
| 80x2-46 | 0.5 | 32.9 | 548 | 5.96 | 7.5 | Y132m-4 | 35.6 | 593.4 | 6.46 | 11 | Y160m-4 | 36.7 | 611.7 | 6.66 | 11 | Y160m-4 |
| 1 | 33.5 | 559 | 12.2 | 15 | Y1601-4 | 35.3 | 589.1 | 12.8 | 18.5 | Y180m-4 | ||||||
| 1.5 | 32 | 533.7 | 17.4 | 22 | Y1801-4 | |||||||||||
| 80x2-52 | 0.5 | 38.5 | 642 | 6.99 | 11 | Y160m-4 | 41.8 | 695.9 | 7.58 | 11 | Y160m-4 | 43.1 | 717.4 | 7.82 | 11 | Y160m-4 |
| 1 | 0 | 38.4 | 640.2 | 14 | 18.5 | Y180m-4 | 40.5 | 674.7 | 14.7 | 18.5 | Y180m-4 | |||||
| 85x2-46 | 0.5 | 40.2 | 669 | 7.29 | 11 | Y160m-4 | 43.5 | 725.2 | 7.9 | 11 | Y160m-4 | 44.9 | 747.7 | 8.14 | 11 | Y160m-4 |
| 1 | 0 | 41.3 | 688 | 15 | 18.5 | Y180m-4 | 43.5 | 725 | 15.8 | 22 | Y1801-4 | |||||
| 85×3-46 85x2 | 0.5 | 40.2 | 669 | 7.29 | 11 | Y160m-4 | 43.5 | 725.2 | 7.9 | 11 | Y160m-4 | 44.9 | 747.7 | 8.14 | 11 | Y160m-4 |
| 1 | 37.4 | 623 | 13.6 | 18.5 | Y180m-4 | 40.7 | 678.5 | 14.8 | 18.5 | Y180m-4 | 42.9 | 714.9 | 15.6 | 22 | Y1801-4 | |
| 1.5 | 37.7 | 628.1 | 20.5 | 30 | Y2001-4 | 40.5 | 674.7 | 22.1 | 30 | Y2001-4 | ||||||
| 2 | 38.2 | 635.9 | 27.7 | 37 | Y225s-4 | |||||||||||
| 85x2-49 | 0.5 | 44.2 | 736 | 8.02 | 11 | Y160m-4 | 47.9 | 797.7 | 8.69 | 11 | Y160m-4 | 49.4 | 822.4 | 8.96 | 15 | Y1601-4 |
| 1 | 41.1 | 685 | 14.9 | 18.5 | Y180m-4 | 44.8 | 746.3 | 16.3 | 22 | Y1801-4 | 47.2 | 786.4 | 17.1 | 22 | Y1801-4 | |
| 1.5 | 41.5 | 690.9 | 22.6 | 30 | Y2001-4 | 44.5 | 742.1 | 24.3 | 30 | Y2001-4 | ||||||
| 85×3-52 | 0.5 | 48.1 | 801 | 8.72 | 11 | Y160m-4 | 52.1 | 867.9 | 9.45 | 15 | Y1601-4 | 53.7 | 894.8 | 9.75 | 15 | Y1601-4 |
| 1 | 43.9 | 727 | 15.9 | 22 | Y1801-4 | 47.8 | 797 | 17.4 | 22 | Y1801-4 | 50.4 | 839.8 | 18.3 | 22 | Y1801-4 | |
| 1.5 | 45.1 | 752.3 | 24.6 | 30 | Y2001-4 | 48.5 | 808.1 | 26.4 | 37 | Y225s-4 | ||||||
| 2 | 45.7 | 761.3 | 33.2 | 45 | Y225m-4 | |||||||||||
| 90x2-46 | 0.5 | 47.8 | 796 | 8.67 | 11 | Y160m-4 | 51.8 | 862.7 | 9.4 | 15 | Y1601-4 | 53.4 | 889.4 | 9.69 | 15 | Y1601-4 |
| 1 | 48.5 | 808.2 | 17.6 | 22 | Y1801-4 | 51.1 | 851.6 | 18.6 | 30 | Y2001-4 | ||||||
| 1.5 | 47.6 | 794.7 | 26 | 37 | Y225s-4 | |||||||||||
| 90x2-49 | 0.5 | 52.5 | 876 | 9.54 | 15 | Y1601-4 | 56.9 | 948.9 | 10.3 | 15 | Y1601-4 | 58.7 | 978.2 | 10.7 | 15 | Y1601-4 |
| 1 | 53.3 | 888.9 | 19.4 | 30 | Y2001-4 | 56.2 | 936.7 | 20.4 | 30 | Y2001-4 | ||||||
| 1.5 | 52.5 | 874.3 | 28.6 | 37 | Y225s-4 | |||||||||||
| 90x2-52 | 0.5 | 57.8 | 964 | 10.5 | 15 | Y1601-4 | 62.7 | 1045 | 11.4 | 15 | Y1601-4 | 64.6 | 1077 | 11.7 | 15 | Y1601-4 |
| 1 | 58.2 | 969.8 | 21.1 | 30 | Y2001-4 | 61.3 | 1022 | 22.3 | 30 | Y2001-4 | ||||||
| 1.5 | 57.9 | 964.9 | 31.5 | 45 | Y225m-4 | |||||||||||
| 100x4-40 | 0.5 | 54.1 | 901 | 9.82 | 15 | Y1601-4 | 58.6 | 976.7 | 10.6 | 15 | Y1601-4 | 60.4 | 1007 | 11 | 15 | Y1601-4 |
| 1 | 50.5 | 842 | 18.3 | 30 | Y200I-4 | 55 | 917.4 | 20 | 30 | Y2001-4 | 58 | 966.7 | 21.1 | 30 | Y200I-4 | |
| 1.5 | 46.2 | 769 | 25.1 | 37 | Y225s-4 | 50.6 | 843.7 | 27.6 | 37 | Y225s-4 | 54.4 | 906.3 | 29.6 | 37 | Y225s-4 | |
| 2 | 50.2 | 836 | 36.4 | 45 | Y225m-4 | 53.5 | 891.3 | 38.8 | 55 | Y225m-4 | ||||||
| 2.5 | 51.1 | 850.8 | 46.3 | 75 | Y280s-4 | |||||||||||
| 100x3-44 | 0.5 | 59.5 | 991 | 10.8 | 15 | Y1601-4 | 64.5 | 1074 | 11.7 | 15 | Y1601-4 | 66.5 | 1108 | 12.1 | 15 | Y1601-4 |
| 1 | 56.6 | 943 | 20.5 | 30 | Y2001-4 | 61.6 | 1027 | 22.4 | 30 | Y2001-4 | 65 | 1082 | 23.6 | 30 | Y2001-4 | |
| 1.5 | 57.7 | 960.9 | 31.4 | 45 | Y225m-4 | 61.9 | 1032 | 33.7 | 45 | Y225m-4 | ||||||
| 100x3-46 | 0.5 | 65.6 | 1093 | 11.9 | 15 | Y1601-4 | 71.1 | 1184 | 12.9 | 18.5 | Y180m-4 | 73.3 | 1221 | 13.3 | 18.5 | Y180m-4 |
| 1 | 61 | 1012 | 22.2 | 30 | Y2001-4 | 66.5 | 1103 | 24.2 | 30 | Y2001-4 | 70.1 | 1168 | 25.5 | 37 | Y225s-4 | |
| 1.5 | 61.9 | 1025 | 33.7 | 45 | Y225m-4 | 66.5 | 1108 | 36.2 | 45 | Y225m-4 | ||||||
| 100x3-44 110x2 | 0.5 | 87.9 | 1464 | 16 | 22 | Y1801-4 | 95.2 | 1587 | 17.3 | 22 | Y1801-4 | 98.2 | 1636 | 17.8 | 22 | Y1801-4 |
| 1 | 81.6 | 1365 | 29.6 | 37 | Y225s-4 | 88.9 | 1486 | 32.3 | 45 | Y225m-4 | 93.7 | 1555 | 34 | 45 | Y225m-4 | |
| 1.5 | 81.6 | 1365 | 44.4 | 55 | Y250m-4 | 87.6 | 1468 | 47.7 | 75 | Y280s-4 | ||||||
| 110x4-40 | 0.5 | 73 | 1217 | 13.3 | 18.5 | Y180m-4 | 79.1 | 1313 | 14.4 | 18.5 | Y180m-4 | 81.6 | 1354 | 14.8 | 18.5 | Y180m-4 |
| 1 | 69.5 | 1158 | 25.2 | 37 | Y225s-4 | 75.7 | 1261 | 27.5 | 37 | Y225s-4 | 79.8 | 1329 | 29 | 37 | Y225s-4 | |
| 1.5 | 66.2 | 1103 | 36 | 45 | Y225m-4 | 72.6 | 1216 | 39.5 | 55 | Y250m-4 | 77.9 | 1299 | 42.5 | 55 | Y250m-4 | |
| 2 | 71.4 | 1190 | 51.9 | 75 | Y280s-4 | 76.1 | 1269 | 55.3 | 75 | Y280s-4 | ||||||
| 2.5 | 73.4 | 1230 | 66.6 | 90 | Y280m-4 | |||||||||||
| 120x4-36 | 0.5 | 81.1 | 1352 | 14.7 | 18.5 | Y180m-4 | 87.9 | 1460 | 16 | 22 | Y1801-4 | 90.6 | 1510 | 16.5 | 22 | Y1801-4 |
| 1 | 77.4 | 1289 | 28.1 | 37 | Y225s-4 | 84.3 | 1397 | 30.6 | 37 | Y225s-4 | 88.8 | 1476 | 32.3 | 45 | Y225s-4 | |
| 1.5 | 73.9 | 1225 | 40.2 | 55 | Y250m-4 | 81 | 1350 | 44.1 | 55 | Y250m-4 | 87 | 1444 | 47.4 | 75 | Y280s-4 | |
| 2 | 79.9 | 1332 | 58 | 75 | Y280s-4 | 85.2 | 1413 | 61.9 | 75 | Y280s-4 | ||||||
| 2.5 | 82.5 | 1382 | 74.9 | 90 | Y280m-4 | |||||||||||
| 130x4-36 | 0.5 | 102 | 1696 | 18.5 | 30 | Y200I-4 | 110 | 1839 | 20 | 30 | Y2001-4 | 114 | 1895 | 20.7 | 30 | Y2001-4 |
| 1 | 95.9 | 1599 | 34.8 | 45 | Y225m-4 | 105 | 1737 | 38 | 55 | Y2505m-4 | 110 | 1836 | 40 | 55 | Y2505m-4 | |
| 1.5 | 90.5 | 1517 | 49.3 | 75 | Y280s-4 | 99.2 | 1653 | 54 | 75 | Y280s-4 | 107 | 1776 | 58 | 75 | Y280s-4 | |
| 2 | 96.6 | 1617 | 70.1 | 90 | Y280m-4 | 103 | 1716 | 74.8 | 90 | Y280m-4 | ||||||
| 2.5 | 98 | 1636 | 89.1 | 110 | Y315s-4 | |||||||||||
| 130x3-40 | 0.5 | 115 | 1919 | 20.9 | 30 | Y2001-4 | 125 | 2080 | 22.7 | 30 | Y2001-4 | 129 | 2144 | 23.4 | 30 | Y2001-4 |
| 1 | 107 | 1788 | 39 | 55 | Y250m-4 | 117 | 1939 | 42.5 | 55 | Y250m-4 | 123 | 2053 | 44.7 | 55 | Y250m-4 | |
| 1.5 | 108 | 1805 | 59 | 75 | Y280s-4 | 116 | 1939 | 63.4 | 75 | Y280s-4 | ||||||
| s200×3-27 | 0.5 | 530 | 8825 | 95.9 | 132 | Y315m-4 | 573 | 9552 | 104 | 132 | Y315m-4 | 592 | 9864 | 107 | 132 | Y315m-4 |
| 1 | 498 | 8306 | 180 | 250 | Y355m-4 | 542 | 9033 | 196 | 250 | Y355m-4 | 567 | 9448 | 207 | 250 | Y355m-4 | |
| 1.5 | 511 | 8514 | 279 | 315 | Y3551-4 | 548 | 9137 | 300 | 315 | Y3551-4 | ||||||
| 110x4-40 | 0.5 | 82 | 1366 | 17.4 | 22 | Y1801-4 | 82.2 | 1370 | 19.8 | 30 | Y2001-4 | 82.4 | 1373 | 23.3 | 30 | Y2001-4 |
| 1 | 80.7 | 1341 | 34.9 | 45 | Y225m-4 | 81.2 | 1353 | 39.5 | 55 | Y250m-4 | 81.6 | 1361 | 46.5 | 75 | Y280s-4 | |
| 1.5 | 79.4 | 1324 | 52.3 | 75 | Y280s-4 | 80.2 | 1337 | 59.3 | 75 | Y280s-4 | 80.8 | 1348 | 69.8 | 90 | Y280m-4 | |
| 2 | 78.2 | 1303 | 69.7 | 90 | Y280m-4 | 79.2 | 1327 | 79 | 110 | Y315s-4 | 80.2 | 1336 | 93.2 | 110 | Y315s-4 | |
| 2.5 | 76.3 | 1271 | 87.2 | 110 | Y315s-4 | 77.8 | 1296 | 98.8 | 132 | Y315m-4 | 79.1 | 1318 | 116 | 160 | Y31511-4 | |
| 120x4-36 | 0.5 | 91.7 | 1523 | 19.8 | 30 | Y2001-4 | 92.3 | 1538 | 22.5 | 30 | Y2001-4 | 92.8 | 1546 | 26.4 | 37 | Y225s-4 |
| 1 | 90.4 | 1507 | 39.6 | 55 | Y250m-4 | 91.3 | 1521 | 44.9 | 55 | Y250m-4 | 92 | 1534 | 52.9 | 75 | Y280s-4 | |
| 1.5 | 89.2 | 1491 | 59.4 | 75 | Y280s-4 | 90.3 | 1205 | 67.3 | 90 | Y280s-4 | 91.3 | 1521 | 79.3 | 110 | Y315s-4 | |
| 2 | 87.9 | 1460 | 79.2 | 110 | Y315s-4 | 89.3 | 1489 | 89.8 | 110 | Y315s-4 | 90.6 | 1509 | 106 | 132 | Y315m-4 | |
| 2.5 | 86 | 1433 | 99 | 132 | Y315m-4 | 97.8 | 1464 | 112 | 132 | Y315m-4 | 89.5 | 1491 | 132 | 160 | Y31511-4 | |
| 130x4-36 | 0.5 | 116 | 1916 | 25.2 | 37 | Y225s-4 | 116 | 1936 | 28.5 | 37 | Y225s-4 | 117 | 1955 | 33.6 | 45 | Y225m-4 |
| 1 | 113 | 1876 | 50.4 | 75 | Y280s-4 | 115 | 1916 | 57.1 | 75 | Y280s-4 | 116 | 1936 | 67.2 | 90 | Y280m-4 | |
| 1.5 | 110 | 1836 | 75.6 | 90 | Y280m-4 | 113 | 1877 | 85.6 | 110 | Y315s-4 | 114 | 1916 | 101 | 132 | Y315m-4 | |
| 2 | 108 | 1800 | 101 | 132 | Y315m-4 | 111 | 1836 | 114 | 132 | Y315m-4 | 113 | 1876 | 134 | 160 | Y315|1-4 | |
| 2.5 | 105 | 1737 | 126 | 160 | Y315l1-4 | 108 | 1801 | 143 | 200 | Y315|2-4 | 111 | 1856 | 168 | 200 | Y315|2-4 | |
| 130x3-40 | 0.5 | 131 | 2190 | 28.8 | 37 | Y225s-4 | 132 | 2213 | 32.6 | 45 | Y225m-4 | 134 | 2236 | 38.4 | 55 | Y250m-4 |
| 1 | 127 | 2121 | 57.6 | 75 | Y280s-4 | 129 | 2167 | 65.2 | 90 | Y280m-4 | 131 | 2189 | 76.8 | 90 | Y280m-4 | |
| 1.5 | 122 | 2030 | 86.3 | 110 | Y315s-4 | 126 | 2096 | 97.8 | 132 | Y315m-4 | 129 | 2143 | 115 | 160 | Y315|1-4 | |
| s200×3-27 | 0.5 | 598 | 9967 | 131 | 160 | Y315l1-4 | 604 | 10071 | 148 | 200 | Y315|2-4 | 611 | 10175 | 175 | 250 | Y355m-4 |
| 1 | 586 | 9760 | 262 | 315 | Y3551-4 | 592 | 9864 | 297 | 315 | Y3551-4 | 604 | 10071 | 350 | 400 | ||
| 1.5 | 573 | 9552 | 393 | 400 | ★ | 586 | 9760 | 445 | 500 | ★ | 592 | 9864 | 524 | ★ | ★ | |
备注：如果您需要其他转数的性能参数请直接联系我公司技术人员免费索取，谢谢！
3G35、3GR35、3GBW35(LQ3G35)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||
| ad | I | l1 | I2 | b | b2 | b2 | h | ||
| 35x4-46 35x3-52 | Y90s | 155 | 320 | 430 | 680 | 355 | 315 | 315 | 205 |
| Y901 | 345 | ||||||||
| Y1001 | 180 | 390 | 415 | 705 | |||||
| Y112m | 190 | 410 | |||||||
| Y132s | 210 | 485 | 485 | 800 | 380 | 340 | 340 | 217 | |
| Y132m | 525 | ||||||||
| Y160m | 255 | 610 | 580 | 925 | 430 | 300 | 390 | 245 | |
3G42、3GR42、3GBW42(LQ3G42)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||||||
| ad | l1 | I2 | 13 | 14 | 15 | b1 | b2 | b3 | h1 | h2 | n-d | ||
| 42x4a | y112m | 190 | 720 | 420 | 150 | 50 | 155 | 410 | 350 | 270 | 190 | 35 | 4-425 |
| y132s | 210 | 765 | 460 | 150 | 50 | 155 | 450 | 390 | 270 | 202 | 35 | 4-425 | |
| y160m | 255 | 890 | 590 | 150 | 50 | 155 | 480 | 420 | 270 | 230 | 35 | 4-425 | |
3G50、3GR50、3GBW50(LQ3G50)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||||||
| ad | l1 | I2 | 13 | 14 | 15 | b1 | b2 | b3 | h1 | h2 | n-d | ||
| 50x2 | Y1001 | 180 | 700 | 400 | 150 | 24 | 95 | 335 | 275 | 275 | 202 | 35 | 4-425 |
| Y132s | 210 | 750 | 450 | 150 | 24 | 95 | 435 | 385 | 275 | 202 | 35 | 4-425 | |
| Y160m | 255 | 875 | 575 | 150 | 24 | 95 | 485 | 425 | 275 | 230 | 35 | 4-425 | |
3G45、3GR45、3GBW45(LQ3G45)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||
| ad | I | l1 | I2 | b | b1 | b2 | h | ||
| 45x4-36 45x3-46 45x2-52 | Y901 | 155 | 345 | 430 | 680 | 355 | 315 | 315 | 205 |
| Y1001 | 180 | 390 | 415 | 705 | |||||
| Y112m | 190 | 410 | |||||||
| Y132s | 210 | 485 | 485 | 800 | 380 | 340 | 340 | 217 | |
| Y132m | 525 | ||||||||
| Y160m | 255 | 610 | 580 | 925 | 430 | 300 | 390 | 245 | |
| Y1601 | 655 | ||||||||
3G50、3GR50、3GBW50(LQ3G50)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||
| ad | I | l1 | I2 | b | b1 | b2 | h | ||
| 50x3-44 50×3-46 50×3-52 | Y1001 | 180 | 390 | 415 | 705 | 355 | 315 | 315 | 205 |
| Y112m | 410 | ||||||||
| Y132s | 190 | 485 | 485 | 800 | 380 | 340 | 340 | 217 | |
| Y132m | 210 | 525 | |||||||
| Y160m | 255 | 610 | 580 | 925 | 430 | 300 | 390 | 245 | |
| Y1601 | 655 | ||||||||
3G70、3GR70、3GBW70(LQ3G70)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||||||
| ad | I1 | I2 | 13 | 14 | 15 | b1 | b2 | b3 | h1 | h2 | n-d | ||
| 70x2 | Y132m | 210 | 940 | 630 | 160 | 65 | 140 | 435 | 375 | 375 | 260 | 35 | 4-425 |
| Y160m | 255 | 1060 | 700 | 160 | 65 | 140 | 480 | 420 | 335 | 260 | 35 | 4-425 | |
| Y1601 | 255 | 1060 | 700 | 160 | 65 | 140 | 480 | 420 | 335 | 260 | 35 | 4-425 | |
3G70、3GR70、3GBW70(LQ3G70)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||||||
| ad | l1 | I2 | 13 | 14 | 15 | b1 | b2 | b3 | h1 | h2 | n-d | ||
| 70x4 | Y1601 | 255 | 1170 | 800 | 180 | 115 | 240 | 480 | 420 | 365 | 280 | 35 | 4-425 |
| Y180m | 285 | 1220 | 820 | 180 | 115 | 240 | 510 | 450 | 365 | 280 | 35 | 4-425 | |
| Y1801 | 285 | 1220 | 820 | 180 | 115 | 240 | 510 | 450 | 365 | 280 | 35 | 4-425 | |
| Y2001 | 310 | 1250 | 860 | 180 | 115 | 240 | 550 | 490 | 365 | 280 | 40 | 4-425 | |
3G80、3GR80、3GBW80(LQ3G80)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | ||||||||||||||
| ad | I | l1 | I2 | 13 | 14 | b | b1 | d1 | d2 | d3 | d4 | d5 | d6 | h | ||
| 80×3-27 80×3-36 80x2-40 | Y132s | 210 | 485 | 625 | 930 | 525 | 120 | 435 | 375 | C100 | C180 | C220 | C65 | C145 | C185 | 240 |
| Y132m | 525 | |||||||||||||||
| Y160m | 255 | 610 | 750 | 1050 | 485 | 425 | ||||||||||
| Y180m | 280 | 680 | 1080 | 495 | 435 | |||||||||||
| 80×2-46 80x2-52 80×2-46 | Y132m | 210 | 525 | 625 | 930 | 592 | 165 | 435 | 375 | C125 | C210 | 250 | C80 | C160 | C200 | 240 |
| Y160m | 255 | 610 | 750 | 1050 | 485 | 425 | ||||||||||
| Y1601 | 655 | |||||||||||||||
| Y180m | 285 | 680 | 1080 | 495 | 435 | |||||||||||
| Y1801 | 720 | |||||||||||||||
3G85、3GR85、3GBW85(LQ3G85)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||||||
| ad | I1 | I2 | 13 | 14 | 15 | b1 | b2 | b3 | h1 | h2 | n-d | ||
| 85x2 | Y1601 | 255 | 1130 | 700 | 220 | 70 | 165 | 485 | 430 | 380 | 290 | 35 | 4-425 |
| Y1801 | 285 | 1190 | 750 | 220 | 70 | 165 | 535 | 460 | 380 | 290 | 35 | 4-425 | |
3G85、3GR85、3GBW85(LQ3G85)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | ||||||||
| ad | I | I1 | I2 | b | b1 | b2 | h | V | ||
| 85x3-46 85x3-49 85x3-52 90×2-46 90×2-49 90x×2-52 | y160m | 255 | 610 | 800 | 1240 | 540 | 450 | 480 | 300 | 13.5 |
| y1601 | 655 | |||||||||
| y180m | 285 | 680 | ||||||||
| y1801 | 720 | |||||||||
| y2001 | 310 | 785 | ||||||||
| y225s | 345 | 830 | 940 | 1424 | 710 | 480 | 650 | 390 | 5 | |
| y225m | 855 | |||||||||
3G100、3GR100、3GBW100(LQ3G100)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | ||||||||
| ad | I | l1 | I2 | b1 | b2 | b3 | h | V | ||
| 100x3-40 100x3-44 100x3-46 100x3-52 | y160m | 255 | 610 | 800 | 1240 | 450 | 480 | 540 | 300 | 13.5 |
| y1601 | 655 | |||||||||
| y180m | 285 | 680 | ||||||||
| y1801 | 720 | |||||||||
| y2001 | 310 | 785 | ||||||||
| y225s | 345 | 830 | 940 | 1424 | 480 | 650 | 710 | 390 | 5 | |
| y225m | 855 | |||||||||
| y250m | 385 | 940 | ||||||||
| y280s | 410 | 1010 | ||||||||
3G110、3GR110、3GBW110(LQ3G110)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||||||
| ad | I1 | I2 | 13 | 14 | 15 | b1 | b2 | b3 | h1 | h2 | n-d | ||
| 110x2 | y2001 | 310 | 1350 | 850 | 250 | 75 | 205 | 610 | 540 | 540 | 335 | 40 | 4-425 |
| y225m | 345 | 1405 | 905 | 250 | 75 | 205 | 610 | 540 | 540 | 340 | 40 | 4-425 | |
3G120、3GR120、3GBW120(LQ3G120)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | ||||||||
| ad | I | l1 | I2 | b1 | b2 | b3 | h | V | ||
| 110x3-46 110x2-52 110x2-54 110x4-40 120x4-36 120x3-46 120x2-49 120x2-52 | Y1801 | 285 | 720 | 800 | 1240 | 450 | 480 | 540 | 300 | 13.5 |
| Y2001 | 310 | 785 | ||||||||
| Y225s | 345 | 830 | 940 | 1424 | 480 | 650 | 710 | 390 | 5 | |
| Y225m | 855 | |||||||||
| Y250m | 385 | 940 | ||||||||
| Y280s | 410 | 1010 | ||||||||
3G130、3GR130、3GBW130(LQ3G130)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | |||||||
| ad | I | l1 | I2 | b1 | b2 | b3 | h | ||
| 130x3-36 130x3-40 130x3-44 130x2-46 140x3-46 140x2-49 140x2-52 | Y200 | 310 | 1683 | 1000 | 1520 | 500 | 670 | 730 | 345 |
| Y225s | 345 | 1728 | |||||||
| Y225m | 1758 | ||||||||
| Y250m | 385 | 1823 | 370 | ||||||
| Y280s | 410 | 1898 | 400 | ||||||
| Y280m | 1948 | ||||||||
| Y315s | 530 | 2183 | 1000 | 1662 | 500 | 670 | 730 | 435 | |
| Y315m | 2213 | ||||||||
3G150、3GR150、3GBW150(LQ3G150)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | ||||||||
| ad | I | I1 | I2 | 13 | b1 | b2 | b3 | h | ||
| 150x3-46 160x3-46 | Y250m | 385 | 2005 | 695 | 555 | 1870 | 700 | 900 | 960 | 400 |
| Y280s | 410 | 2075 | ||||||||
| Y280m | 2125 | |||||||||
| Y315s | 530 | 2275 | 695 | 555 | 1870 | 700 | 900 | 960 | 435 | |
| Y315m1 | 2325 | |||||||||
| Y315m2 | ||||||||||
| Y315m3 | ||||||||||
| Y355m1 | 655 | 2605 | 700 | 600 | 2200 | 700 | 900 | 960 | 475 | |
3G180、3GR180、3GBW180(LQ3G180)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | ||||||||
| ad | I | l1 | I2 | 13 | b1 | b2 | b3 | h | ||
| 180x3-40 180x3-44 200x3-36 200x3-40 | Y280m | 410 | 2180 | 700 | 600 | 2000 | 700 | 900 | 960 | 435 |
| Y315s | 530 | 2330 | ||||||||
| Y315m1 | 530 | 2380 | ||||||||
| Y315m2 | ||||||||||
| Y315m3 | ||||||||||
| Y315m1 | 655 | 2660 | 700 | 600 | 2200 | 700 | 900 | 960 | 475 | |
| Y315m2 | ||||||||||
| Y3551 | ||||||||||
3G200、3GR200、3GBW200(LQ3G200)保温沥青螺杆泵外形尺寸图及尺寸表
| 泵规格 | 机座号 | 外形安装尺寸(mm) | ||||||||
| ad | I | I1 | I2 | 13 | b1 | b2 | b3 | h | ||
| 200x3-27 | Y315m | 530 | 2540 | 700 | 600 | 2000 | 700 | 900 | 960 | 475 |
| Y355m | 655 | 2770 | 700 | 600 | 2200 | 700 | 900 | 960 | ||
| Y3551 | ||||||||||
- 全国销售热线：
+86 21 5640 2009 - 水泵客服电话：
+86 138 1691 3072 - 阀门客服电话：
+86 1381 6913 072 - 企业电子邮箱：
my1pv@1bengfa.com
COPYRIGHT © 上海美言壹泵阀有限公司 主营：水泵、阀门
沪ICP备09010762号
