GWP不锈钢管道排污泵
- 品牌：壹泵阀
- 型号：GWP
- 压力/扬程：7-60m
- 工作温度：0℃～80℃
- 连接方式：法兰、固定安装
- 产品名称：GWP不锈钢管道排污泵
- 通径/流量：DN25-DN400
- 材质：不锈钢
- 驱动方式：电动
- 适用范围：水、污水
- 产品概述
- 性能参数
- 尺寸重量
GWP不锈钢管道排污泵
GWP不锈钢管道排污泵，（简称：GWP排污泵），具有以下特点：
1. 泵为立式单吸单级离心排污泵，进出口中心线在同一水平线上，进出口法兰相同，故安装拆卸十分方便，占地面积小，可像阀门一样安装在管路的任何位置上。
2. 泵与电机直联同轴，属机电一体化产品，结构紧凑，性能稳定。
3. 采用大流道抗堵塞水力部件设计，大大提高污物通过能力，能有效地通过泵口径的5倍纤维物质和直径为泵口径约50%d 固体颗粒。
4. 设计合理，配套电机合理，效率高，节能效果显著。
5. 机械密封采用硬质耐磨碳化钨，具有耐用、耐磨等特点，可以使泵安全连续运行8000小时以上。
6. 水力性能先进，整机效率高，运转噪音低。
7. 在电机风叶端加上防护罩，整机可置于室外工作，无需机房，可节省大量基建费用。
8. 在使用扬程范围内使用，保证电机无过载。
GWP不锈钢管道排污泵性能参数表
| 序号 | 型号 | 口径 | 流量 | 扬程 | 转速 | 功率 | 效率 | 使用扬程范围 |
| Type | mm | m3h | m | r/min | KW | % | ||
| 1 | 25GWP8-22-1.1 | 25 | 8 | 22 | 2825 | 1.1 | 38.5 | 10-22 |
| 2 | 32GWP12-15-1.1 | 32 | 12 | 15 | 2825 | 1.1 | 40 | 8-15 |
| 3 | 40GWP15-15-1.5 | 40 | 15 | 15 | 2840 | 1.5 | 45.1 | 6-15 |
| 4 | 40GWP15-30-2.2 | 40 | 15 | 30 | 2840 | 2.2 | 48 | 15-30 |
| 5 | 50GWP20-7-0.75 | 50 | 20 | 7 | 1390 | 0.75 | 54 | 3-7 |
| 6 | 50GWP10-10-0.75 | 50 | 10 | 10 | 1390 | 0.75 | 56 | 4-10 |
| 7 | 50GWP20-15-1.5 | 50 | 20 | 15 | 2840 | 1.5 | 55 | 6-15 |
| 8 | 50GWP15-25-2.2 | 50 | 15 | 25 | 2840 | 2.2 | 56 | 10-25 |
| 9 | 50GWP18-30-3 | 50 | 18 | 30 | 2880 | 3 | 58 | 15-30 |
| 10 | 50GWP25-32-5.5 | 50 | 25 | 32 | 2900 | 5.5 | 53 | 17-32 |
| 11 | 50GWP20-40-7.5 | 50 | 20 | 40 | 2900 | 7.5 | 55 | 20-40 |
| 12 | 65GWP25-15-2.2 | 65 | 25 | 15 | 2840 | 2.2 | 52 | 6-15 |
| 13 | 65GWP37-13-3 | 65 | 37 | 13 | 2880 | 3 | 55 | 6-13 |
| 14 | 65GWP25-30-4 | 65 | 25 | 30 | 2890 | 4 | 58 | 15-30 |
| 15 | 65GWP30-40-7.5 | 65 | 30 | 40 | 2900 | 7.5 | 56 | 20-40 |
| 16 | 65GWP35-50-11 | 65 | 35 | 50 | 2930 | 11 | 60 | 35-50 |
| 17 | 65GWP35-60-15 | 65 | 35 | 60 | 2930 | 15 | 63 | 40-60 |
| 18 | 80GWP40-7-2.2 | 80 | 40 | 7 | 1420 | 2.2 | 52 | 3-7 |
| 19 | 80GWP43-13-3 | 80 | 43 | 13 | 2880 | 3 | 50 | 5-13 |
| 20 | 80GWP40-15-4 | 80 | 40 | 15 | 2890 | 4 | 57 | 6-15 |
| 21 | 80GWP65-25-7.5 | 80 | 65 | 25 | 2900 | 7.5 | 56 | 12-25 |
| 22 | 100GWP80-10-4 | 100 | 80 | 10 | 1440 | 4 | 62 | 4-10 |
| 23 | 100GWP110-10-5.5 | 100 | 110 | 10 | 1440 | 5.5 | 66 | 5-10 |
| 24 | 100GWP100-15-7.5 | 100 | 100 | 15 | 1440 | 7.5 | 67 | 8-15 |
| 25 | 100GWP85-20-7.5 | 100 | 85 | 20 | 1440 | 7.5 | 68 | 10-20 |
| 26 | 100GWP100-25-11 | 100 | 100 | 25 | 1460 | 11 | 65 | 10-25 |
| 27 | 100GWP100-30-15 | 100 | 100 | 30 | 1460 | 15 | 66 | 12-30 |
| 28 | 100GWP100-35-18.5 | 100 | 100 | 35 | 1470 | 18.5 | 65 | 15-35 |
| 29 | 125GWP130-15-11 | 125 | 130 | 15 | 1460 | 11 | 62 | 7-15 |
| 30 | 125GWP130-20-15 | 125 | 130 | 20 | 1460 | 15 | 63 | 10-20 |
| 31 | 150GWP145-9-7.5 | 150 | 145 | 9 | 1440 | 7.5 | 63 | 4-9 |
| 32 | 150GWP180-15-15 | 150 | 180 | 15 | 1460 | 15 | 65 | 5-15 |
| 33 | 150GWP180-20-18.5 | 150 | 180 | 20 | 1470 | 18.5 | 75 | 8-20 |
| 34 | 150GWP180-25-22 | 150 | 180 | 25 | 1470 | 22 | 76 | 12-25 |
| 35 | 150GWP130-30-22 | 150 | 130 | 30 | 1470 | 22 | 75 | 15-30 |
| 36 | 150GWP180-30-30 | 150 | 180 | 30 | 1470 | 30 | 73 | 15-30 |
| 37 | 150GWP200-30-34 | 150 | 200 | 30 | 1480 | 37 | 70 | 13-30 |
| 38 | 200GWP300-7-11 | 200 | 300 | 7 | 970 | 11 | 73 | 3-7 |
| 39 | 200GWP250-11-15 | 200 | 250 | 11 | 970 | 15 | 74 | 4-11 |
| 40 | 200GWP400-10-22 | 200 | 400 | 10 | 1470 | 22 | 76 | 5-10 |
| 41 | 200GWP400-13-30 | 200 | 400 | 13 | 1470 | 30 | 73 | 6-13 |
| 42 | 200GWP250-15-18.5 | 200 | 250 | 15 | 1470 | 18.5 | 72 | 7-15 |
| 43 | 200GWP300-15-22 | 200 | 300 | 15 | 1470 | 22 | 73 | 8-15 |
| 44 | 200GWP250-22-30 | 200 | 250 | 22 | 1470 | 30 | 71 | 12-22 |
| 45 | 200GWP350-25-37 | 200 | 350 | 25 | 1980 | 37 | 75 | 10-25 |
| 46 | 200GWP400-30-45 | 200 | 400 | 30 | 1480 | 45 | 70 | 13-30 |
| 47 | 250GW600-9-30 | 250 | 600 | 9 | 980 | 30 | 74 | 3-9 |
| 48 | 250GWP600-12-37 | 250 | 600 | 12 | 1480 | 37 | 78 | 5-12 |
| 49 | 250GWP600-15-45 | 250 | 600 | 15 | 1480 | 45 | 75 | 6-15 |
| 50 | 250GWP600-20-55 | 250 | 600 | 20 | 1480 | 55 | 73 | 8-20 |
| 51 | 250GWP600-25-75 | 250 | 600 | 25 | 1480 | 75 | 73 | 12-25 |
| 52 | 250GWP800-12-45 | 250 | 800 | 12 | 980 | 45 | 76 | 5-12 |
| 53 | 300GWP500-15-45 | 300 | 500 | 15 | 980 | 45 | 70 | 7-15 |
| 54 | 300GWP800-15-55 | 300 | 800 | 15 | 980 | 55 | 73 | 8-15 |
| 55 | 300GWP600-20-55 | 300 | 600 | 20 | 980 | 55 | 75 | 10-20 |
| 56 | 300GWP800-20-75 | 300 | 800 | 20 | 980 | 75 | 78 | 12-20 |
| 57 | 300GWP950-20-90 | 300 | 950 | 20 | 980 | 90 | 80 | 11-20 |
| 58 | 300GWP1000-25-110 | 300 | 1000 | 25 | 980 | 110 | 82 | 12-25 |
| 59 | 350GWP1100-10-55 | 350 | 1100 | 10 | 980 | 55 | 84.5 | 4-10 |
| 60 | 350GWP1500-15-90 | 350 | 1500 | 5 | 980 | 90 | 82.5 | 6-15 |
| 61 | 350GWP1200-18-90 | 350 | 1200 | 18 | 980 | 90 | 83.1 | 8-18 |
| 62 | 350GWP1100-28-132 | 350 | 1100 | 28 | 740 | 132 | 83.2 | 15-25 |
| 63 | 350GWP1000-36-160 | 350 | 1000 | 36 | 740 | 160 | 78.5 | 20-36 |
| 64 | 400GWP1500-10-75 | 400 | 1500 | 10 | 980 | 75 | 82.1 | 3-10 |
| 65 | 400GWP2000-15-132 | 400 | 2000 | 15 | 740 | 132 | 85.5 | 6-15 |
| 66 | 400GWP1700-22-160 | 400 | 1700 | 22 | 740 | 160 | 82.1 | 10-22 |
| 67 | 400GWP1500-26-160 | 400 | 1500 | 26 | 740 | 160 | 83.5 | 12-26 |
| 68 | 400GWP1700-30-200 | 400 | 1700 | 30 | 740 | 200 | 83.5 | 15-30 |
| 69 | 400GWP1800-32-250 | 400 | 1800 | 32 | 740 | 250 | 82.1 | 17-32 |
GWP不锈钢管道排污泵结构说明
GWP不锈钢管道排污泵系进出口在同一水平线上，且规格相同，立式结构，占地面积小，电机与泵同轴，设有安装底盘，便于安装稳固，叶轮采用单（双）流道，具有良好的通过性能。

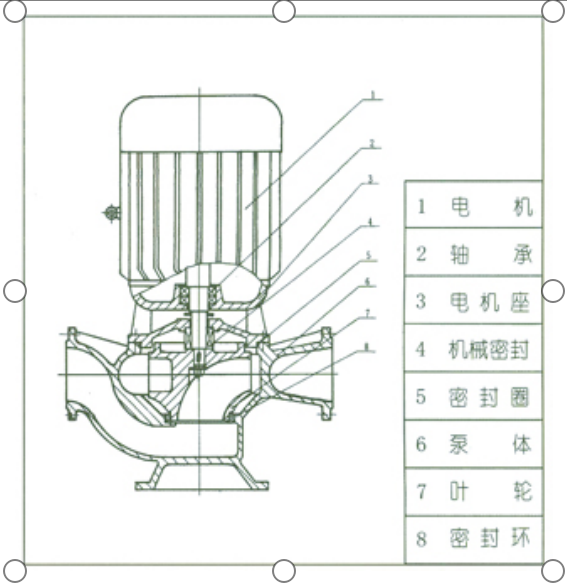

GWP不锈钢管道排污泵结构图
说明：1.电机、2.轴承、3.电机座、4.机械密封、5.密封圈、6.泵体、7.叶轮、8.密封环
