CIS、CIR船用卧式离心泵
- 品牌：壹泵阀
- 型号：CIS、CIR
- 压力/扬程：4~125米
- 工作温度：0℃～80℃
- 连接方式：法兰
- 产品名称：CIS、CIR船用卧式离心泵
- 通径/流量：3.25~460吨、每小时
- 材质：铸铁
- 驱动方式：电动
- 适用范围：适用于清水、热水、海水等介质。
- 产品概述
- 性能参数

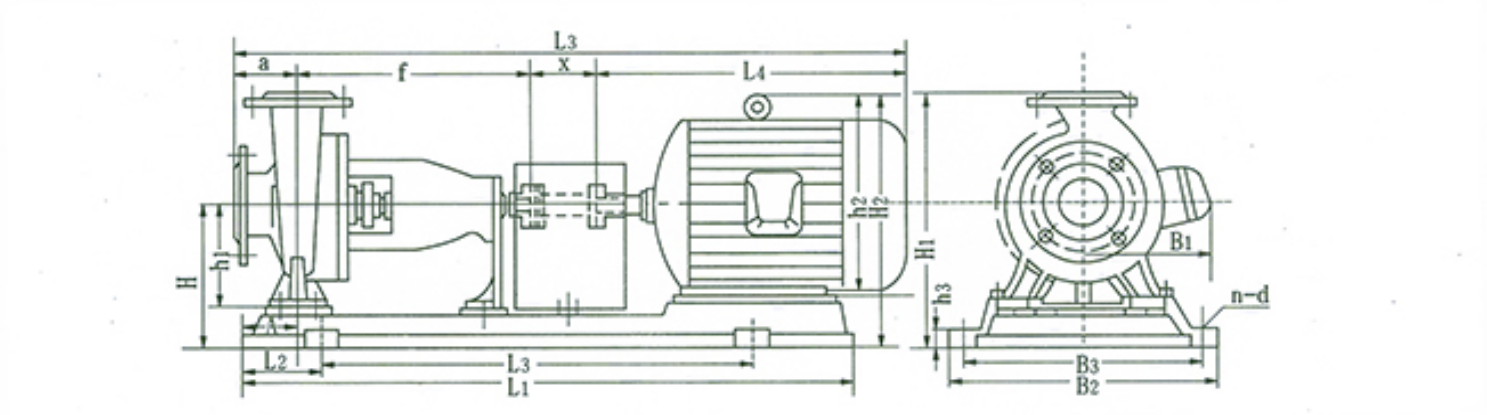

- 尺寸重量
CIS、CIR船用卧式离心泵
CIS、CIR船用卧式离心泵用途及特点
CIS、CIR型是卧式、单级、单吸、船用离心泵，它适用于船舶上压载、消防、舱底、冷却、生活用水等供水系统。适用介质为海水和清水。CIS船用清水离心泵、SIR船用热水泵系根据国际标准ISO2858所规定的性能和尺寸设计，其技术标准均想国际标准靠拢，达到国际先进水平。它曾是我国推广的节能泵类产品之一。本泵结构简单，性能可靠，体积小，重量轻，抗气蚀性能好，电耗低，使用维修方便。CIS、CIR型泵通用性广，全系列共140种规格，但只用四种轴规格；同一规格的轴，轴承，轴封，叶轮紧固件等均能互换；全系列泵的悬架也只有四种规格。本泵为后开式，拆开泵盖和叶轮时不需拆卸吸水和排出管路。悬架内装有两个滚珠轴承，用机器油或润滑脂润滑。泵通过弹性联轴器由电动机直接驱动。涡室、脚、进水法兰和出水法兰铸成一个整体。

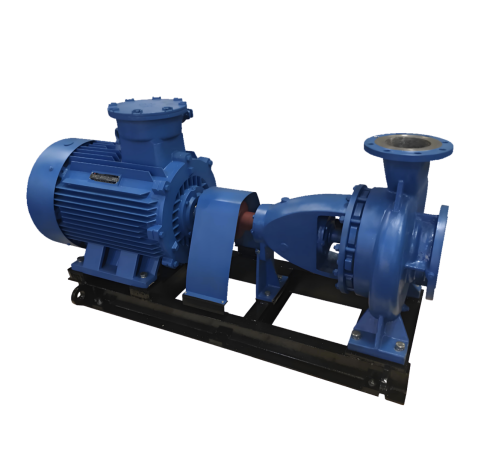

CIS、CIR船用卧式离心泵产品图
泵转速分为2900和1450转/分两种。
性能如下： 2900转/分 1450转/分
最大流量： 240米3/分 400米3/分
最高总扬程： 125米 55米
最高转速： 3500转/分（用于60调波电源时，叶轮直径有所减少）
最高工作温度： 80℃
允许吸入管路压力0.3Mpa，泵的最高使用压力1.6Mpa。
CIS、CIR船用卧式离心泵结构说明
CIS、CIR型泵系根据国家标准ISO2858所规定的性能和尺寸设计的，主要由泵体（1）、泵盖（2）、叶轮（3）、轴（4）、密封环（5）、轴套（8）及悬架轴承部件（12）等所组成。
CIS、CIR型泵的泵体和泵盖的部分，是从叶轮背面处剖分的，即通常所说的后开门结构形式。其优点是检修方便，检修时不动泵体，吸入管路，排出管路和电动机，只需拆下加长联轴器的中间联接件，即可退出转子部件，进行检修。
泵的壳体（即泵体和泵盖）构成泵的工作室、叶轮、轴和滚动轴承等为泵的转子。悬架轴承部件支承着泵的转子部件，滚动轴承承受泵的径向力和轴向力。
为了平衡泵的轴向力，大多数泵的叶轮前、后均设有密封环，并在叶轮后盖板上设有平衡孔，由于有些泵轴向力不大，叶轮背面未设密封环和平衡孔。
泵的轴向密封环是由填料压盖（9），填料环（10），和填料（11）等组成，以防止进气或大量漏水。泵的叶轮如有平衡，则装有软填料的空腔与叶轮吸入口相通，若叶轮入口处液体处于真空状态，则很容易沿着轴套表面进气，故在填料腔内装有填料环通过泵盖上的小孔将泵室内压力水引至填料环进行密封。泵的叶轮如没有平衡孔，由于叶轮背面液体压力大于大气压，因而不存在漏气问题，故可不装填料环。
为避免轴磨损，在轴通过填料腔的部位装有轴套保护，轴套与轴之间装有○型密封圈，以防止沿着配合表面进气或漏水。
泵的传动方式是通过加长弹性联轴器与电动机联结的。泵的旋转方向，从驱动端看，为顺时针方向转。

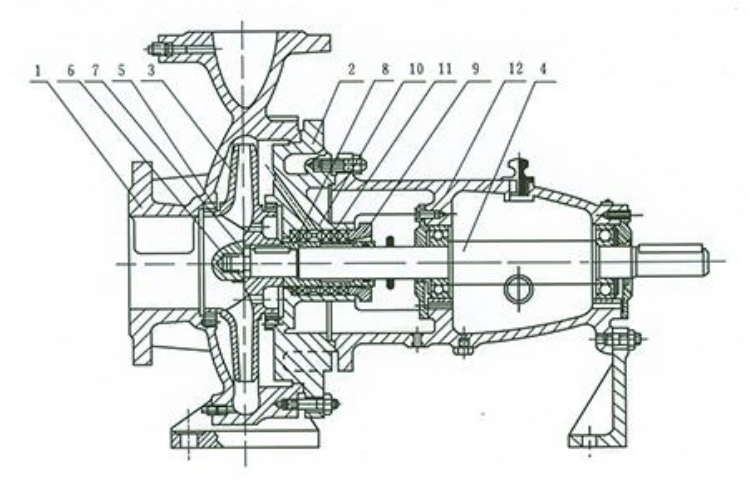

CIS、CIR船用卧式离心泵结构图零部件名称
| 1 | 泵体 |
| 2 | 泵盖 |
| 3 | 叶轮 |
| 4 | 轴 |
| 5 | 密封环 |
| 6 | 叶轮螺母 |
| 7 | 止动垫圈 |
| 8 | 轴套 |
| 9 | 填料压盖 |
| 10 | 填料环 |
| 11 | 填料 |
| 12 | 悬架轴承部件 |

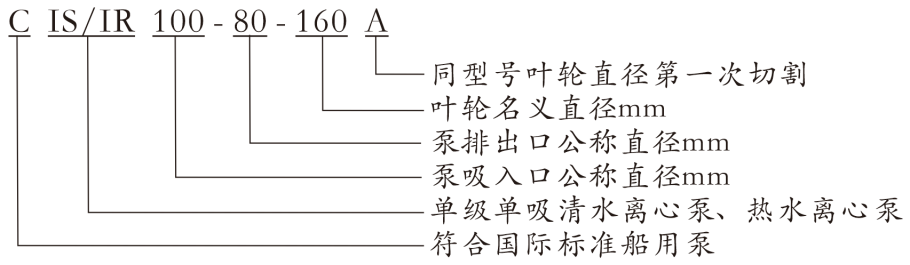

CIS、CIR船用卧式离心泵型号意义
CIS、CIR船用卧式离心泵故障原因及其解决方法
| 故障 | 原因 | 解决方法 |
| 1、水泵不吸水，压力表及真空表的指针在剧烈摆动。 | 注入水泵的水不够，水管或仪表漏气。 | 再往水泵内注入或拧紧堵塞漏气处。 |
| 2、水泵不吸水，真空表表示高度真空。 | 底阀没有打开，或已淤塞吸水管阻力太大，吸水管高太大。 | 校正或更改底阀，清洗或更改泵水管，减低吸水高度。 |
| 3、看压力表水泵出水处是有压力，然而水管仍不出水。 | 出水管阻力太大，旋转方向不对，叶轮淤塞。 | 检查或缩短水管及检查电机取下水管接头，清洗叶轮。 |
| 4、流量低于预计。 | 水泵淤塞，口环磨损过多。 | 清洗水泵及管子，更换口环。 |
| 5、水泵耗费的功率过大。 | 填料函压的太紧了，填料函发热，因磨损叶轮坏了，水泵供水量增加。 | 拧紧填料函，或将填料取出来打方一些，更换叶轮，增加出水管阻力，来降低流量。 |
| 6、水泵内部声音反常水泵不上水。 | 流量太大，吸水管内阻力过大，吸水高度过大，在吸水处有空气渗入，所输送的液体温度过高。 | 增加出水管内的阻力以减低流量，检查泵吸入管内阻力，检查底阀减小吸水高度。拧紧堵塞漏气处，降低液体温度。 |
| 7、轴承过热。 | 没有油，水泵轴与电机轴不在一条中心线上。 | 注油，把轴中心对准。 |
| 8、水泵振动。 | 泵轴与电机轴不在一条中心线上或泵会走斜了。 | 把水泵和电机的轴中心线对准。 |
CIS、CIR系列船用卧式离心泵型号及性能参数表
| 型 号 | 转速n（r/min） | 流量Q | 扬程H（m） | 效率η（%） | 功率（KW） | 必需气蚀余量r（m） | 叶轮名义直径（mm） | 可代替老 产品型号 | ||
| （m3/h） | （L/S） | 轴功率 | 电机功率 | |||||||
| CIS/CIR50-32-125 | 2900 | 7.512.515 | 2.083.474.17 | 20 | 60 | 1.13 | 2.2 | 2.0 | 130 | 12(1)BA-612(1)B-17 |
| 1450 | 3.756.37.5 | 1.041.742.08 | 5 | 54 | 0.16 | 0.55 | 2.0 | |||
| CIS/CIR50-32-125A | 2900 | 6.7211.213.4 | 1.863.113.74 | 16 | 60 | 0.81 | 1.1 | 116.5 | 12(1)BA-6A | |
| 1450 | 3.365.66.7 | 0.931.561.86 | 4 | 54 | 0.04 | 0.22 | 12(1)B-17A | |||
| CIS/CIR50-32-160 | 2900 | 7.512.515 | 2.083.474.17 | 32 | 54 | 2.02 | 3 | 2.0 | 158 | |
| 1450 | 3.756.37.5 | 1.041.742.08 | 8 | 48 | 0.29 | 0.55 | 2.0 | 2DA-8×4 | ||
| CIS/CIR50-32-160A | 2900 | 7.0211.714 | 1.953.253.9 | 28 | 2.2 | 148 | 2DA-8×3 | |||
| 1450 | 3.515.07.02 | 0.971.641.95 | 7 | 48 | 0.23 | 0.40 | 2.0 | |||
| CIS/CIR50-32-160B | 2900 | 6.510.813 | 1.813.013.62 | 24 | 54 | 1.32 | 1.5 | 137 | ||
| 1450 | 3.255.46.5 | 1.5 | 6 | 48 | 0.17 | 0.22 | ||||
| CIS/CIR50-32-200 | 2900 | 7.512.515 | 2.083.474.17 | 50 | 48 | 3.45 | 5.5 | 2.0 | 198 | 2DA-8×6 |
| 1450 | 3.756.37.5 | 1.041.742.08 | 12.5 | 42 | 0.51 | 0.75 | 2.0 | |||
| CIS/CIR50-32-200A | 2900 | 7.0211.714 | 1.953.253.9 | 44 | 48 | 2.91 | 4 | 2.0 | 185.5 | 2DA-8×5 |
| 1450 | 3.515.97.02 | 0.971.641.95 | 11 | 42 | 0.33 | 0.55 | 2.0 | |||
| CIS/CIR50-32-200B | 2900 | 6.5310.813.1 | 1.813.013.63 | 38 | 48 | 2.34 | 3 | 2.0 | 172.5 | 2DA |
| 1450 | 3.265.46.53 | 0.911.51.81 | 9.5 | 42 | 0.42 | 0.55 | 2.0 | |||
| CIS/CIR50-32-250 | 2900 | 7.512.5150 | 2.083.474.17 | 80 | 38 | 7.16 | 11 | 2.0 | 250 | 40D40×2 |
| 1450 | 3.756.37.5 | 1.041.742.08 | 20 | 32 | 1.07 | 1.5 | 2.0 | 2DA-8×9 | ||
| CIS/CIR50-32-250A | 2900 | 7.0211.714 | 1.953.253.9 | 70 | 38 | 5.87 | 7.5 | 2.0 | 234 | 2DA-8×8 |
| 1450 | 3.515.96.53 | 0.971.641.81 | 17.5 | 32 | 0.88 | 1.5 | 2.0 | |||
| CIS/CIR50-32-250B | 2900 | 65.310.813.1 | 1.813.013.63 | 60 | 38 | 4.65 | 5.5 | 2.0 | 216.5 | 2DA-8×7 |
| 1450 | 3.265.46.53 | 0.911.51.81 | 15 | 32 | 0.69 | 1.1 | 2.0 | |||
| CIS/CIR65-50-125 | 2900 | 152530 | 4.176.948.33 | 20 | 69 | 1.97 | 3 | 2.0 | 130 | 2BA-19 |
| 1450 | 7.512.515 | 2.083.474.17 | 5 | 64 | 0.27 | 0.55 | 2B19 | |||
| CIS/CIR65-50-125A | 2900 | 13.422.426.9 | 3.736.227.46 | 16 | 69 | 1.42 | 2.2 | 2.0 | 116.5 | 2BA-9A |
| 1450 | 6.7211.213.4 | 1.863.113.73 | 4 | 64 | 0.19 | 0.22 | 2.0 | 2B19A | ||
| CIS/CIR65-50-160 | 2900 | 152530 | 4.176.948.33 | 32 | 65 | 3.35 | 5.5 | 2.0 | 158.5 | 2BA-6 |
| 1450 | 7.512.515 | 2.083.474.17 | 8 | 60 | 0.45 | 0.75 | 2.0 | 2B31 | ||
| 65-50-160A | 2900 | 1423.428 | 3.896.56.48 | 28 | 65 | 2.73 | 4 | 2.0 | 148 | 2BA-6A |
| 1450 | 711.714 | 1.943.253.89 | 7 | 60 | 0.37 | 0.55 | 2.0 | 2B31A | ||
| CIS/CIR65-50-160B | 2900 | 1321.726 | 3.626.037.23 | 24 | 65 | 2.19 | 3 | 2.0 | 137.5 | 2BA-6B |
| 1450 | 6.510.813 | 1.83.013.62 | 6 | 60 | 0.29 | 0.40 | 2.0 | 2B31B | ||
| CIS/CIR65-40-200 | 2900 | 152530 | 4.176.948.33 | 50 | 60 | 5.67 | 7.5 | 2.0 | 200 | 50D-8×6 |
| 1450 | 7.512.515 | 2.083.474.17 | 12.5 | 55 | 0.77 | 1.1 | 2.0 | |||
| CIS/CIR65-40-200A | 2900 | 1423.428 | 3.896.56.48 | 44 | 60 | 4.67 | 5.5 | 2.0 | 187.5 | 50D-8×5 |
| 1450 | 711.714 | 1.943.253.89 | 11 | 55 | 0.63 | 0.75 | 2.0 | |||
| CIS/CIR65-40-200B | 2900 | 1321.726 | 3.626.037.23 | 38 | 60 | 3.76 | 4 | 2.0 | 174.5 | 50D-8×4 |
| 1450 | 6.510.813 | 1.83.013.62 | 9.5 | 55 | 0.51 | 0.55 | 2.0 | |||
| CIS/CIR65-40-250 | 2900 | 152530 | 4.176.948.33 | 80 | 50 | 10.89 | 15 | 2.0 | 254 | 2DA-8×9 |
| 1450 | 7.512.515 | 2.083.474.17 | 20 | 46 | 1.48 | 2.2 | 2.0 | |||
| CIS/CIR65-40-250A | 2900 | 1423.428 | 3.806.56.48 | 70 | 53 | 8.42 | 11 | 2.0 | 237.5 | 50D-8×9 |
| 1450 | 711.714 | 1.943.253.89 | 17.5 | 48 | 1.17 | 2.2 | 2.0 | |||
| CIS/CIR65-40-250B | 2900 | 13.21.726 | 3.626.037.23 | 60 | 53 | 6.7 | 7.5 | 2.0 | 220 | 50D-8×7 |
| 1450 | 6.510.813 | 1.83.013.62 | 15 | 48 | 0.9 | 1.1 | 2.0 | |||
| CIS/CIR65-40-315 | 2900 | 152530 | 4.176.948.33 | 125 | 50 | 21.3 | 30 | 2.5 | 315 | 50D-32×4 |
| 1450 | 7.512.515 | 2.083.474.17 | 32 | 37 | 2.94 | 4 | 2.5 | |||
| CIS/CIR65-40-315A | 2900 | 14.323.928.7 | 3.986.647.96 | 114 | 40 | 18.6 | 22 | 2.5 | 301 | |
| 1450 | 7.1711.914.3 | 1.993.323.98 | 28.5 | 37 | 2.57 | 4 | 2.5 | |||
| CIS/CIR65-40-315B | 2900 | 13.622.727.2 | 3.786.37.56 | 103 | 40 | 15.9 | 18.5 | 2.5 | 286 | 50D-32×3 |
| 1450 | 6.811.313.6 | 1.893.153.78 | 25.8 | 37 | 2.2 | 3 | 2.5 | |||
| CIS/CIR65-40-315C | 2900 | 12.821.452.7 | 3.575.947.14 | 92 | 40 | 11.5 | 15 | 2.5 | ||
| 1450 | 6.4310.712.8 | 1.782.973.57 | 23 | 37 | 1.85 | 2.2 | 2.5 | 270 | ||
| CIS/CIR80-65-125 | 2900 | 305060 | 8.3813.916.7 | 20 | 75 | 3.6 | 5.5 | 3.0 | 137 | 3BA-3 |
| 1450 | 152530 | 4.176.948.33 | 5 | 71 | 0.48 | 0.75 | 2.5 | 3B19 | ||
| CIS/CIR80-65-125A | 2900 | 27.344.754.5 | 7.5712.415.2 | 16 | 75 | 2.72 | 4 | 3.0 | 124.5 | 3BA-13A |
| 1450 | 13.622.427.3 | 3.796.227.57 | 4 | 71 | 0.36 | 0.55 | 2.5 | 3B19A | ||
| CIS/CIR80-65-160 | 2900 | 305060 | 8.3313.916.7 | 32 | 73 | 5.97 | 7.5 | 2.5 | 168 | 3BA-9 |
| 1450 | 152530 | 4.176.948.33 | 8 | 69 | 0.79 | 1.5 | 2.5 | 3B33 | ||
| CIS/CIR80-65-160A | 2900 | 2846.856 | 7.781315.6 | 28 | 73 | 4.87 | 5.5 | 2.5 | 157 | 3BA-9A |
| 1450 | 1423.428 | 3.96.57.78 | 7 | 69 | 0.64 | 0.75 | 2.5 | 3B33A | ||
| CIS/CIR80-65-160B | 2900 | 2643.352 | 7.211214.5 | 24 | 73 | 3.36 | 4 | 2.5 | 145.5 | 3BA-9B |
| 1450 | 1321.726 | 3.66.037.21 | 6 | 69 | 0.51 | 0.55 | 2.5 | 2B33B | ||
| CIS/CIR80-50-200 | 2900 | 305060 | 8.3313.916.7 | 50 | 69 | 9.87 | 15 | 2.5 | 202 | 3BA-6 |
| 1450 | 152530 | 4.176.948.33 | 125 | 65 | 1.31 | 2.2 | 2.5 | 3B57 | ||
| CIS/CIR80-50-200A | 2900 | 28.146.856.3 | 7.821315.7 | 44 | 69 | 8.15 | 11 | 2.5 | 189.5 | 3BA-6A |
| 1450 | 14.123.428.1 | 3.916.57.82 | 11 | 65 | 1.08 | 1.5 | 2.5 | 3B57A | ||
| CIS/CIR80-50-200B | 2900 | 26.143.352.3 | 7.621214.6 | 38 | 69 | 6.53 | 7.5 | 2.5 | 176 | 3BA-6B |
| 1450 | 13.121.726.1 | 3.636.037.26 | 9.5 | 65 | 0.87 | 1.1 | 2.5 | 3B57B | ||
| CIS/CIR80-50-250 | 2900 | 305060 | 8.3313.916.7 | 80 | 63 | 17.3 | 22 | 2.5 | 250 | 100D-16×5 |
| 1450 | 152530 | 4.176.948.33 | 20 | 60 | 2.27 | 3 | 2.5 | 4DA-8×5 | ||
| CIS/CIR80-50-250A | 2900 | 28.146.856.3 | 7.821315.7 | 70 | 63 | 14.2 | 18.5 | 2.5 | 234 | |
| 1450 | 14.123.423.1 | 3.916.57.82 | 17.5 | 60 | 1.86 | 3 | 2.5 | |||
| CIS/CIR80-50-250B | 2900 | 26.143.352.3 | 7.261214.6 | 60 | 63 | 11.2 | 15 | 2.5 | 216.5 | 100D-16×4 |
| 1450 | 13.121.726.1 | 3.636.037.26 | 15 | 60 | 1.47 | 2.2 | 2.5 | 4DA-8×4 | ||
| CIS/CIR80-50-315 | 2900 | 305060 | 8.3313.916.7 | 125 | 54 | 31.5 | 37 | 2.5 | 315 | 100D-16×8 |
| 1450 | 152530 | 4.176.948.33 | 32 | 52 | 4.19 | 5.5 | 2.5 | 4DA-8×8 | ||
| CIS/CIR80-50-315A | 2900 | 28.747.757.3 | 7.9613.315.9 | 114 | 54 | 26.3 | 30 | 2.5 | 301 | 100D-16×6 |
| 1450 | 14.323.828.7 | 3.986.627.96 | 28.5 | 52 | 3.66 | 5.5 | 2.5 | 4DA-8×6 | ||
| CIS/CIR80-50-315B | 2900 | 27.245.454.5 | 7.5612.615.2 | 103 | 54 | 23.6 | 30 | 2.5 | 286 | |
| 1450 | 13.622.727.2 | 3.796.37.56 | 25.8 | 52 | 3.14 | 5.5 | 2.5 | |||
| CIS/CIR80-50-315C | 2900 | 25.742.951.4 | 7.1411.914.3 | 92 | 54 | 17 | 22 | 2.5 | 270 | |
| 1450 | 12.921.425.7 | 3.575.947.14 | 23 | 2.63 | 4 | 2.5 | ||||
| CIS/CIR100-80-125 | 2900 | 60100120 | 16.727.833.3 | 20 | 78 | 7.0 | 11 | 4.5 | 139 | 4BA-18 |
| 1450 | 305060 | 8.3313.916.7 | 5 | 75 | 0.91 | 1.5 | 2.5 | 4B20 | ||
| CIS/CIR100-80-125A | 2900 | 53.789.4107 | 1524.829.8 | 16 | 78 | 5.03 | 7.5 | 4.5 | 124.5 | 4BA-18A |
| 1450 | 26.944.753.7 | 7.4612.415 | 4 | 75 | 0.65 | 0.75 | 2.5 | 4B20A | ||
| CIS/CIR100-80-160 | 2900 | 60100120 | 16.727.833.3 | 32 | 78 | 11.2 | 15 | 4.0 | 170 | 4BA-12 |
| 1450 | 305060 | 8.3313.916.7 | 8 | 75 | 1.45 | 2.2 | 2.5 | 4B35 | ||
| CIS/CIR100-80-160A | 2900 | 56.193.5112 | 15.62631.1 | 28 | 78 | 9.16 | 11 | 4.0 | 159 | 4BA-12A |
| 1450 | 2846.856.1 | 7.791315.6 | 7 | 75 | 1.19 | 1.5 | 2.5 | 4B35A | ||
| CIS/CIR100-80-160B | 2900 | 5083.5100 | 13.923.228 | 22.3 | 78 | 6.95 | 7.5 | 4.0 | 142 | 4BA-12B |
| 1450 | 2541.850 | 6.8611.613.9 | 5.6 | 75 | 0.85 | 1.1 | 2.5 | 4B35B | ||
| CIS/CIR100-65-200 | 2900 | 60100120 | 16.727.833.3 | 50 | 76 | 17.9 | 22 | 3.6 | 203 | 4BA-8A |
| 1450 | 305060 | 8.3313.916.7 | 12.5 | 73 | 2.33 | 4 | 2.0 | 4B60A | ||
| CIS/CIR100-65-200A | 2900 | 56.193.5112 | 15.62631.1 | 44 | 76 | 14.2 | 18.5 | 190.5 | 4BA-8B | |
| 1450 | 2846.856.1 | 7.791315.6 | 11 | 73 | 1.93 | 3 | 4B60B | |||
| CIS/CIR100-65-200B | 2900 | 52.386.610.5 | 14.624.129 | 38 | 9.94 | 15 | 177 | |||
| 1450 | 26.243.352.3 | 7.261214.6 | 9.5 | 1.54 | 2.2 | |||||
| CIS/CIR100-65-250 | 2900 | 60100120 | 16.727.833.3 | 80 | 72 | 30.3 | 37 | 3.8 | 255 | DA1-125×4 |
| 1450 | 305060 | 8.3313.916.7 | 20 | 68 | 4.0 | 5.5 | 2.0 | |||
| CIS/CIR100-65-250A | 2900 | 56.193.5112 | 15.62631.1 | 70 | 72 | 24.8 | 30 | 3.8 | 238.5 | |
| 1450 | 2846.856.1 | 7.791315.6 | 17.5 | 68 | 3.27 | 4 | 2.0 | |||
| CIS/CIR100-65-250B | 2900 | 52.386.6105 | 14.624.129 | 60 | 72 | 19.7 | 22 | 3.8 | 221 | DA1-125×3 |
| 1450 | 26.243.352.3 | 7.261214.6 | 15 | 68 | 2.6 | 3 | 2.0 | |||
| CIS/CIR100-65-315 | 2900 | 60100120 | 16.727.833.3 | 125 | 66 | 51.6 | 75 | 3.6 | 315.5 | 125D-25×5 |
| 1450 | 305060 | 8.3313.916.7 | 32 | 63 | 6.92 | 11 | 2.0 | |||
| CIS/CIR100-65-315A | 2900 | 57.395.5114 | 1626.531.8 | 114 | 66 | 45 | 55 | 3.6 | 301.5 | |
| 1450 | 28.747.757.3 | 7.9613.316 | 28.5 | 63 | 6.03 | 7.5 | 2.0 | |||
| CIS/CIR100-65-315B | 2900 | 54.590.8109 | 15.225.230.2 | 103 | 66 | 38.6 | 45 | 3.6 | 286.5 | 125D-25×4 |
| 1450 | 27.245.454.5 | 7.5612.615.2 | 25.8 | 63 | 5.18 | 7.5 | 2.0 | |||
| CIS/CIR100-65-315C | 2900 | 51.485.8103 | 14.323.828.6 | 92 | 66 | 32.5 | 37 | 3.6 | 270.5 | |
| 1450 | 25.742.951.4 | 7.1411.914.3 | 23 | 63 | 4.36 | 5.5 | 2.0 | |||
| CIS/CIR125-100-200 | 2900 | 120200240 | 33.355.666.7 | 50 | 81 | 33.6 | 45 | 4.5 | 216 | 150S-50 |
| 1450 | 60100120 | 16.727.833.3 | 12.5 | 76 | 4.48 | 7.5 | 2.5 | 6Sh-9 | ||
| CIS/CIR125-100-200A | 2900 | 113187225 | 31.25262.5 | 44 | 81 | 27.7 | 37 | 4.5 | 202.5 | 150S-50A |
| 1450 | 56.393.5113 | 15.72631.2 | 11 | 76 | 3.69 | 5.5 | 2.5 | 6Sh-9A | ||
| CIS/CIR125-100-200B | 2900 | 105173209 | 29.148.158.2 | 38 | 81 | 22.3 | 30 | 4.5 | 188.5 | 150S-50B |
| 1450 | 52.486.5105 | 14.624.129.1 | 9.5 | 76 | 2.98 | 4 | 2.5 | |||
| CIS/CIR125-100-250 | 2900 | 120200240 | 33.355.666.7 | 80 | 78 | 55.9 | 75 | 4.2 | 255 | 150S-78 |
| 1450 | 60100120 | 16.727.833.3 | 20 | 76 | 7.17 | 11 | 2.5 | |||
| CIS/CIR125-100-250A | 2900 | 113187225 | 31.25262.5 | 70 | 78 | 45.7 | 55 | 238.5 | ||
| 1450 | 56.393.5113 | 15.72631.2 | 17.5 | 75 | 5.87 | 7.5 | ||||
| 1250-100-250B | 2900 | 105173209 | 29.148.158.2 | 60 | 78 | 36.4 | 45 | 221 | ||
| 1450 | 52.486.5105 | 14.624.129.1 | 15 | 76 | 4.67 | 5.5 | ||||
| CIS/CIR125-100-315 | 2900 | 120200240 | 33.355.666.7 | 125 | 75 | 90.8 | 110 | 4.5 | 317 | D155-30×4 |
| 1450 | 60100120 | 16.727.833.3 | 32 | 73 | 11.9 | 15 | 2.2 | 150D-30×3 | ||
| CIS/CIR125-100-315A | 2900 | 115191229 | 31.853.163.6 | 114 | 75 | 78.9 | 90 | 302.5 | ||
| 1450 | 57.395.515 | 15.926.531.8 | 28.5 | 73 | 10.3 | 15 | ||||
| CIS/CIR125-100-315B | 2900 | 109182218 | 30.250.460.6 | 103 | 75 | 68.1 | 75 | 288 | ||
| 1450 | 54.590.8109 | 15.225.230.2 | 25.8 | 73 | 8.92 | 11 | ||||
| CIS/CIR125-100-315C | 2900 | 103172206 | 28.647.757.2 | 92 | 75 | 57.4 | 75 | 272 | ||
| 1450 | 51.485.8103 | 14.323.828.6 | 23 | 73 | 7.5 | 11 | ||||
| CIS/CIR125-100-400 | 1450 | 60100120 | 16.727.833.3 | 50 | 65 | 21 | 30 | 2.5 | 395 | |
| CIS/CIR125-100-400A | 1450 | 56.393.5113 | 15.72631.2 | 44 | 65 | 17.3 | 22 | 2.5 | 370.5 | |
| CIS/CIR125-100-400B | 1450 | 52.486.5150 | 14.62429.1 | 38 | 65 | 13.9 | 18.5 | 2.5 | 344.5 | |
| CIS/CIR150-125-250 | 1450 | 120200240 | 33.355.666.7 | 20 | 81 | 13.5 | 18.5 | 3.0 | 260 | 6BA-126B20 |
| CIS/CIR150-125-250A | 1450 | 113187225 | 31.25262.5 | 17.5 | 81 | 11.1 | 15 | 3.0 | 243.5 | 6BA-12A6B20A |
| CIS/CIR150-125-250B | 1450 | 105173209 | 29.148.158.2 | 15 | 81 | 8.75 | 11 | 3.0 | 225 | 6BA-12B6B20B |
| CIS/CIR150-125-315 | 1450 | 120200240 | 33.355.666.7 | 32 | 79 | 21.08 | 30 | 2.5 | 325 | 6BA-86B33 |
| CIS/CIR150-125-315A | 1450 | 113187225 | 31.25262.5 | 28 | 80 | 17.8 | 22 | 2.5 | 304 | 6BA-8A6B33A |
| CIS/CIR150-125-315B | 1450 | 105173209 | 29.148.158.2 | 24 | 80 | 14.2 | 18.5 | 2.5 | 281.5 | 6BA-8B6B33B |
| CIS/CIR150-125-400 | 1450 | 120200240 | 33.355.666.7 | 50 | 75 | 36.3 | 45 | 2.8 | 399.5 | |
| CIS/CIR150-125-400A | 1450 | 113187225 | 31.25262.5 | 44 | 75 | 29.9 | 37 | 2.8 | 374.5 | |
| CIS/CIR150-125-400B | 1450 | 113187225 | 31.25262.5 | 38 | 75 | 24.1 | 30 | 2.8 | 348.5 | |
| CIS/CIR200-150-250 | 1450 | 240400460 | 66.7111.1128 | 20 | 82 | 26.6 | 37 | 4.2 | 275 | 8BA-188B18 |
| CIS/CIR200-150-250A | 1450 | 225374431 | 62.5104120 | 17.5 | 82 | 21.8 | 30 | 4.2 | 257.5 | 8BA-18A8B18A |
| CIS/CIR200-150-250B | 1450 | 208346398 | 57.796.2111 | 15 | 82 | 17.2 | 22 | 4.2 | 238 | 8BA-18B8B18B |
| CIS/CIR200-150-315 | 1450 | 240400460 | 66.7111128 | 32 | 82 | 42.5 | 55 | 3.5 | 346 | 8BA-12 |
| CIS/CIR200-150-315A | 1450 | 225374431 | 62.5104120 | 28 | 82 | 35.4 | 45 | 3.5 | 325.5 | 8BA-12A |
| CIS/CIR200-150-315B | 1450 | 208346398 | 57.796.2111 | 24 | 82 | 27.9 | 37 | 301.5 | 8BA-12B | |
| CIS/CIR200-150-400 | 1450 | 240400460 | 66.7111128 | 50 | 81 | 67.2 | 90 | 3.8 | 395 | |
| CIS/CIR200-150-400A | 1450 | 225374431 | 62.5104120 | 44 | 81 | 55.5 | 75 | 3.8 | 370.5 | |
| CIS/CIR200-150-400B | 1450 | 208346398 | 57.796.2111 | 38 | 81 | 44.6 | 55 | 3.8 | 344.5 | |
CIS、CIR船用卧式离心泵安装尺寸图
CIS、CIR船用卧式离心泵安装尺寸表
| 产品型号 | 机座号 功率 | |||||||||||||||||||
| A | L1 | L2 | L3 | L4 | a | f | X | L5 | B1 | B2 | B3 | h1 | h2 | h3 | H | H1 | H2 | n-d | ||
| 50-32-125 | 80-4/0.55 | 80 | 820 | 150 | 540 | 285 | 80 | 385 | 100 | 850 | 150 | 360 | 320 | 112 | 170 | 25 | 237 | 377 | 327 | 4-ф18.5 |
| 80-2/1.1 | 310 | 875 | 115 | |||||||||||||||||
| 90S-2/1.5 | 920 | 170 | 600 | 335 | 190 | 337 | ||||||||||||||
| 90L-2/2.2 | 900 | 390 | 350 | |||||||||||||||||
| 50-32-160 | 80-4/0.55 | 80 | 820 | 150 | 540 | 285 | 80 | 385 | 100 | 850 | 150 | 360 | 320 | 132 | 170 | 25 | 257 | 417 | 347 | 4-ф18.5 |
| 90S-2/1.5 | 310 | 875 | 155 | 190 | 357 | |||||||||||||||
| 90L-2/2.2 | 920 | 170 | 600 | 335 | 900 | 390 | 350 | |||||||||||||
| 100L-2/3 | 380 | 945 | 180 | 245 | 402 | |||||||||||||||
| 50-32-200 | 80-4/0.75 | 80 | 820 | 150 | 540 | 285 | 80 | 385 | 100 | 850 | 150 | 360 | 320 | 160 | 170 | 25 | 285 | 465 | 375 | 4-ф18.5 |
| 100L-2/3 | 920 | 170 | 600 | 380 | 945 | 180 | 390 | 350 | 245 | 430 | ||||||||||
| 112M-2/4 | 400 | 965 | 190 | 265 | 438 | |||||||||||||||
| 132S-2/5.5 | 1020 | 190 | 600 | 475 | 1040 | 210 | 450 | 400 | 315 | 30 | 468 | 4-ф24 | ||||||||
| 50-32-250 | 90S-4/1.1 | 95 | 1020 | 190 | 660 | 310 | 100 | 500 | 100 | 1010 | 155 | 450 | 400 | 180 | 190 | 30 | 305 | 530 | 450 | 4-ф24 |
| 90L-4/1.5 | 335 | 1035 | 315 | 320 | 545 | 503 | ||||||||||||||
| 132S-2/2.7 | 1160 | 210 | 740 | 475 | 1175 | 310 | 490 | 440 | ||||||||||||
| 160M-2/11 | 1290 | 225 | 840 | 600 | 1300 | 255 | 540 | 490 | 385 | 340 | 565 | 565 | ||||||||
| 65-50-125 | 80-4/0.55 | 80 | 820 | 150 | 540 | 285 | 80 | 385 | 100 | 850 | 150 | 360 | 320 | 112 | 170 | 25 | 237 | 377 | 327 | 4-ф18.5 |
| 90S-2/1.5 | 310 | 875 | 155 | 190 | 337 | |||||||||||||||
| 90L-2/2.2 | 920 | 170 | 600 | 335 | 900 | 390 | 350 | |||||||||||||
| 100L-2/3 | 380 | 945 | 180 | 245 | 382 | |||||||||||||||
| 65-50-160 | 80-4/0.75 | 80 | 820 | 150 | 540 | 285 | 80 | 385 | 100 | 850 | 150 | 360 | 320 | 132 | 170 | 25 | 257 | 417 | 347 | 4-ф18.5 |
| 100L-2/3 | 920 | 170 | 600 | 380 | 945 | 180 | 390 | 350 | 245 | 402 | ||||||||||
| 112M-2/4 | 400 | 965 | 190 | 265 | 410 | |||||||||||||||
| 132S-2/5.5 | 1020 | 190 | 660 | 475 | 1040 | 210 | 450 | 400 | 315 | 30 | 440 | 4-ф24 | ||||||||
| 65-40-200 | 80-4/0.75 | 80 | 920 | 170 | 600 | 285 | 100 | 385 | 100 | 870 | 150 | 390 | 350 | 160 | 170 | 25 | 285 | 465 | 375 | 4-ф18.5 |
| 90S-4/1.1 | 310 | 895 | 155 | 190 | 385 | |||||||||||||||
| 112M-2/4 | 400 | 985 | 190 | 265 | 438 | |||||||||||||||
| 132S-2/7.5 | 1020 | 190 | 660 | 475 | 1060 | 210 | 450 | 400 | 315 | 30 | 468 | 4-ф24 | ||||||||
| 65-40-250 | 90S-4/1.1 | 95 | 1020 | 190 | 660 | 310 | 100 | 500 | 100 | 1010 | 155 | 450 | 400 | 180 | 190 | 30 | 305 | 530 | 405 | 4-ф24 |
| 90L-4/1.5 | 335 | 1035 | ||||||||||||||||||
| 100L-4/2.2 | 1160 | 210 | 740 | 380 | 1080 | 180 | 245 | 450 | ||||||||||||
| 132S-2/7.5 | 1290 | 225 | 840 | 475 | 1175 | 210 | 490 | 440 | 315 | 320 | 545 | 503 | ||||||||
| 160M-2/15 | 600 | 1300 | 255 | 540 | 490 | 285 | 340 | 656 | 565 | |||||||||||
| 65-40-315 | 100L-4/3 | 95 | 1140 | 210 | 740 | 380 | 125 | 500 | 100 | 1105 | 180 | 490 | 440 | 200 | 245 | 30 | 340 | 590 | 485 | 4-ф24 |
| 112M-4/4 | 400 | 1125 | 190 | 265 | 492 | |||||||||||||||
| 160L-2/18.5 | 1290 | 225 | 840 | 645 | 1370 | 255 | 540 | 490 | 385 | 360 | 610 | 585 | ||||||||
| 180M-2/22 | 670 | 1395 | 285 | 460 | 610 | |||||||||||||||
| 200L-2/30 | 1420 | 250 | 940 | 775 | 1500 | 310 | 610 | 550 | 475 | 380 | 630 | 655 | 4-ф28 | |||||||
| 80-65-125 | 80-4/0.75 | 80 | 820 | 150 | 540 | 285 | 100 | 385 | 100 | 870 | 150 | 360 | 320 | 132 | 170 | 40 | 257 | 417 | 347 | 4-ф18.5 |
| 100L-2/3 | 920 | 170 | 600 | 380 | 965 | 180 | 390 | 350 | 245 | 25 | 402 | |||||||||
| 112M-2/4 | 400 | 985 | 190 | 265 | 410 | |||||||||||||||
| 132S-2/5.5 | 1020 | 190 | 660 | 475 | 1060 | 210 | 450 | 400 | 315 | 30 | 440 | 4-ф24 | ||||||||
| 80-65-160 | 80-4/0.75 | 80 | 920 | 170 | 600 | 285 | 100 | 385 | 100 | 870 | 150 | 390 | 350 | 160 | 170 | 30 | 285 | 465 | 375 | 4-ф18.5 |
| 90S-4/1.1 | 310 | 895 | 155 | 190 | 385 | |||||||||||||||
| 90L-4/1.5 | 335 | 920 | ||||||||||||||||||
| 112M-2/4 | 400 | 985 | 190 | 265 | 438 | |||||||||||||||
| 132S-2/7.5 | 1020 | 190 | 660 | 475 | 1060 | 210 | 450 | 400 | 315 | 30 | 468 | 4-ф24 | ||||||||
| 80-50-200 | 90S-4/1.1 | 80 | 920 | 170 | 600 | 310 | 100 | 385 | 100 | 895 | 155 | 390 | 350 | 160 | 190 | 25 | 285 | 485 | 385 | 4-ф18.5 |
| 90L-4/1.5 | 335 | 920 | ||||||||||||||||||
| 100L-4/2.2 | 380 | 965 | 180 | 245 | 430 | |||||||||||||||
| 132S-2/7.5 | 1020 | 190 | 660 | 475 | 1060 | 210 | 450 | 400 | 315 | 468 | ||||||||||
| 160M-2/15 | 1140 | 210 | 740 | 600 | 1185 | 255 | 190 | 440 | 385 | 30 | 300 | 500 | 525 | 4-ф24 | ||||||
| 80-50-250 | 100L-4/3 | 95 | 1020 | 190 | 660 | 380 | 25 | 500 | 100 | 1102 | 180 | 450 | 400 | 180 | 245 | 30 | 305 | 530 | 450 | 4-ф24 |
| 160M-2/15 | 1290 | 225 | 840 | 600 | 1325 | 255 | 540 | 490 | 385 | 340 | 565 | 565 | ||||||||
| 160L-2/18.5 | 615 | 1370 | ||||||||||||||||||
| 180M-2/22 | 670 | 1395 | 285 | 430 | 590 | |||||||||||||||
| 80-50-315 | 112M-4/4 | 95 | 1140 | 210 | 740 | 400 | 125 | 500 | 100 | 1125 | 190 | 490 | 440 | 225 | 265 | 30 | 365 | 645 | 518 | 4-ф24 |
| 132S-4/5.5 | 1160 | 475 | 1200 | 210 | 315 | 548 | ||||||||||||||
| 180M-2/22 | 1290 | 225 | 840 | 670 | 1395 | 285 | 540 | 490 | 430 | 385 | 665 | 635 | ||||||||
| 200L-2/37 | 1420 | 250 | 940 | 775 | 1500 | 310 | 610 | 550 | 475 | 40 | 405 | 685 | 680 | 4-ф28 | ||||||
| 100-80-125 | 80-4/0.75 | 95 | 920 | 170 | 600 | 280 | 100 | 385 | 100 | 870 | 150 | 390 | 350 | 160 | 170 | 25 | 285 | 465 | 375 | 4-ф18.5 |
| 90S-4/1.1 | 310 | 895 | 155 | 190 | 385 | |||||||||||||||
| 90L-4/1.5 | 335 | 920 | ||||||||||||||||||
| 132S-4/7.5 | 1020 | 190 | 660 | 475 | 1060 | 210 | 450 | 400 | 315 | 30 | 468 | 4-ф24 | ||||||||
| 160M-2/11 | 1140 | 210 | 740 | 600 | 1185 | 255 | 490 | 440 | 385 | 300 | 480 | 525 | ||||||||
| 100-80-160 | 90L-4/1.5 | 95 | 1020 | 190 | 660 | 335 | 100 | 500 | 100 | 1035 | 155 | 450 | 400 | 160 | 190 | 30 | 285 | 485 | 385 | 4-ф24 |
| 100L-2/2.2 | 380 | 1080 | 180 | 245 | 430 | |||||||||||||||
| 160M-2/15 | 1290 | 225 | 840 | 600 | 1300 | 255 | 540 | 490 | 385 | 320 | 520 | 545 | ||||||||
| 100-65-200 | 100L-4/3 | 95 | 1140 | 210 | 740 | 380 | 100 | 500 | 140 | 1120 | 180 | 490 | 440 | 180 | 245 | 30 | 320 | 545 | 465 | 4-ф24 |
| 112M-4/4 | 400 | 1140 | 190 | 265 | 473 | |||||||||||||||
| 160M-2/15 | 1290 | 225 | 840 | 600 | 1340 | 225 | 540 | 490 | 385 | 340 | 565 | 565 | ||||||||
| 160L-2/18.5 | 645 | 1385 | ||||||||||||||||||
| 180M-2/22 | 670 | 1410 | 285 | 430 | 590 | |||||||||||||||
| 100-65-250 | 100L-4/3 | 110 | 1140 | 210 | 740 | 380 | 125 | 500 | 140 | 1145 | 180 | 490 | 440 | 200 | 245 | 30 | 340 | 590 | 485 | 4-ф24 |
| 112M-4/4 | 400 | 1165 | 190 | 265 | 493 | |||||||||||||||
| 132S-4/5.5 | 1160 | 475 | 1240 | 210 | 315 | 523 | ||||||||||||||
| 180M-2/22 | 1290 | 225 | 840 | 670 | 1435 | 285 | 540 | 490 | 430 | 360 | 610 | 610 | ||||||||
| 200L-2/37 | 1420 | 250 | 940 | 775 | 1540 | 310 | 610 | 550 | 475 | 40 | 380 | 630 | 655 | 4-ф28 | ||||||
| 100-65-315 | 132S-4/5.5 | 110 | 1270 | 225 | 840 | 475 | 125 | 530 | 140 | 1270 | 210 | 540 | 490 | 225 | 315 | 30 | 385 | 665 | 568 | 4-ф24 |
| 132S-4/7.5 | 515 | 1310 | ||||||||||||||||||
| 160M-4/11 | 600 | 1395 | 255 | 385 | 610 | |||||||||||||||
| 200L-2/37 | 1420 | 250 | 940 | 775 | 1570 | 310 | 610 | 550 | 475 | 40 | 405 | 685 | 680 | 4-ф28 | ||||||
| 225M-2/45 | 1620 | 290 | 1060 | 815 | 1610 | 345 | 660 | 600 | 530 | 425 | 705 | 730 | ||||||||
| 250M-2/55 | 930 | 1725 | 385 | 575 | 750 | |||||||||||||||
| 280S-2/75 | 1820 | 320 | 1200 | 1000 | 1795 | 410 | 730 | 670 | 640 | 785 | ||||||||||
| 125-100-200 | 112M-4/4 | 110 | 1140 | 210 | 740 | 400 | 125 | 500 | 140 | 1165 | 190 | 490 | 440 | 200 | 265 | 30 | 340 | 620 | 493 | 4-ф24 |
| 132S-4/5.5 | 1160 | 475 | 1240 | 201 | 315 | 523 | ||||||||||||||
| 132S-4/7.5 | 515 | 1280 | ||||||||||||||||||
| 180M-2/22 | 1290 | 225 | 840 | 670 | 1435 | 285 | 540 | 490 | 430 | 360 | 640 | 610 | ||||||||
| 200L-2/37 | 1420 | 250 | 940 | 775 | 1540 | 130 | 610 | 550 | 475 | 40 | 380 | 660 | 655 | 4-ф28 | ||||||
| 225M-2/45 | 815 | 1580 | 345 | 530 | 685 | |||||||||||||||
| 125-100-250 | 132S-4/5.5 | 110 | 1270 | 225 | 840 | 475 | 140 | 530 | 140 | 1285 | 210 | 540 | 490 | 225 | 315 | 30 | 385 | 665 | 568 | 4-ф24 |
| 132M-4/7.5 | 515 | 1325 | ||||||||||||||||||
| 160M-4/11 | 600 | 1410 | 255 | 385 | 610 | |||||||||||||||
| 200L-2/37 | 1420 | 250 | 940 | 775 | 1585 | 310 | 610 | 550 | 475 | 40 | 405 | 685 | 680 | 4-ф28 | ||||||
| 225M-2/45 | 1620 | 290 | 1060 | 875 | 1625 | 345 | 600 | 600 | 530 | 425 | 705 | 730 | ||||||||
| 225M-2/55 | 930 | 1740 | 385 | 575 | 750 | |||||||||||||||
| 280S-2/75 | 1820 | 320 | 1200 | 1000 | 1810 | 410 | 730 | 670 | 640 | 785 | ||||||||||
| 125-100-315 | 160M-4/11 | 110 | 1270 | 225 | 840 | 600 | 140 | 530 | 140 | 1410 | 255 | 540 | 490 | 250 | 385 | 30 | 410 | 725 | 635 | 4-ф24 |
| 160L-4/15 | 1420 | 250 | 940 | 645 | 1455 | 610 | 550 | 40 | 430 | 745 | 655 | 4-ф28 | ||||||||
| 280S-2/75 | 1820 | 320 | 600 | 1000 | 1810 | 410 | 730 | 670 | 640 | 450 | 765 | 810 | ||||||||
| 280M-2/90 | 1020 | 1860 | ||||||||||||||||||
| 315S-2/110 | 1190 | 2000 | 460 | 800 | 740 | 760 | 895 | |||||||||||||
| 125-100-400 | 160L-4/15 | 130 | 1620 | 290 | 1060 | 645 | 140 | 530 | 140 | 1455 | 255 | 660 | 600 | 280 | 385 | 40 | 480 | 835 | 705 | 4-ф28 |
| 180M-4/18.5 | 670 | 1480 | 285 | 430 | 730 | |||||||||||||||
| 180L-4/22 | 710 | 1520 | ||||||||||||||||||
| 200L-4/30 | 775 | 1585 | 310 | 475 | 755 | |||||||||||||||
| 150-125-250 | 160M-4/11 | 110 | 1270 | 225 | 840 | 600 | 140 | 530 | 140 | 1410 | 255 | 540 | 490 | 250 | 385 | 30 | 410 | 765 | 635 | 4-ф24 |
| 160L-4/15 | 1420 | 250 | 940 | 645 | 1455 | 610 | 550 | 40 | 430 | 785 | 635 | 4-ф28 | ||||||||
| 180M-4/18.5 | 670 | 1480 | 285 | 430 | 680 | |||||||||||||||
| 150-125-315 | 180M-4/18.5 | 130 | 1620 | 290 | 1060 | 670 | 140 | 530 | 140 | 1480 | 285 | 660 | 600 | 280 | 430 | 40 | 480 | 835 | 730 | 4-ф28 |
| 180L-4/22 | 710 | 1520 | ||||||||||||||||||
| 200L-4/30 | 775 | 1585 | 310 | 475 | 755 | |||||||||||||||
| 150-125-400 | 200L-4/30 | 130 | 1620 | 290 | 1060 | 775 | 140 | 530 | 140 | 1580 | 310 | 660 | 600 | 315 | 475 | 40 | 515 | 915 | 790 | 4-ф28 |
| 225S-4/37 | 820 | 1630 | 345 | 530 | 820 | |||||||||||||||
| 225M-4/45 | 845 | 1655 | ||||||||||||||||||
| 200-150-250 | 180L-4/22 | 130 | 1620 | 290 | 1060 | 710 | 160 | 530 | 180 | 1580 | 285 | 660 | 600 | 280 | 430 | 40 | 480 | 855 | 730 | 4-ф28 |
| 200L-4/30 | 775 | 1645 | 310 | 475 | 755 | |||||||||||||||
| 225M-4/37 | 820 | 1890 | 345 | 530 | 785 | |||||||||||||||
| 200-150-315 | 200L-4/30 | 130 | 18200 | 320 | 1200 | 775 | 160 | 670 | 180 | 1785 | 310 | 730 | 670 | 315 | 475 | 40 | 515 | 915 | 790 | 4-ф28 |
| 225S-4/37 | 820 | 1830 | 345 | 530 | 820 | |||||||||||||||
| 225M-4/45 | 745 | 1855 | ||||||||||||||||||
| 250M-4/55 | 930 | 1940 | 385 | 575 | 840 | |||||||||||||||
| 200-150-400 | 225N-4/45 | 130 | 1840 | 320 | 1200 | 845 | 160 | 670 | 180 | 1855 | 345 | 730 | 670 | 315 | 530 | 40 | 515 | 965 | 820 | 4-ф28 |
| 250M-4/55 | 930 | 1490 | 385 | 575 | 840 | |||||||||||||||
| 280S-4/75 | 1000 | 2010 | 410 | 640 | 875 | |||||||||||||||
| 280M-4/90 | 1050 | 2060 |
联系我们
- 全国销售热线：
+86 21 5640 2009 - 水泵客服电话：
+86 138 1691 3072 - 阀门客服电话：
+86 1381 6913 072 - 企业电子邮箱：
my1pv@1bengfa.com
企业微信
COPYRIGHT © 上海美言壹泵阀有限公司 主营：水泵、阀门
沪ICP备09010762号
